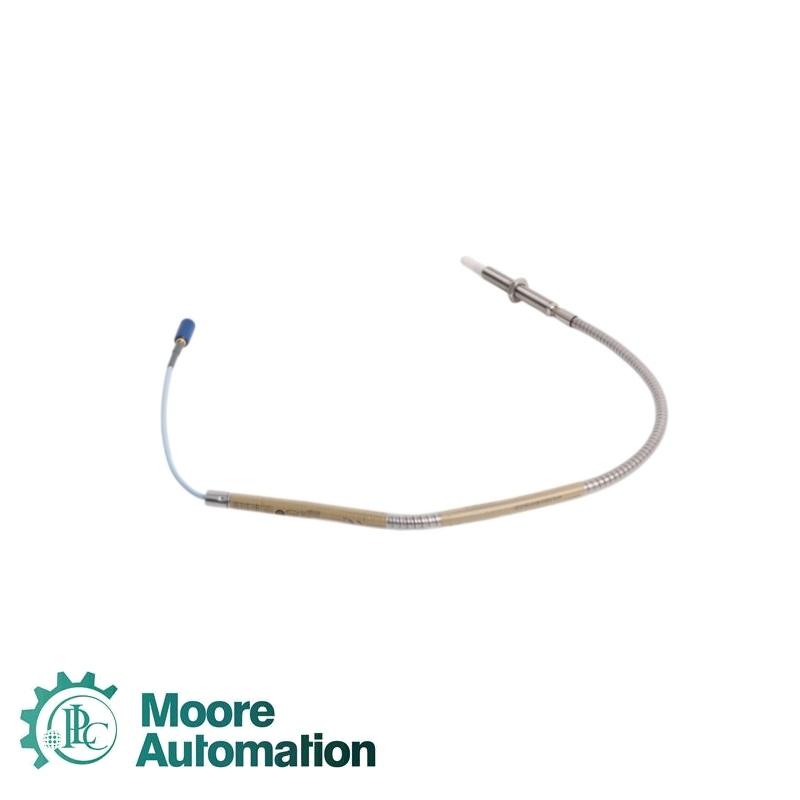

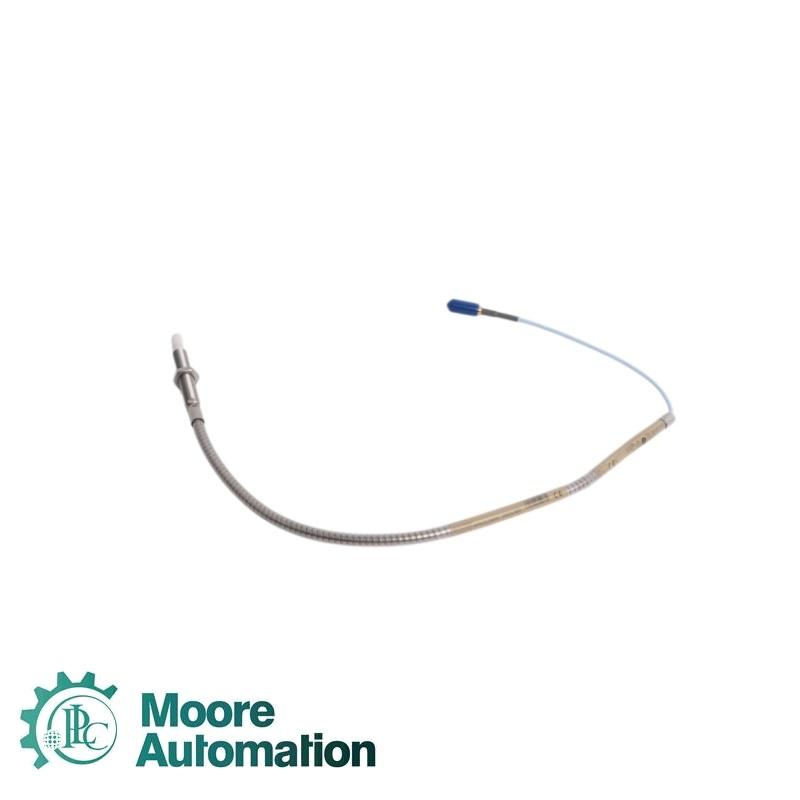

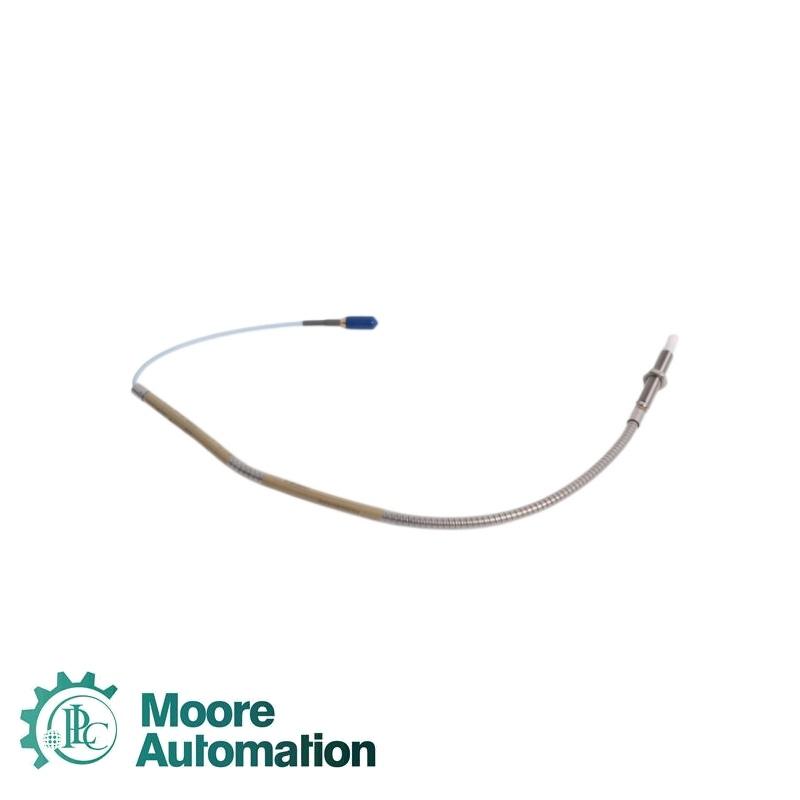

Bently Nevada 330910-00-07-05-02-05 3300 XL NSv Proximity Probe

Bently Nevada 330910-00-07-05-02-05 3300 XL NSv Proximity Probe

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

Order(MOQ):
1
Payment:
T/T
Product Origin:
UK
Color:
Brand New
Shipping Port:
Xiamen
Warranty:
1 Year
Product Origin:
UK
Lead Time:
3-5 Days

Product Detail

Specifications

The Bently Nevada 330910-00-07-05-02-05 is an armored 3300 XL NSv proximity probe with an M10 × 1 case thread. The official ordering code defines 0 mm unthreaded length, a 70 mm overall case length, a 0.5 m probe cable, a miniature coaxial ClickLoc connector without a connector protector, and the multiple-approval option. It is intended for compact eddy-current measurement installations with tight counterbore, side-view or rear-view limits.

Product typeArmored proximity probe

Product series3300 XL NSv

Case threadM10 × 1

Unthreaded length0 mm

Overall case length70 mm

Probe cable length0.5 m

Total probe length0.5 m

Cable construction75 Ω coaxial, FEP insulated

Cable armorFlexible stainless steel

ConnectorMiniature coaxial ClickLoc

Connector protectorNot included

Approval optionMultiple approvals

Probe dc resistance4.0 ± 0.5 Ω

Linear range1.5 mm (60 mil)

Recommended gap1.0 mm (40 mil)

Average scale factor7.87 V/mm (200 mV/mil)

Frequency response0 to 10 kHz, +0/-3 dB

Minimum flat target8.9 mm (0.35 in)

Recommended flat target13 mm (0.5 in)

Minimum bend radius25.4 mm (1.0 in)

Probe operating temperature-52 to +177 °C

Probe case materialAISI 304 stainless steel

Application Industry

Compact compressor installationsMeasures radial vibration where side-view and rear-view clearances are restricted.

Small-shaft machinerySupports non-contacting measurements on smaller shaft and target areas.

Thrust-position monitoringMeasures axial displacement on flat targets within the specified system range.

Speed and phase referenceProvides tachometer, zero-speed or phase-reference signals in a matched transducer loop.

FAQ

Which extension cable and sensor should be paired with 330910-00-07-05-02-05?

Use components from the same NSv transducer family and select the extension cable so the complete system length matches the monitor installation.

What mounting thread is required for 330910-00-07-05-02-05?

Prepare a metric M10 × 1 threaded mounting location and keep thread engagement within the published limit for this case size.

How should the armored lead of 330910-00-07-05-02-05 be routed?

Maintain at least the specified bend radius, secure the armor without crushing it, and keep the connector free from tensile loading.

Does 330910-00-07-05-02-05 include a connector protector?

No. The selected connector option uses the miniature coaxial locking connector without the protector, so add approved protection where liquids may reach the joint.

What should be checked before installing 330910-00-07-05-02-05 in a hazardous area?

Verify the approval marking on the label, follow the applicable installation drawing, and use the required barriers or isolators for the complete loop.
