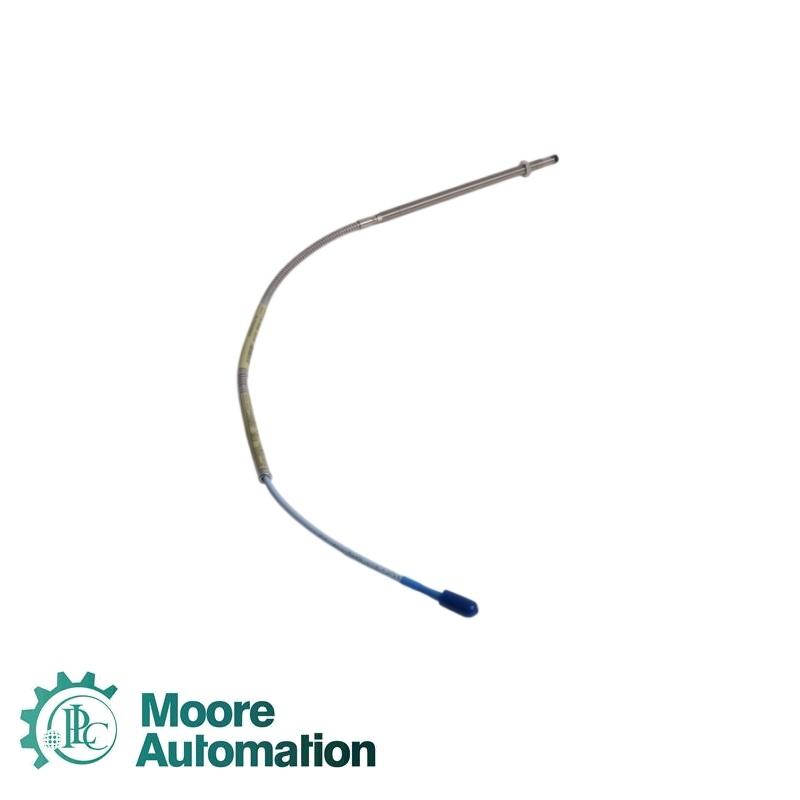

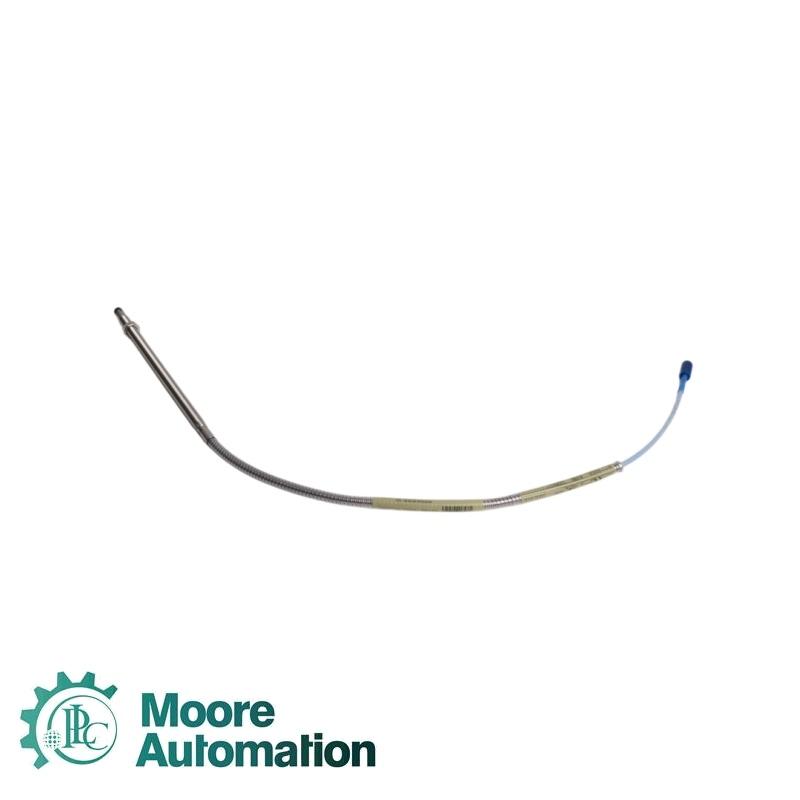

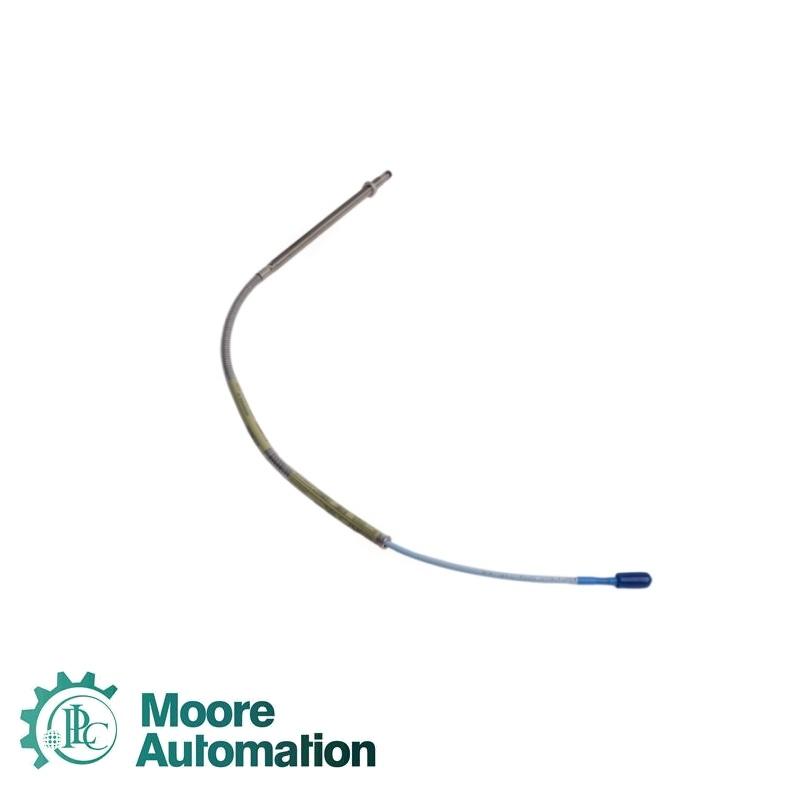

 Bently Nevada 330102-04-25-10-02-00 3300 XL 8 mm Proximity Probe
Bently Nevada 330102-04-25-10-02-00 3300 XL 8 mm Proximity Probe Bently Nevada 330102-04-25-10-02-00 3300 XL 8 mm Proximity Probe Bently Nevada 330102-04-25-10-02-00 3300 XL 8 mm Proximity Probe

Bently Nevada 330102-04-25-10-02-00 3300 XL 8 mm Proximity Probe

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

  • Order(MOQ):

    1

  • Payment:

    T/T

  • Product Origin:

    UK

  • Color:

    Brand New

  • Shipping Port:

    Xiamen

  • Warranty:

    1 Year

  • Product Origin:

    UK

  • Lead Time:

    3-5 Days
Contact Us

  • Product Detail

Specifications
The Bently Nevada 330102-04-25-10-02-00 is an armored 3300 XL 8 mm proximity probe with a 3/8-24 UNF case thread. Its official ordering code specifies a 0.4 in unthreaded length, 2.5 in overall case length, 1.0 m total length, standard cable, a miniature coaxial ClickLoc connector without a protector and no agency-approval option.
Product typeArmored proximity probe
Product series3300 XL 8 mm
Case thread3/8-24 UNF
Unthreaded length0.4 in (10.2 mm)
Overall case length2.5 in (63.5 mm)
Total length1.0 m (3.3 ft)
Cable construction75 Ω coaxial, FEP insulated
Cable armorFlexible stainless steel
ConnectorMiniature coaxial ClickLoc
Connector protectorNot included
Agency approval optionNone
Linear range2.0 mm (80 mil)
Recommended gap1.27 mm (50 mil)
Gap voltage-9 Vdc
Frequency response0 to 10 kHz, +0/-3 dB
Minimum flat target15.2 mm (0.6 in)
Minimum shaft diameter50.8 mm (2.0 in)
Recommended shaft diameter76.2 mm (3.0 in)
Minimum bend radius25.4 mm (1.0 in)
Probe operating temperature-52 to +177 °C
Probe tip materialPolyphenylene sulfide
Probe case materialAISI 303 or 304 stainless steel
Application Industry
01
Fluid-film bearing machineryMeasures shaft-relative radial vibration on rotating equipment.
02
Axial displacement systemsMonitors thrust position with a matched extension cable and sensor.
03
Phase-reference pickupProvides a Keyphasor or rotational speed signal from a suitable target.
04
Existing probe replacementMatches installations requiring an armored imperial-thread probe with a short case.
FAQ
What mounting hole is required for 330102-04-25-10-02-00?
Use a 3/8-24 UNF threaded hole and observe the published engagement and tightening limits for the probe case.
How is the 1.0 m length of 330102-04-25-10-02-00 used in system selection?
Add the probe and extension-cable lengths and choose the matching sensor calibrated for the resulting complete transducer length.
Does 330102-04-25-10-02-00 carry a hazardous-area approval option?
The selected ordering code specifies no agency approval, so it must not be substituted where an approved configuration is required.
How should the armor on 330102-04-25-10-02-00 be handled during installation?
Keep the lead above the minimum bend radius, avoid twisting the armor and provide strain relief near the connector.
What target size is suitable for gapping 330102-04-25-10-02-00?
Use a flat target at least the published minimum diameter and maintain the recommended larger shaft diameter where practical for stable scale factor.
