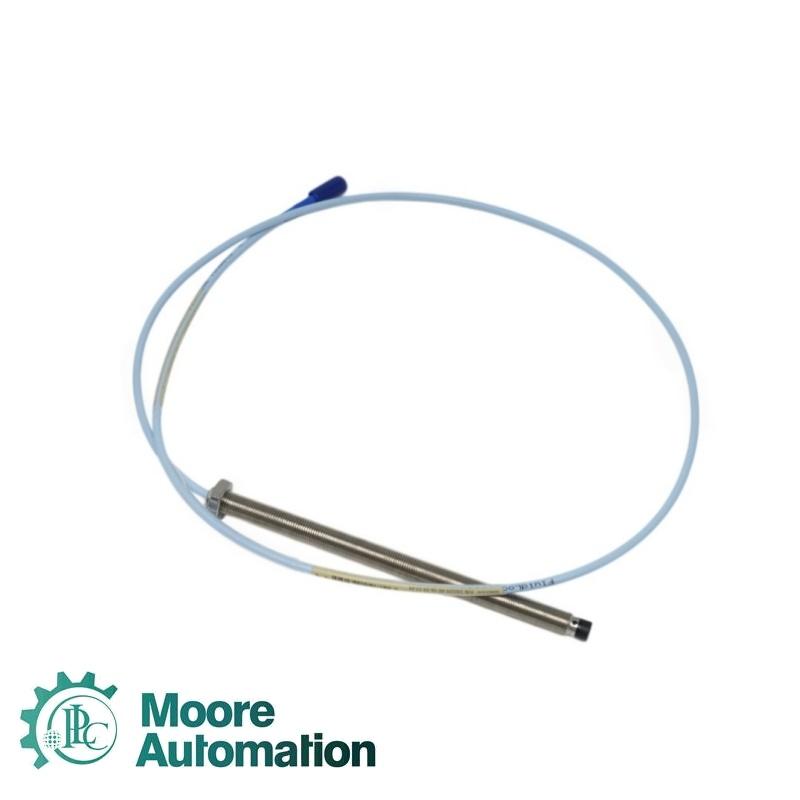

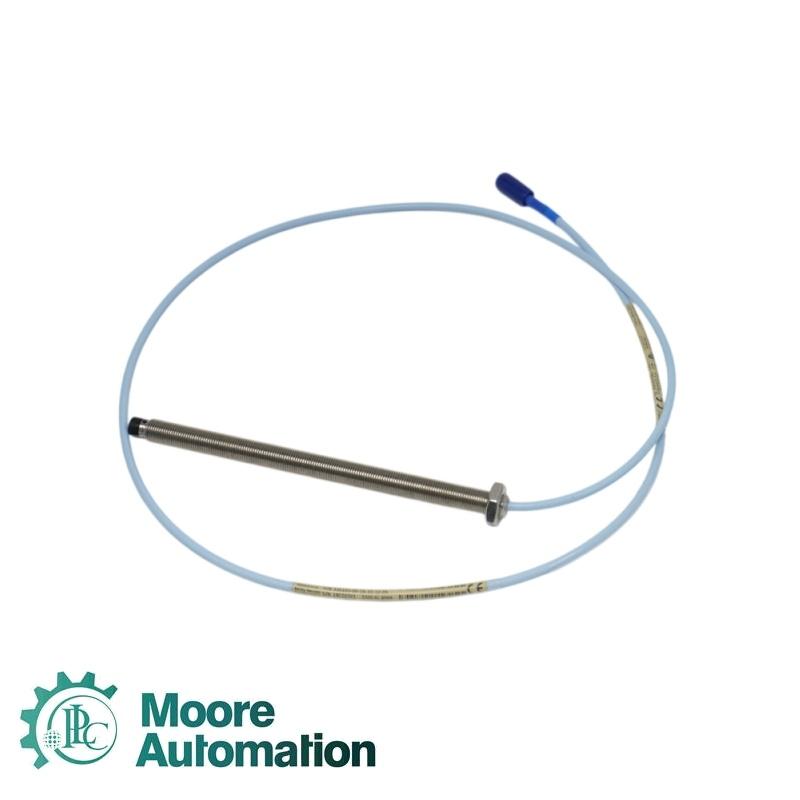

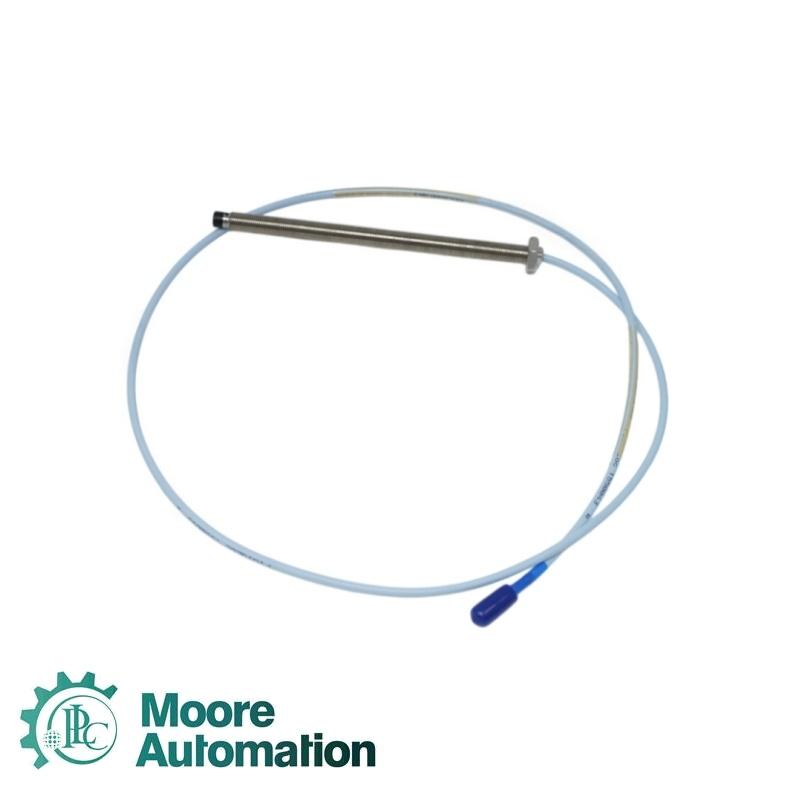

Bently Nevada 330103-00-16-05-02-05 3300 XL 8 mm Probe

Bently Nevada 330103-00-16-05-02-05 3300 XL 8 mm Proximity Probe

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

Order(MOQ):
1
Payment:
T/T
Product Origin:
UK
Color:
Brand New
Shipping Port:
Xiamen
Warranty:
1 Year
Product Origin:
UK
Lead Time:
3-5 Days

Product Detail

Specifications

The Bently Nevada 330103-00-16-05-02-05 is a 3300 XL 8 mm proximity probe with an M10 x 1 case thread and no armor. The order code specifies 0 mm unthreaded length, 160 mm overall case length, 0.5 m total length, a miniature coaxial ClickLoc connector without a protector, and CSA, ATEX and IECEx approval options. It is used as part of a compatible proximity-transducer system for non-contact vibration and position measurements on rotating machinery.

Product type3300 XL 8 mm proximity probe

Base model330103

Mount styleStandard mount

Case threadM10 x 1

ArmorWithout armor

Unthreaded length0 mm

Overall case length160 mm

Total probe length0.5 m (1.6 ft)

Cable typeStandard cable

ConnectorMiniature coaxial ClickLoc

Connector protectorNot included

Agency approval optionCSA, ATEX, IECEx

Probe tip diameter8.0 mm (0.31 in)

Probe cable impedance75 Ω

Cable outer diameter, maximum3.68 mm (0.145 in)

Nominal probe DC resistance7.45 ± 0.50 Ω

Standard probe temperature-52 to +177 °C (-62 to +350 °F)

Linear range (system)2 mm (80 mil)

Recommended radial gap (system)Approx. 1.27 mm (50 mil), -9 Vdc

Frequency response (system)0 to 10 kHz, +0/-3 dB

Application Industry

Radial vibration monitoringMeasures dynamic vibration on fluid-film bearing machines with a compatible proximity-transducer system.

Axial position measurementSupports static shaft-position and displacement measurements where the machine arrangement permits.

Keyphasor and speed referenceProvides a non-contact reference signal for phase and rotational-speed applications.

Rotating machinery protectionFits condition-monitoring installations built with compatible 8 mm system components.

FAQ

Which extension cable and sensor system should be used with 330103-00-16-05-02-05?

Use compatible 8 mm extension-cable and Proximitor-sensor components, and make the combined probe-plus-extension length match the selected sensor system length.

What mounting dimensions must be checked for 330103-00-16-05-02-05?

Verify an M10 x 1 threaded mounting location, a 160 mm overall case length, and zero unthreaded length against the machine drawing.

What cable and connector configuration is supplied with 330103-00-16-05-02-05?

The probe has a 0.5 m standard cable and a miniature coaxial ClickLoc connector without a connector protector.

Which approvals are included with 330103-00-16-05-02-05?

The selected approval option covers CSA, ATEX and IECEx. The complete installed system and wiring must follow the applicable approval documentation.

How should probe spacing be checked when installing 330103-00-16-05-02-05?

For low cross-talk, maintain at least 40 mm tip separation for axial-position installations or 38 mm for radial-vibration installations, subject to the machine geometry and official installation guidance.
