Brief description |

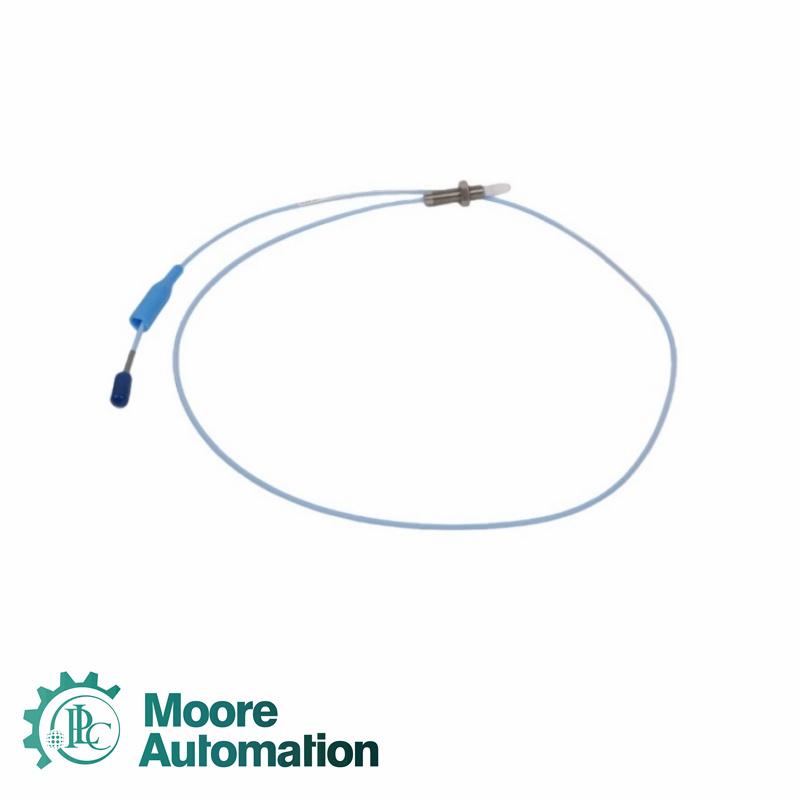

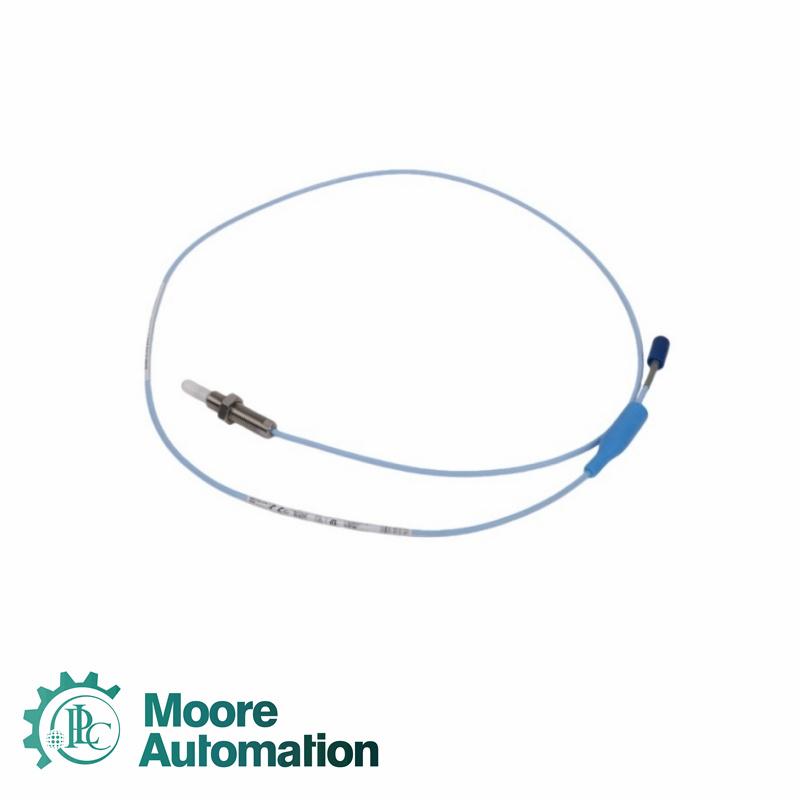

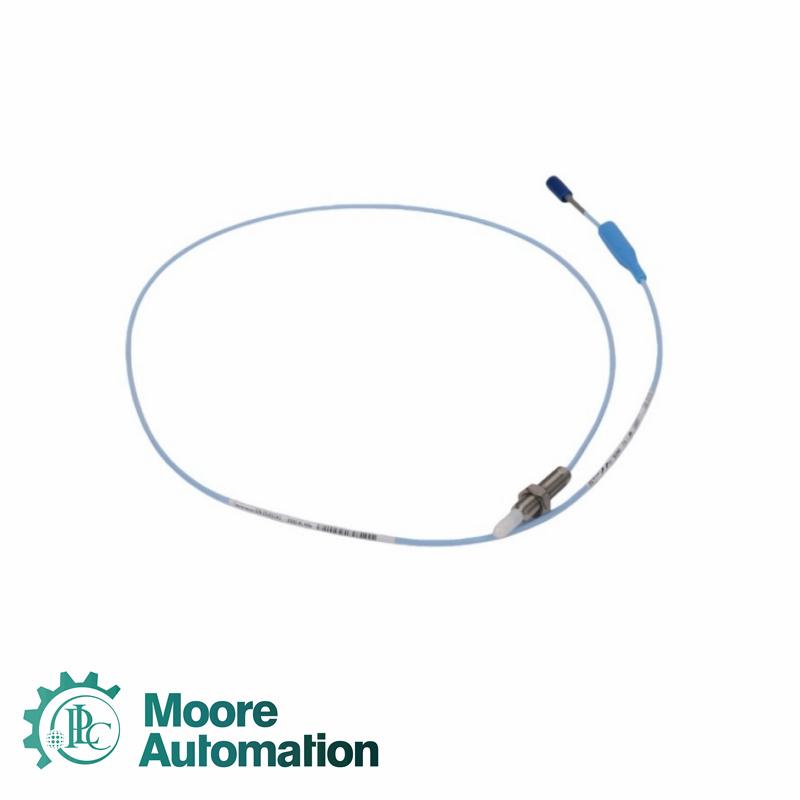

The 3300 XL NSv Proximity Transducer system is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements. The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems.
|
Technical parameters |
|
|
Dimension |
1.5 × 1.3 × 115 cm |
|
Weight |
0.05 kg |
|
Unthreaded Length Option |
0.0 in |
|
Overall Case Length Option |
1.5 in |
|
Cable Length Option |
1.0 meter (39 in) |
|
Connector and Cable Option |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option |
Multiple Approvals |
|
Probe Case Thread |
3/8-24 UNF thread |
|
Maximum Length of Thread Engagement |
0.563 in |
|
Probe Temperature Range |
-52°C to +177°C (-62°F to +351°F) |
|
Storage Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
Probe Tip Material |
Polyphenylene sulfide (PPS) |
|
Probe Case Material |
AISI 304 stainless steel (SST) |
|
Field Wiring |
0.2 to 1.5 mm² (16 to 24 AWG); 0.25 to 0.75 mm² (18 to 23 AWG) with ferrules |
|
Linear Range |
1.5 mm (60 mils) |
|
Recommended Gap Setting |
1.0 mm (40 mils) |
|
Output Resistance |
50 Ω |
|
Supply Sensitivity |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Contact me for a big surprise！ |
Email: sales3@askplc.com
Mobile(WhatsApp): 86-18150117685
John Yang is 24 hours online for you
|
Trust moore--Trustworthy global supplier |
Over the years, we have grown into a trusted global supplier with operations centers in Xiamen, China and Hong Kong, China. Our business spans the globe, with most of our valued customers located in the Middle East, Europe, the UK, Asia, and the USA.
|
Application |
Air Compressor Plants: Monitor centrifugal compressor shaft vibration and radial displacement.
Refrigeration Equipment Plants: Monitor high-speed compressor shafts.
Industrial Gas Plants: Monitor compressor bearing vibration.
Precision Fluid Machinery Plants: Monitor fluid film bearing speed and phase.
Power Machinery Plants: Monitor high-speed rotor stability and displacement.
|
FAQ |
Q: What is the probe temperature range of 330908-00-15-10-02-05?
A: The temperature range is -52°C to +177°C.
Q: What is the linear range of 330908-00-15-10-02-05?
A: The linear range is 1.5 mm (60 mils).
Q: What is the output resistance of 330908-00-15-10-02-05?
A: The output resistance is 50 Ω.
Q: What is the probe head material of 330908-00-15-10-02-05?
A: It uses polyphenylene sulfide (PPS) material.
Q: What wire size does the field wiring of 330908-00-15-10-02-05 support?
A: It supports 0.2 to 1.5 mm² [0.25 to 0.75 mm² with crimp terminals].
|
