Brief description |

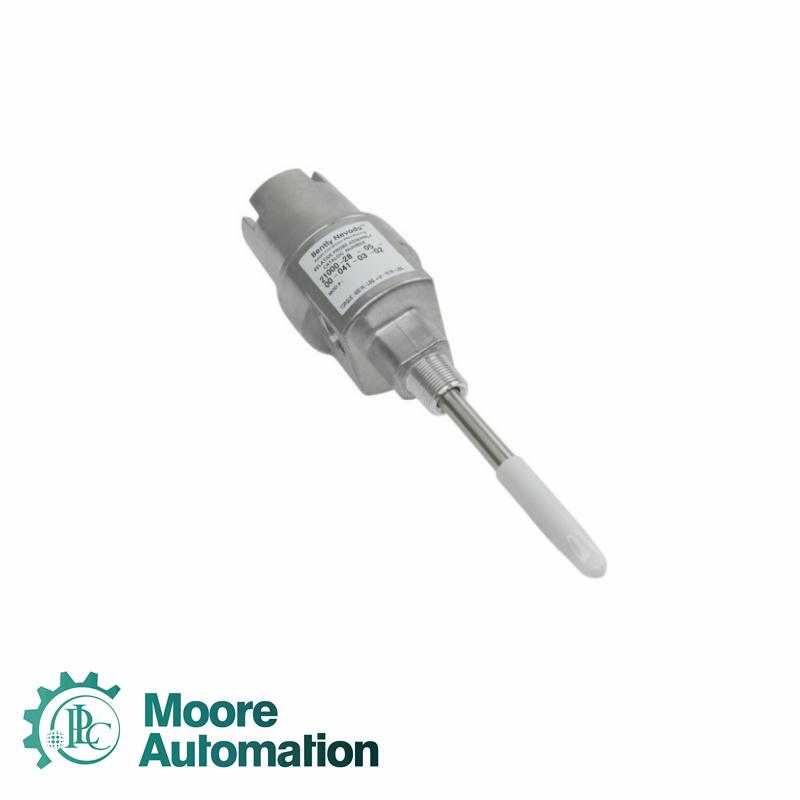

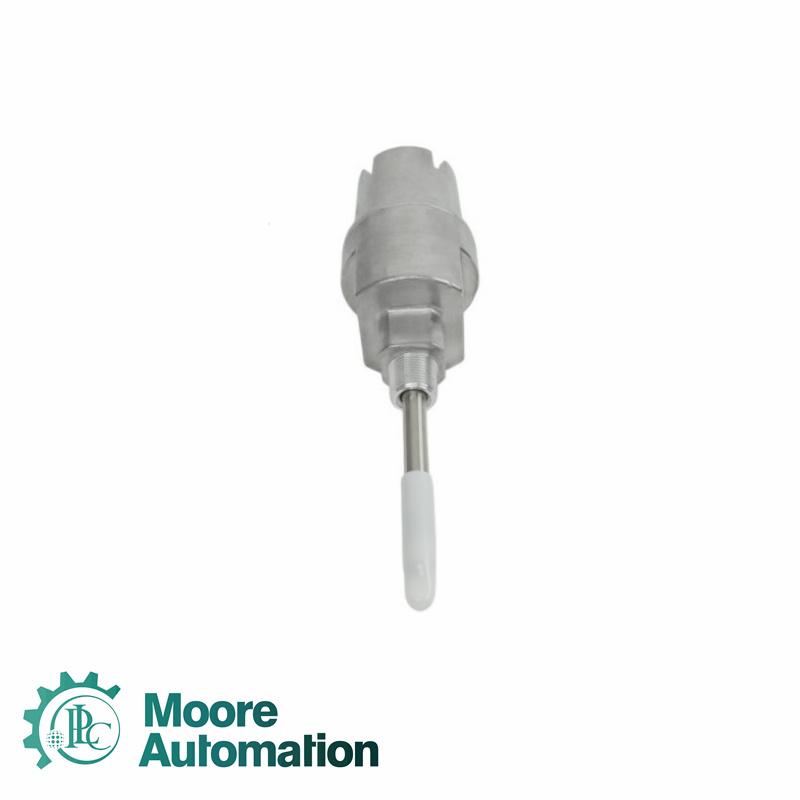

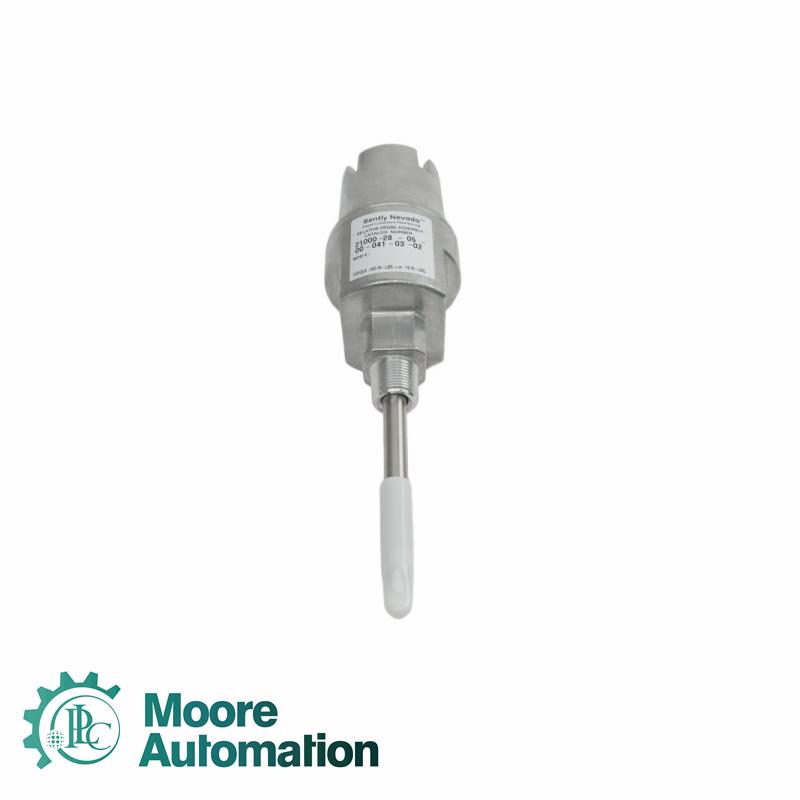

To externally mount proximity probes, use one of these all-metal Proximity Probe Housing Assemblies: 21000 aluminum probe housing assembly, 24701 stainless steel probe housing assembly .The 21000, 24701, and 164818 Proximity Probe Housing Assemblies consist of the following parts: A dome cover that screws into the body of the housing; Threaded ports for conduit connections; A probe sleeve of optional length; O-rings; A reverse mount proximity probe；A thread seal; Optional conduit fittings; An optional standoff adapter.
|
Technical parameters |
|
|
Dimension |
30.5 × 8.5 × 8.5 cm |
|
Weight |
1.05 kg |
|
Probe with Connector |
Probe not required |
|
Probe Cable Length |
Probe cable not required |
|
Standoff Adapter (Option C Dimension) |
1.5 in |
|
Probe Penetration (Option D Dimension) |
22.6 in |
|
Fittings |
One 3/4-14 NPT plug; one 3/4-14 to 1/2-14 NPT reducer; one cable seal grip with grommets for the following cable sizes: 1/8 to 3/16 inches, 1/4 to 5/16 inches, 5/16 to 3/8 inches |
|
Mounting Thread |
3/4-14 NPT |
|
Material |
Aluminum body with 304 stainless steel sleeve |
|
Mass (Weight) |
1.1 kg (2.4 lb) typical, without fittings |
|
Contact me for a big surprise！ |
Email: sales3@askplc.com
Mobile(WhatsApp): 86-18150117685
John Yang is 24 hours online for you
|
Trust moore--Trustworthy global supplier |
Over the years, we have grown into a trusted global supplier with operations centers in Xiamen, China and Hong Kong, China. Our business spans the globe, with most of our valued customers located in the Middle East, Europe, the UK, Asia, and the USA.
|
Application |
Thermal Power Plants: Monitor turbine and generator shaft vibration and displacement.
Hydroelectric Power Plants: Monitor hydro generator shaft runout and swing.
Petrochemical Plants: Monitor compressor and blower shafts.
Steel Plants: Monitor blast furnace blowers and gearbox shaft position.
Large Pump Stations: Monitor heavy-duty pump rotor radial displacement.
|
FAQ |
Q: What probe and cable length are used for 21000-00-00-15-226-03-02?
A: This model does not require a probe and does not require a probe cable.
Q: What is the bracket adapter length of 21000-00-00-15-226-03-02?
A: The length dimension is 1.5 inches.
Q: What is the probe insertion depth of 21000-00-00-15-226-03-02?
A: The insertion depth dimension is 22.6 inches.
Q: What cable size gaskets are supported by the cable sealing gland included with 21000-00-00-15-226-03-02?
A: It supports 1/8 to 3/16 inch, 1/4 to 5/16 inch, and 5/16 to 3/8 inch cable sizes.
Q: What is the typical weight of 21000-00-00-15-226-03-02 without the gland?
A: The typical weight is 1.1 kg (2.4 lb).
|
