Brief description |

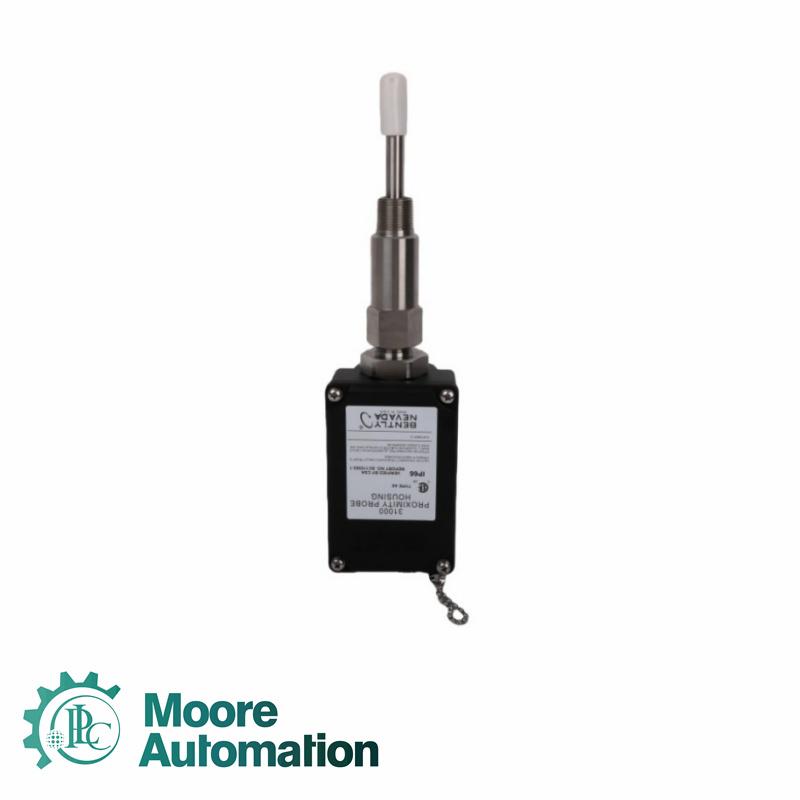

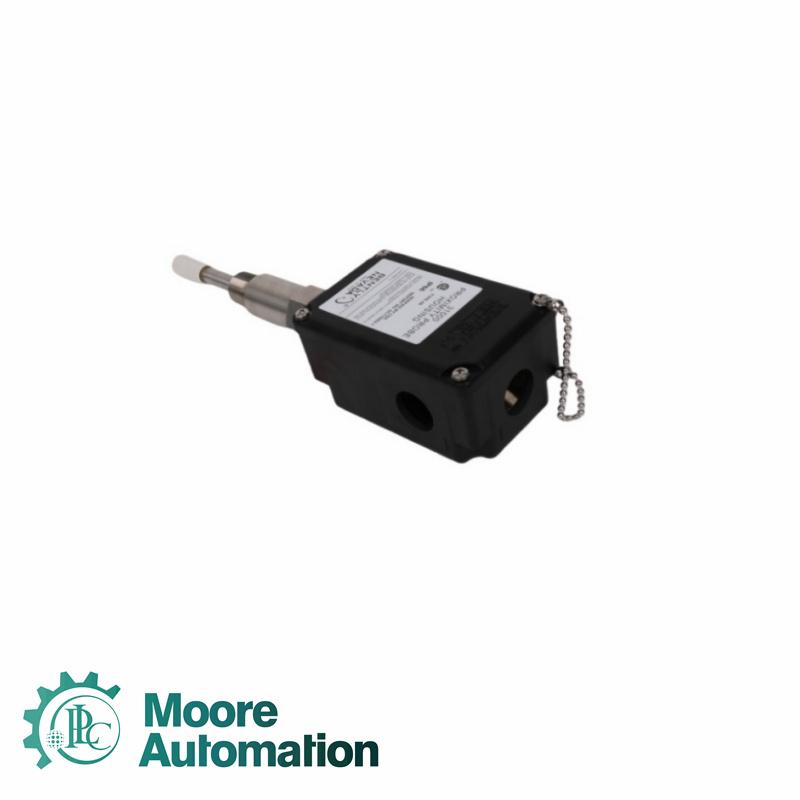

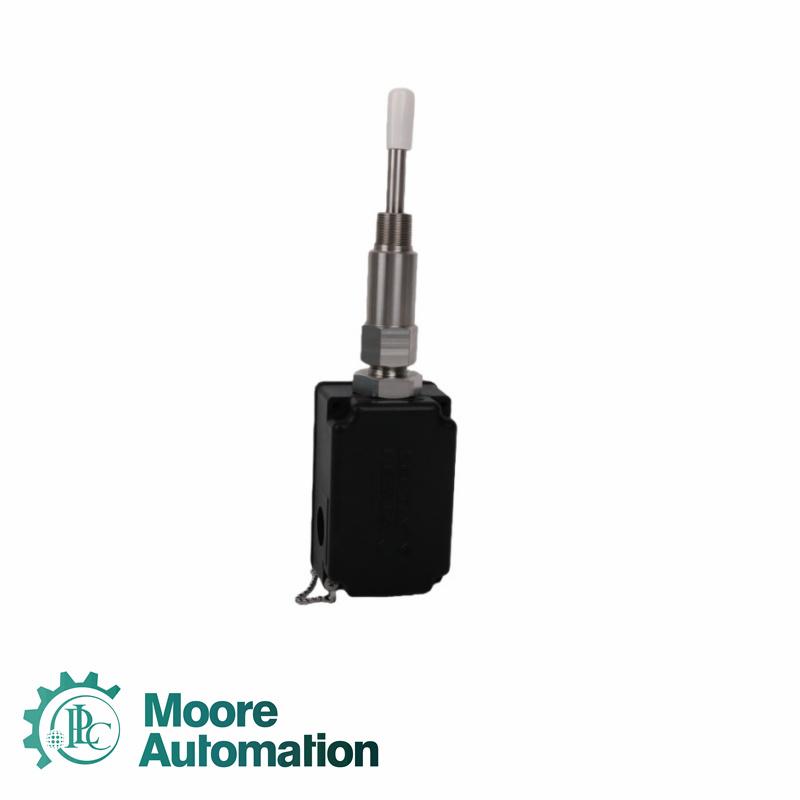

The 31000/32000 Proximity Probe Housing Assemblies are recommended when mounting proximity probes through the machine case and are typically used for radially mounted transducers, whether vibration or Keyphasor measurements. Use of a Proximity probe housing allows external access to the proximity probe and its extension cable, permitting gap adjustment or probe replacement without disassembly of the machine.
|
Technical parameters |
|
|
Dimension |
37 × 9 × 8 cm |
|
Weight |
1.5 kg |
|
Probe with Connector |
3300 XL 8 mm probe, multiple approvals |
|
Probe Cable Length |
0.5 m (20 in) |
|
Standoff Adapter Length (Option C Dimension) |
4.0 in |
|
Probe Penetration Option (Option D Dimension) |
4.0 in |
|
Fittings |
Two 3/4-14 NPT fittings, one plug |
|
Mounting Thread Option |
3/4-14 NPT (Required if ordering Standoff Adapter Option) |
|
Protection Ratings |
Type 4X rating certified by Canadian Standards Association (CSA) |
|
Housing Material |
Glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic containing conductive fibers |
|
Sleeve Material and Retaining Chain |
AISI 304 stainless steel |
|
Outer Sleeve and Exterior Screws |
AISI 303 stainless steel |
|
O-Ring Material |
Neoprene |
|
Recommended Torque (Retaining Nut) |
29.4 N·m (260 in·lb) |
|
Housing Strength (Typical) |
Outer sleeve was mounted on a test stand with its axis parallel to horizontal and the housing mounted on the outer sleeve through an end hole |
|
Housing Impact Strength |
Certified by BASEEFA to withstand two separate 4 Joule (3.0 ft·lb) impacts at -39°C (-38°F) and at 115°C (239°F) |
|
Contact me for a big surprise！ |
Email: sales3@askplc.com
Mobile(WhatsApp): 86-18150117685
John Yang is 24 hours online for you
|
Trust moore--Trustworthy global supplier |
Over the years, we have grown into a trusted global supplier with operations centers in Xiamen, China and Hong Kong, China. Our business spans the globe, with most of our valued customers located in the Middle East, Europe, the UK, Asia, and the USA.
|
Application |
Thermal Power Plants: Monitor generator shaft radial vibration and axial displacement.
Hydroelectric Power Plants: Monitor main shaft swing, speed, and low-frequency vibration.
Petrochemical Plants: Monitor refinery compressors and cracking gas blowers.
Combined Cycle Power Plants: Monitor gas and steam turbine bearings.
Offshore Oil Platforms: Monitor gas injection and oil transfer pumps.
|
FAQ |
Q: What protection rating certification is used for 31000-28-05-40-040-02-02?
A: It is certified by the Canadian Standards Association (CSA) with Type 4X rating.
Q: What material is used for the housing of 31000-28-05-40-040-02-02?
A: It uses thermoplastic material made of glass-reinforced polyphenylene sulfide (PPS) containing conductive fibers.
Q: What material is used for the O-ring of 31000-28-05-40-040-02-02?
A: It uses chloroprene rubber.
Q: What is the recommended torque for the fixing nut of 31000-28-05-40-040-02-02?
A: The recommended torque is 29.4 N·m (260 in·lb).
Q: What is the impact strength of the housing of 31000-28-05-40-040-02-02?
A: It is BASEEFA certified and can withstand two independent 4 Joule impacts at -39°C and 115°C.
|
