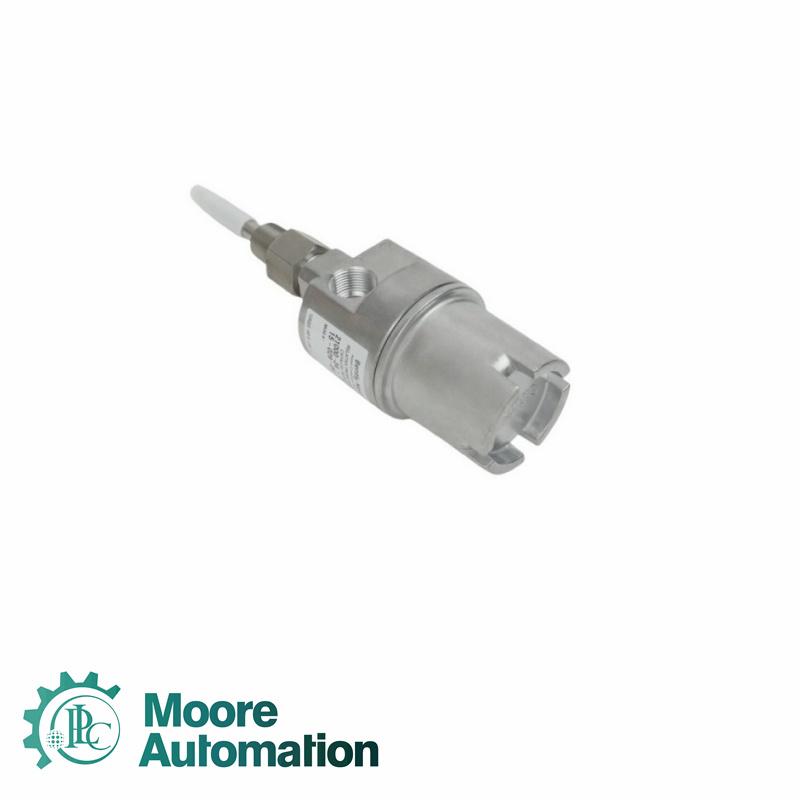

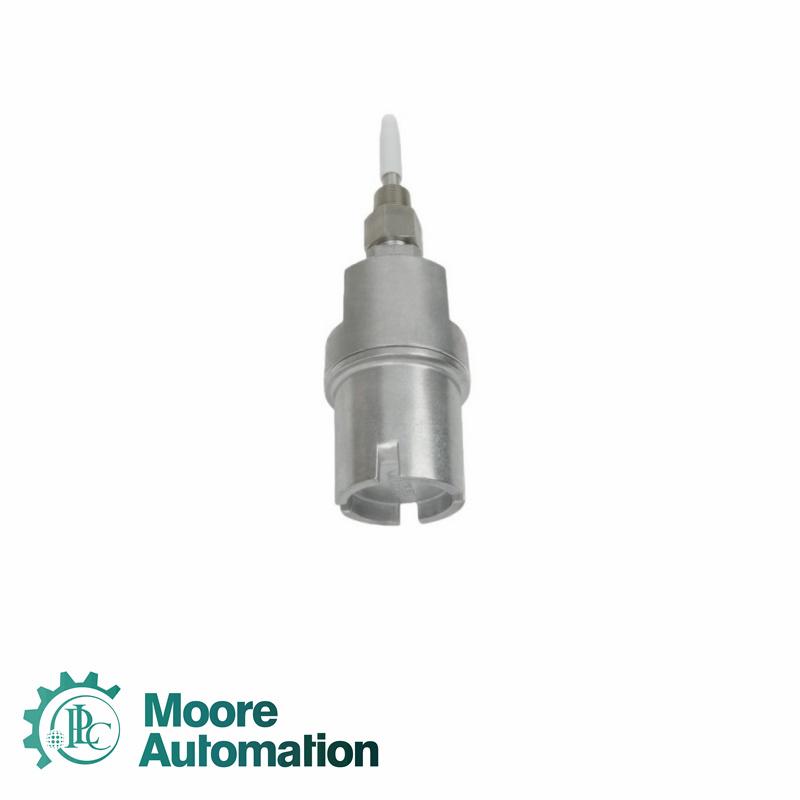

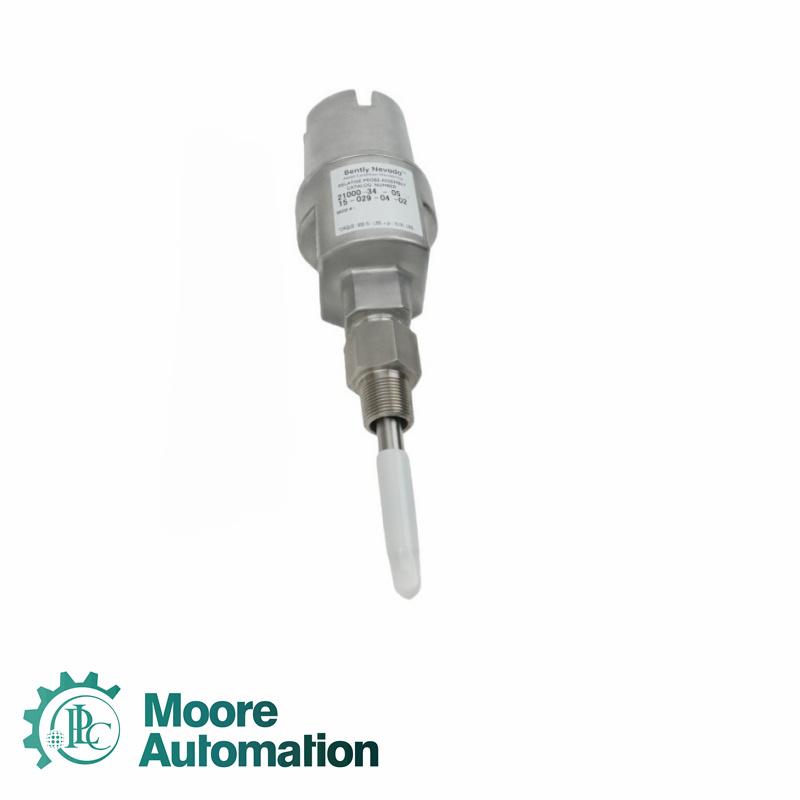

Bently Nevada 21000-34-10-00-054-04-02 Proximity Probe Housing Assemblies

Bently Nevada 21000-34-10-00-054-04-02 Proximity Probe Housing Assemblies

100% Original New
1 Year Warranty
Competitive Pice
Email: sales3@askplc.com

Brand:
Bently Nevada
Order(MOQ):
1
Payment:
T/T
Product Origin:
USA
Color:
Brand New
Shipping Port:
Xiamen
Lead Time：
in stock

Product Detail

⭐⭐⭐⭐⭐Customer support & services
You want	Moore Provide
100% brand new	Original Factory Seal
Warranty	12 months
Package	Original packing with cartons.
Payment Term	100% TT In Advance
Service	Worldwide & 24 hours

Product Overview

To externally mount proximity probes, use one of these all-metal Proximity Probe Housing Assemblies: 21000 aluminum probe housing assembly, 24701 stainless steel probe housing assembly .The 21000, 24701, and 164818 Proximity Probe Housing Assemblies consist of the following parts: A dome cover that screws into the body of the housing； Threaded ports for conduit connections； A probe sleeve of optional length； O-rings ；A reverse mount proximity probe； A thread seal； Optional conduit fittings； An optional standoff adapter. The 21000, 24701, and 164818 Proximity Probe Housing Assemblies are available with Canadian Standards Association (CSA) approvals.

Call John Yang For Assistance

✉ Email: sales3@askplc.com ☏ Mobile(WhatsApp): 86-18150117685

Detailed Specifications

Parameter	Value
Probe with Connector	3300 XL 8 mm probe with connector protector, selectable hazardous area approvals
Probe Cable Length	1.0 m (39 in)
Standoff Adapter Option (C Dimension)	No standoff adapter
Probe Penetration (D Dimension)	5.4 in
Fittings	1 × 3/4-14 NPT plug only
Mounting Thread	3/4-14 NPT
Dimensions	31 x 8.5 x 8.5 cm
Weight	1.2 kg
Material	Aluminum body with 304 stainless steel sleeve
Mass (Typical, without fittings)	1.1 kg (2.4 lb)

Moore upholds the following values: We help keep global production running smoothly!

<<Global footprint>>

<<Integrity in business>>

<<Rapid response>>

<<High-quality products and highly competitive prices.>>

FAQ of 21000-34-10-00-054-04-02

Q: What type of probe is included with the 21000-34-10-00-054-04-02?
A: This assembly includes a 3300 XL 8 mm probe with a 1.0-meter probe cable.

Q: What is the penetration depth of the 21000-34-10-00-054-04-02?
A: The probe penetration depth is 5.4 inches.

Q: Does the 21000-34-10-00-054-04-02 include a standoff adapter?
A: This version does not include a standoff adapter.

Q: What mounting thread does the 21000-34-10-00-054-04-02 use?
A: This assembly uses a 3/4-14 NPT mounting thread.

Q: What is the weight and material of the 21000-34-10-00-054-04-02?
A: The assembly uses aluminum and 304 stainless steel, with a weight of approximately 1.1 kg (2.4 lb).

Application

Fertilizer plants: Protect vibration monitoring points of ammonia synthesis tower pump units in corrosive gas environments, preventing sleeve corrosion.

Nuclear power plants: Deployed on circulating water pumps and auxiliary rotating machinery, meeting the physical protection standards for high-reliability instrument circuits.

Large oil refineries: Provide robust explosion-proof enclosures for displacement sensors of critical units in explosion-proof areas with stringent explosion-proof requirements.

Mining and mineral processing plants: Used for bearing monitoring in large ball mills or crushers, protecting against splashed slurry and dust.
