Brief description |

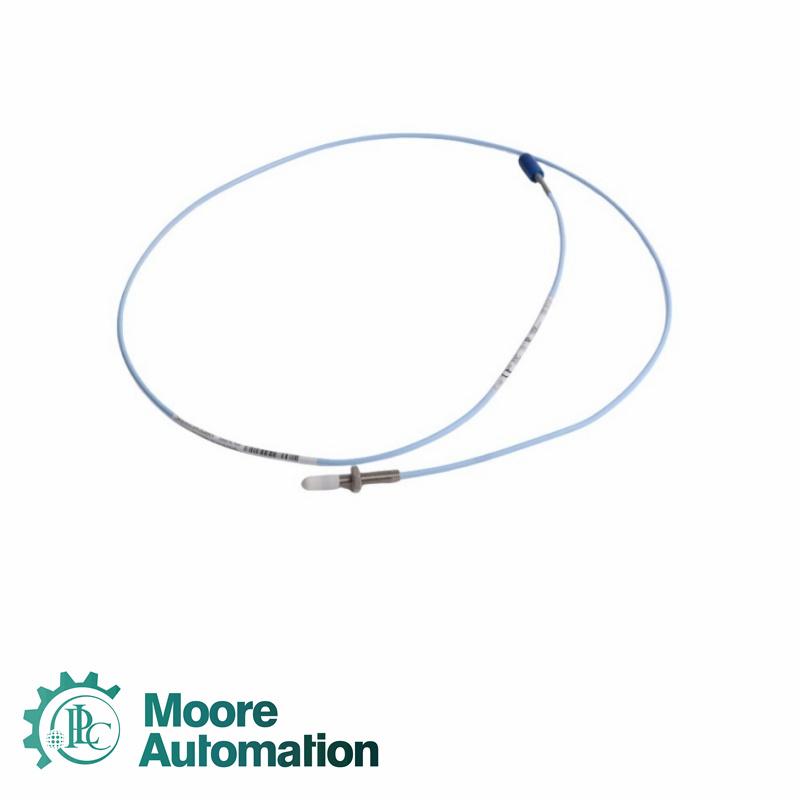

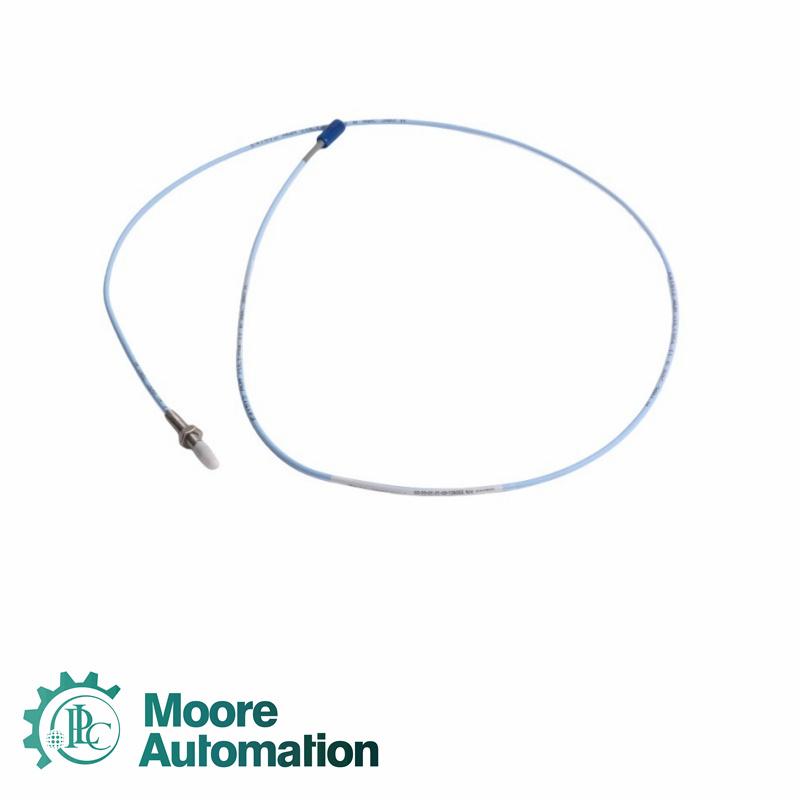

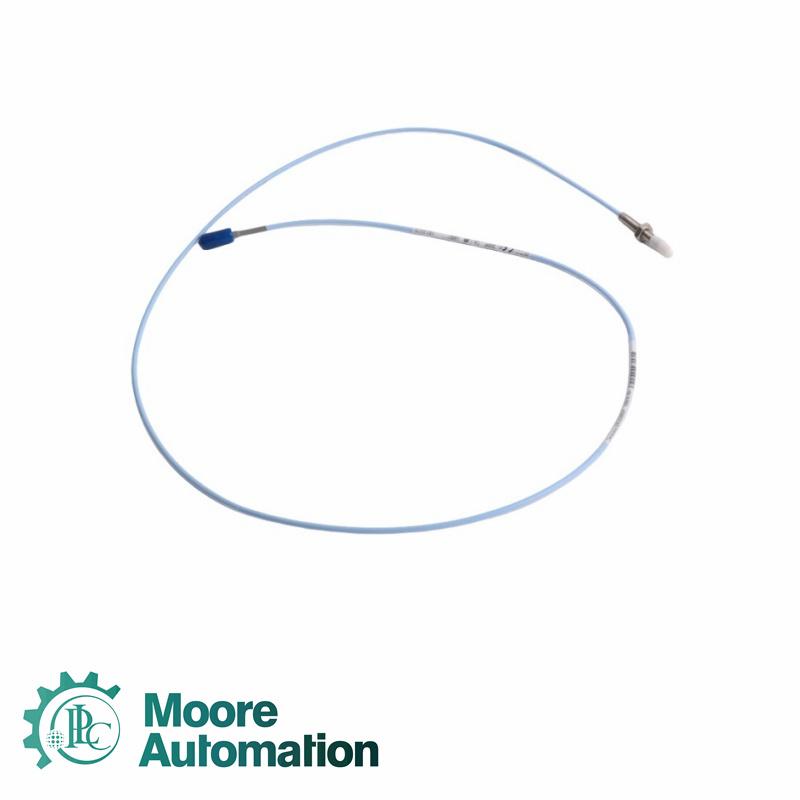

The 3300 XL NSv Proximity Transducer system is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements. The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems.
|
Technical parameters |
|
|
Unthreaded Length Option |
0.0 in |
|
Overall Case Length Option |
1.4 in |
|
Cable Length Option |
1.0 meter (39 in) |
|
Connector and Cable Option |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option |
Not required |
|
Probe Case Thread |
1/4-28 UNF thread |
|
Maximum Length of Thread Engagement |
0.375 in |
|
Probe Temperature Range |
-52°C to +177°C (-62°F to +351°F) |
|
Storage Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
Probe Tip Material |
Polyphenylene sulfide (PPS) |
|
Probe Case Material |
AISI 304 stainless steel (SST) |
|
Field Wiring |
0.2 to 1.5 mm² (16 to 24 AWG); 0.25 to 0.75 mm² (18 to 23 AWG) with ferrules |
|
Linear Range |
1.5 mm (60 mils) |
|
Recommended Gap Setting |
1.0 mm (40 mils) |
|
Output Resistance |
50 Ω |
|
Supply Sensitivity |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Contact me for a big surprise！ |
Email: sales3@askplc.com
Mobile(WhatsApp): 86-18150117685
John Yang is 24 hours online for you
|
Trust moore--Trustworthy global supplier |
Over the years, we have grown into a trusted global supplier with operations centers in Xiamen, China and Hong Kong, China. Our business spans the globe, with most of our valued customers located in the Middle East, Europe, the UK, Asia, and the USA.
|
Application |
Air Compressor Plants: Measure compact compressor shaft vibration and keyphasor signals.
Refrigeration Plants: Monitor compressor shaft displacement and oil film vibration.
Precision Chemical Plants: Monitor restricted shaft displacement of compressors and pumps.
Gas Turbine Plants: Monitor small turbine shaft speed and vibration.
Blower Manufacturing Plants: Measure shaft clearance in compact bearing housings.
|
FAQ |
Q: What is the overall housing length of 330901-00-14-10-02-00?
A: The overall housing length dimension is 1.4 inches.
Q: What is the unthreaded length of 330901-00-14-10-02-00?
A: The unthreaded length dimension is 0.0 inches.
Q: What is the cable length of 330901-00-14-10-02-00?
A: The cable length is 1.0 meters (39 inches).
Q: What connector specification is used for 330901-00-14-10-02-00?
A: It uses a Miniature coaxial ClickLoc connector.
Q: What material is used for the housing body of 330901-00-14-10-02-00?
A: It uses AISI 304 stainless steel material.
|
