Brief description |

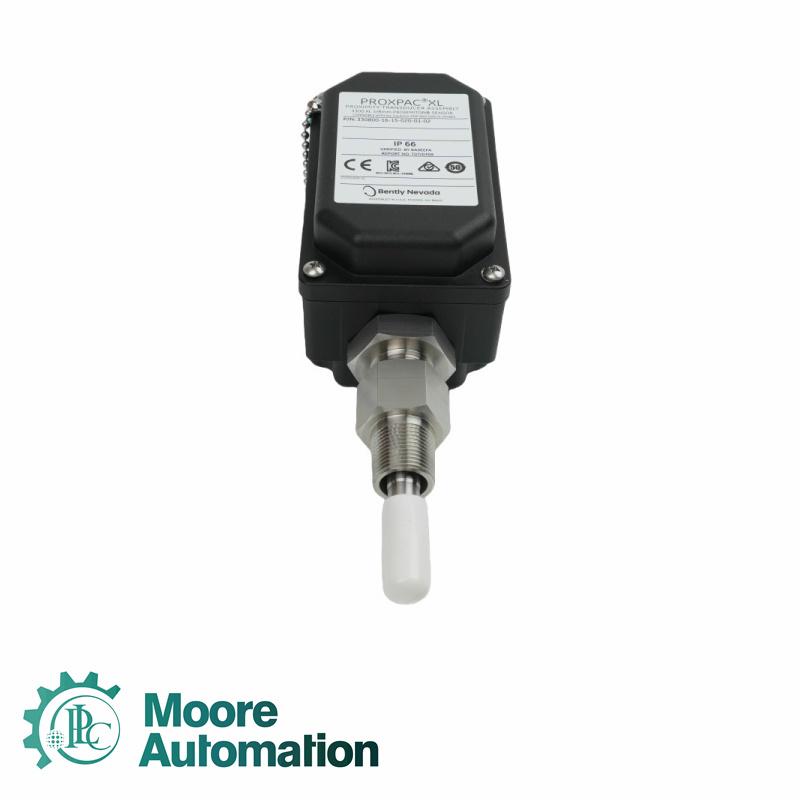

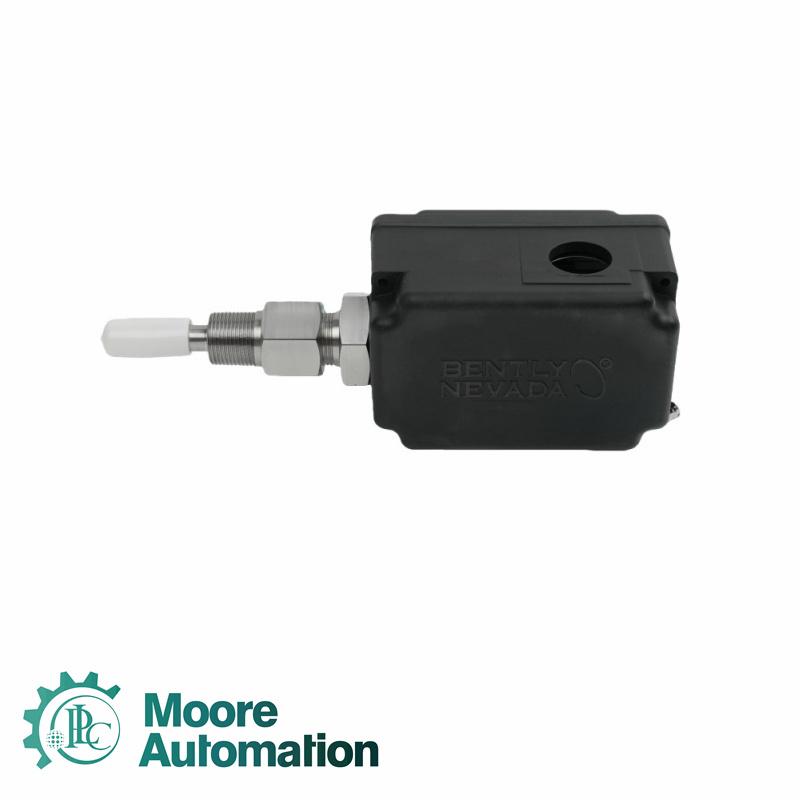

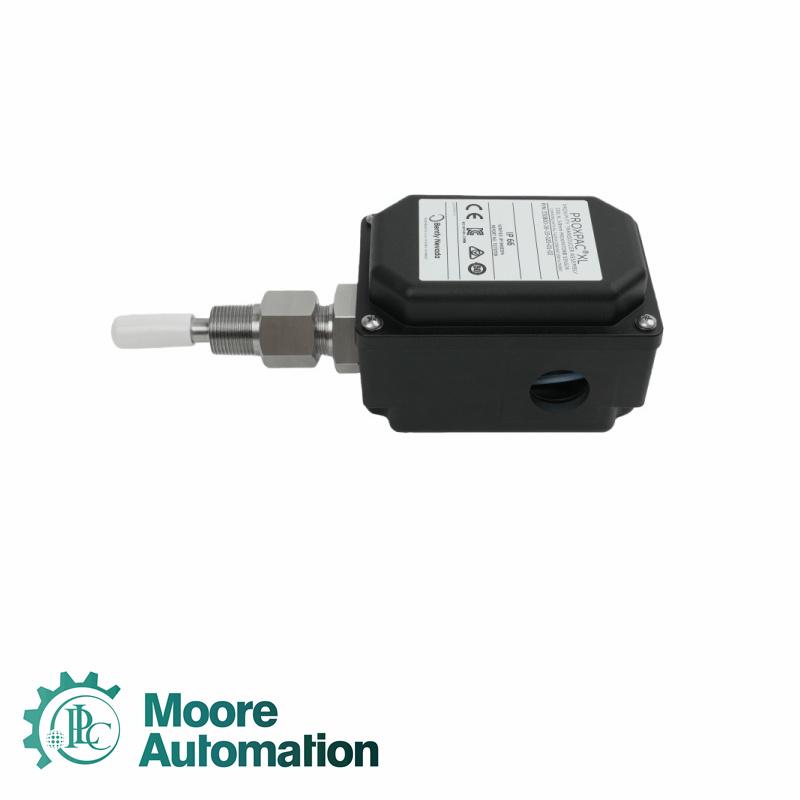

The design of the PROXPAC XL Proximity Transducer Assembly is similar to our 31000/32000 Proximity Probe Housing Assemblies. The assembly offers the same advantages and features as the 31000 and 32000 housings for accessing and externally adjusting proximity probes. However, the housing cover of the PROXPAC XL Assembly also contains its own 3300 XL Proximitor sensor.
|
Technical parameters |
|
|
Probe and Approvals Option |
3300 XL 8 mm probe without approvals |
|
Standoff Adapter Option (B Dimension) |
No standoff adapter |
|
Probe Penetration Option (C Dimension) |
2.1 in |
|
Fittings Option (Supplied as a Kit) |
One 3/4-14 NPT fitting, one 3/4-14 NPT to 1/2-14 NPT SST reducer and two plugs |
|
Mounting Thread Option |
3/4-14 NPT (required if ordering Standoff Adapter Option) |
|
Operating Temperature |
-52°C to +100°C (-62°F to +212°F) |
|
Proxpac Storage Temperature |
-52°C to +105°C (-62°F to +221°F) |
|
Relative Humidity (PROXPAC XL Sensor and Probe) |
100% condensing, non-submersible when connectors are protected. When properly sealed, moisture should not enter the housing |
|
Retaining Nut Torque |
29.5 N·m (260 in·lb) |
|
Probe Sleeve Locknut Torque |
39.3 N·m (350 in·lb) |
|
Housing Strength |
Outer sleeve mounted on a test stand with its axis parallel to horizontal; housing mounted on the outer sleeve through an end hole |
|
Housing Rating |
IP66 (verified by BASEEFA report number T07/0709) |
|
Grounding Liner and Retaining Plate Material |
AISI 304 Stainless Steel |
|
Vibration Isolation Material |
Extra Soft Cellular Silicone |
|
Lid Label Material |
Gloss Radiant White Polyester |
|
Recommended Gap Setting |
1.27 mm (50 mils) |
|
Supply Sensitivity |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance |
50 Ω |
|
Minimum Shaft Diameter |
50.8 mm (2.0 in) |
|
Contact me for a big surprise！ |
Email: sales3@askplc.com
Mobile(WhatsApp): 86-18150117685
John Yang is 24 hours online for you
|
Trust moore--Trustworthy global supplier |
Over the years, we have grown into a trusted global supplier with operations centers in Xiamen, China and Hong Kong, China. Our business spans the globe, with most of our valued customers located in the Middle East, Europe, the UK, Asia, and the USA.
|
Application |
Chemical Plants: Measure compressor shaft vibration in corrosive environments.
Power Plants: Monitor turbine bearing displacement and keyphasor signals.
Oil Refining Plants: Protect FCC shaft monitoring in harsh outdoor conditions.
Steel Plants: Measure blower shaft vibration in dusty areas.
Paper Plants: Monitor gearbox shafts in humid environments.
|
FAQ |
Q: What certification specification is used for 330880-16-00-021-03-02?
A: This model uses a 3300 XL 8 mm probe without certification.
Q: What is the probe insertion depth of 330880-16-00-021-03-02?
A: The insertion depth dimension is 2.1 inches.
Q: What is the recommended gap setting of 330880-16-00-021-03-02?
A: The recommended gap setting is 1.27 mm (50 mils).
Q: What is the minimum shaft diameter requirement for the measured shaft of 330880-16-00-021-03-02?
A: The minimum shaft diameter of the measured shaft is 50.8 mm (2.0 inches) [recommended shaft diameter is 76.2 mm].
Q: What is the housing protection rating of 330880-16-00-021-03-02?
A: The protection rating is IP66.
|
