Brief description |

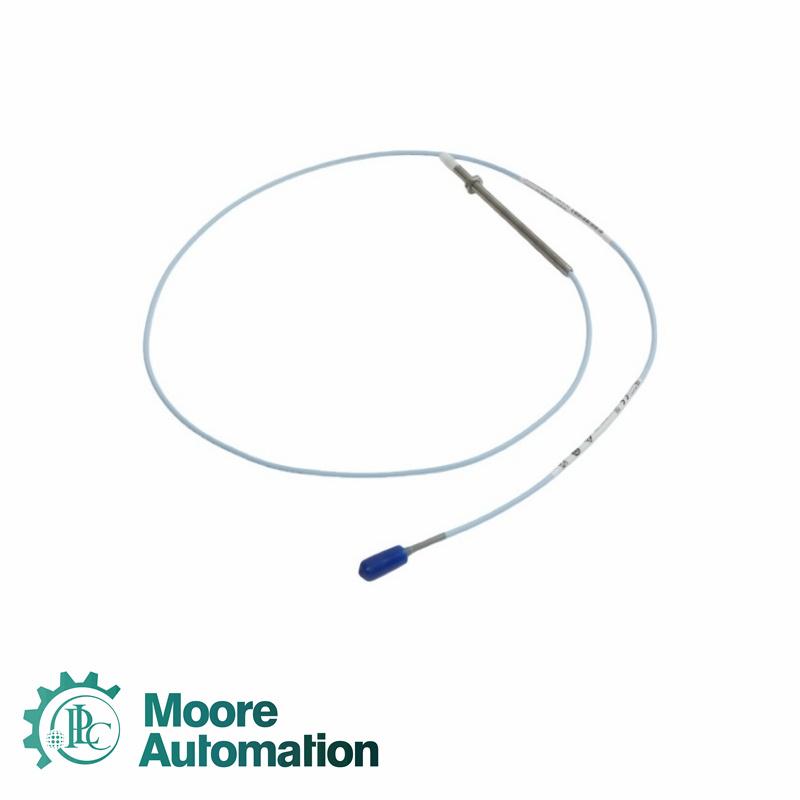

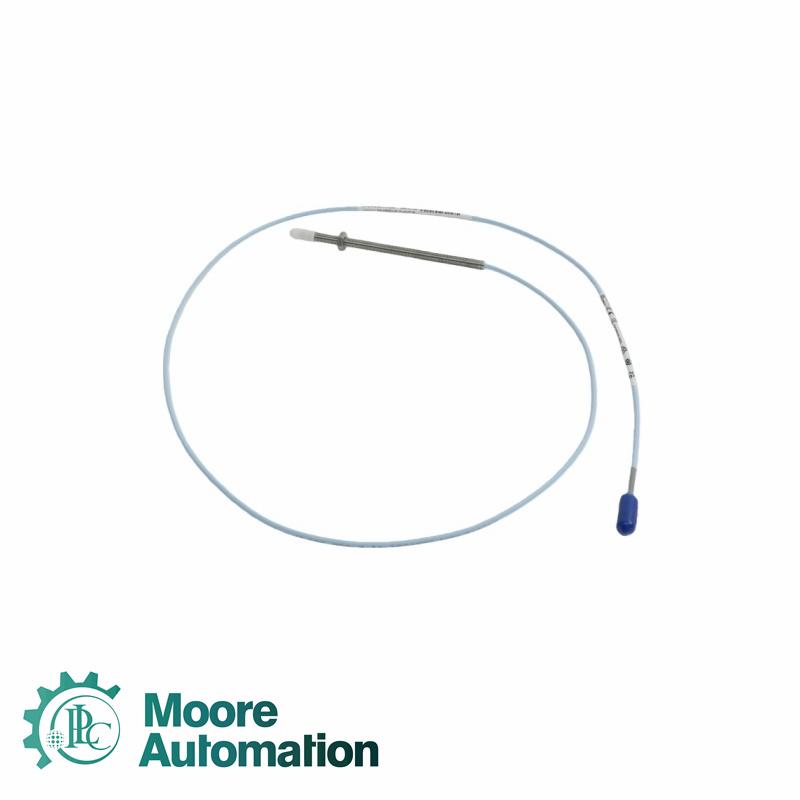

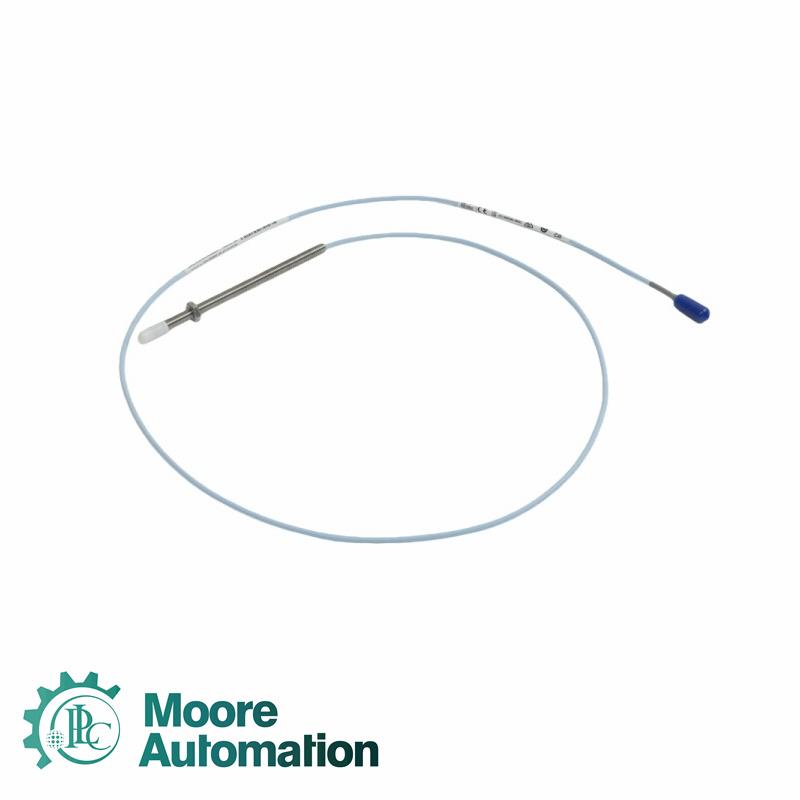

The 3300 XL NSv Proximity Transducer system is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements. The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems.
|
Technical parameters |
|
|
Unthreaded Length Option |
0.0 in |
|
Overall Case Length Option |
3.2 in |
|
Cable Length Option |
1.0 meter (39 in) |
|
Connector and Cable Option |
Miniature coaxial ClickLoc connector, standard cable |
|
Agency Approval Option |
Not required |
|
Probe Case Thread |
1/4-28 UNF thread |
|
Maximum Length of Thread Engagement |
0.375 in |
|
Probe Temperature Range |
-52°C to +177°C (-62°F to +351°F) |
|
Storage Temperature |
-52°C to +177°C (-62°F to +351°F) |
|
Probe Tip Material |
Polyphenylene sulfide (PPS) |
|
Probe Case Material |
AISI 304 stainless steel (SST) |
|
Field Wiring |
0.2 to 1.5 mm² (16 to 24 AWG); 0.25 to 0.75 mm² (18 to 23 AWG) with ferrules |
|
Linear Range |
1.5 mm (60 mils) |
|
Recommended Gap Setting |
1.0 mm (40 mils) |
|
Output Resistance |
50 Ω |
|
Supply Sensitivity |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Contact me for a big surprise！ |
Email: sales3@askplc.com
Mobile(WhatsApp): 86-18150117685
John Yang is 24 hours online for you
|
Trust moore--Trustworthy global supplier |
Over the years, we have grown into a trusted global supplier with operations centers in Xiamen, China and Hong Kong, China. Our business spans the globe, with most of our valued customers located in the Middle East, Europe, the UK, Asia, and the USA.
|
Application |
Power Plants: Measure shaft vibration in compact gas turbines.
Oil Refining Plants: Monitor compressor shaft displacement in tight areas.
Chemical Plants: Monitor valve and bearing displacement.
Steel Plants: Monitor gearbox and blower shaft displacement.
Paper Plants: Monitor shafts in narrow machine spaces.
|
FAQ |
Q: What is the overall housing length of 330901-00-32-10-02-00?
A: The overall housing length dimension is 3.2 inches.
Q: What is the housing thread specification of 330901-00-32-10-02-00?
A: The thread specification is 1/4-28 UNF thread.
Q: What is the maximum thread engagement length of 330901-00-32-10-02-00?
A: The maximum thread engagement length is 0.375 inches.
Q: What is the recommended gap setting of 330901-00-32-10-02-00?
A: The recommended gap setting is 1.0 mm (40 mils).
Q: What is the sensitivity of the output voltage to power supply fluctuations of 330901-00-32-10-02-00?
A: For every one volt change in input voltage, the output voltage changes by less than 2 mV.
|
