 Bently Nevada 330876-01-90-00-05 3300 XL 50 mm Proximity Probe
330876-01-90-00-05 330876-01-90-00-05 330876-01-90-00-05

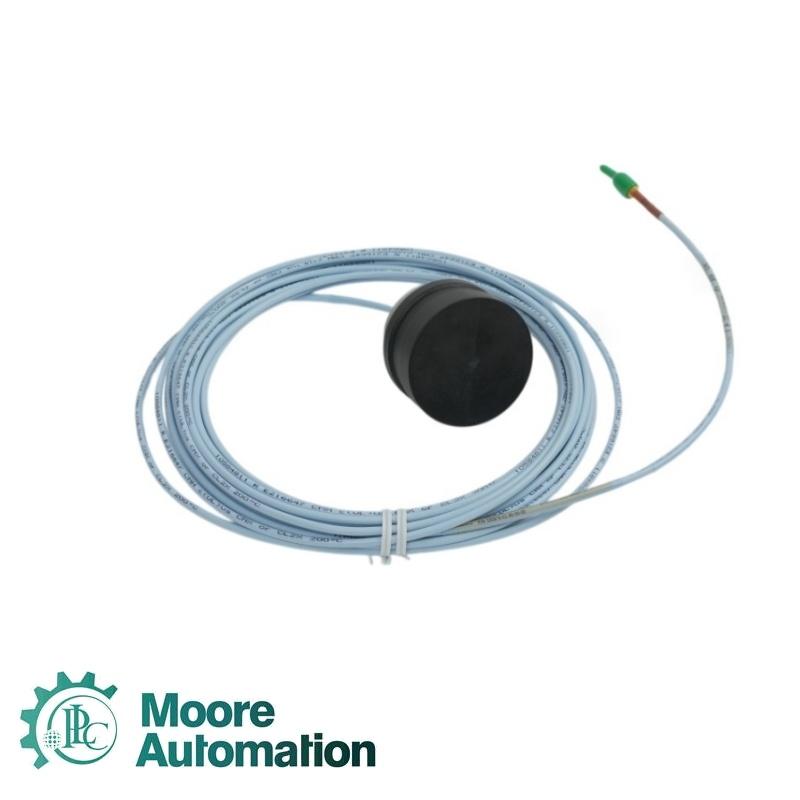

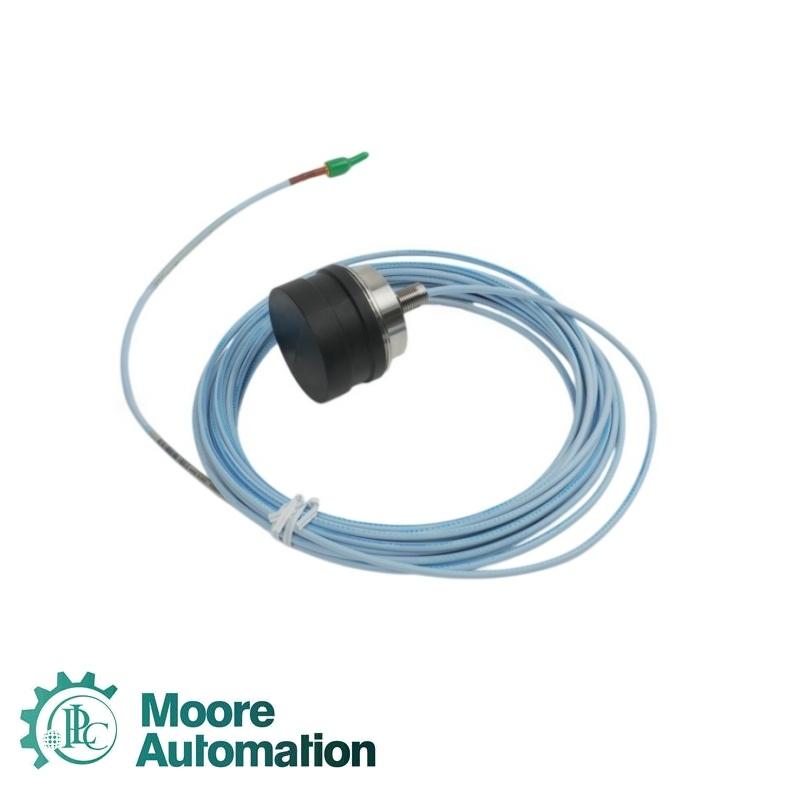

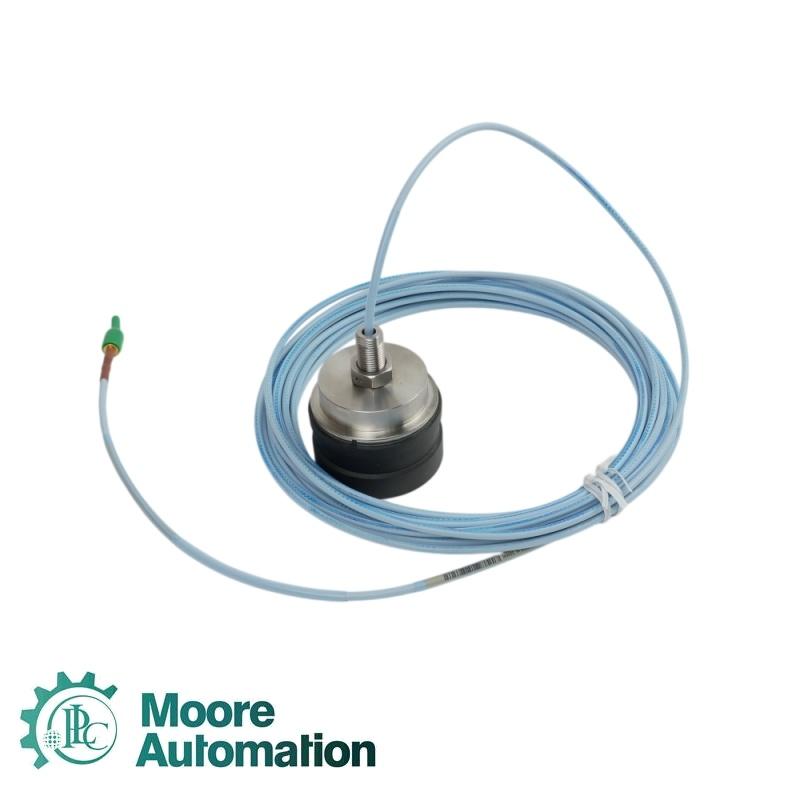

Bently Nevada 330876-01-90-00-05 3300 XL 50 mm Proximity Probe

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

  • Order(MOQ):

    1

  • Payment:

    T/T

  • Product Origin:

    USA

  • Color:

    Brand New

  • Shipping Port:

    Xiamen

  • Lead Time：

    3-5 Days

  • Warranty:

    1 Year
Contact Us

  • Product Detail

Specifications
The Bently Nevada 330876-01-90-00-05 is a straight-exit 3300 XL 50 mm extended-range proximity probe for large static and dynamic displacement measurements. The configuration uses a 9.0 m FluidLoc PFA-jacketed cable, a miniature male coaxial connector, and the multiple-approval option. It is used only as part of a matched 50 mm proximity transducer system.
Product type3300 XL 50 mm extended-range proximity probe
Base model330876
Exit styleStraight exit
Cable option01
Total length9.0 m (29.5 ft)
Connector option00 — miniature male coaxial
Approval option05 — multiple approvals
Probe-tip class50 mm
Maximum body diameter62.2 mm
Cable jacketFluidLoc PFA
Cable diameter3.94 mm maximum
Armor availabilityOptional stainless-steel armor
Measurement principleNon-contact eddy current
System requirementMatched 50 mm Proximitor system
Target materialAISI 4140 steel, factory default
Connector diameter8.0 mm maximum
Application Industry
01
Large-shaft displacementMeasures extended radial movement on large rotating machinery.
02
Hydroelectric generatorsSupports shaft-position monitoring where a long linear range is required.
03
Thrust and differential expansionProvides non-contact displacement data for engineered monitoring points.
04
Heavy industrial turbinesConnects into a matched protection or condition-monitoring loop.
FAQ
What electrical length is ordered for 330876-01-90-00-05?
The selected total-length option is nine metres.
Can 330876-01-90-00-05 be connected to a standard 8 mm Proximitor?
No. It requires the matching extended-range electronics and monitor scaling for the large-diameter system.
What cable jacket is used on 330876-01-90-00-05?
The probe lead uses a FluidLoc PFA jacket for environmental protection.
What installation clearance is needed for 330876-01-90-00-05?
Allow space for the large probe body, connector and cable bend while maintaining a rigid, stable mounting structure.
Which checks are important before energizing 330876-01-90-00-05?
Verify the system components, target material, initial gap, cable routing and approval markings.
