 Bently Nevada 330750-80-05 High Temperature Velomitor System
330750-80-05 330750-80-05 330750-80-05

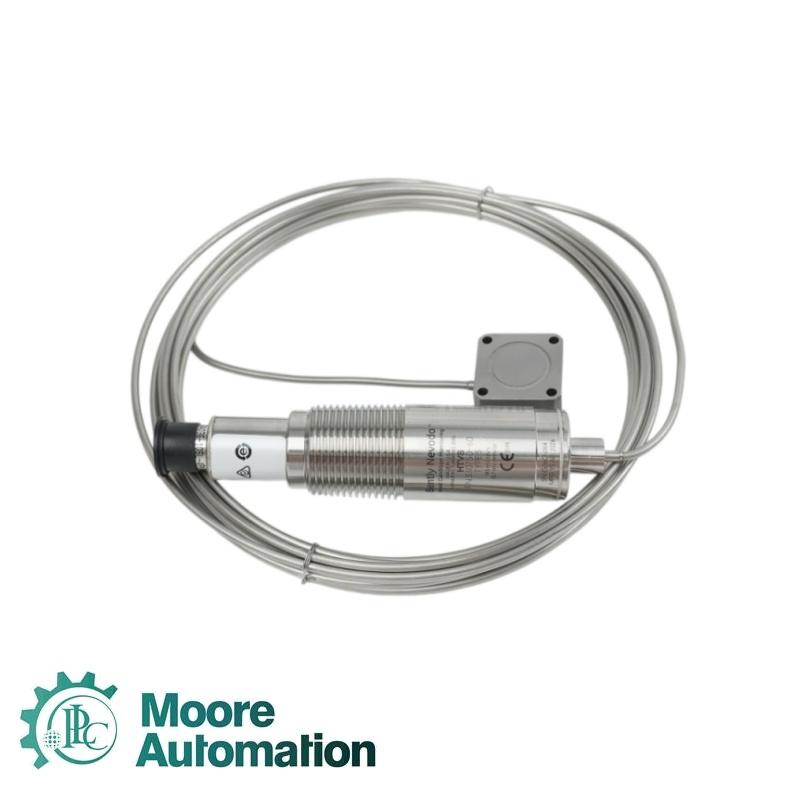

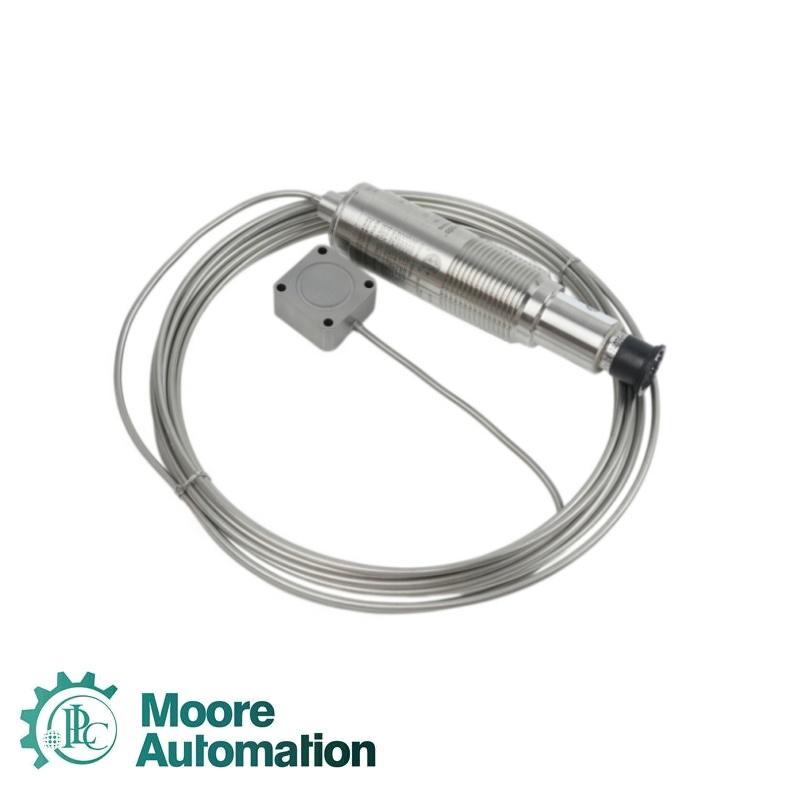

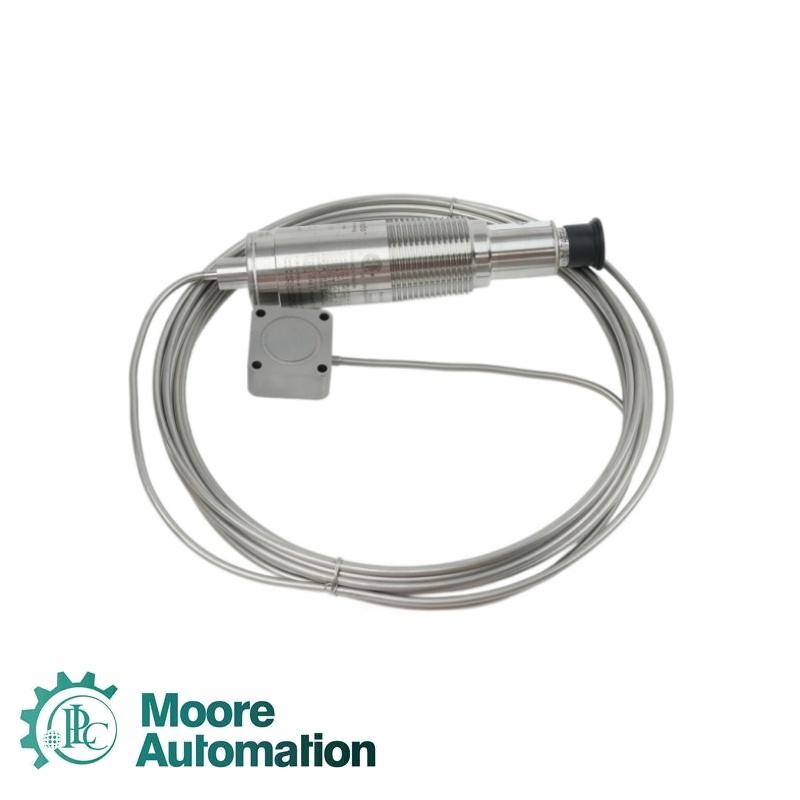

Bently Nevada 330750-80-05 High Temperature Velomitor System

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

  • Order(MOQ):

    1

  • Payment:

    T/T

  • Product Origin:

    USA

  • Color:

    Brand New

  • Shipping Port:

    Xiamen

  • Lead Time：

    3-5 Days

  • Warranty:

    1 Year
Contact Us

  • Product Detail

Specifications
The Bently Nevada 330750-80-05 is a high-temperature Velomitor system with an 8 m integral hardline cable and multiple hazardous-area approvals. The sensing head and cable are rated for mounting surfaces up to +400 °C, while the signal-conditioning electronics are separated and positioned in a cooler location. It provides a velocity-proportional output for casing-vibration monitoring.
Product typeHigh-temperature piezo-velocity sensor system
Base model330750
Integral cable length8 m
Approval option05 — CSA, ATEX and IECEx
Sensitivity5.7 mV/mm/s (145 mV/in/s), ±5%
Frequency response15 to 2000 Hz, ±3.0 dB
Precision band20 to 1000 Hz, ±0.9 dB
Amplitude range635 mm/s peak below 680 Hz
Amplitude linearity±2% to 152 mm/s peak
Output bias-12 V DC ±2.0 V DC
Maximum cable length305 m without signal degradation
Sensing-head temperature-55 to +400 °C
Electronics temperature-55 to +121 °C
Shock survivability24,535 m/s² (2500 g) peak
Weight for 8 m version1,111 g typical
Minimum bend radius51 mm
Application Industry
01
High-temperature turbinesMeasures casing vibration near hot bearing and turbine structures.
02
Industrial furnaces and process trainsPlaces the sensing element in heat while locating electronics in a cooler area.
03
Gas turbine auxiliariesProvides velocity output for continuous machinery monitoring.
04
Hot rotating equipmentSupports protected condition-monitoring installations up to the documented surface temperature.
FAQ
How hot can the sensing end of 330750-80-05 operate?
The sensing head and integral hardline cable are rated from minus fifty-five to plus four hundred degrees Celsius.
Where should the electronics of 330750-80-05 be located?
Mount the signal-conditioning section in a cooler area within its own stated temperature range.
What cable length is built into 330750-80-05?
The selected configuration includes an eight-metre integral hardline cable.
What bend requirement applies to 330750-80-05?
Maintain at least the documented minimum bend radius and avoid stressing the hardline cable or connector.
Which monitor checks are required for 330750-80-05?
Confirm power, polarity, bias voltage, velocity scaling, hazardous-area wiring and grounding before commissioning.
