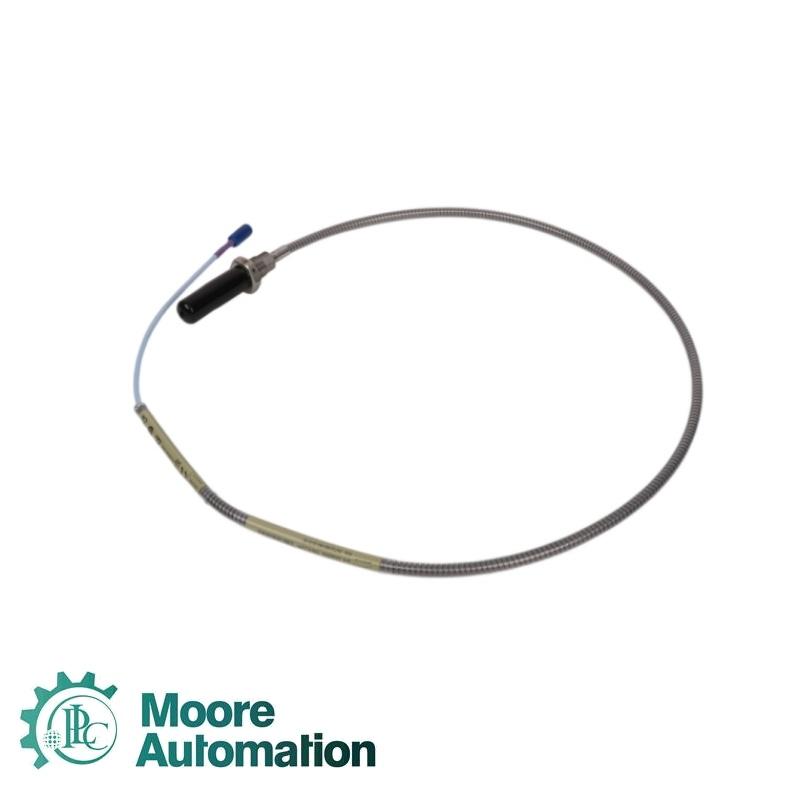

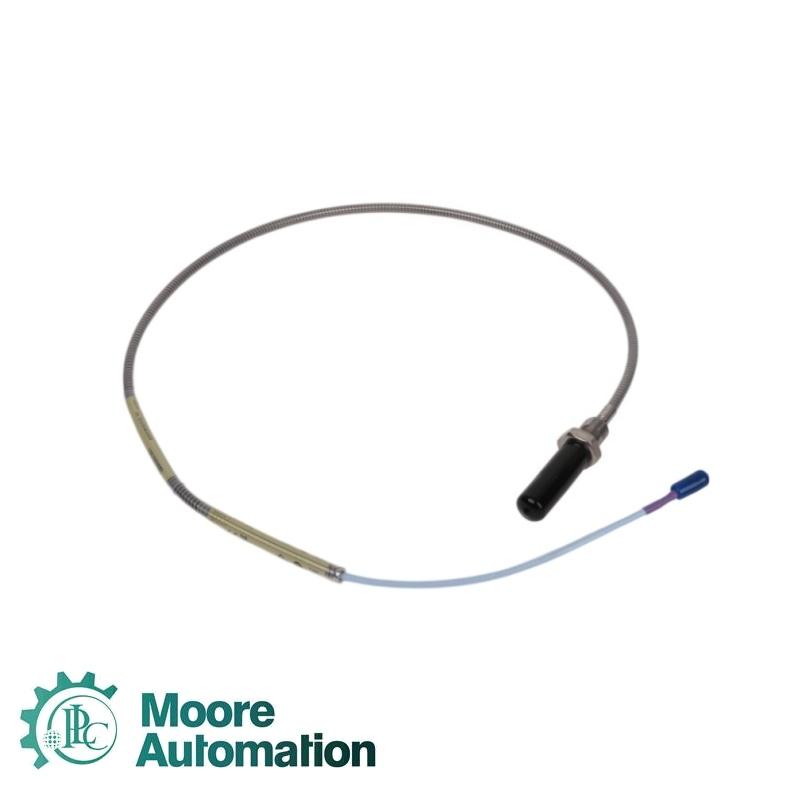

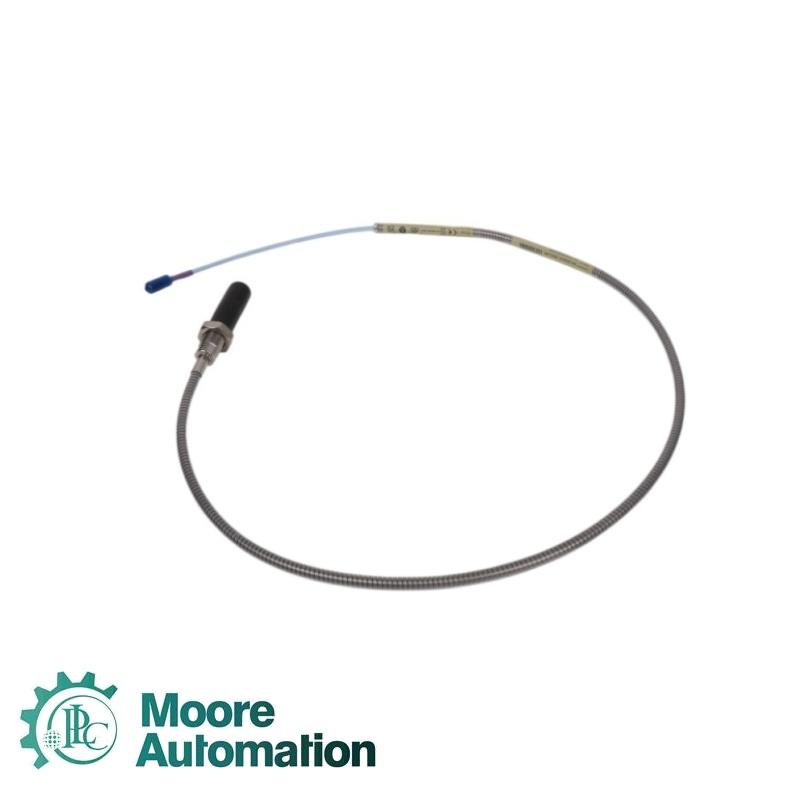

 Bently Nevada 330710-00-060-10-02-00 3300 XL 11 mm Proximity Probe
330710-00-060-10-02-00 330710-00-060-10-02-00 330710-00-060-10-02-00

Bently Nevada 330710-00-060-10-02-00 3300 XL 11 mm Proximity Probe

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

  • Order(MOQ):

    1

  • Payment:

    T/T

  • Product Origin:

    USA

  • Color:

    Brand New

  • Shipping Port:

    Xiamen

  • Lead Time：

    3-5 Days

  • Warranty:

    1 Year
Contact Us

  • Product Detail

Specifications
The Bently Nevada 330710-00-060-10-02-00 is a metric forward-mount 3300 XL 11 mm proximity probe with M16 × 1.5 threads and stainless-steel cable armor. The configuration has a 60 mm case-length code, a 1.0 m total length, a standard miniature ClickLoc connector without protector and no agency-approval option.
Product type3300 XL 11 mm proximity probe
Base model330710
Mounting styleMetric forward mount
Mounting threadM16 × 1.5
Armor optionStainless-steel cable armor
Unthreaded length option00
Case length option060
Total length1.0 m (3.3 ft)
Connector option02 — standard ClickLoc, no protector
Approval option00 — not required
Linear range4.0 mm (160 mil)
Scale factor3.94 V/mm (100 mV/mil)
System typeNon-contact eddy current
Target materialAISI 4140 steel, factory default
Probe-tip diameter11 mm class
Electrical systemMatched probe, extension cable and Proximitor
Application Industry
01
Steam and gas turbinesMeasures radial shaft vibration across the extended linear range.
02
Large compressorsSupports shaft-position and vibration monitoring on critical rotating equipment.
03
Thrust-position channelsProvides non-contact axial displacement measurement when correctly mounted.
04
Machine protection systemsConnects to matched signal-conditioning electronics and monitor inputs.
FAQ
What thread is used by 330710-00-060-10-02-00?
It uses a metric M16 by 1.5 forward-mount case.
Does 330710-00-060-10-02-00 include connector protection?
No. The selected connector option is the standard miniature connector without a protector.
What total probe length is specified for 330710-00-060-10-02-00?
The length option represents a one-metre electrical length.
Can 330710-00-060-10-02-00 be mixed with an 8 mm system?
No automatic interchangeability should be assumed; the matched probe diameter, extension cable, Proximitor and monitor scale must agree.
How should 330710-00-060-10-02-00 be installed near a bearing?
Use a rigid mount, maintain the required target clearance and route the armored cable without exceeding its bend limits.
