Bently Nevada 146054-058-20-02-05 MOD:173931-011-058 Ceramic Capped Probe

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

Order(MOQ):
1
Payment:
T/T
Product Origin:
USA
Color:
Brand New
Shipping Port:
Xiamen
Lead Time：
3-5 Days
Warranty:
1 Year

Product Detail

Specifications

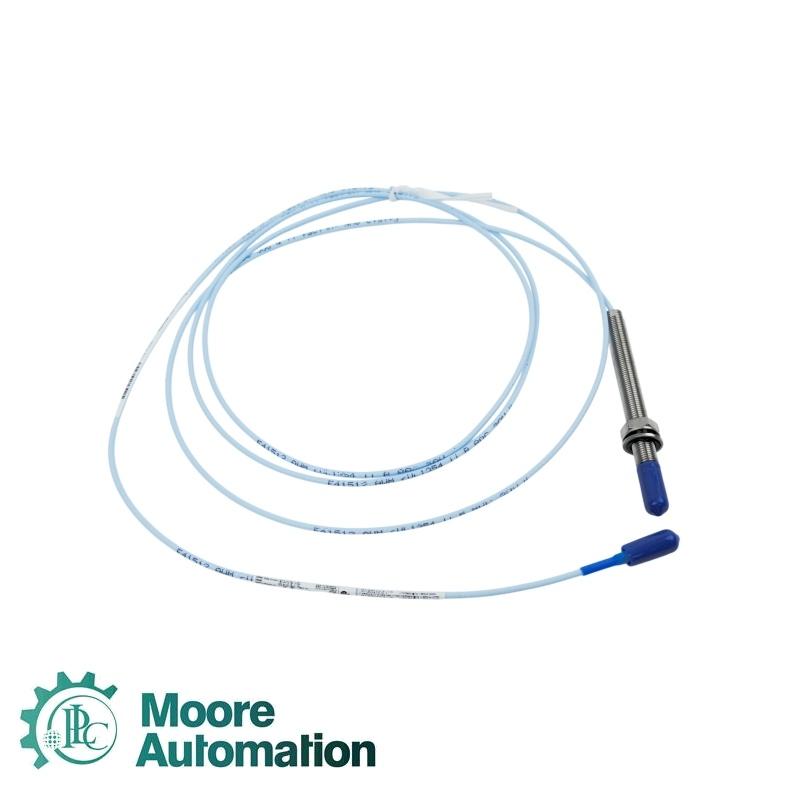

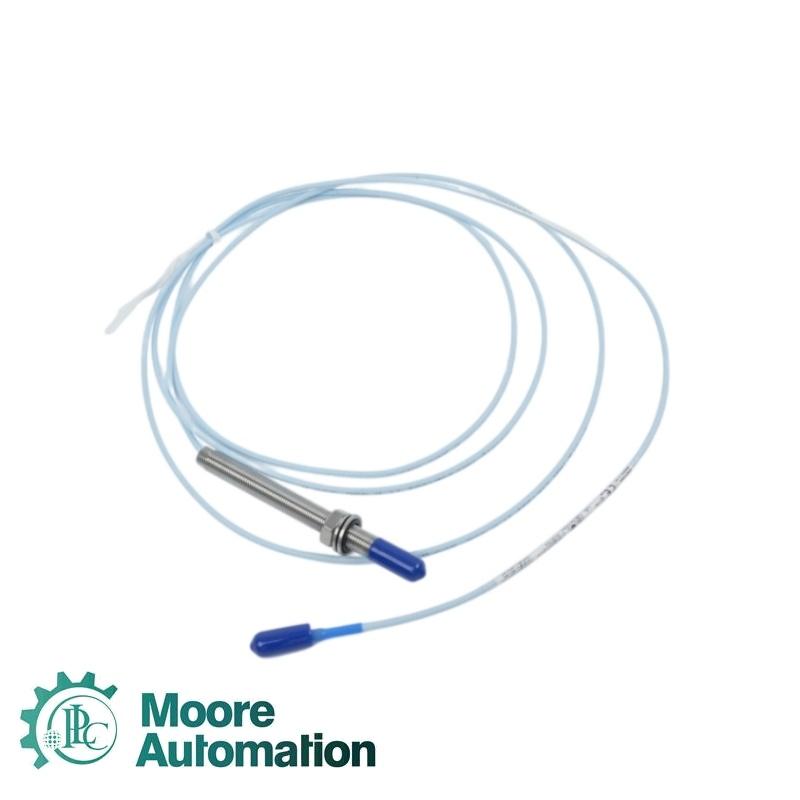

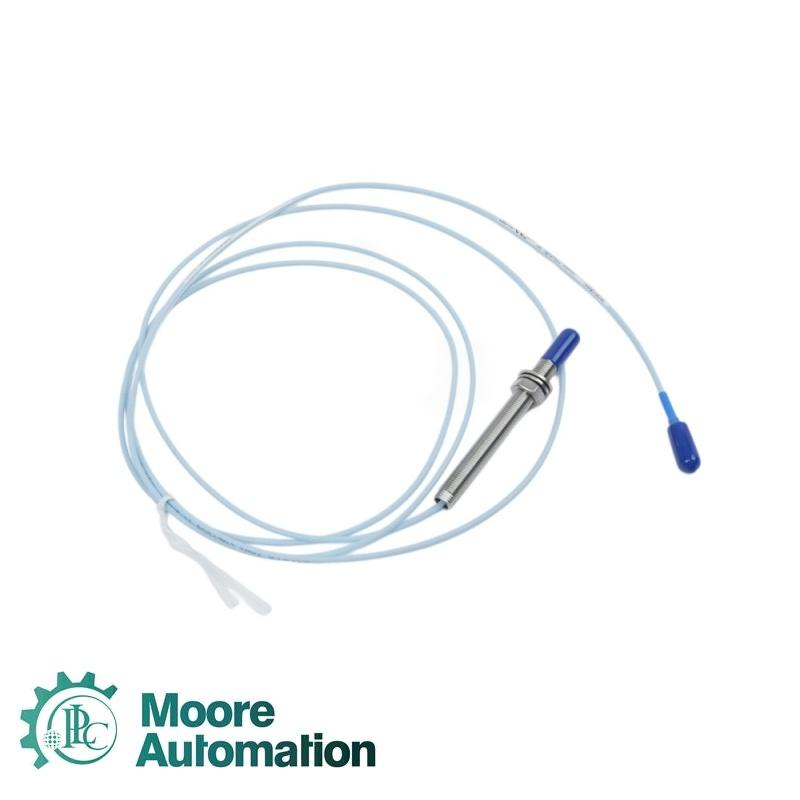

The Bently Nevada 146054-058-20-02-05 MOD:173931-011-058 is a modified forward-mount 3300 ceramic capped proximity probe. The standard 146054 construction uses an alumina cap, a 304 stainless-steel case and a 3/8-24 UNF mounting thread for aggressive chemical or pressure-exposed applications. The modification number and complete ordered suffix must be verified together before replacement.

Product typeModified 3300 ceramic capped proximity probe

Base model146054

Modification173931-011-058

Mounting styleForward mount

Probe thread3/8-24 UNF

Overall case option058

Total length2.0 m (6.6 ft)

Connector option02 — miniature ClickLoc, standard cable

Approval option05 — CSA, ATEX and IECEx

Tip materialAlumina ceramic

Case material304 stainless steel

Pressure rating34 bar (500 psi)

Cable armorWithout armor

Probe case diameter7.2 mm maximum

System compatibility3300 Proximitor Sensor and extension cable

Target calibrationAISI 4140 steel, factory default

Application Industry

Modified probe installationsPreserves the documented modification number for replacement.

Aggressive process environmentsUses a ceramic front cap for corrosive gas or liquid exposure.

High-pressure machinerySupports non-contact displacement measurement at the front process interface.

Rotating-equipment monitoringConnects into a matched proximity transducer system.

FAQ

Why is the MOD number essential for 146054-058-20-02-05 MOD:173931-011-058?

The modification identifies a nonstandard mechanical execution and must be checked together with the complete order code.

May a standard probe replace 146054-058-20-02-05 MOD:173931-011-058?

Not without written engineering confirmation because the modified case dimensions or construction may differ.

What cable arrangement is ordered for 146054-058-20-02-05 MOD:173931-011-058?

The standard suffix identifies a two-metre cable with a miniature coaxial connector and no protector.

Which surfaces of 146054-058-20-02-05 MOD:173931-011-058 tolerate process exposure?

The front ceramic-to-metal interface is sealed; the rear of the base construction must be protected from destructive media.

What evidence should accompany 146054-058-20-02-05 MOD:173931-011-058?

Use clear nameplate photographs and the original installation drawing to confirm the modification, connector and installed dimensions.
