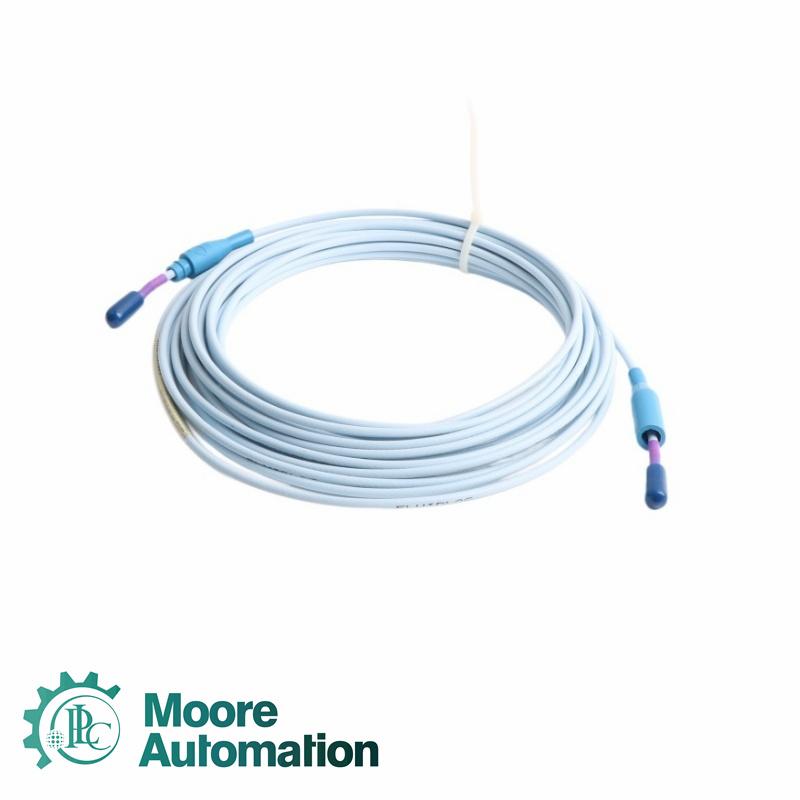

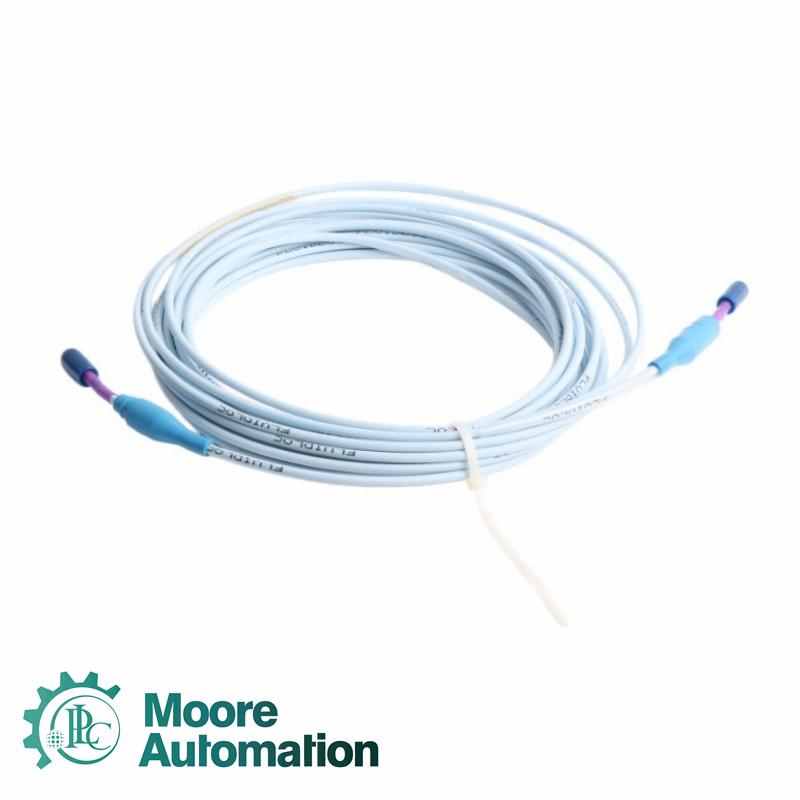

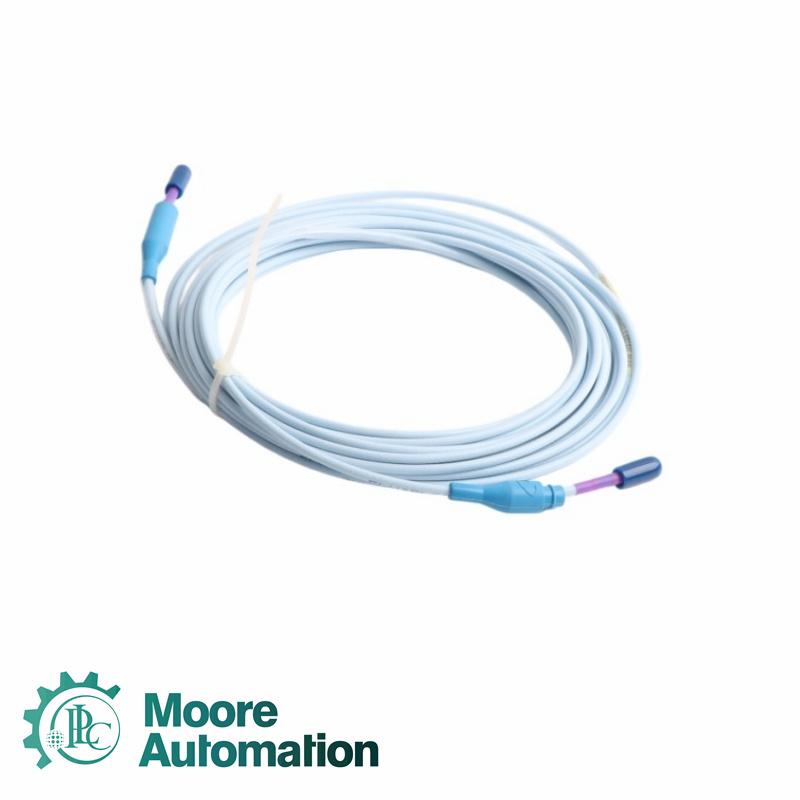

Bently Nevada 330730-080-13-05 3300 XL 11 mm Extension Cable

Bently Nevada 330730-080-13-05 3300 XL 11 mm Extension Cable

100% Original New
1 Year Warranty
Competitive Pice
Email: sales3@askplc.com

Brand:
Bently Nevada
Order(MOQ):
1
Payment:
T/T
Product Origin:
USA
Color:
Brand New
Shipping Port:
Xiamen
Lead Time：
in stock

Product Detail

⭐⭐⭐⭐⭐Customer support & services
You want	Moore Provide
100% brand new	Original Factory Seal
Warranty	12 months
Package	Original packing with cartons.
Payment Term	100% TT In Advance
Service	Worldwide & 24 hours

Product Overview

The 3300 XL 11 mm Proximity Transducer System has a 3.94 V/mm (100 mV/mil) output for non-contacting vibration and displacement measurements on fluid film bearing machines. The large 11 mm tip enables this transducer system to have a longer linear range compared to our standard 3300 XL 8 mm Transducer System.

Call John Yang For Assistance

✉ Email: sales3@askplc.com ☏ Mobile(WhatsApp): 86-18150117685

Detailed Specifications

Parameter	Value
Cable Length Option	8.0 m (26.2 ft)
Connector and Cable Option	Armored FluidLoc cable with connector protector
Agency Approval Option	Multiple approvals
Dimensions	21 x 2.7 x 20.5 cm
Weight	0.3 kg
Operating & Storage Temperature	-52°C to +177°C (-62°F to +351°F)
Extension Cable Material	75 Ω triaxial, fluoroethylene propylene (FEP) insulated
Extension Cable Armor (Optional)	Flexible AISI 302 SST with FEP outer jacket
Field Wiring	0.2–1.5 mm² (16–24 AWG); 0.25–0.75 mm² (18–23 AWG with ferrules)
Output Resistance	50 Ω
Supply Sensitivity	< 2 mV change in output voltage per volt change in input voltage

Moore upholds the following values: We help keep global production running smoothly!

<<Global footprint>>

<<Integrity in business>>

<<Rapid response>>

<<High-quality products and highly competitive prices.>>

FAQ of 330730-080-13-05

Q: What is the standard length of 330730-080-13-05?
A: The length code 080 indicates an 8.0 m (26.2 ft) cable.

Q: What are the structural features of 330730-080-13-05?
A: It uses an Armored FluidLoc design with AISI 302 stainless steel conduit and FEP sheath.

Q: What temperature range can 330730-080-13-05 withstand?
A: It operates from -52°C to +177°C.

Q: Is 330730-080-13-05 suitable for hazardous areas?
A: Yes, it has CSA, ATEX, and IECEx certifications.

Q: Why is 330730-080-13-05 a 75 Ω cable for 11 mm systems?
A: It matches impedance for signal stability, keeping voltage fluctuation below 2 mV over long distances.

Application

Large hydroelectric power plants: Used to monitor thrust bearing displacement in large hydroelectric generator sets; the armored structure withstands high humidity and potential leaks within the engine room.

Steel smelting plants: Utilizes stainless steel armor in vibration monitoring chains for heavy equipment such as axial flow blowers to prevent mechanical scratches and high-temperature radiation during wiring.

Offshore drilling facilities: Used in critical pump and compressor systems; its FluidLoc properties effectively block salt spray and oil contamination, ensuring safe offshore operations.

Aerospace power testing facilities: Provides high-fidelity vibration data transmission in the high-temperature, high-vibration environment of large engine test benches.
