Product Overview

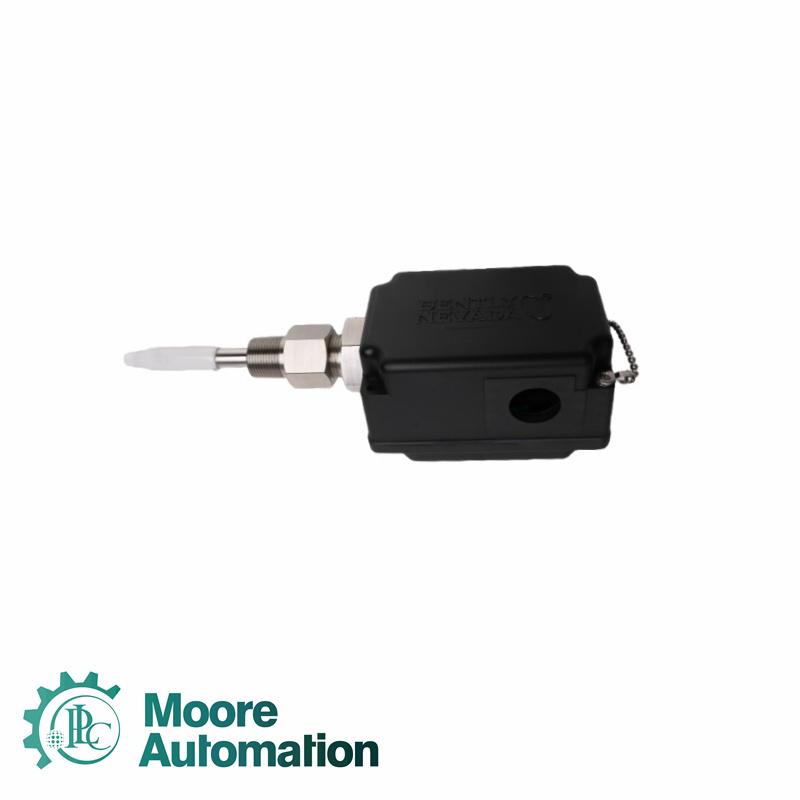

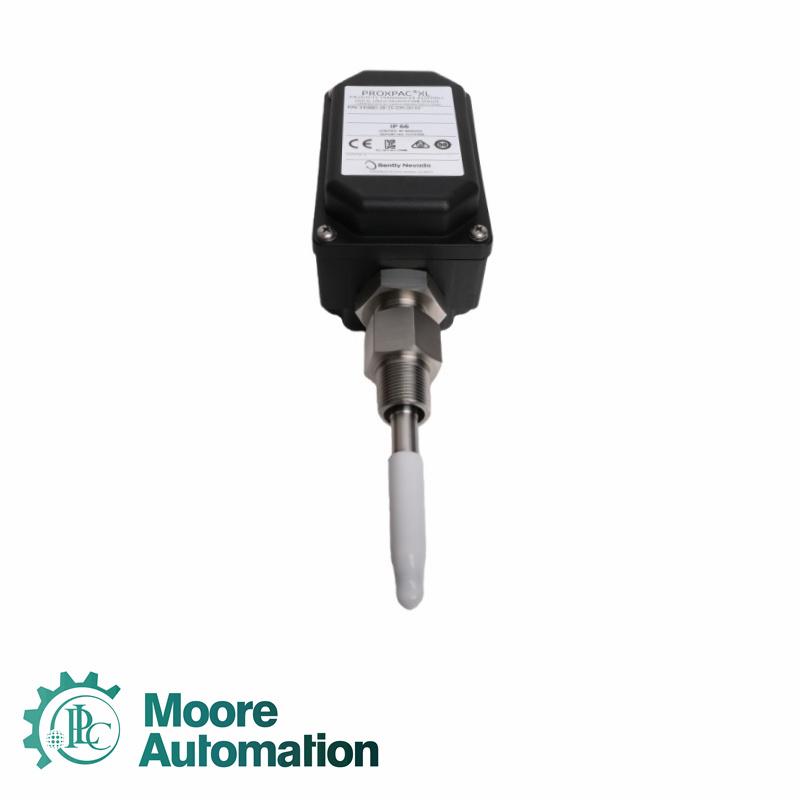

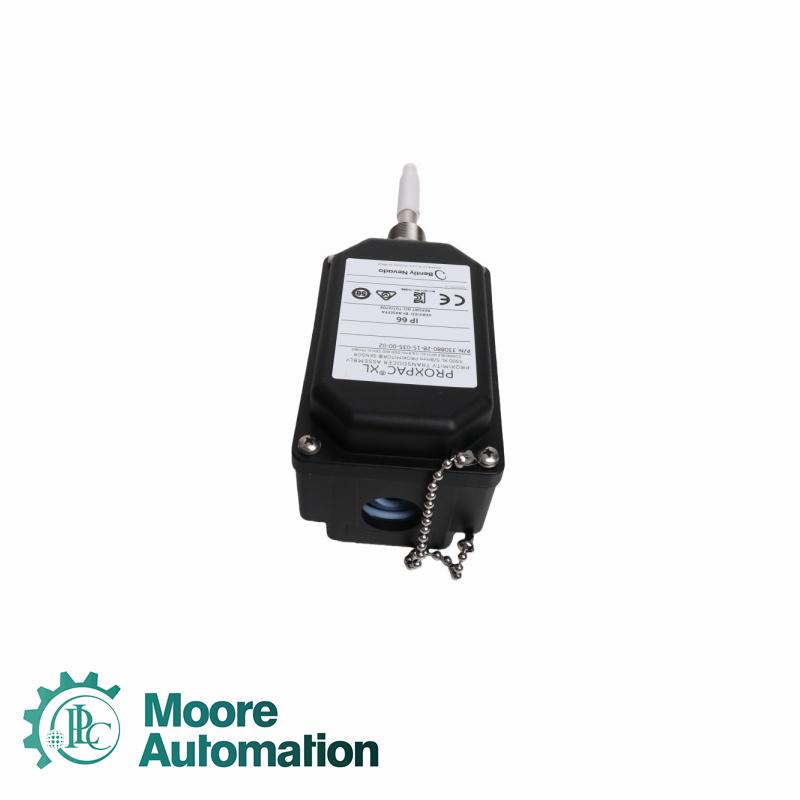

The Bently Nevada 330801-28-04-105-00-02 is a PROXPAC XL Proximity Transducer designed for harsh industrial environments. This product cleverly integrates a high-performance probe, extension cable, and preamplifier function within a robust protective housing. The system not only boasts excellent vibration and shock resistance but also holds multiple global explosion-proof and IP66 protection certifications, ensuring accurate non-contact shaft vibration and displacement monitoring data even in environments with extreme temperature variations, high humidity, and high dust levels.
Call John Yang For Assistance
✉ Email: sales3@askplc.com ☏ Mobile(WhatsApp): 86-18150117685
Detailed Specifications
|
Parameter |
Value |
|
Probe and Approvals Option |
3300 XL 8 mm probe with multiple approvals |
|
Standoff Adapter Option (B Dimension) |
40 mm |
|
Probe Penetration Option (C Dimension) |
10.5 in |
|
Fittings Option |
No fittings; 2 plugs and 2 washers |
|
Mounting Thread Option |
3/4-14 NPT (required if standoff adapter option is selected) |
|
Supply Sensitivity |
< 2 mV change in output per volt change in input |
|
Output Resistance |
50 Ω |
|
Field Wiring |
0.2–1.5 mm² (16–24 AWG) |
|
Linear Range |
2 mm (80 mils) |
|
Recommended Gap Setting |
1.27 mm (50 mils) |
|
Shaft Diameter (Minimum) |
50.8 mm (2.0 in) |
|
Shaft Diameter (Recommended) |
76.2 mm (3.0 in) |
|
Housing Rating |
IP66 (BASEEFA report T07/0709) |
|
Operating Temperature |
-52°C to +100°C (-62°F to +212°F) |
|
Storage Temperature |
-52°C to +105°C (-62°F to +221°F) |
Moore upholds the following values: We help keep global production running smoothly!
<<Global footprint>>
<<Integrity in business>>
<<Rapid response>>
<<High-quality products and highly competitive prices.>>
FAQ of 330801-28-04-105-00-02
Q: What is the probe penetration depth of the 330801-28-04-105-00-02?
A: It has a 10.5-inch penetration depth and a 40 mm base adapter for thick housing installation.
Q: What shaft diameter is required for the 330801-28-04-105-00-02?
A: Recommended shaft diameter is ≥76.2 mm (3.0 in), with a minimum of 50.8 mm (2.0 in).
Q: Does the 330801-28-04-105-00-02 include mounting fittings?
A: No fittings are included; it provides sealing plugs and gaskets for sealing.
Q: How is the environmental protection rating of the 330801-28-04-105-00-02 verified?
A: It is IP66 rated and verified by BASEEFA report (T07/0709).
Q: What are the linear range and sensitivity of the 330801-28-04-105-00-02?
A: It has a 2 mm (80 mils) linear range with <2 mV output change per 1 V input variation.
Application
Natural gas booster plants: Used to monitor axial displacement of large centrifugal compressors, ensuring stable data feedback in hazardous areas.
Thermal power plants: Installed on high-, intermediate-, and low-pressure turbine sections to track real-time displacement between rotors and bearings.
Large petrochemical plants: In continuous monitoring of critical pump systems, IP66 protection prevents acidic gases and moisture from corroding sensor components.
Steel smelting plants: Applied on blast furnace fan bearing housings to ensure reliable monitoring under extremely high vibration and temperature conditions.
Desalination plants: Used for real-time protection of high-pressure pumps, with aluminum housings and stainless steel components offering excellent resistance to salt spray corrosion.
