Product Overview

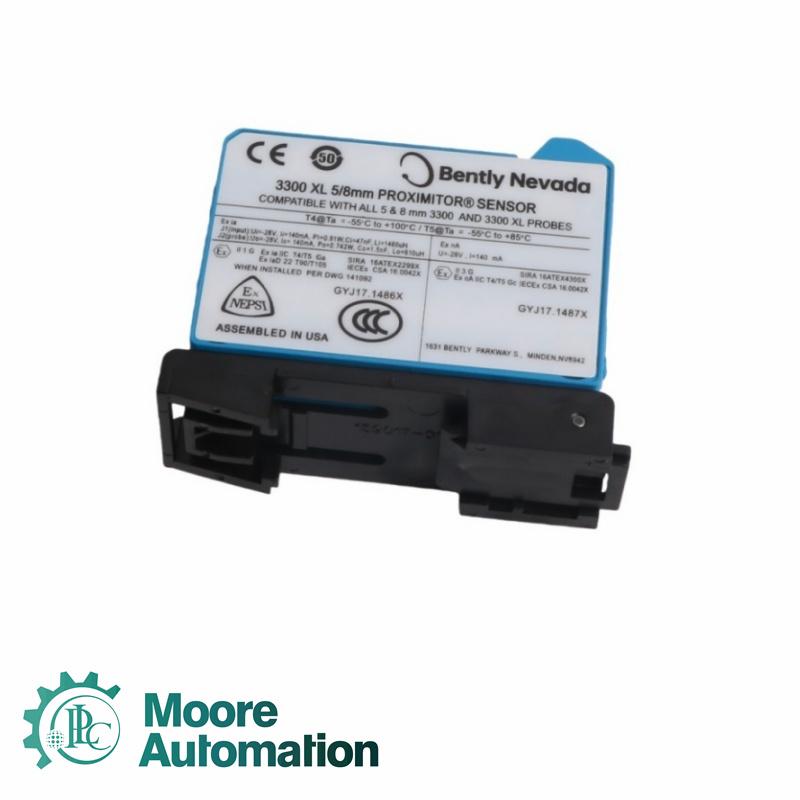

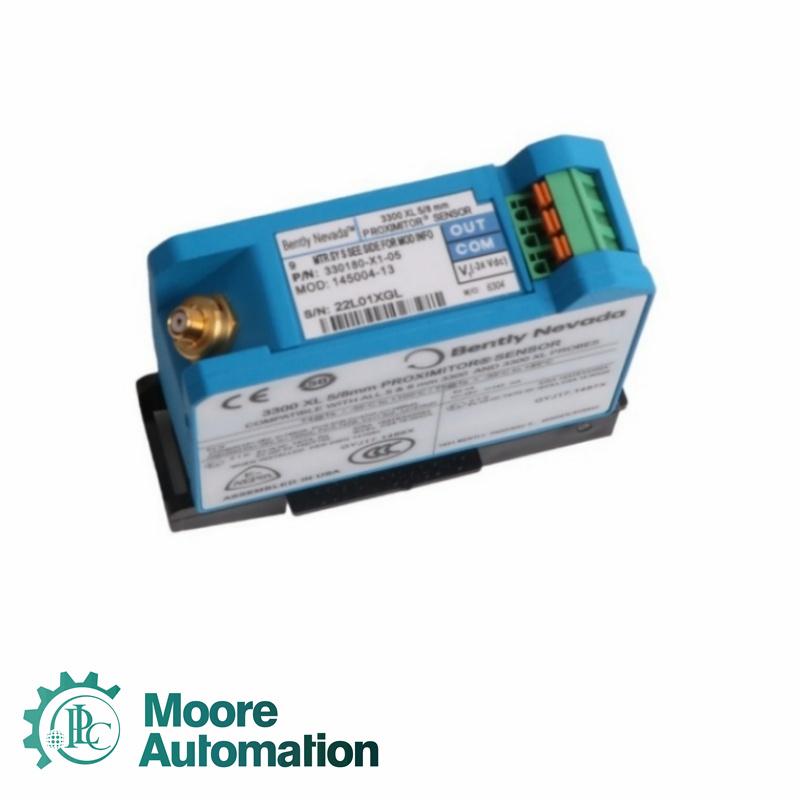

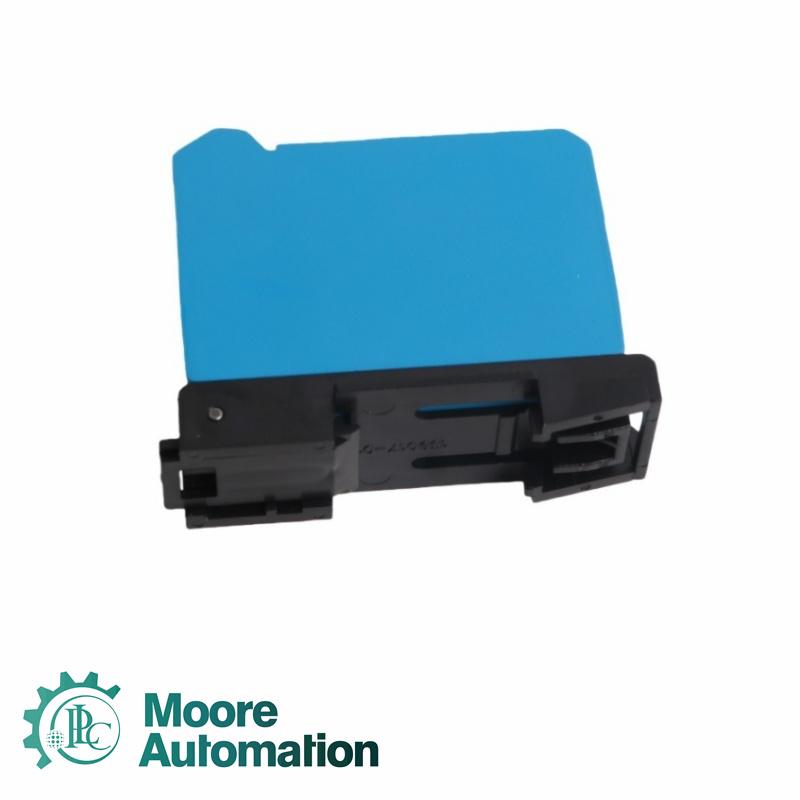

The 3300 XL 8 mm Proximity Transducer System provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements. The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems.
Call John Yang For Assistance
✉ Email: sales3@askplc.com ☏ Mobile(WhatsApp): 86-18150117685
Detailed Specifications
|
Parameter |
Value |
|
Agency Approval Option |
CSA; ATEX; IECEx approvals |
|
Proximitor Sensor Input |
Accepts 1 non-contacting 3300-series 5 mm or 3300 XL 8 mm proximity probe and extension cable |
|
Power Supply |
-17.5 V DC to -26 V DC |
|
Proximitor Sensor Material |
A308 aluminum |
|
Supply Sensitivity |
< 2 mV change in output voltage per volt change in input voltage |
|
Dimensions |
8.7 x 2.8 x 7 cm |
|
Weight |
0.24 kg |
|
Output Resistance |
50 Ω |
|
Operating Temperature |
-52°C to +100°C (-62°F to +212°F) |
|
Storage Temperature |
-52°C to +105°C (-62°F to +221°F) |
|
Frequency Response |
0–10 kHz (+0, -3 dB), with up to 305 m (1000 ft) field wiring |
|
Minimum Target Size |
15.2 mm (0.6 in) diameter (flat target) |
|
Output Voltage (9 m Proximitor, Gap 10) |
0.0247 mV pp/Gauss |
|
Output Voltage (9 m Proximitor, Gap 50) |
0.0323 mV pp/Gauss |
|
Output Voltage (9 m Proximitor, Gap 90) |
0.0348 mV pp/Gauss |
Moore upholds the following values: We help keep global production running smoothly!
<<Global footprint>>
<<Integrity in business>>
<<Rapid response>>
<<High-quality products and highly competitive prices.>>
FAQ of 330180-X1-05 MOD: 161255-02
Q: Which probes are compatible with the 330180-X1-05 MOD: 161255-02?
A: It supports 3300 series 5 mm probes and 3300 XL 8 mm probes with extension cables.
Q: What is the output sensitivity of the 330180-X1-05 MOD: 161255-02?
A: In a 9 m system, output is 0.0247 at 10 mils, 0.0323 at 50 mils, and 0.0348 at 90 mils (Mil pp/Gauss).
Q: What supply voltage does the 330180-X1-05 MOD: 161255-02 require?
A: It requires -17.5 Vdc to -26 Vdc DC input with high power stability.
Q: Can the 330180-X1-05 MOD: 161255-02 support long-distance cabling?
A: Yes, it supports up to 305 m (1000 ft) with stable response up to 10 kHz.
Q: What materials and certifications does the 330180-X1-05 MOD: 161255-02 have?
A: It uses A308 aluminum alloy and holds CSA, ATEX, and IECEx certifications.
Application
Oil refineries: Used to monitor shaft vibration in critical turbine compressors, meeting usage standards in hazardous areas with multiple explosion-proof certifications.
Natural gas processing plants: Deployed at booster stations along long-distance pipelines, ensuring clear long-distance transmission of shaft displacement signals in complex electromagnetic environments.
Large chemical plants: Utilizes its aluminum alloy casing to resist acid and alkali corrosion in continuous monitoring of various reactor agitators or high-speed pump units.
Coal power plants: Installed next to steam turbine units, used with 5mm or 8mm probes to track rotor trajectory and oil film thickness in real time.
