Product Overview

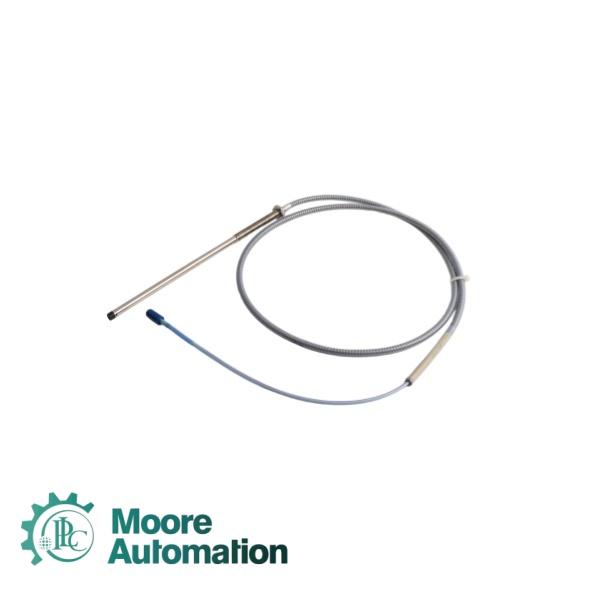

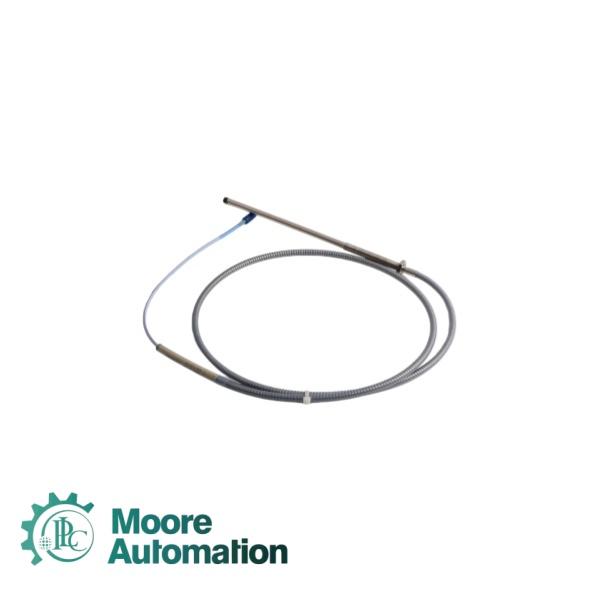

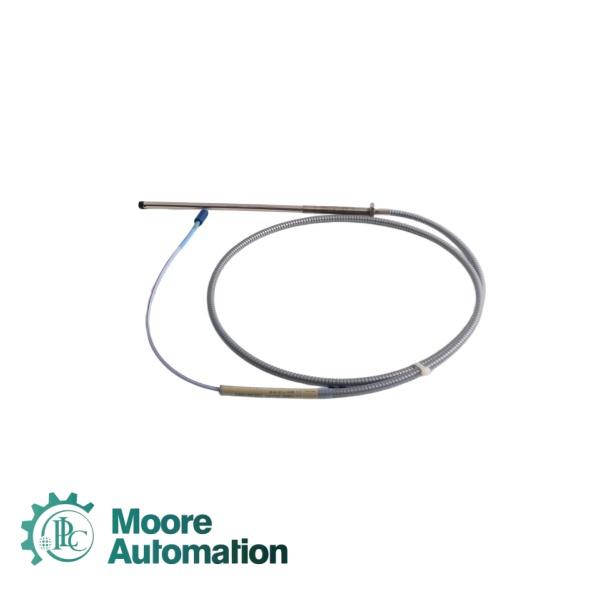

The Bently Nevada 330194-15-25-50-05 is a 3300 XL 8 mm Proximity Probe featuring an M10 x 1 metric thread with integral armor for enhanced mechanical protection . This probe is part of Bently Nevada's 3300 XL eddy current transducer system, designed for non-contact measurement of shaft vibration, axial displacement, and position in rotating machinery.  A defining characteristic of this specific configuration is its 150 mm unthreaded length and 250 mm overall case length, representing the maximum available case length for the 3300 XL 8 mm probe series. This extended length configuration is specifically designed for deep mounting applications where standard-length probes cannot reach the target measurement surface .

Key Features

➙Extended 150 mm Unthreaded Length–Provides significant mounting depth flexibility, allowing the probe to reach measurement surfaces located deep within machinery casings. This is particularly valuable for large compressors, turbines, and equipment with thick bearing housings .

➙Maximum 250 mm Overall Case Length–Represents the maximum available case length in the 3300 XL 8 mm probe series, providing the longest physical probe body for extreme deep-reach applications .

➙Integral Armor Protection–Full stainless steel armor sleeve covers the probe body and cable, providing exceptional resistance to impact, abrasion, and crush damage. This makes the 330194 series the recommended choice for installations where physical abuse or exposure to debris is a concern .

➙Metric M10 x 1 Thread–Metric thread configuration suitable for international equipment standards, allowing direct installation into metric mounting holes without adapters. Maximum thread engagement is 15 mm .

➙TipLoc™ Molding Technology–Patented manufacturing process that creates a robust bond between the probe tip and probe body, eliminating tip rotation or loosening under severe vibration. This ensures measurement consistency over the life of the probe .

➙ClickLoc™ Connector System–Corrosion-resistant, gold-plated brass connectors require only finger-tight torque (connectors will “click”). The specially engineered locking mechanism prevents connectors from loosening due to machine vibration, ensuring reliable signal transmission in harsh environments .

➙Complete Interchangeability–Probes, extension cables, and Proximitor sensors within the 3300 XL 8 mm system are fully interchangeable. There is no need to match components or perform bench calibration, dramatically reducing maintenance downtime and spare parts inventory complexity.

Technical Specifications

Unthreaded Length: 15 - 150mm

Overall Case Length: 25 - 250mm

Total Length: 50 - 5.0 meters (16.4 feet)

Agency Approval: 05 - CSA, ATEX, IECEx  Approvals

Linear Range: 2.0 mm (80 mils) from 0.25 mm to 2.3 mm (10 to 90 mils)

Scale Factor (Sensitivity): 7.87 V/mm (200 mV/mil) ±5%

Output (Typical): -1 Vdc to -17 Vdc, proportional to gap

Recommended Gap (Radial Vibration): 1.27 mm (50 mils) achieving -9 Vdc

Frequency Response: 0.5 Hz to 10 kHz (±3 dB)

Supply Voltage Required (Proximitor): -17.5 Vdc to -26 Vdc (12 mA max); barriers require -23 Vdc to -26 Vdc

Supply Sensitivity: Less than 2 mV change per volt change in input voltage
