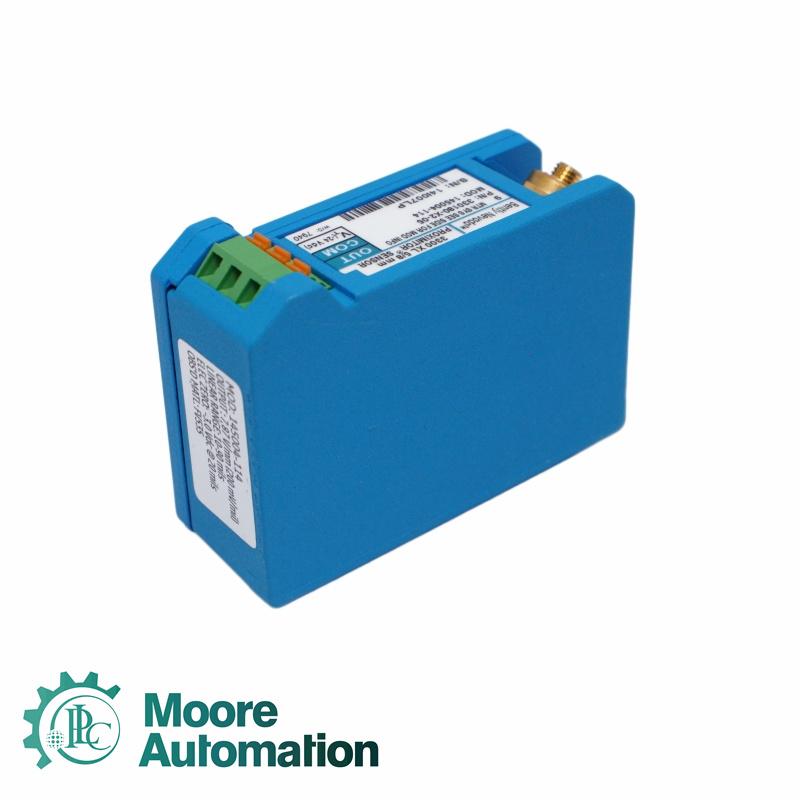

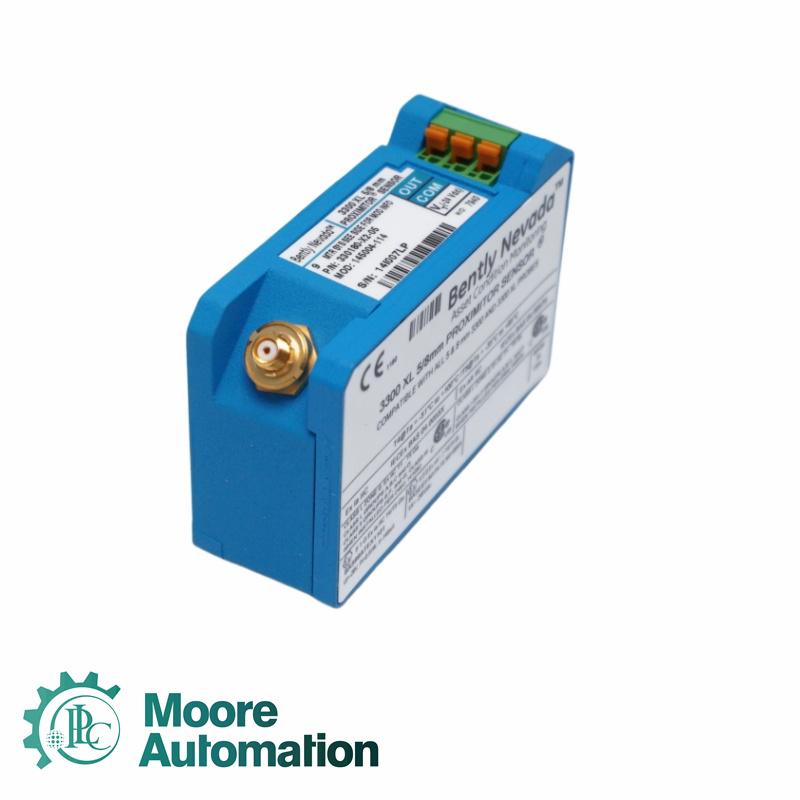

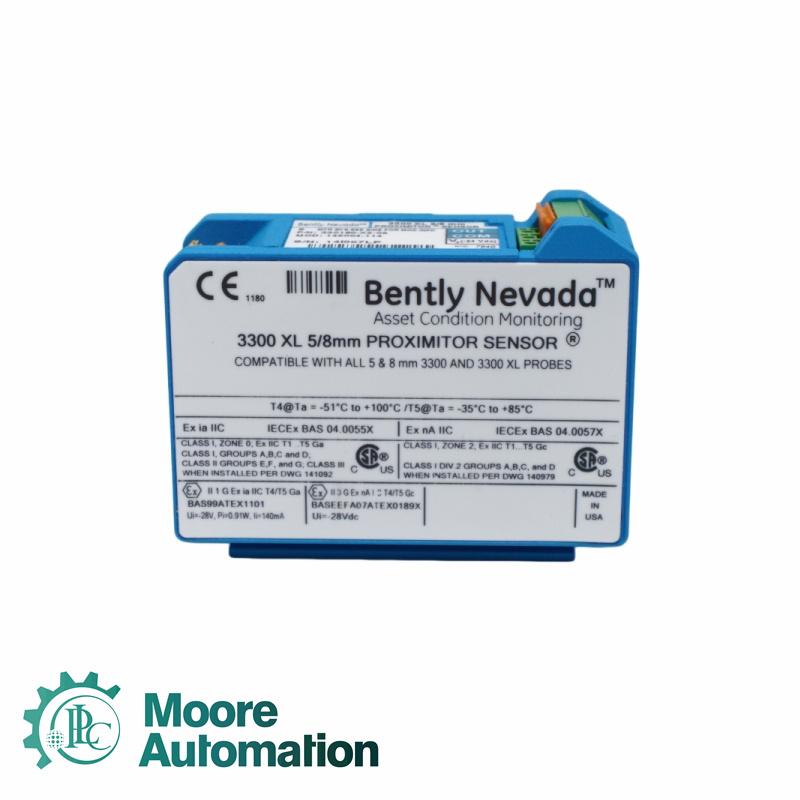

Bently Nevada 330180-X2-05 MOD: 163358-02 3300 XL Proximitor Sensor

Bently Nevada 330180-X2-05 MOD: 163358-02 3300 XL Proximitor Sensor

100% Original New
1 Year Warranty
Competitive Pice
Email: sales3@askplc.com

Order(MOQ):
1
Payment:
T/T
Product Origin:
USA
Color:
Brand New
Shipping Port:
Xiamen
Lead Time：
in stock

Product Detail

✓New and Original	✓In Stock	✓Huge Discount
Contact: John Yang	Email: sales3@askplc.com	Mobile(WhatsApp): 86-18150117685

Performance Specifications

Dimensions	7.8 × 2.8 × 6 cm
Weight	0.2 kg
Total Length / Mounting Option	1.0 m (3.3 ft) system length, no mounting hardware
Agency Approval Option	CSA, ATEX, IECEx Approvals
Proximitor Sensor Input	Accepts one non-contacting 3300 Series 5 mm, 3300 XL 8 mm Proximity Probe and Extension Cable
Power	-17.5 V DC to -26 V DC
Proximitor Sensor Material	A308 Aluminum
Supply Sensitivity	Less than 2 mV change in output voltage per volt change in input voltage
Output Resistance	50 Ω
Operating Temperature	-52 °C to +100 °C (-62 °F to +212 °F)
Storage Temperature	-52 °C to +105 °C (-62 °F to +221 °F)
Frequency Response	0 to 10 kHz, +0/-3 dB, with up to 305 m (1000 ft) field wiring
Minimum Target Size	15.2 mm (0.6 in) diameter (flat target)
Output Voltage in Mil pp/Gauss (9 m Proximitor Sensor, Gap 10)	0.0247
Output Voltage in Mil pp/Gauss (9 m Proximitor Sensor, Gap 50)	0.0323
Output Voltage in Mil pp/Gauss (9 m Proximitor Sensor, Gap 90)	0.0348

330180-X2-05 MOD: 163358-02 3300 XL Proximitor Sensor

The 3300 XL 8 mm Proximity Transducer System provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements. The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems.

Frequently Asked Questions

Q: Can non-3300 XL series eddy current probes be directly mixed with 330180-X2-05 MOD: 163358-02?
A: No. To ensure measurement accuracy and linearity (standard linear range of 2.0 mm), it must be strictly used with Bently Nevada 3300 XL 8mm or 5mm eddy current probes and extension cables.

Q: Which category does 330180-X2-05 MOD: 163358-02 belong to in the Proximitor family?
A: It belongs to the 3300 XL 5mm/8mm eddy current probe Proximitor series for non-contact displacement, vibration, and speed signal processing.

Q: What special technical modification is represented by “MOD: 163358-02” in 330180-X2-05 MOD: 163358-02?
A: MOD: 163358-02 is represented as a Bently customized code for Test Input pin changes or gain calibration for non-standard 4140 steel targets.

Q: What system length and installation method are represented by “X2” in 330180-X2-05 MOD: 163358-02?
A: A 5.0 m total system length is represented by X2 (1.0 m and 9.0 m for some batches), and no mounting hardware is provided.

Q: Can non-3300 XL series eddy current probes be directly mixed with 330180-X2-05 MOD: 163358-02?
A: No. Accurate measurement and linearity (2.0 mm standard linear range) are achieved only when 3300 XL 8mm or 5mm probes and extension cables are used.

Applicaiton

Power Plants: For supercritical turbines, gas turbines, and feed pump turbines, monitoring shaft orbit and thrust displacement.

Coal Chemical Plants: For air units, syngas compressors, and high-pressure pumps with low drift MOD modules.

LNG Plants: For cryogenic compressors and pumps, providing accurate dynamic signals with rotor calibration.

Steel Plants: For blast blowers, TRT units, and dust fans with strong EMI shielding.
