Performance Specifications
Weight
0.08 kg
Mounting Stud Option
3/8-24 to 3/8-24 UNF, 3/4 inch hex stud
Approvals
CSA / ATEX / IECEx
ProTIM Option
Standard
Channel Type
Acceleration-to-Velocity (-01)
Application Type
General Application
Housing Material
316L Stainless Steel
Connector Material
316L Stainless Steel
Sensitivity @ 80 Hz
10.2 mV/(m/s²) (100 mV/g) ±12%
Measurement Range
±245 m/s² (±25 g)
Measurement Range (mg)
14.7 mm/s² (1.5 mg)
Frequency Range
10–1000 Hz (600–60,000 cpm)
Mounted Resonant Frequency
>20 kHz (>1200 kcpm)
Amplitude Linearity
±2% (1–10 g pk)
Transverse Sensitivity
≤7%
Settling Time
≤300 ms
Excitation Voltage
4.7–5.5 V DC
Polarity
SIG+ positive with respect to SIG-
Quiescent Current
<800 µA
Output Bias Voltage
+2.5 ±0.23 V DC
Electrical Isolation
600 Vrms
Axial Shock Limit
49,050 m/s² pk (5,000 g pk)
Operating Temperature
-40 °C to +105 °C (-40 °F to +221 °F)
Hermetic Sealing
5×10⁻⁸ atm·cc/s max
Relative Humidity
100% RH condensing, non-submerged
Mounting Thread
3/8-24 Female
|

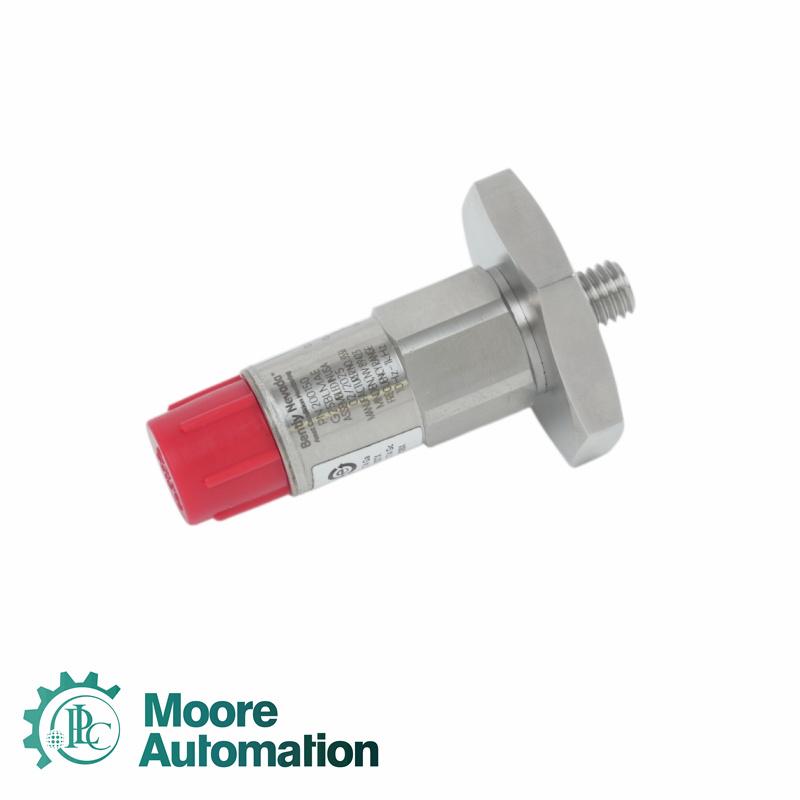

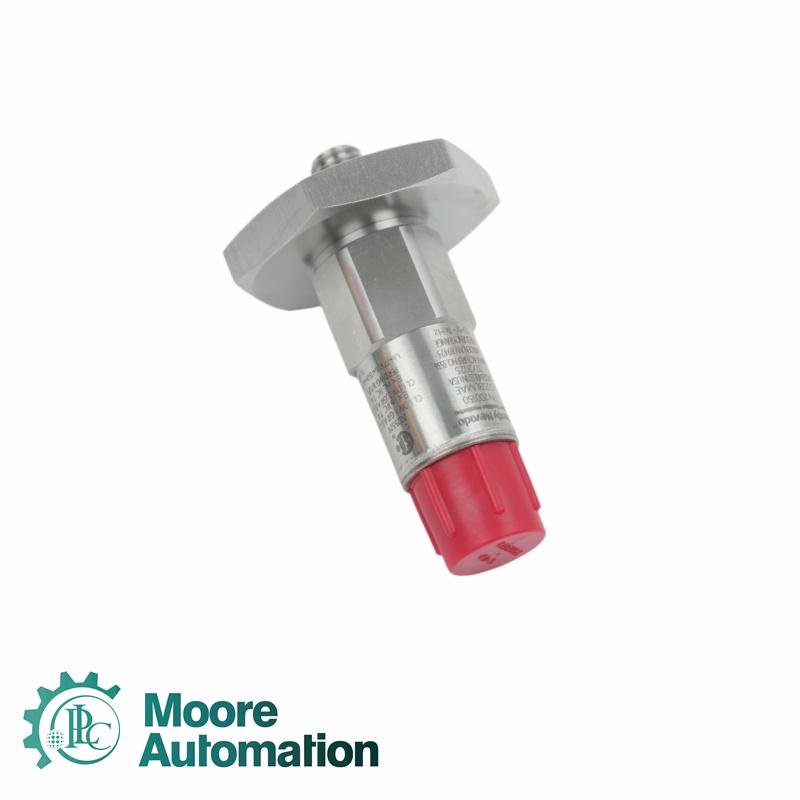

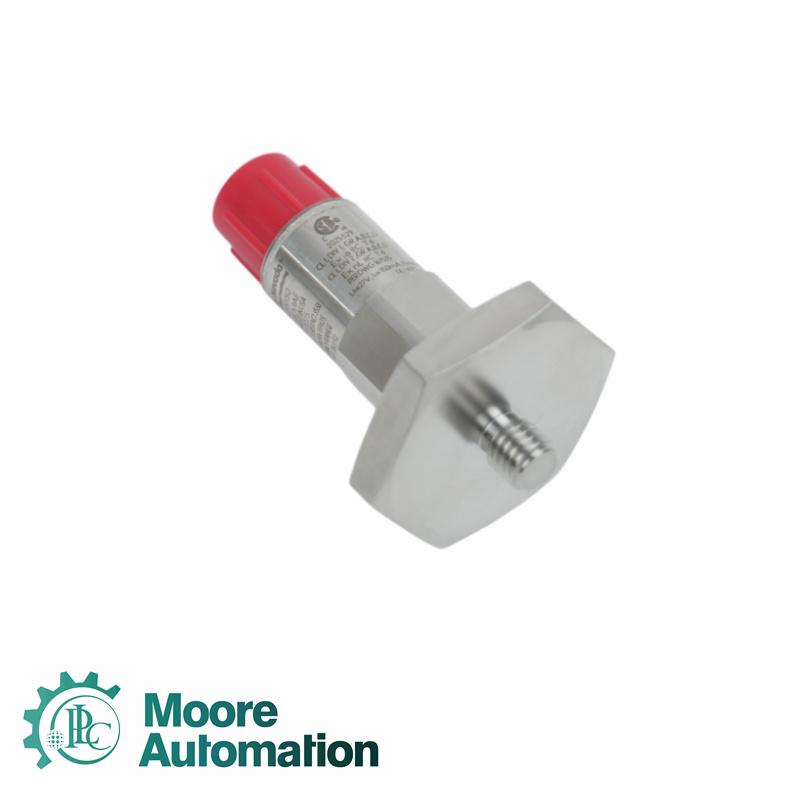

200150-14-CN Trendmaster 2000 or Trendmaster Pro Accelerometer |
The 20015x Accelerometers are general purpose, wide frequency, case-mounted seismic transducers designed for use with Trendmaster ProTIMs. The 200150 Accelerometer also operates with the Trendmaster 2000 system. The accelerometer interfaces with the 200100 Dual Acceleration to Velocity flexiTIM Module and the 89130-01 Acceleration-to-Velocity TIM (Transducer Interface Module), as well as the 1900/25 and 1900/27 monitors.
Frequently Asked Questions
Q: What is 200150-14-CN mainly used to measure in industrial equipment monitoring?
A: It is used for monitoring medium-to-high frequency casing vibration and is commonly combined with the Trendmaster system to collect acceleration and velocity signals from pumps, fans, or motors.
Q: What mechanical mounting component is specified by the “-14” option in model 200150-14-CN?
A: -14 represents a factory-equipped 3/8-24 to 3/8-24 UNF, 3/4-inch hex double-ended mounting stud (Hex Stud).
Q: What national or regional certification standard is represented by the suffix “CN” in 200150-14-CN?
A: CN represents China Approvals, meeting local Chinese explosion-proof safety and industrial access standards.
Q: What effective monitoring frequency range is provided by 200150-14-CN for high-frequency signal acquisition?
A: A frequency response range of 10 Hz to 1000 Hz (600 to 60,000 cpm) is provided within ±10% error.
Q: How are the housing material and connector moisture resistance of 200150-14-CN designed for signal stability?
A: A 316L stainless steel hermetically sealed housing is used (leak rate of 5 × 10⁻⁸ atm⋅cc/s), with a top 5-pin 1/2-20 connector.
Applicaiton
Petrochemical Refineries: Online monitoring for pumps, mixers, and fans in hazardous areas.
Coal Chemical Plants: Condition monitoring for gasification pumps, slurry pumps, and methanol pumps.
Power Plants: Trend monitoring for feed pumps, cooling pumps, and fans with Trendmaster systems.
LNG Plants: Explosion-safe monitoring for LNG pumps, BOG compressors, and pipeline stations.
Steel Plants: Monitoring auxiliary pumps in coke, blast furnace, and rolling areas with heat and EMI resistance.
