Performance Specifications
Dimensions
7.3 × 6.1 × 9.8 cm
Weight
0.46 kg
Full-Scale Option
0–5 mils pp (0–125 μm pp)
System Length Option
5.0 m (16.4 ft) / 7.0 m (23.0 ft)

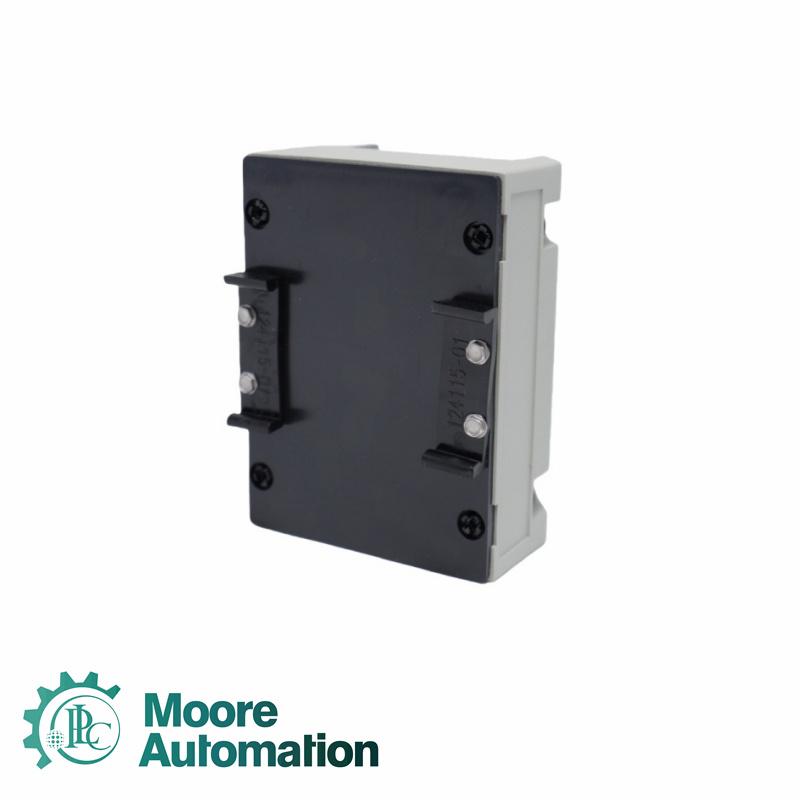

Mounting Option
35 mm DIN Rail Clips
Agency Approval Option
Not Required
Operating Temperature
-35 °C to +85 °C (-31 °F to +185 °F)
Storage Temperature
-52 °C to +100 °C (-62 °F to +212 °F)
Input
Accepts 1 non-contacting 3300 NSv Proximity Probe and Extension Cable
Power Supply
+12 to +35 V DC input at transmitter terminal
Maximum Loop Resistance
1,000 Ω including cable at 35 V DC
Current Limiting
23 mA typical
Output Impedance
10 kΩ output impedance, calibrated for 10 MΩ load
Prox Out Linear Range
1.4 mm (55 mils), starts approx. 0.25 mm (10 mils) from target surface
Prox Out Incremental Scale Factor
7.87 mV/µm (200 mV/mil) ±6.5% typical; ±10% worst case
Target Condition for Scale Factor
Flat 30 mm (1.2 in) target, 0.25 mm (10 mils) increments
Typical Noise Level
50 mV pp
4–20 mA Loop Accuracy
±1.5% over specified full-scale range
4–20 mA Signal Output
4–20 mA DC, 2-wire configuration
Zero and Span Adjustment
Non-interacting external adjustments
NOT OK Signal Defeat
Output <3.6 mA within 100 µs after NOT OK condition
Signal Recovery Time
Restored within 2–3 seconds after NOT OK condition removed
|

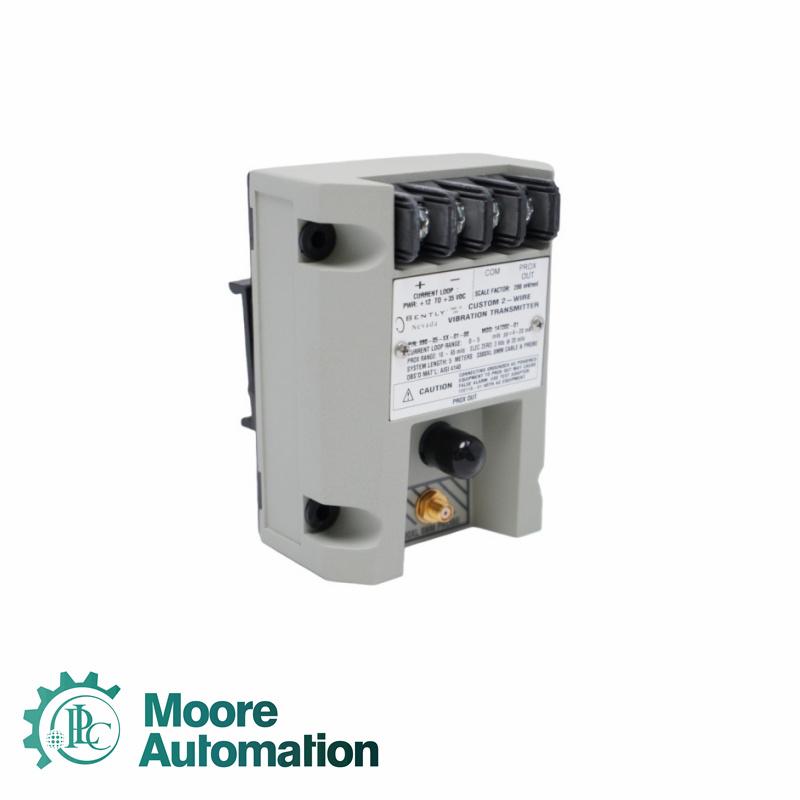

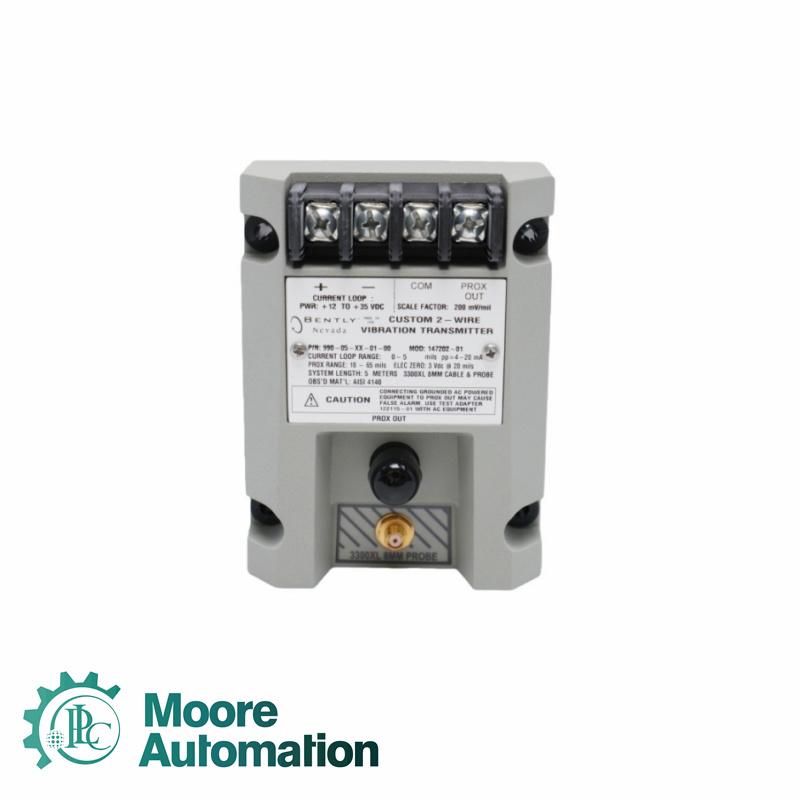

990-05-XX-01-00 MOD: 289549-17 Vibration Transmitter |
The 990 Vibration Transmitter is intended primarily for the original equipment manufacturers (OEMs) of centrifugal air compressors or small pumps, motors, or fans who prefer to provide a simple 4 to 20 mA proportional vibration signal as the input to their machinery control system. The transmitter is a two-wire, loop-powered device that accepts input from our 3300 NSv proximity probe and its matching extension cable (available in 5 m and 7 m system length options).
Frequently Asked Questions
Q: What is the core function of 990-05-XX-01-00 MOD: 289549-17, and what equipment is it suitable for?
A: It is designed for OEM equipment such as centrifugal air compressors, small pumps, and fans, with non-contact probe signals converted into 4-20mA current signals for control systems.
Q: What configurations are represented by “XX” and “00” in 990-05-XX-01-00 MOD: 289549-17?
A: XX is represented as a wildcard for system length selection (50 for 5.0 meters, 70 for 7.0 meters); 00 is represented as no explosion-proof certification required (Not required).
Q: What special physical or electrical modification is represented by “MOD: 289549-17” in 990-05-XX-01-00 MOD: 289549-17?
A: MOD is represented as a Bently factory modification code for Prox Out impedance adjustment, filter cutoff changes, or gain calibration for non-standard targets.
Q: Which Bently probe must be matched with 990-05-XX-01-00 MOD: 289549-17?
A: 3300 NSv narrow gap eddy current probes and extension cables are required for use with this 990 series transmitter.
Q: Can 990-05-XX-01-00 MOD: 289549-17 achieve Intrinsic Safety installation through external barriers with the “00” no-certification option?
A: Yes. Sensor-side hazardous area installation can be achieved when a loop-powered device (+12 to +35 Vdc) is used with approved Zener barriers or isolators.
Applicaiton
Coal-to-Oil / Coal Chemical Plants: For gasification and methanol units, matching coated alloy shafts with MOD calibration.
Combined Cycle Plants: Compact DIN rail design for gas turbines, steam turbines, and generators.
Oxygen & Air Separation Plants: For high-speed compressors with NSv probes for accurate shaft runout monitoring.
Gas Pipeline Plants: Remote vibration trend monitoring for turbine-driven compressors and pumps via SCADA.
Fine Chemical Plants: Sealed vibration monitoring for mixers and process pumps in humid environments.
