 Bently Nevada 330171-00-33-50-01-05 3300 5 mm Proximity Probe
330171-00-33-50-01-05 330171-00-33-50-01-05 330171-00-33-50-01-05

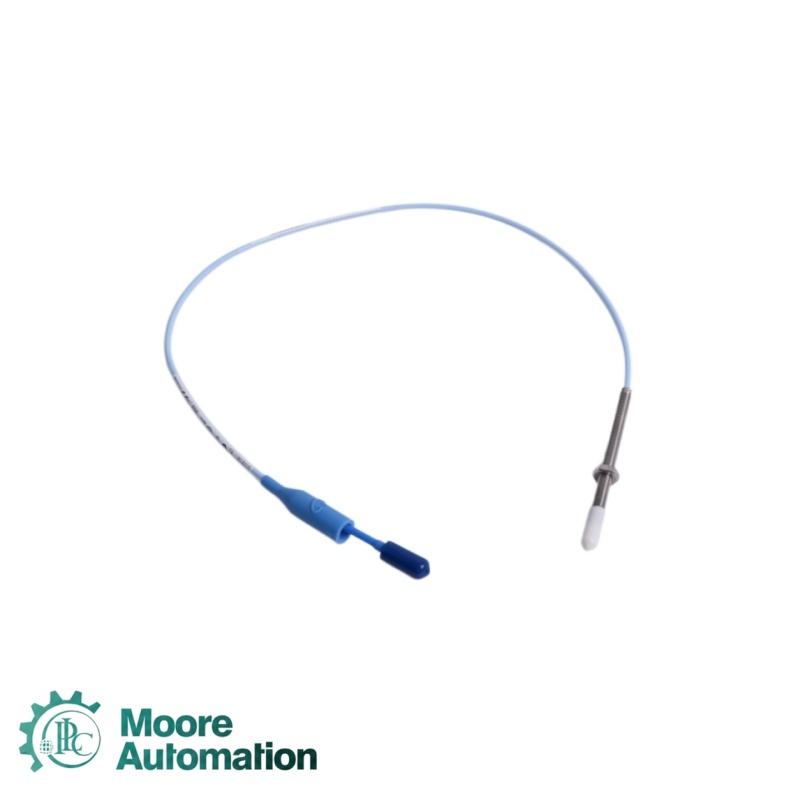

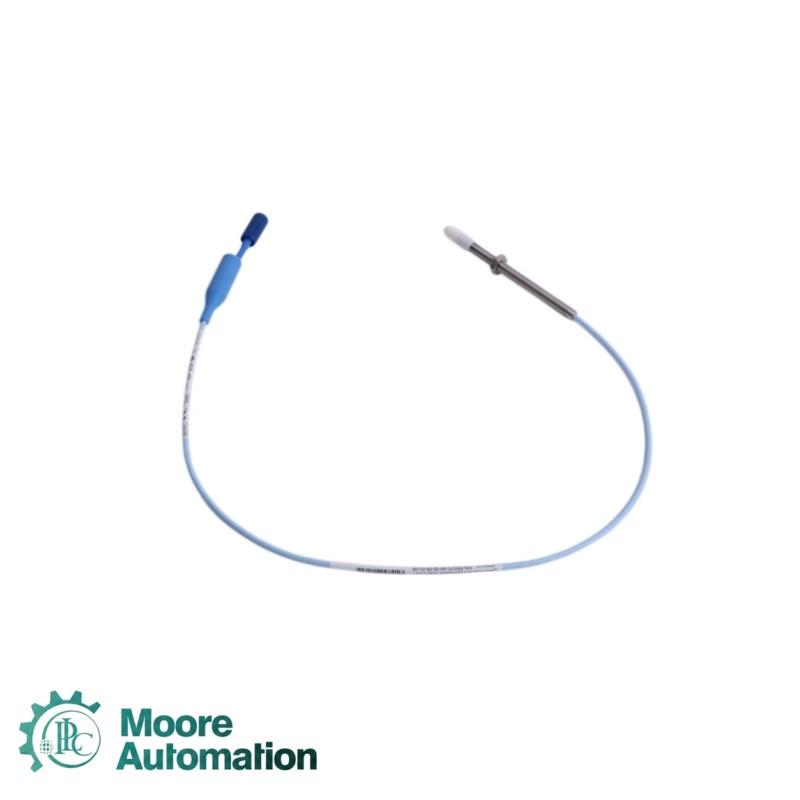

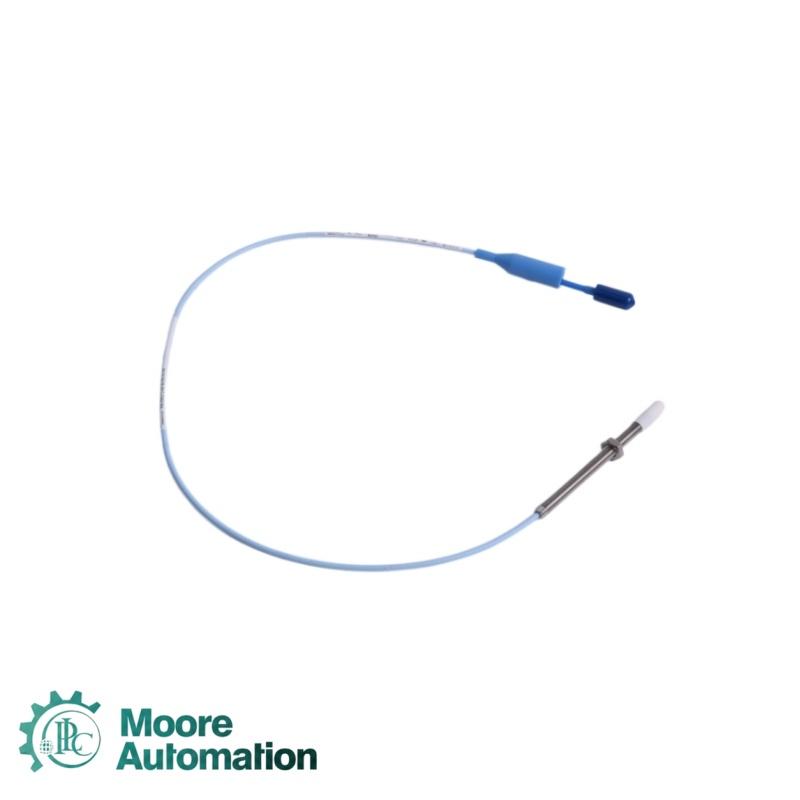

Bently Nevada 330171-00-33-50-01-05 3300 5 mm Proximity Probe

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

  • Item NO.:

    330171-00-33-50-01-0

  • Order(MOQ):

    1

  • Payment:

    T/T

  • Product Origin:

    UK

  • Color:

    Brand New

  • Shipping Port:

    Xiamen

  • Warranty:

    1 year

  • Product Origin:

    UK

  • Lead Time:

    3-5 days
Contact Us

  • Product Detail

Specifications
The Bently Nevada 330171-00-33-50-01-05 is a configured 3300 5 mm proximity probe with a 1/4-28 UNF thread and no armor. Its order code specifies a 0.0-inch unthreaded length, 3.3 in (83.8 mm) overall case length, 5.0 m (16.4 ft) total length, a miniature coaxial ClickLoc connector with connector protector and standard cable, plus the Multiple Approvals option. Used with the specified extension cable and Proximitor Sensor, the transducer system measures static position and dynamic vibration on conductive targets.
Product type3300 5 mm proximity probe
Thread1/4-28 UNF
ArmorWithout armor
Unthreaded length0.0 in
Overall case length3.3 in (83.8 mm)
Total length5.0 m (16.4 ft)
ConnectorMiniature coaxial ClickLoc with connector protector
Cable typeStandard 75 Ω FEP-insulated triaxial cable
Approval optionMultiple Approvals
Linear range2 mm (80 mils), approximately 0.25–2.3 mm
Recommended gap1.27 mm (50 mils)
Scale factor7.87 V/mm (200 mV/mil), typical
Probe temperature range−35 to +177 °C
Probe case materialAISI 303 or 304 stainless steel
Application Industry
01
Threaded machine installationsUses a 1/4-28 UNF case with the selected 3.3-inch overall length for geometry-specific mounting.
02
Radial shaft vibrationMeasures dynamic shaft motion with the probe positioned against a conductive target.
03
Thrust-position monitoringSupports axial position measurement when probe spacing and target geometry meet the published guidance.
04
Speed and phase referenceCan be applied to speed or Keyphasor measurement after review of the manufacturer application note.
FAQ
How is the probe-body length configured for 330171-00-33-50-01-05?
The order code specifies no unthreaded section and a 3.3-inch overall case length.
What thread engagement limit applies when installing 330171-00-33-50-01-05?
For the 1/4-28 probe case, maximum thread engagement is 0.375 inch. Greater engagement can cause binding.
What probe temperature range applies to 330171-00-33-50-01-05?
The published probe range is −35 °C to +177 °C. Exposure below the stated lower limit can shorten pressure-seal life.
How should two 330171-00-33-50-01-05 probes be spaced to control cross-talk?
The guidance calls for approximately 40 mm minimum tip separation for axial position or 38 mm for radial vibration measurements.
What target material is used for standard calibration of 330171-00-33-50-01-05?
Factory calibration is based on AISI 4140 steel. Other conductive target materials may require a different calibration.
