 Bently Nevada 24701-34-05-00-041-03-02 Stainless Steel Proximity Probe Housing Assembly
24701-34-05-00-041-03-02 24701-34-05-00-041-03-02 24701-34-05-00-041-03-02

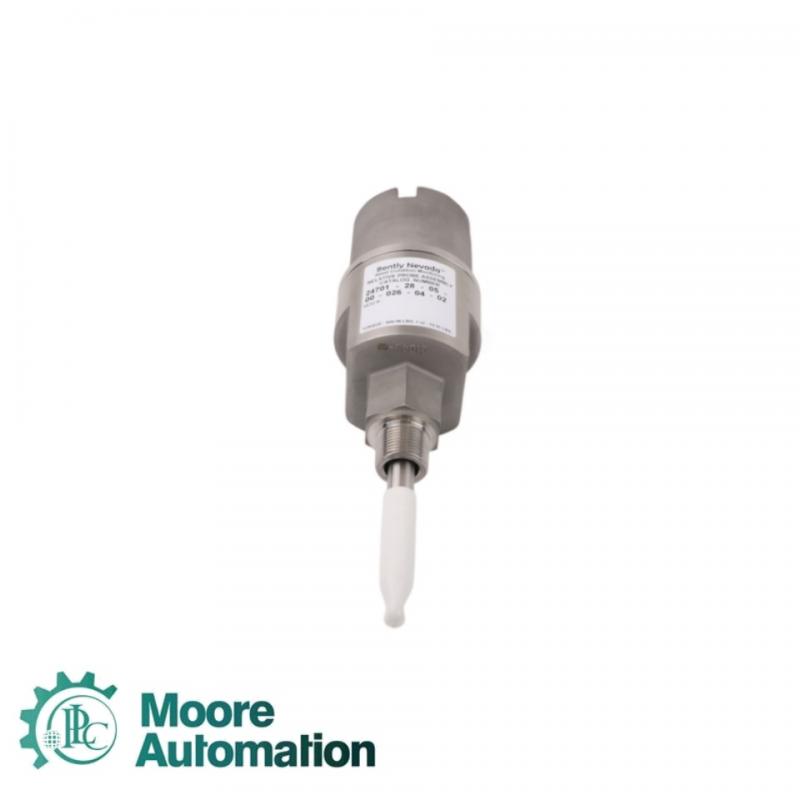

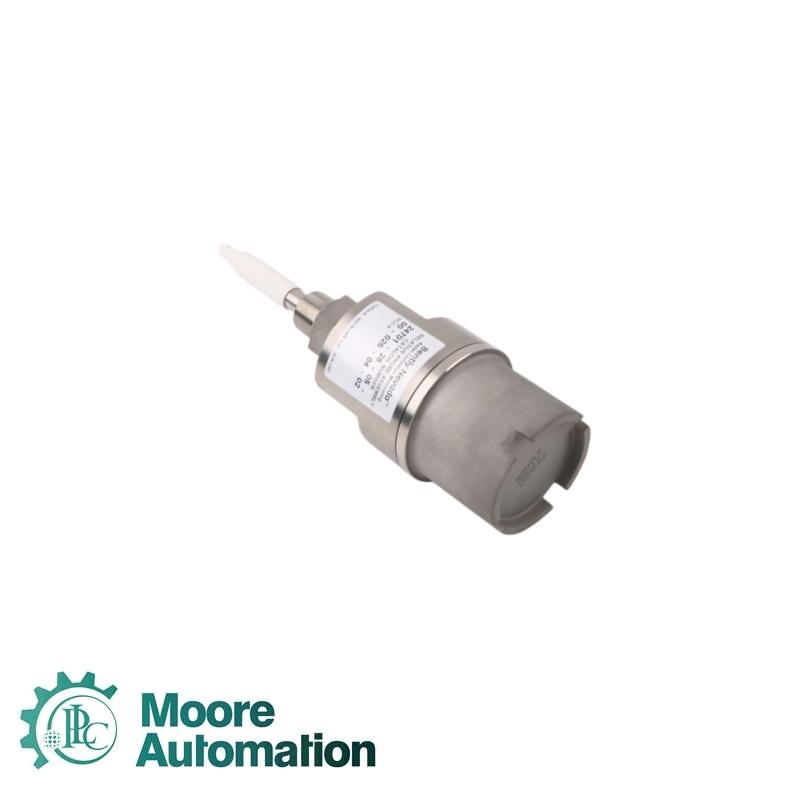

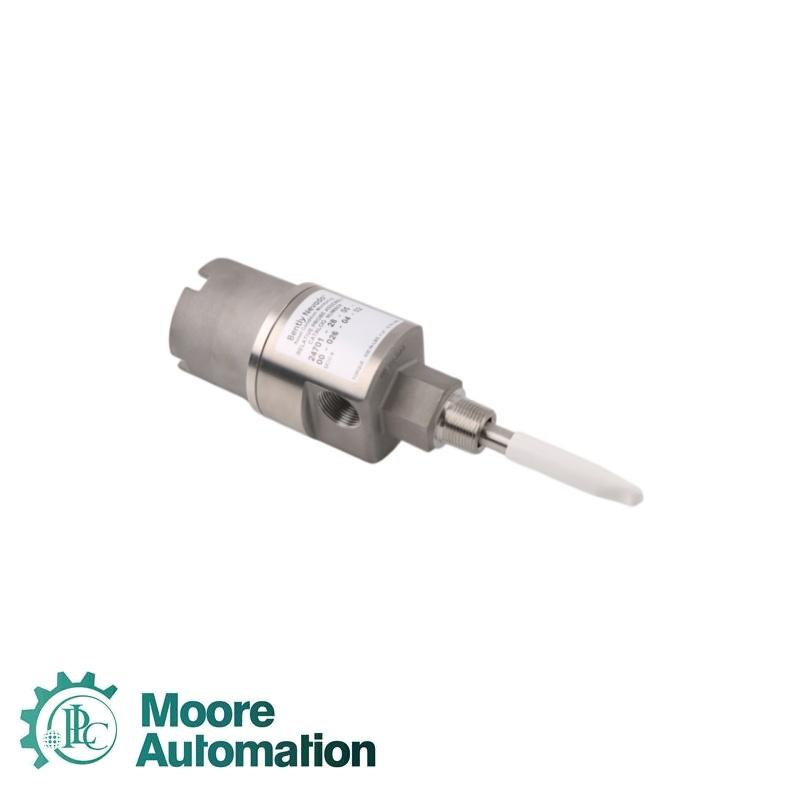

Bently Nevada 24701-34-05-00-041-03-02 Stainless Steel Proximity Probe Housing Assembly

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

  • Order(MOQ):

    1

  • Payment:

    T/T

  • Product Origin:

    UK

  • Color:

    Brand New

  • Shipping Port:

    Xiamen

  • Warranty:

    1 Year

  • Product Origin:

    UK

  • Lead Time:

    3-5 Days
Contact Us

  • Product Detail

Specifications
The 24701-34-05-00-041-03-02 is a stainless steel proximity probe housing assembly for externally mounting a proximity probe on rotating machinery. This configuration uses an 8 mm probe with connector protector and the selectable approval option, a 0.5 m cable, no standoff adapter, 4.1 in probe penetration, option 03 fittings, and a 3/4-14 NPT mounting thread.
Housing materialStainless steel
Probe system3300 XL 8 mm
Connector protectorIncluded
Probe cable length0.5 m (20 in)
Standoff adapterNone
Probe penetration4.1 in
Fittings3/4-14 NPT plug, reducer and cable seal grip
Mounting thread3/4-14 NPT
Housing dimension A78.2 mm (3.08 in)
Housing dimension B151.9 mm (5.97 in)
Application Industry
01
Turbine installationsProvides an external mounting point for non-contacting shaft probes on turbine casings.
02
Compressor trainsSupports accessible probe installation and adjustment on rotating compressor equipment.
03
Pump monitoringProtects and positions a proximity probe used for shaft vibration or position measurement.
04
Machine retrofitsProvides an all-metal housing arrangement for externally mounted probe upgrades.
FAQ
What probe configuration is supplied with 24701-34-05-00-041-03-02?
The assembly is configured for an 8 mm probe with a connector protector and the selectable approval option.
How should 24701-34-05-00-041-03-02 be mounted when no standoff adapter is selected?
The housing uses the specified 3/4-14 NPT mounting thread and should be installed to maintain the required probe position and clearance.
Which fittings are included with 24701-34-05-00-041-03-02?
The fittings package includes one plug, one reducer and one cable seal grip with grommets for the listed cable sizes.
What penetration dimension must be checked for 24701-34-05-00-041-03-02?
The configured probe penetration is 4.1 inches; verify machine-case clearance and final probe gap during installation.
Where is 24701-34-05-00-041-03-02 normally used?
It is intended for external proximity-probe mounting on rotating machinery where a durable stainless steel housing is required.
