 Bently Nevada 330171-00-12-50-01-05 3300 5 mm Proximity Probe
330171-00-12-50-01-05 330171-00-12-50-01-05 330171-00-12-50-01-05

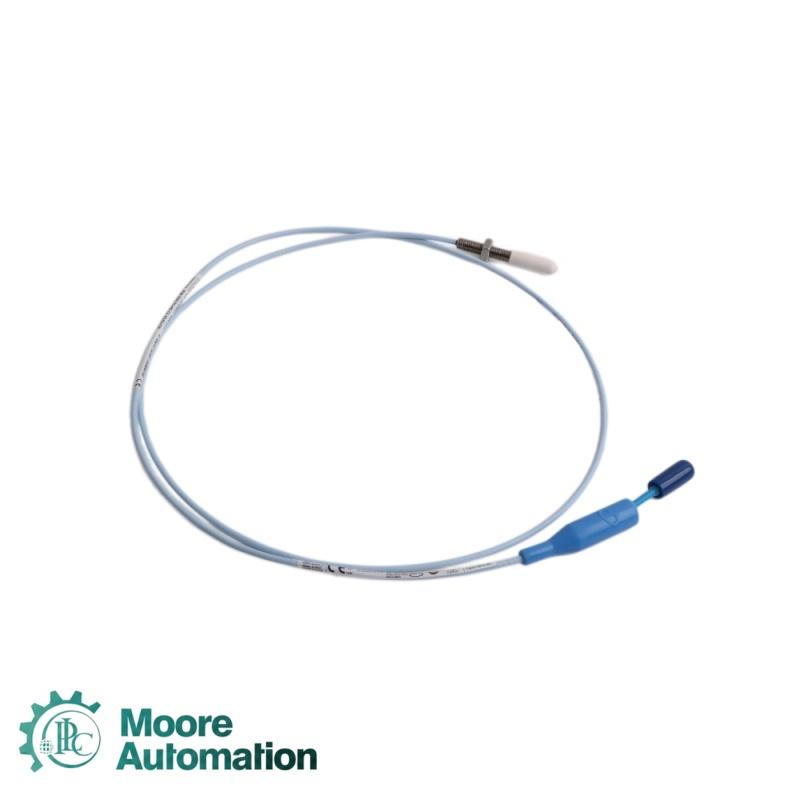

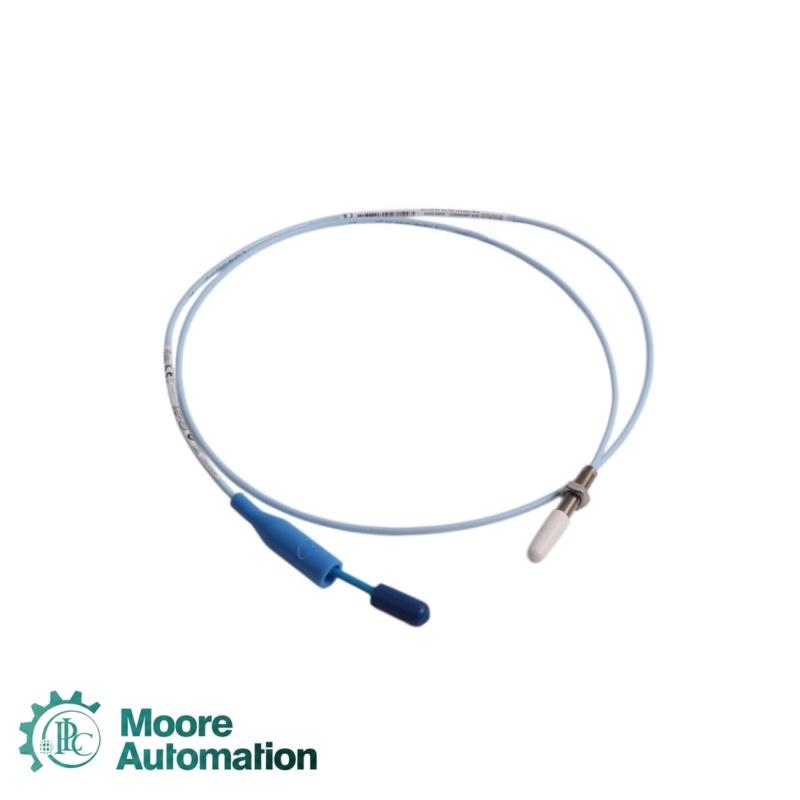

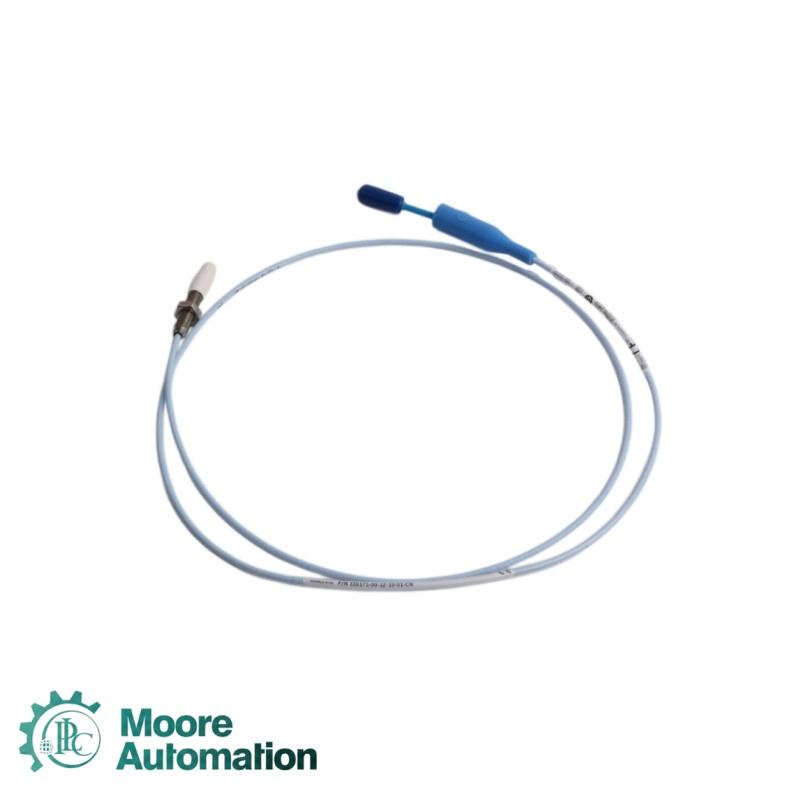

Bently Nevada 330171-00-12-50-01-05 3300 5 mm Proximity Probe

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

  • Item NO.:

    330171-00-12-50-01-0

  • Order(MOQ):

    1

  • Payment:

    T/T

  • Product Origin:

    UK

  • Color:

    Brand New

  • Shipping Port:

    Xiamen

  • Warranty:

    1 year

  • Product Origin:

    UK

  • Lead Time:

    3-5 days
Contact Us

  • Product Detail

Specifications
The Bently Nevada 330171-00-12-50-01-05 is a configured 3300 5 mm proximity probe with a 1/4-28 UNF thread and no armor. Its order code specifies a 0.0-inch unthreaded length, 1.2 in (30.5 mm) overall case length, 5.0 m (16.4 ft) total length, a miniature coaxial ClickLoc connector with connector protector and standard cable, plus the Multiple Approvals option. Used with the specified extension cable and Proximitor Sensor, the transducer system measures static position and dynamic vibration on conductive targets.
Product type3300 5 mm proximity probe
Thread1/4-28 UNF
ArmorWithout armor
Unthreaded length0.0 in
Overall case length1.2 in (30.5 mm)
Total length5.0 m (16.4 ft)
ConnectorMiniature coaxial ClickLoc with connector protector
Cable typeStandard 75 Ω FEP-insulated triaxial cable
Approval optionMultiple Approvals
Linear range2 mm (80 mils), approximately 0.25–2.3 mm
Recommended gap1.27 mm (50 mils)
Scale factor7.87 V/mm (200 mV/mil), typical
Probe temperature range−35 to +177 °C
Probe case materialAISI 303 or 304 stainless steel
Application Industry
01
Five-metre integral-lead installationsProvides a configured 5.0-metre probe length for systems designed around that electrical length.
02
Fluid-film bearing machineryMeasures shaft vibration and position on machines using fluid-film bearings.
03
Dynamic vibration monitoringProduces a signal proportional to probe-tip distance for monitoring changing shaft motion.
04
Static position monitoringSupports axial or radial position measurements on conductive machine targets.
FAQ
Which Proximitor Sensor system length must be matched to 330171-00-12-50-01-05?
A five-metre integral probe is designed for use with the five-metre sensor configuration. Do not mix electrical system lengths.
What cable bend radius should be maintained for 330171-00-12-50-01-05?
Maintain a minimum bend radius of 25.4 mm (1.0 inch) during routing and installation.
What target size should be checked before applying 330171-00-12-50-01-05?
The flat target should be at least 15.2 mm in diameter. Shaft-size and probe-spacing effects must also be checked against the performance guidance.
What does the final approval code mean for 330171-00-12-50-01-05?
The final option selects Multiple Approvals. Confirm the current approval guide and installation drawing for the destination and hazardous-area requirements.
Can 330171-00-12-50-01-05 measure both vibration and position?
Yes. When used as part of the specified transducer system, the output is proportional to target distance and supports both dynamic and static measurements.
