 Bently Nevada 330171-00-12-05-01-05 3300 5 mm Proximity Probe
330171-00-12-05-01-05 330171-00-12-05-01-05 330171-00-12-05-01-05

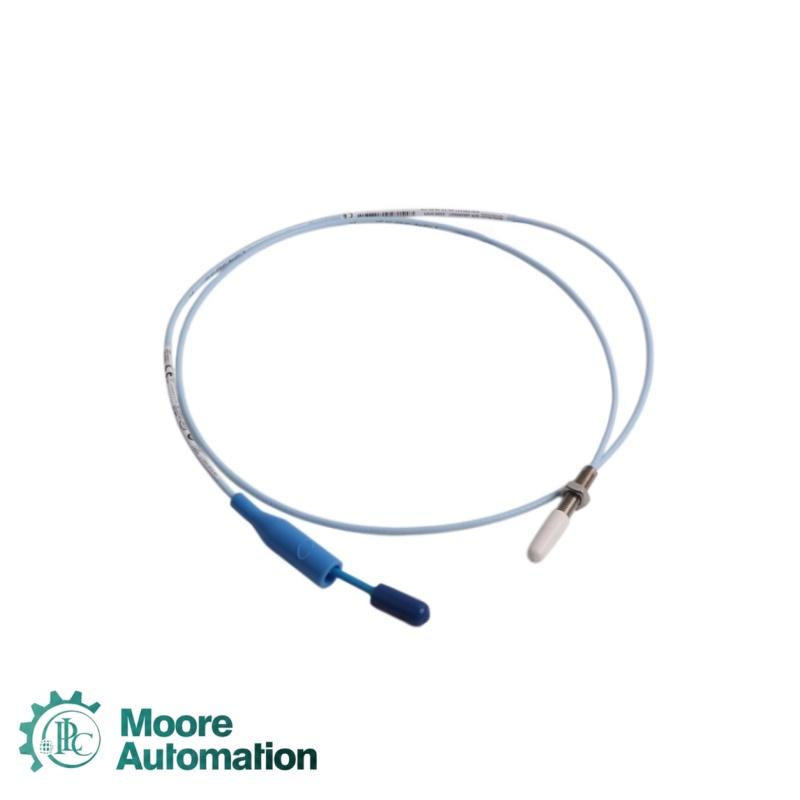

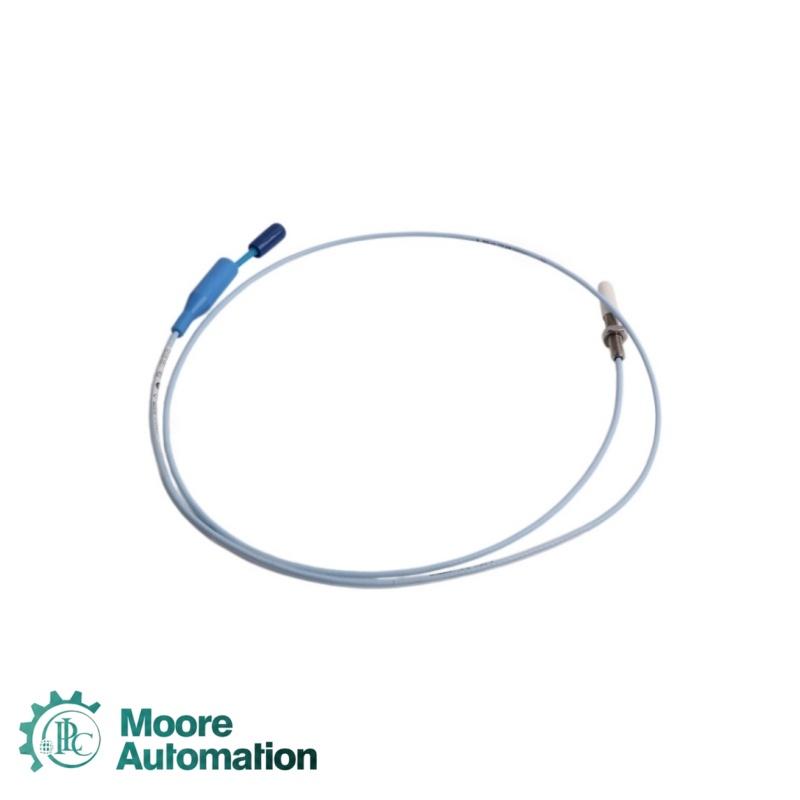

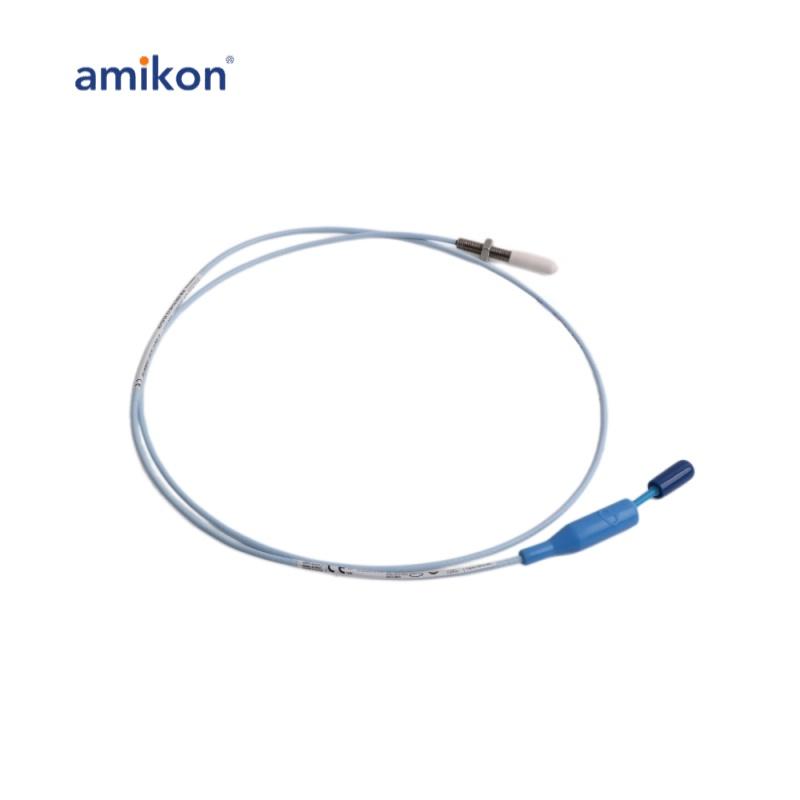

Bently Nevada 330171-00-12-05-01-05 3300 5 mm Proximity Probe

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

  • Item NO.:

    330171-00-12-05-01-0

  • Order(MOQ):

    1

  • Payment:

    T/T

  • Product Origin:

    UK

  • Color:

    Brand New

  • Shipping Port:

    Xiamen

  • Warranty:

    1 year

  • Product Origin:

    UK

  • Lead Time:

    3-5 days
Contact Us

  • Product Detail

Specifications
The Bently Nevada 330171-00-12-05-01-05 is a configured 3300 5 mm proximity probe with a 1/4-28 UNF thread and no armor. Its order code specifies a 0.0-inch unthreaded length, 1.2 in (30.5 mm) overall case length, 0.5 m (1.6 ft) total length, a miniature coaxial ClickLoc connector with connector protector and standard cable, plus the Multiple Approvals option. Used with the specified extension cable and Proximitor Sensor, the transducer system measures static position and dynamic vibration on conductive targets.
Product type3300 5 mm proximity probe
Thread1/4-28 UNF
ArmorWithout armor
Unthreaded length0.0 in
Overall case length1.2 in (30.5 mm)
Total length0.5 m (1.6 ft)
ConnectorMiniature coaxial ClickLoc with connector protector
Cable typeStandard 75 Ω FEP-insulated triaxial cable
Approval optionMultiple Approvals
Linear range2 mm (80 mils), approximately 0.25–2.3 mm
Recommended gap1.27 mm (50 mils)
Scale factor7.87 V/mm (200 mV/mil), typical
Probe temperature range−35 to +177 °C
Probe case materialAISI 303 or 304 stainless steel
Application Industry
01
Constrained probe locationsUses the compact 5 mm probe format where physical space limits the use of a larger probe.
02
Fluid-film bearing vibrationSupports non-contact dynamic vibration measurements on conductive shaft surfaces.
03
Axial position measurementMeasures static shaft position when installed with the specified transducer-system components.
04
Keyphasor and speed measurementCan support phase-reference and speed applications when the manufacturer application guidance is .
FAQ
What mechanical and cable configuration is specified by 330171-00-12-05-01-05?
The order code defines a 0.0-inch unthreaded length, a 1.2-inch overall case length and a 0.5-metre total length.
Does 330171-00-12-05-01-05 include stainless-steel armor?
No. This probe prefix identifies the 1/4-28 UNF version without armor.
What initial gap is recommended when commissioning 330171-00-12-05-01-05?
The documented recommended gap is 1.27 mm (50 mils), centered within the system’s linear range.
How should the ClickLoc connection on 330171-00-12-05-01-05 be tightened?
Connect the gold click-type connector finger-tight until it clicks. The selected connector option includes a protector for added environmental protection.
Where is the compact probe format of 330171-00-12-05-01-05 typically useful?
It is intended for locations where physical space prevents use of a larger probe, including constrained areas such as between thrust-bearing pads.
