 Bently Nevada 330878-X1-00 MOD:177889-01 3300 XL 50 mm Proximitor Sensor
330878-X1-00 MOD:177889-01 330878-X1-00 MOD:177889-01 330878-X1-00 MOD:177889-01

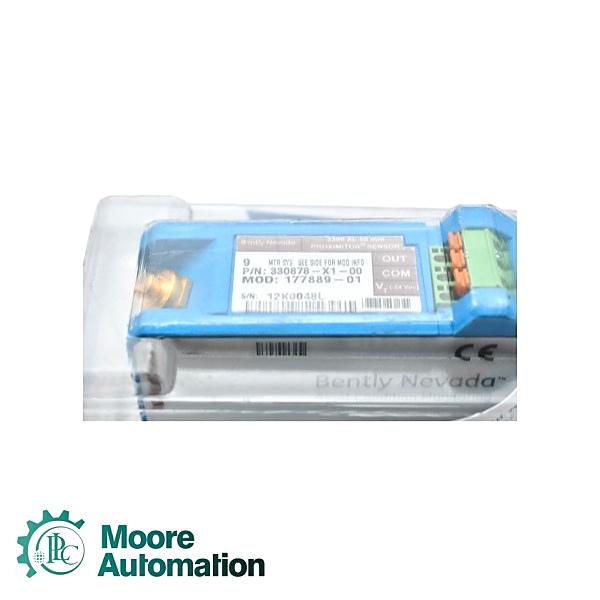

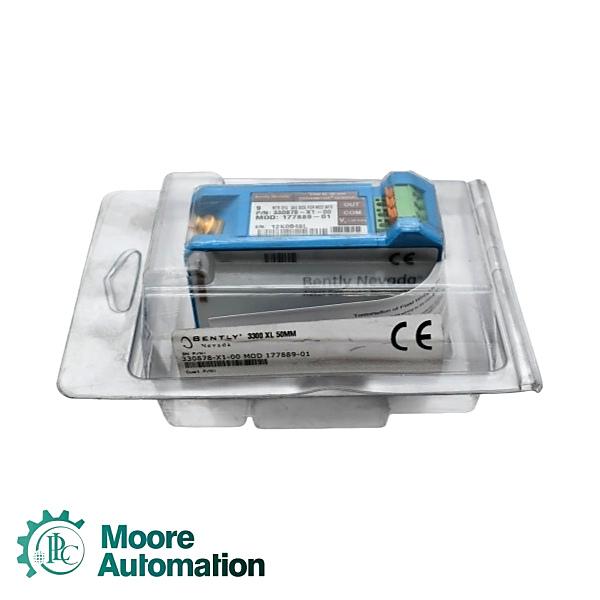

Bently Nevada 330878-X1-00 MOD:177889-01 3300 XL 50 mm Proximitor Sensor

hot selling

1 year warranty

Best choice and best discounts

Email me:sales6@askplc.com

  • Order(MOQ):

    1

  • Payment:

    T/T

  • Product Origin:

    USA

  • Color:

    Brand New

  • Shipping Port:

    Xiamen

  • Warranty:

    1 year

  • Product Origin:

    USA

  • Lead Time:

    3-5 days
Contact Us

  • Product Detail

Specifications
The Bently Nevada 330878-X1-00 MOD:177889-01 is a DIN-mount Proximitor Sensor in the Bently Nevada 3300 XL 50 mm Series. It conditions the signal from a compatible 50 mm proximity probe and extension cable for long-range differential-expansion or rotor-expansion measurement on large steam-turbine generators. The Bently Nevada 330878-X1-00 MOD:177889-01 provides a 27.9 mm linear range, 394 mV/mm nominal scale factor, SpringLoc field terminals, and improved RFI/EMI immunity.
Product family330878 = 3300 XL 50 mm Proximitor Sensor
Mounting code1 = DIN mount
Agency approval code00 = no approvals
Power supply−17.5 to −26 Vdc without barriers
Current consumption12 mA maximum
Output resistance50 Ω
Linear range27.9 mm (1100 mils)
Average scale factor394 mV/mm (10 mV/mil)
Application Industry
01
Steam-turbine generatorsMeasures differential expansion caused by different rotor and casing growth rates.
02
Large turbine trainsProvides long-range rotor-expansion measurement for machinery protection systems.
03
Power-generation plantsSupports axial displacement monitoring on critical rotating equipment.
04
Turbine retrofit projectsReplaces compatible legacy 7200 and 50 mm DE Integral systems when all transducer components are upgraded together.
FAQ
What does the X1 portion of 330878-X1-00 indicate?
The final digit 1 identifies DIN mounting. The X character does not specify the 5 m or 9 m system-length digit, so that length must be confirmed from the installed system.
Does this Proximitor Sensor include a probe or extension cable?
No. It is one component of a 3300 XL 50 mm system and must be matched with the correct 50 mm probe and extension cable.
What measurement range does the system provide?
With compatible system components and the specified target, the official datasheet gives a 27.9 mm (1100 mil) linear range.
Can it replace a legacy 7200 50 mm system component by itself?
No. Baker Hughes states that the probe, extension cable, and Proximitor Sensor must all be replaced with 3300 XL 50 mm components during an upgrade.
Can Moore Automation help confirm compatibility before shipment?
Yes. Moore Automation can review the complete installed system length, mounting format, probe and cable part numbers, and provide available inspection photographs.
