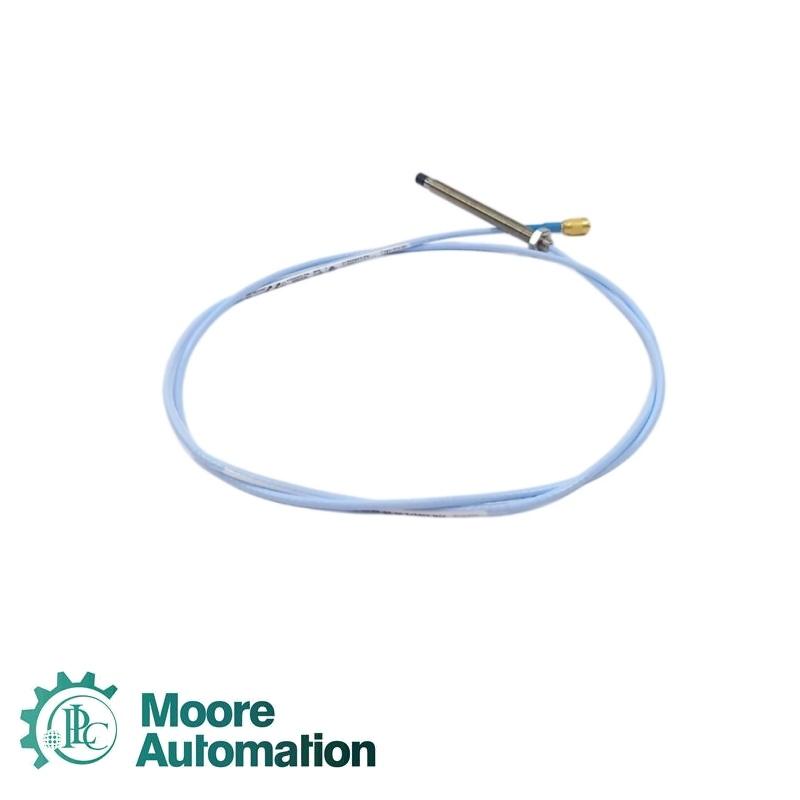

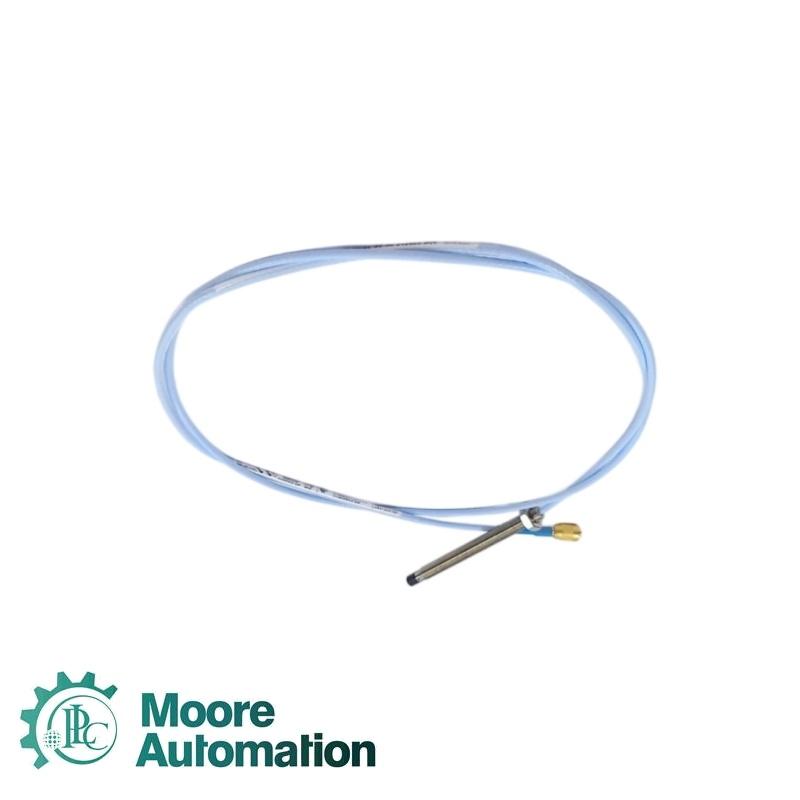

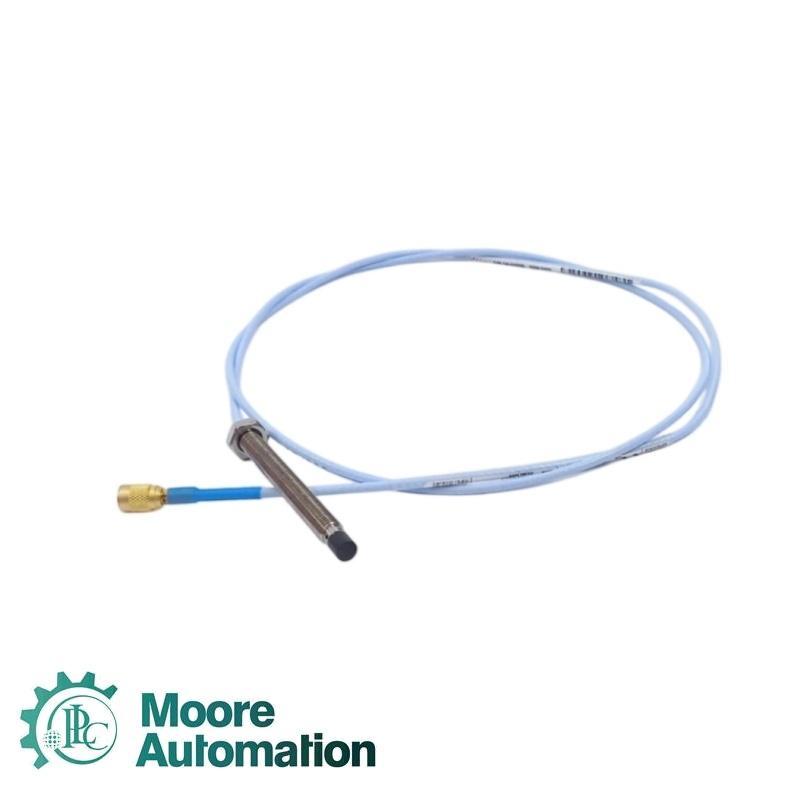

Bently Nevada 330171-00-08-10-02-00 3300 5 mm Proximity Probe

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

Item NO.:
330171-00-08-10-02-0
Order(MOQ):
1
Payment:
T/T
Product Origin:
UK
Color:
Brand New
Shipping Port:
Xiamen
Lead Time：
3-5 Days

Product Detail

Specifications

3300 5 mm non-contact eddy-current proximity probe with a 1/4-28 UNF thread and a compact 0.8 in case. The ordering code specifies zero unthreaded length, 1.0 m total probe cable, standard ClickLoc connector and no agency approval option.

Probe family3300 5 mm

Sensing principleNon-contact eddy current

Thread1/4-28 UNF

ArmorWithout armor

Unthreaded length option00; 0.0 in

Overall case length option08; 0.8 in

Total probe length option10; 1.0 m (3.3 ft)

Connector option02; ClickLoc, standard cable

Agency approval option00; not required

Probe tip diameter5.0 mm

Linear range2 mm; 0.25–2.3 mm

Recommended gap1.27 mm (50 mils)

Incremental scale factor7.87 V/mm (200 mV/mil)

Frequency response0–10 kHz; +0/−3 dB

Probe temperature range−35°C to +177°C

Cable impedance75 Ω triaxial FEP

Minimum bend radius25.4 mm (1.0 in)

Minimum target size15.2 mm (0.6 in)

Minimum shaft diameter50.8 mm (2 in)

Probe case materialAISI 303/304 stainless steel

Application Industry

5 mm probe vibration measurement Vibration measurement where mounting space favors a 5 mm probe body

Fluid-film shaft-position monitoring Shaft position measurement on fluid-film bearing machines

Keyphasor and speed reference Keyphasor reference and speed measurement channels

Matched probe-loop replacement Replacement of a matched 3300 5 mm probe and extension-cable loop

FAQ

Which electronics are compatible with 330171-00-08-10-02-00?

Use the specified 3300 XL extension cable and Proximitor sensor as a matched loop, observing the non-XL performance limits when components are mixed.

Why choose the 5 mm construction of 330171-00-08-10-02-00?

The smaller body helps when physical clearance prevents an 8 mm probe, while the electrical linear range remains comparable when the loop is correctly matched.

How is the ClickLoc connection on 330171-00-08-10-02-00 installed?

Align the mating connectors and tighten them finger-tight until the locking action is felt; no special tool is required.

What cable length does 330171-00-08-10-02-00 use?

The ordering code specifies a 1.0 m probe cable; verify the extension-cable length and sensor range before commissioning the complete loop.

What should be checked before mounting 330171-00-08-10-02-00?

Confirm 1/4-28 thread engagement, tip clearance, target size, gap setting, cable bend radius and the absence of approval requirements in the installation area.
