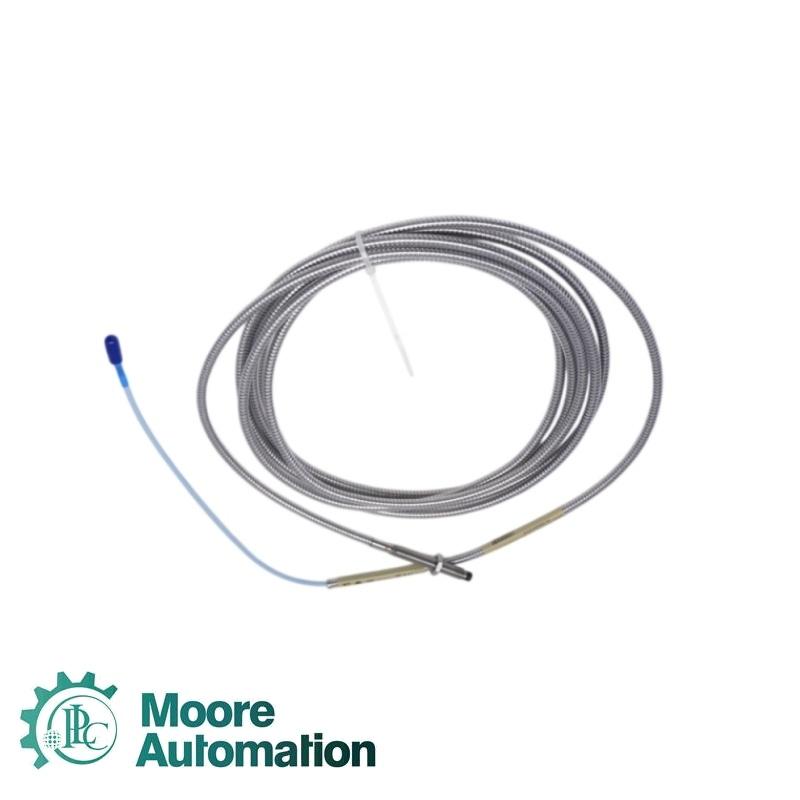

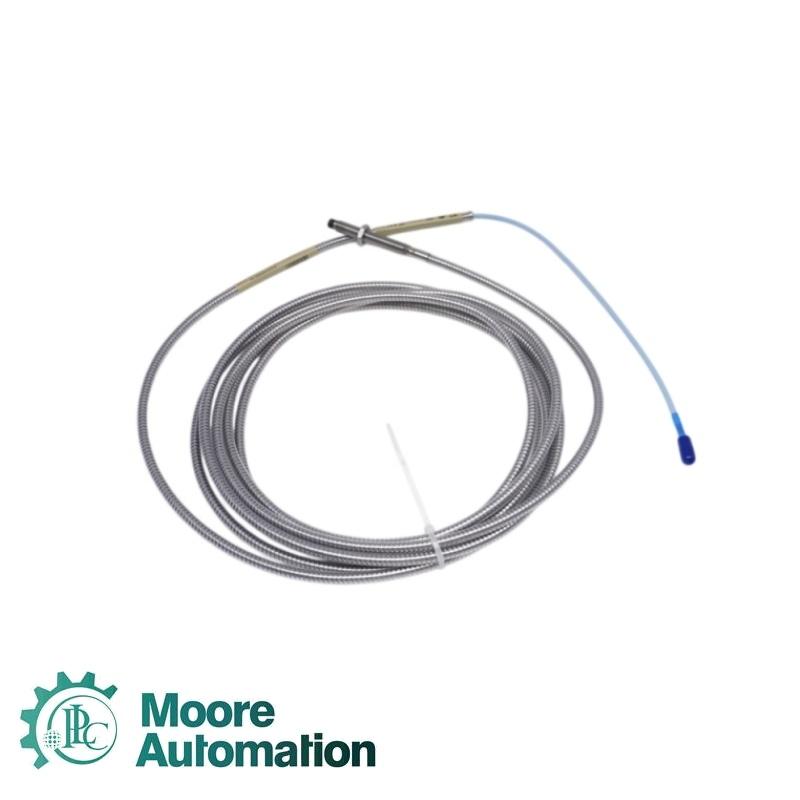

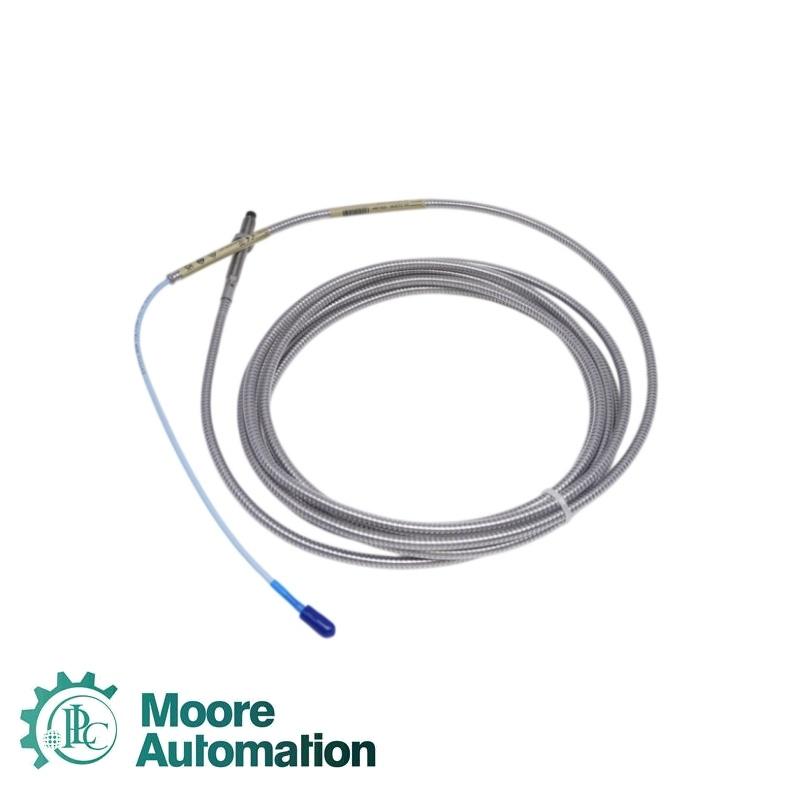

Bently Nevada 162381-138-040-90-05 3300 XL 8 mm Flexible Proximity Probe

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

Item NO.:
162381-138-040-90-05
Order(MOQ):
1
Payment:
T/T
Product Origin:
UK
Color:
Brand New
Shipping Port:
Xiamen
Lead Time：
3-5 Days

Product Detail

Specifications

Long-length 3300 XL 8 mm eddy-current proximity probe configuration for documented machinery channels. The 138-040 fields and 9.0 m length option must be checked against the installed drawing, matching electronics and approval record.

Probe platform3300 XL 8 mm

Sensing principleNon-contact eddy current

Configuration family162381 custom

Mechanical fields138 / 040 (verify drawing)

Total length option90; 9.0 m (29.5 ft)

Agency option05; CSA, ATEX, IECEx (verify certificate)

Nominal probe tip8.0 mm

Linear range2 mm; 0.25–2.3 mm

Recommended gap1.27 mm (50 mils)

Incremental scale factor7.87 V/mm (200 mV/mil)

9 m scale-factor tolerance±6.5% incl. interchangeability error

Frequency response0–10 kHz; +0/−3 dB

Target calibrationAISI 4140 steel

Minimum target size15.2 mm (0.6 in) flat target

Minimum shaft diameter50.8 mm (2 in)

Probe tip materialPolyphenylene sulfide (PPS)

Field wiring maximum305 m (1,000 ft)

System pairing9 m matched Proximitor sensor and extension cable

Application Industry

Long-route radial vibration Long-routed radial vibration measurements on rotating machines

9 m static-position loop Static position monitoring where a 9 m loop is engineered

Keyphasor/speed reference Keyphasor or speed reference channels with verified system length

Flexible probe renewal Like-for-like renewal of a documented flexible probe assembly

FAQ

Why must the loop length be confirmed for 162381-138-040-90-05?

The 9 m option is intended for a corresponding electronics and extension-cable length; mixing lengths can change the calibrated response.

How should a long cable run for 162381-138-040-90-05 be installed?

Route the cable with its minimum bend radius, secure it against vibration, control shielding and keep the field run within the documented maximum.

Can 162381-138-040-90-05 be used for speed measurement?

It can support a Keyphasor or speed channel when the target, gap, electronics, wiring and application-specific overspeed guidance are all satisfied.

What performance should I record for 162381-138-040-90-05?

Record the bias, gap voltage, scale response, frequency behavior and baseline vibration after the complete 9 m loop is commissioned.

How do I check approval suitability for 162381-138-040-90-05?

Verify the actual marking and certificate for the supplied unit, then install it according to the applicable controlled drawing and area classification.
