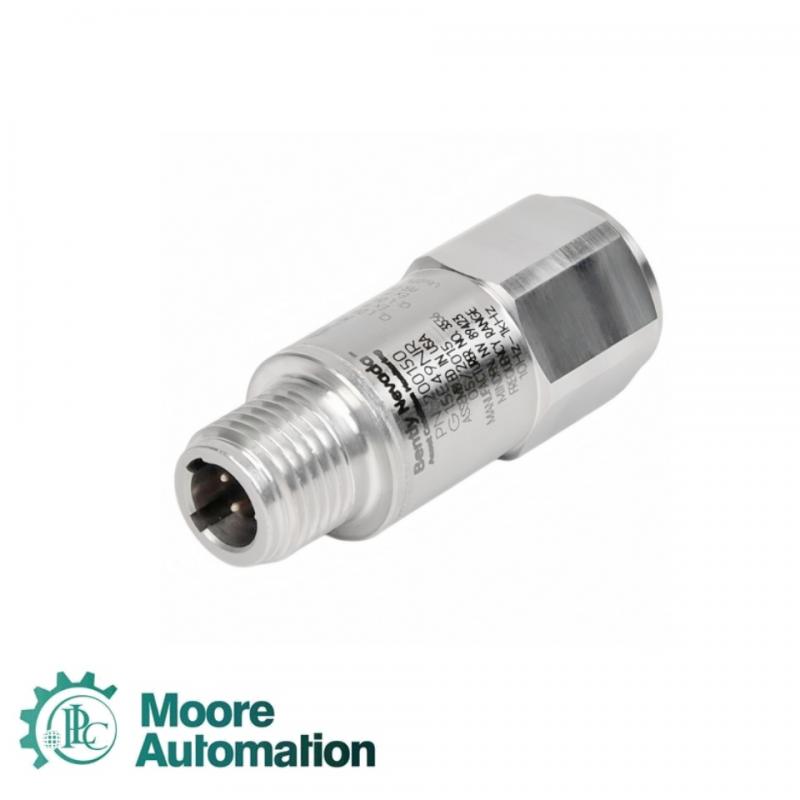

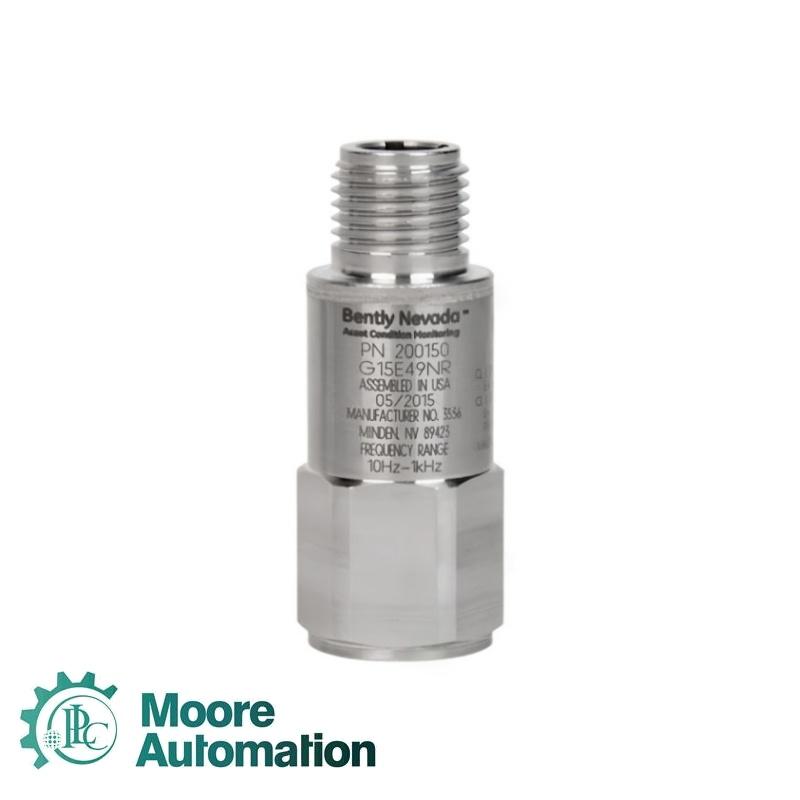

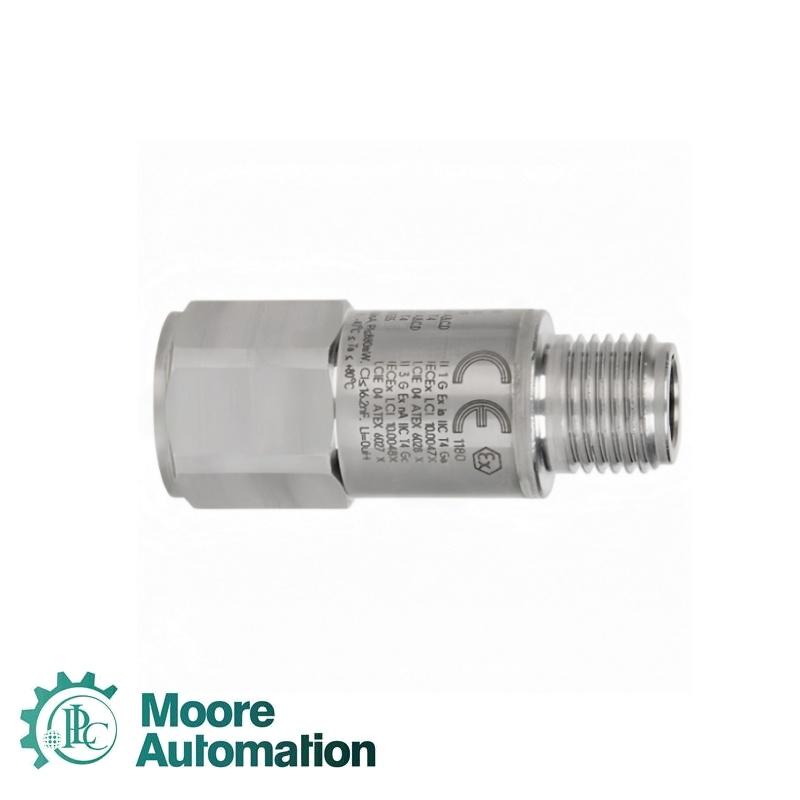

Bently Nevada 200150-09-CN General-Purpose Accelerometer

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

Item NO.:
200150-09-CN
Order(MOQ):
1
Payment:
T/T
Product Origin:
UK
Color:
Brand New
Shipping Port:
Xiamen
Lead Time：
3-5 Days

Product Detail

Specifications

General-purpose shear-mode ceramic accelerometer for machine-casing and bearing-housing vibration measurements. Confirm the complete ordering reference against the nameplate; the suffix is retained as a configuration identifier without assuming undocumented option meanings.

Transducer family200150 accelerometer

Sensing elementCeramic

Sensing geometryShear

Sensitivity at 80 Hz10.2 mV/(m/s²); 100 mV/g ±12%

Measurement range±245 m/s² (±25 g)

Frequency range10–1,000 Hz (600–60,000 cpm)

Mounted resonant frequency>20 kHz

Amplitude linearity±2% (1–10 g pk)

Transverse sensitivity≤7%

Excitation voltage4.7–5.5 Vdc

Quiescent current<800 µA

Output bias voltage+2.5 ±0.23 Vdc

Electrical isolation600 Vrms

Axial shock limit49,050 m/s² pk (5,000 g pk)

Temperature range−40°C to +105°C

Hermetic sealing5×10⁻⁸ atm·cc/s maximum

Physical size17.5 mm hex ×45.7 mm

Typical weight58 g

Mounting thread3/8-24 female

Electrical connector5-pin 1/2-20

Application Industry

Machinery casing vibration General machinery casing vibration monitoring

Bearing-housing measurement Bearing-housing measurements on motors, pumps and fans

Acceleration-to-velocity monitoring Acceleration-to-velocity channels in compatible monitoring systems

Rotating-equipment condition monitoring Condition-monitoring baselines for rotating equipment

FAQ

Where should 200150-09-CN be mounted for reliable readings?

Mount the accelerometer firmly on the bearing housing or machine casing with a clean, rigid interface and the sensing axis aligned with the measurement direction.

Which channel type is normally used with 200150-09-CN?

Use a standard acceleration-to-velocity channel configured for the transducer’s sensitivity and frequency band; verify the monitor input before wiring.

How can I verify polarity on 200150-09-CN?

Apply the documented excitation, identify the signal pair, and confirm that acceleration from the base toward the connector produces the positive signal polarity.

What cable and connector checks are important for 200150-09-CN?

Inspect the 5-pin mating connector, shield continuity and cable strain relief, then compare the bias voltage and noise floor with the commissioning baseline.

Does the 200150-09-CN suffix identify a standard performance class?

The base transducer performance is documented, but the complete suffix should be matched character-for-character to the nameplate and controlled configuration record.
