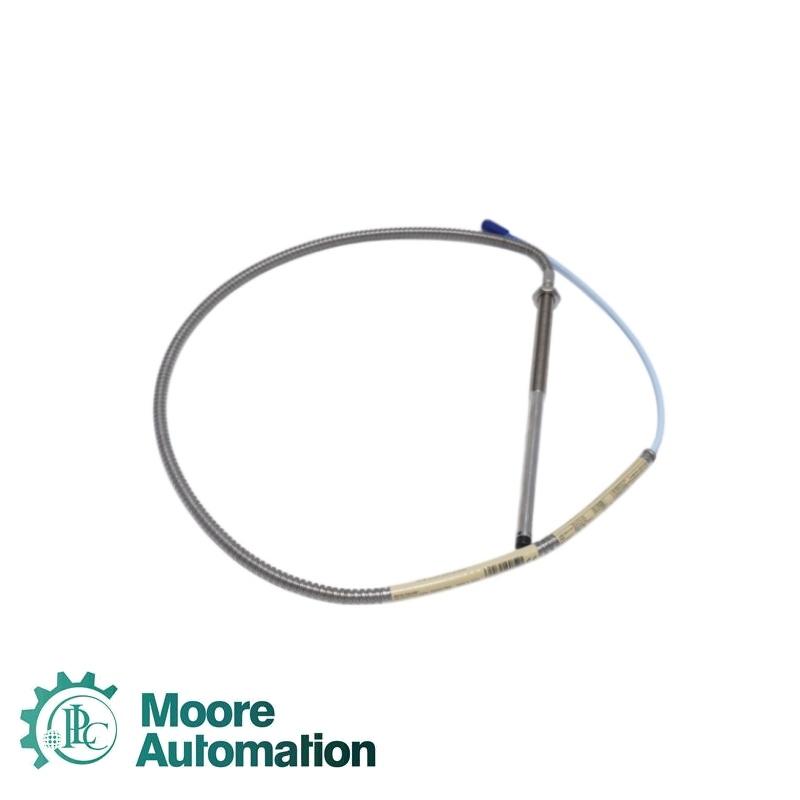

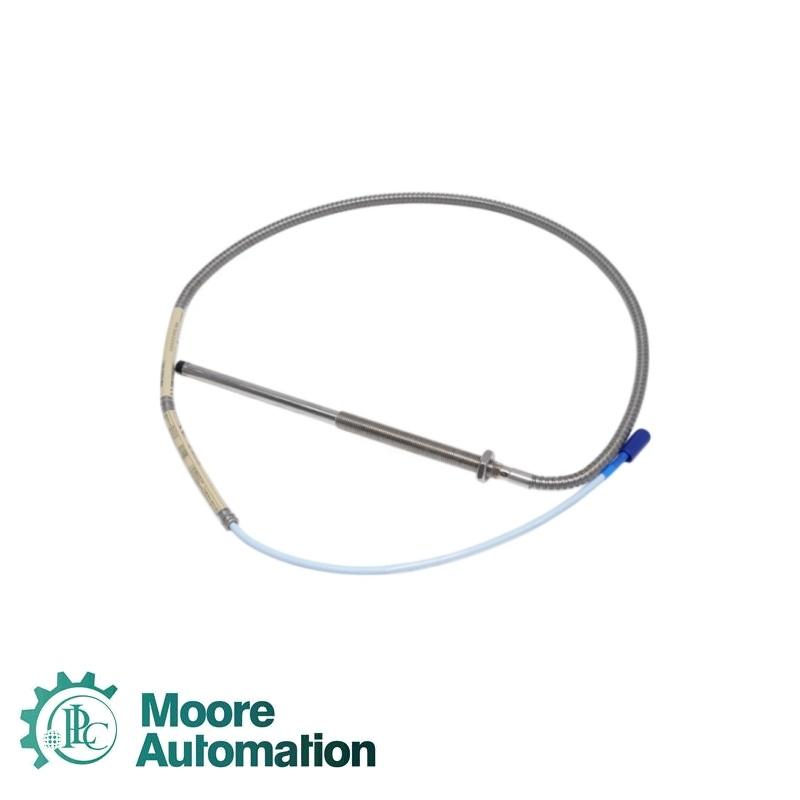

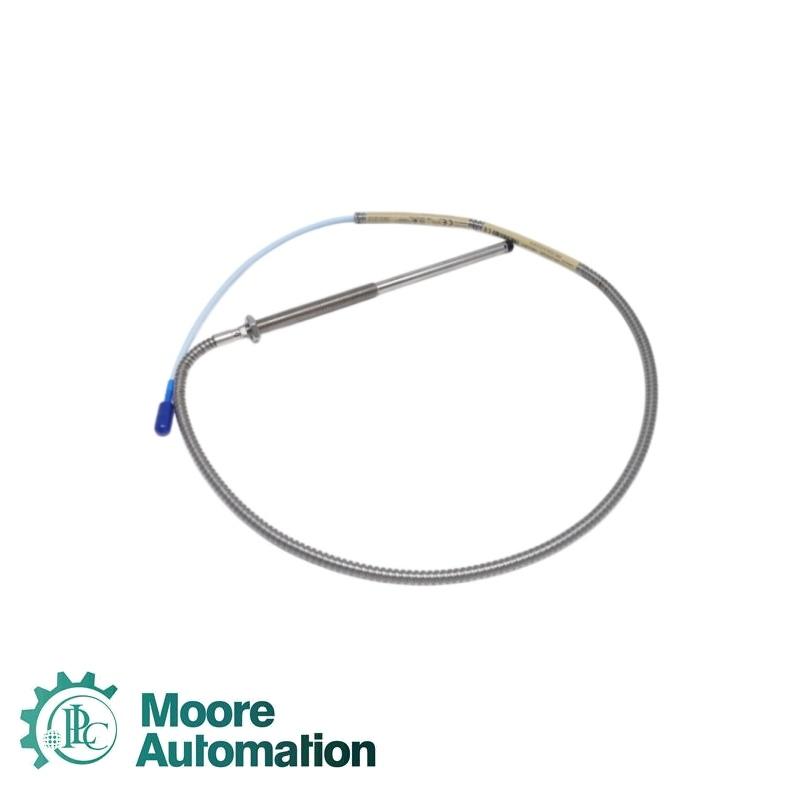

Bently Nevada 330104-10-20-10-02-00 3300 XL 8 mm Proximity Probe

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

Order(MOQ):
1
Payment:
T/T
Product Origin:
USA
Color:
Brand New
Shipping Port:
Xiamen
Lead Time：
3-5 Days
Warranty:
1 Year

Product Detail

Specifications

Bently Nevada 330104-10-20-10-02-00 3300 XL 8 mm Proximity Probe is Bently Nevada 330104-10-20-10-02-00 is a standard-temperature 3300 XL 8 mm proximity probe with M10 × 1 threads and armored cable. Its ordering code specifies a 100 mm unthreaded length, 200 mm overall case length, 1.0 m total lead, standard ClickLoc cable connection and no agency-approval option.

Product type

3300 XL 8 mm proximity probe

Probe thread

M10 × 1

Cable armor

Included

Probe tip diameter

8.0 mm (0.31 in)

Unthreaded length

100 mm

Overall case length

200 mm

Total length

1.0 m (3.3 ft)

Connector

Miniature coaxial ClickLoc

Connector protector

Not included

Cable type

Standard 75 Ω triaxial FEP-insulated cable

Agency approval option

Not required

Probe tip material

Polyphenylene sulfide (PPS)

Probe case material

AISI 303 or 304 stainless steel

Minimum cable bend radius

25.4 mm (1.0 in)

Linear range

2 mm (80 mils)

Recommended radial gap

1.27 mm (50 mils), approximately -9 V DC

Scale factor

7.87 V/mm (200 mV/mil) ±5%

Frequency response

0 to 10 kHz, +0/-3 dB

Application Industry

Bearing vibration measurement

Measures dynamic shaft motion on rotating machinery with fluid-film bearings.

Shaft position monitoring

Measures static distance to a conductive shaft or collar.

Phase-reference sensing

Generates a timing reference from a prepared shaft target.

Tachometer installations

Supports documented non-contact speed-measurement arrangements.

FAQ

How much exposed unthreaded length is specified for Bently Nevada 330104-10-20-10-02-00?

The ordering code specifies 100 mm of unthreaded probe case ahead of the threaded section.

What is the case length of Bently Nevada 330104-10-20-10-02-00?

The overall probe case is 200 mm long, leaving the required difference between unthreaded and case dimensions.

Does Bently Nevada 330104-10-20-10-02-00 require an extension cable?

The probe has a 1.0 m total lead; a one-metre system is used without an extension cable.

How should the connector on Bently Nevada 330104-10-20-10-02-00 be tightened?

Join matching ClickLoc connectors finger-tight until the locking action is felt, and keep the connection clean and protected.

Which mounting checks apply to Bently Nevada 330104-10-20-10-02-00?

Verify the M10 × 1 machine thread, allowable thread engagement, 25.4 mm minimum cable bend radius and the final electrical gap.
