 Bently Nevada 330104-08-15-10-02-00 3300 XL 8 mm Proximity Probe
330104-08-15-10-02-00 330104-08-15-10-02-00 330104-08-15-10-02-00

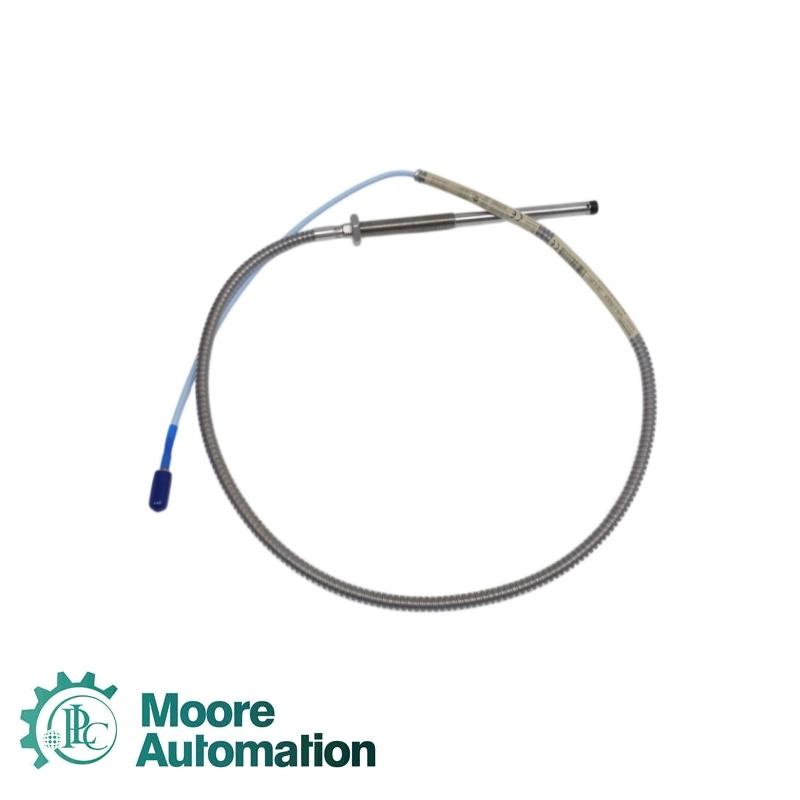

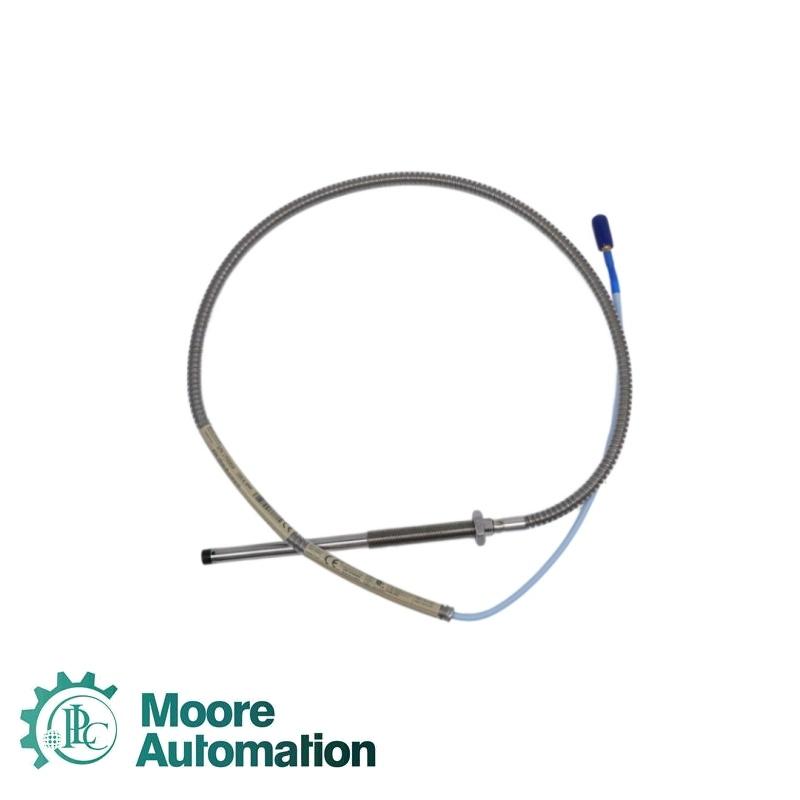

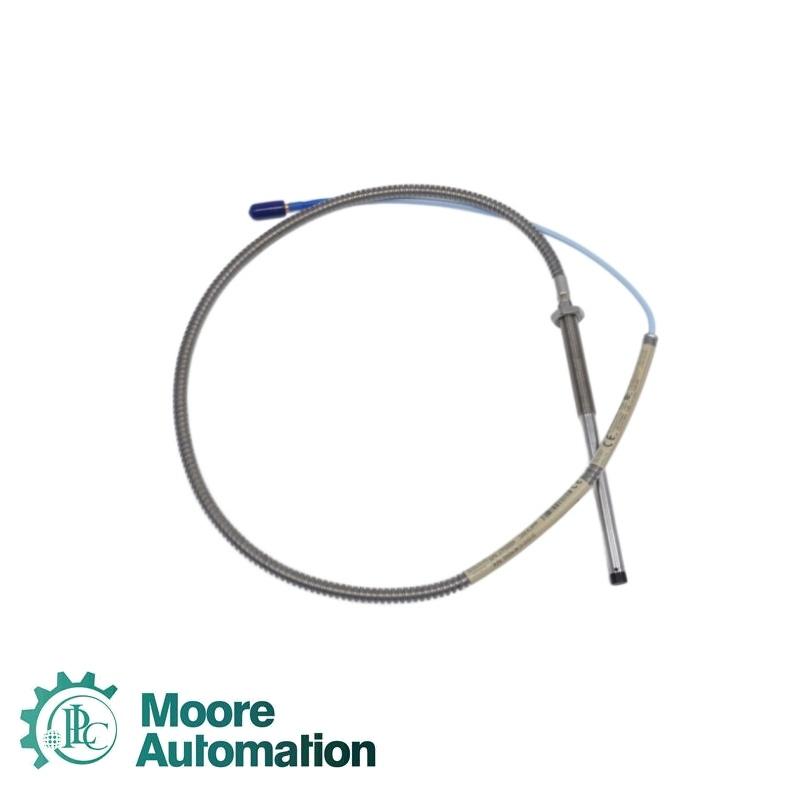

Bently Nevada 330104-08-15-10-02-00 3300 XL 8 mm Proximity Probe

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

  • Order(MOQ):

    1

  • Payment:

    T/T

  • Product Origin:

    USA

  • Color:

    Brand New

  • Shipping Port:

    Xiamen

  • Lead Time：

    3-5 Days

  • Warranty:

    1 Year
Contact Us

  • Product Detail

Specifications
Bently Nevada 330104-08-15-10-02-00 3300 XL 8 mm Proximity Probe is Bently Nevada 330104-08-15-10-02-00 is an armored 3300 XL 8 mm proximity probe with an M10 × 1 threaded case. This configuration provides an 80 mm unthreaded length, a 150 mm case length, a 1.0 m standard cable and a miniature ClickLoc connector without a connector protector.
Product type
3300 XL 8 mm proximity probe
Probe thread
M10 × 1
Cable armor
Included
Probe tip diameter
8.0 mm (0.31 in)
Unthreaded length
80 mm
Overall case length
150 mm
Total length
1.0 m (3.3 ft)
Connector
Miniature coaxial ClickLoc
Connector protector
Not included
Cable type
Standard 75 Ω triaxial FEP-insulated cable
Agency approval option
Not required
Probe tip material
Polyphenylene sulfide (PPS)
Probe case material
AISI 303 or 304 stainless steel
Minimum cable bend radius
25.4 mm (1.0 in)
Maximum probe-lead pull strength
330 N (75 lbf)
Linear range
2 mm (80 mils)
Recommended radial gap
1.27 mm (50 mils), approximately -9 V DC
Frequency response
0 to 10 kHz, +0/-3 dB
Application Industry
01
Machine radial vibration
Monitors dynamic shaft movement at fluid-film bearing locations.
02
Static shaft displacement
Measures the distance between the probe tip and conductive target.
03
Rotational phase reference
Detects a shaft reference feature for phase-related monitoring.
04
Non-contact speed detection
Senses passing target features for documented speed applications.
FAQ
What mounting dimensions are encoded in Bently Nevada 330104-08-15-10-02-00?
The probe has an 80 mm unthreaded section and a 150 mm overall case length.
What cable length is included with Bently Nevada 330104-08-15-10-02-00?
The configured total lead length is 1.0 m, using standard FEP-insulated triaxial cable.
Is the lead protected on Bently Nevada 330104-08-15-10-02-00?
Yes. Flexible stainless-steel armor protects the cable, while the connector itself has no separate protector.
What target clearance is used for Bently Nevada 330104-08-15-10-02-00?
For radial vibration measurement, establish approximately 1.27 mm clearance and confirm an output near -9 V DC.
How should Bently Nevada 330104-08-15-10-02-00 be routed during installation?
Maintain at least a 25.4 mm cable bend radius, keep the armored lead clear of sharp edges and secure the ClickLoc connection.
