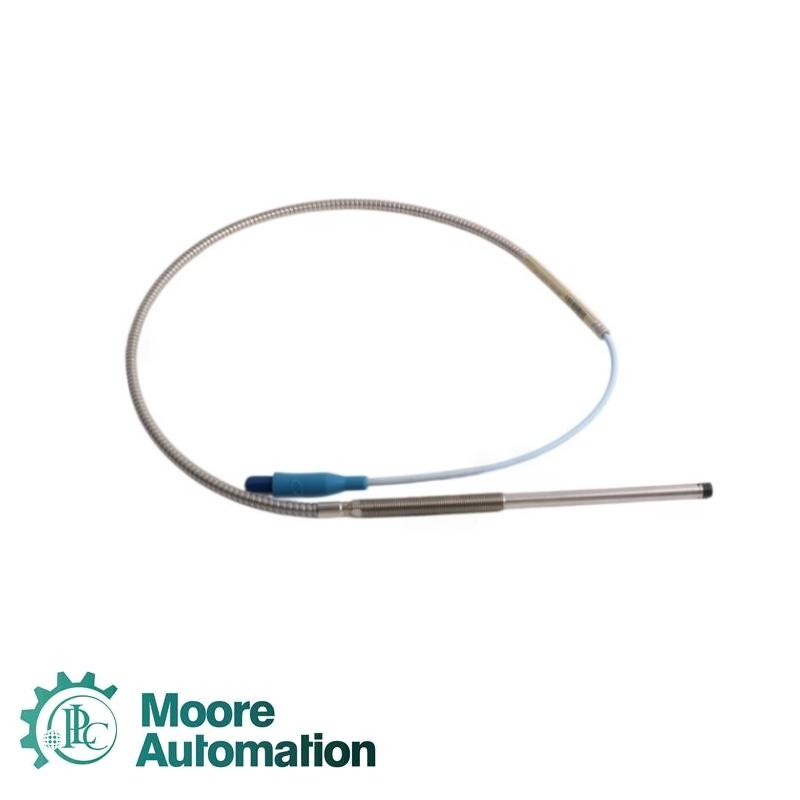

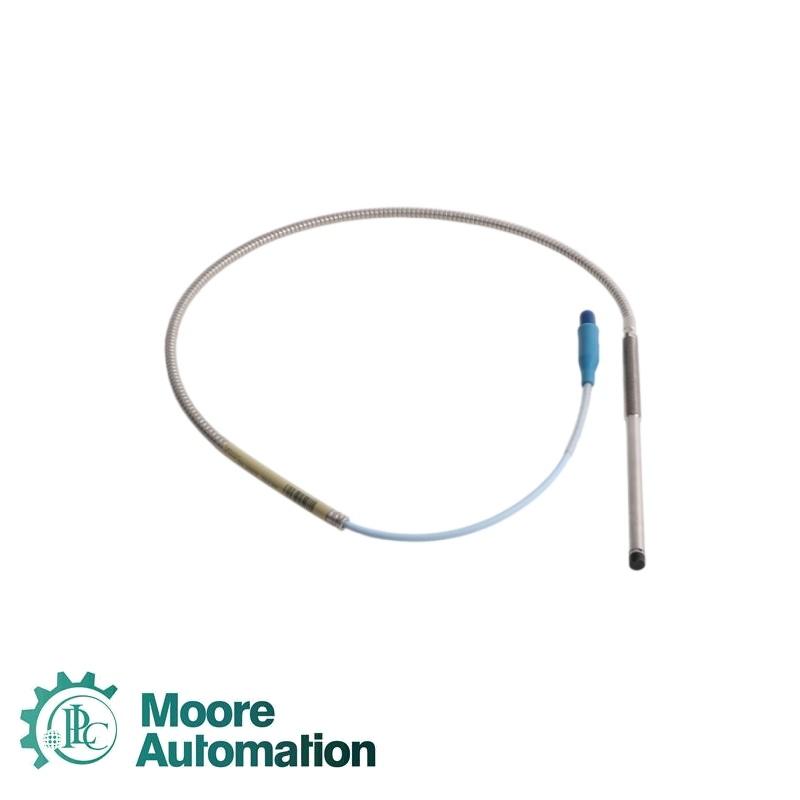

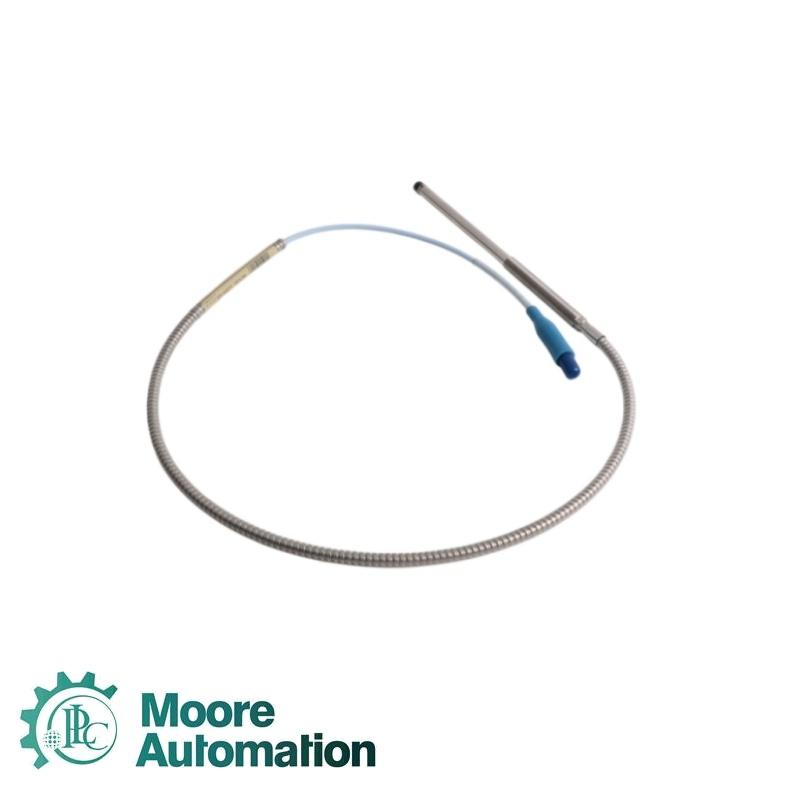

Bently Nevada 330104-10-15-10-01-05 3300 XL 8 mm Armored Proximity Probe

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

Order(MOQ):
1
Payment:
T/T
Product Origin:
UK
Color:
Brand New
Shipping Port:
Xiamen
Warranty:
1 Year
Product Origin:
UK
Lead Time:
3-5 Days

Product Detail

Specifications

The 330104-10-15-10-01-05 is a metric, armored 8 mm proximity probe for the 3300 XL proximity transducer system. It uses an M10 × 1 thread, a 100 mm unthreaded length, 150 mm overall case length, 1.0 m total length, a protected ClickLoc connector with standard cable, and the CSA, ATEX and IECEx approval option.

Probe diameter8.0 mm (0.31 in)

Mounting threadM10 × 1

ArmorIncluded

Unthreaded length100 mm

Overall case length150 mm

Total length1.0 m (3.3 ft)

ConnectorMiniature ClickLoc coaxial

Connector protectorIncluded

Cable typeStandard

Approval optionCSA, ATEX and IECEx

Application Industry

Steam turbine bearingsProvides non-contacting shaft vibration input where a longer metric probe case is required.

Process compressorsSupports radial vibration and shaft-position monitoring on fluid-film bearing compressor trains.

Generator bearingsUses a metric threaded body for installations requiring a 100 mm unthreaded reach.

Industrial speed referenceSupports Keyphasor and speed measurements with a correctly matched 1 m system.

FAQ

What are the unthreaded and case lengths of 330104-10-15-10-01-05?

The unthreaded portion is 100 mm and the overall case length is 150 mm.

Why is the M10 × 1 thread important when installing 330104-10-15-10-01-05?

The mounting hole, bracket and locknut must match the metric thread to position the probe securely.

Does 330104-10-15-10-01-05 include cable armor?

Yes. The base probe configuration is the armored metric version.

Which connector option is fitted to 330104-10-15-10-01-05?

It uses a miniature ClickLoc coaxial connector with a connector protector and standard cable.

What total electrical length applies to 330104-10-15-10-01-05?

The configured total length is 1.0 m and must be matched to the corresponding Proximitor system length.
