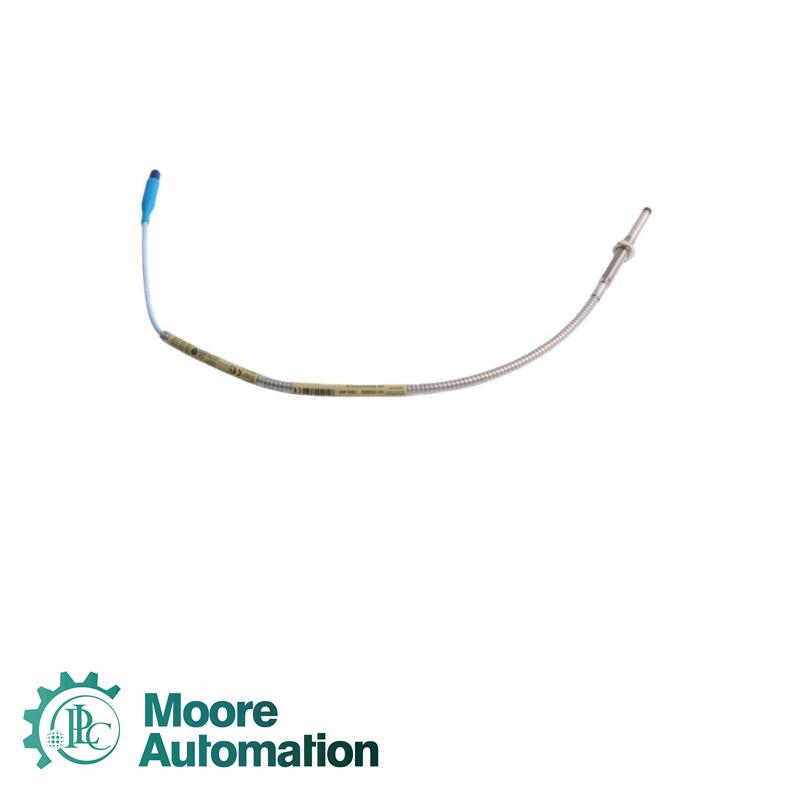

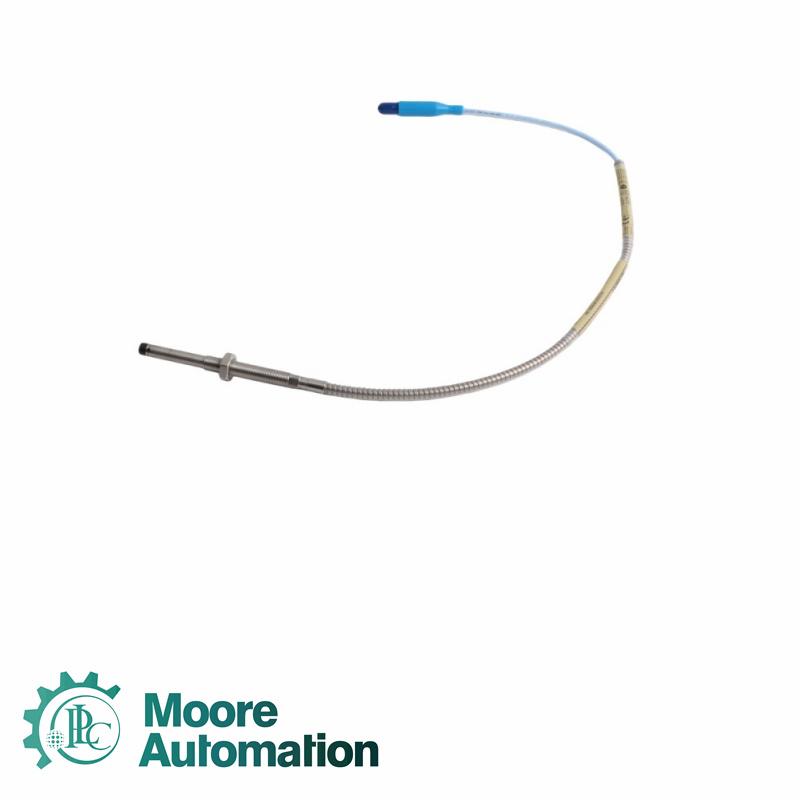

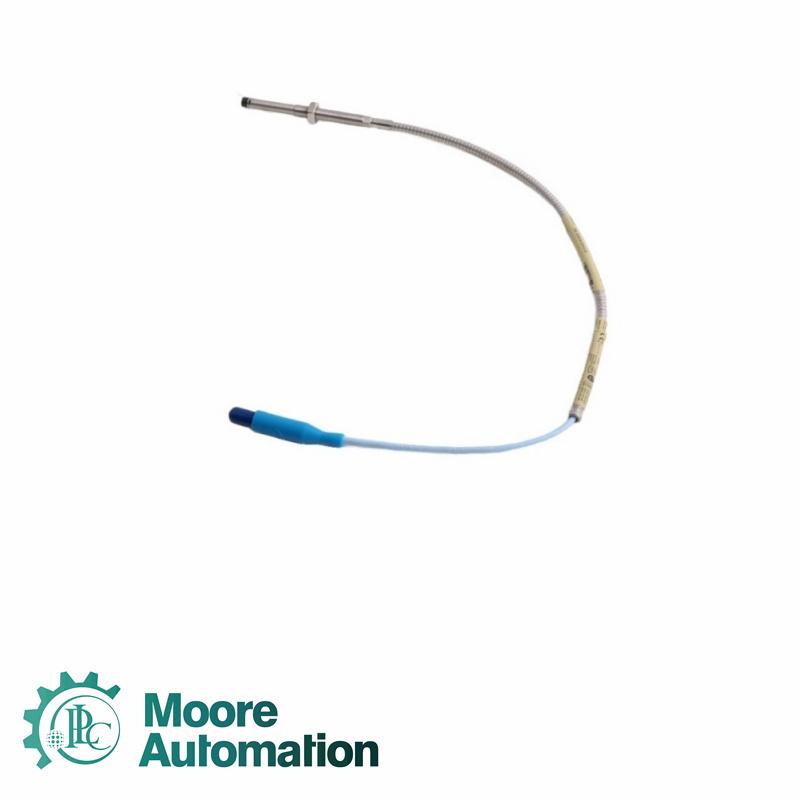

Bently Nevada 330104-04-09-10-01-05 3300 XL 8 mm Proximity Probe

Our company's advantageous brands

Foxboro/GE/Siemens/Moore/Emerson/Ovation/BentlyNevada/ABB/ICS/TRICONEX/Honeywell/

Westinghouse/Epro/Yokogawa/Allen-bradley/ Schneider /HIMA/Woodhead/Woodward

Overview of the Product

The 3300 XL 8 mm Proximity Transducer System provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements. The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems.

Applicaiton

Oil Refineries: Installed on compressors and pumps for micrometer displacement monitoring and accident prevention.

Hydropower Plants: Used on turbine bearings for shaft vibration measurement with strong sealing protection.

Large Fertilizer Plants: Applied to ammonia and CO₂ compressors as key TSI monitoring components.

Coal-to-Liquid Gasification Plants: Used on air compressors, expanders, and syngas compressors for hidden vibration monitoring.

Steel Manufacturing Plants: Used on blast furnace fans, gas fans, and rolling mill gearboxes for shaft runout monitoring.

Frequently Asked Questions

Q: What does option 09 represent in terms of the total length of the threaded housing of the 330104-04-09-10-01-05?
A: Option 09 represents the total length of the probe's threaded housing as 0.9 inches (approximately 22.9 mm), which is a relatively short and compact housing.

Q: What are the standard linear measurement range and nominal sensitivity when installing the 330104-04-09-10-01-05 8 mm probe?
A: Provided by this probe when paired with a standard preamplifier is a standard linear measurement range of 2.0 mm (approximately 80 mils) and a full-scale output of 7.87 V/mm (200 mV/mil).

Q: What physical barrier does the 330104-04-09-10-01-05 probe with tail configuration 05 provide for external cable protection?
A: Option 05 indicates that this model is equipped with a stainless steel armored flexible conduit, perfectly protecting the internal cable from scratches by sharp objects or mechanical damage.

Q: What special moisture-proof electrical protection does connector option 01 in model 330104-04-09-10-01-05 provide?
A: Option 01 indicates that it is equipped with a standard coaxial mini ClickLoc connector, but a connector protective sleeve is included at the factory to effectively isolate it from oil and high humidity in the field.

Q: Why is the 330104-04-09-10-01-05 proximity sensor probe more suitable for harsh environments requiring flush mounting with countersunk holes and high moisture and abrasion resistance for cables?
A: Because it is a reverse-mount or large-size probe [330104] from the 3300 XL 8mm series, and it features 04 threadless hardware, 01 connector protection sleeve, and 05 stainless steel armored flexible tubing, providing comprehensive protection.
