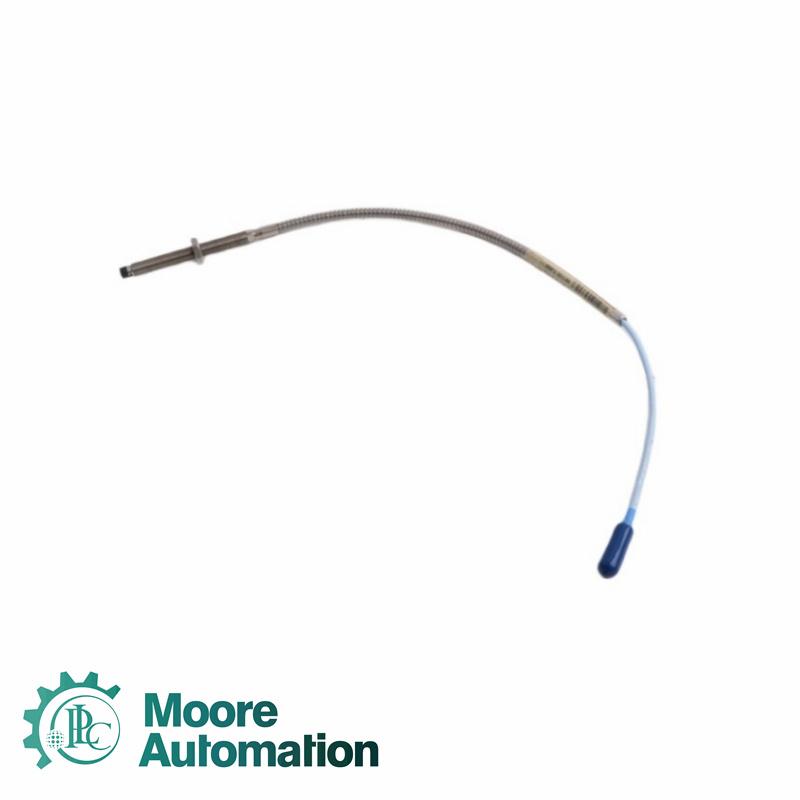

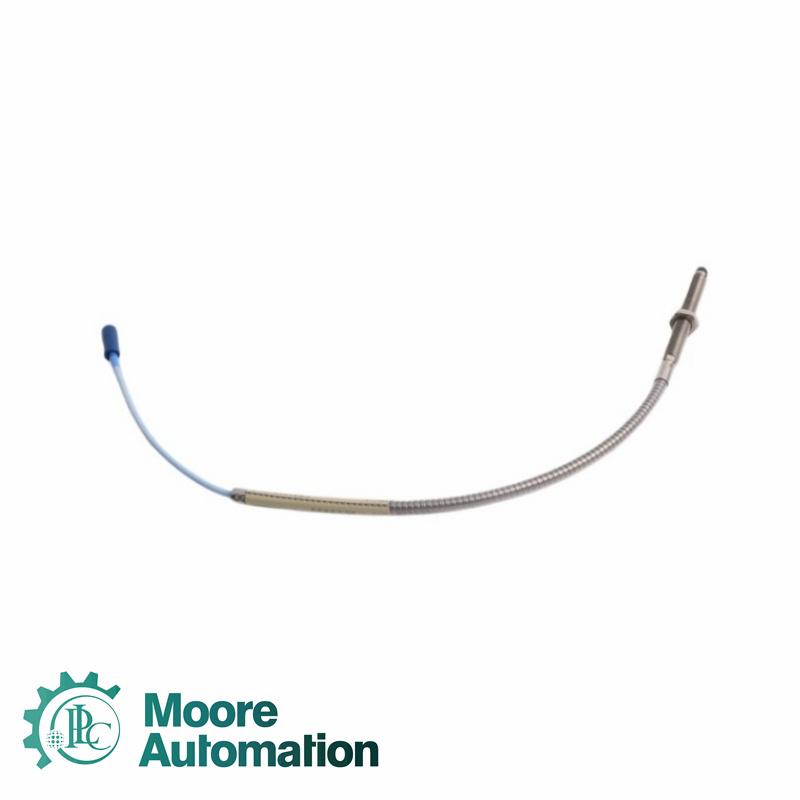

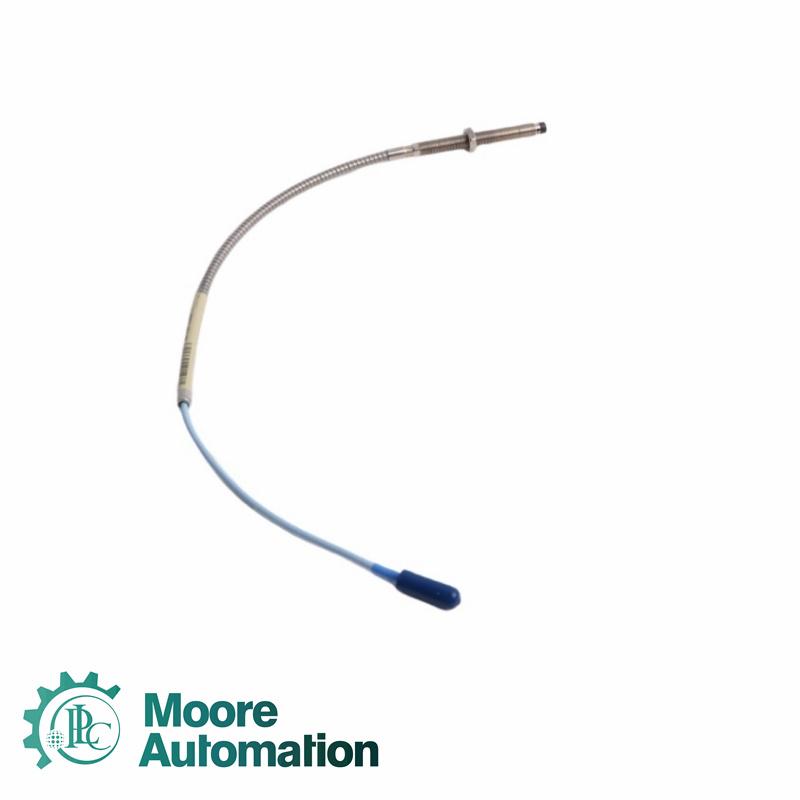

Bently Nevada 330104-00-09-10-01-00 3300 XL 8 mm Proximity Probe

Our company's advantageous brands

Foxboro/GE/Siemens/Moore/Emerson/Ovation/BentlyNevada/ABB/ICS/TRICONEX/Honeywell/

Westinghouse/Epro/Yokogawa/Allen-bradley/ Schneider /HIMA/Woodhead/Woodward

Overview of the Product

The 3300 XL 8 mm Proximity Transducer System provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements. The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems.

Applicaiton

Thermal Power Plants: Used on turbine bearings, feedwater pumps, and generator housings for easy gap adjustment.

Crude Oil Pipeline Plants: Applied to large transfer pumps for external maintenance without major disassembly.

Large Fertilizer Plants: Used on ammonia and CO₂ compressors as key TSI monitoring components.

Coal-to-Liquid Gasification Plants: Installed on compressors and expanders for hidden vibration monitoring.

Natural Gas Transmission Plants: Used on gas turbines and pipeline compressors for continuous shaft monitoring.

Frequently Asked Questions

Q: What length of the threaded housing does option 09 represent of the 330104-00-09-10-01-00?
A: Option 09 indicates that the total length of the probe's threaded housing is 0.9 inches (approximately 22.9 mm), suitable for shallow hole mounting in thinner housings.

Q: What mechanical accessories does connector option 01 in model 330104-00-09-10-01-00 provide for moisture and oil protection?
A: Included at the factory is a connector protective sleeve with the standard coaxial mini ClickLoc connector of option 01, effectively isolating it from oil and moisture in the field.

Q: When selecting model 330104-00-09-10-01-00, what does the first parameter option 00 represent regarding the length of the unthreaded section at the front of the probe?
A: Option 00 indicates that the probe has no unthreaded section at the front, belonging to a 0.0-inch fully threaded compact form.

Q: What is the definition of explosion-proof and institutional compliance qualifications for the 330104-00-09-10-01-00 probe with option 00 at the end?
A: Option 00 indicates that this model is a standard product and has not applied for or requires special regional explosion-proof institutional certification.

Q: On-site measurements revealed that the DC resistance of the 330104-00-09-10-01-00 probe coil dropped to 2.0 ohms. What fault does this indicate?
A: Typically around 7.0 to 9.0 ohms is the resistance of a standard 1.0-meter probe (including the resistance of the 1-meter cable). Indicated by a significantly lower resistance is a possible short circuit between turns in the probe's internal coil, requiring replacement.
