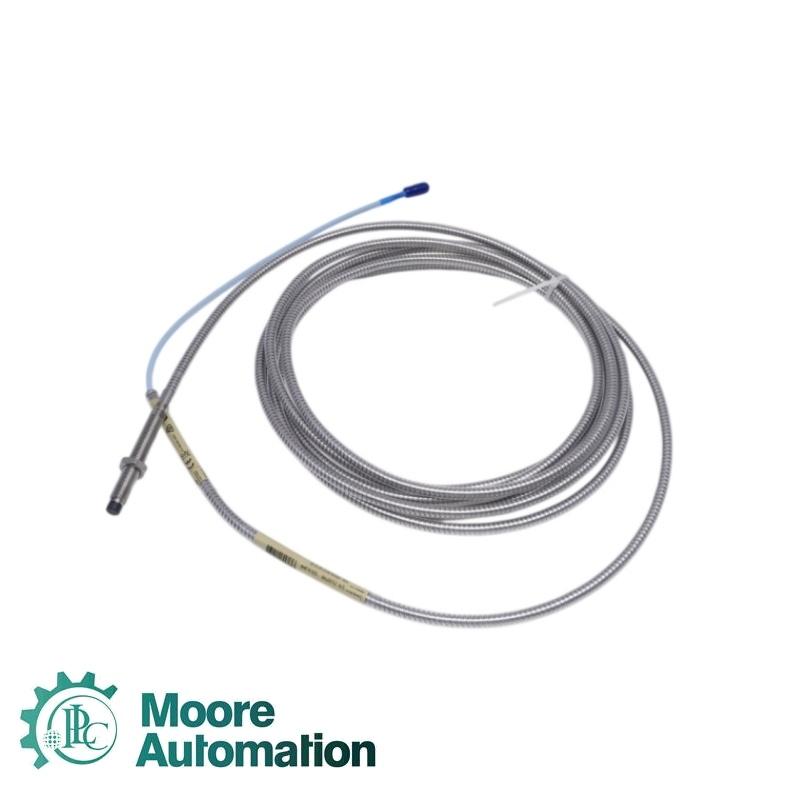

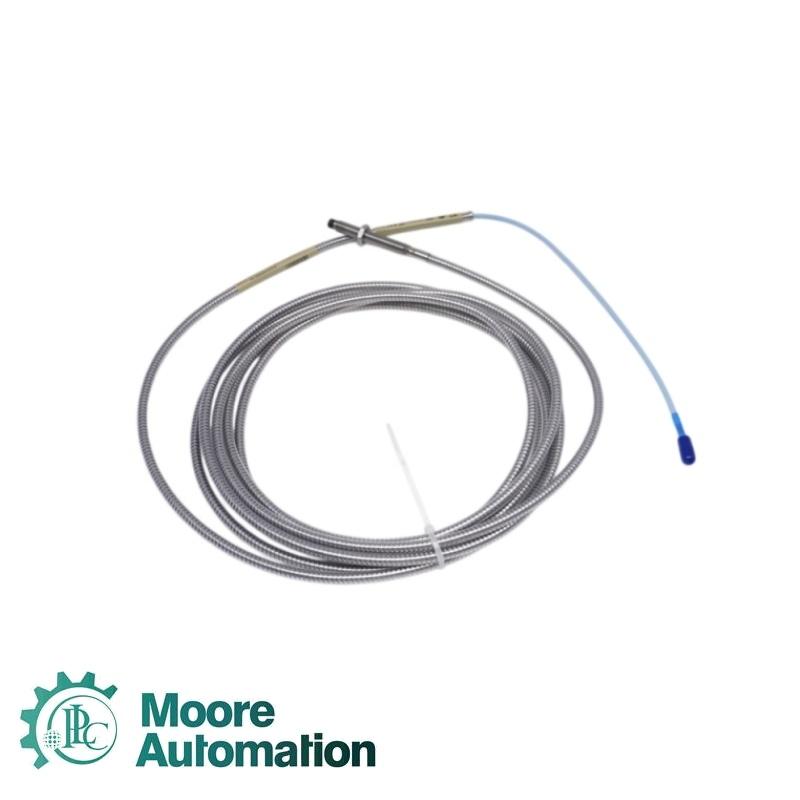

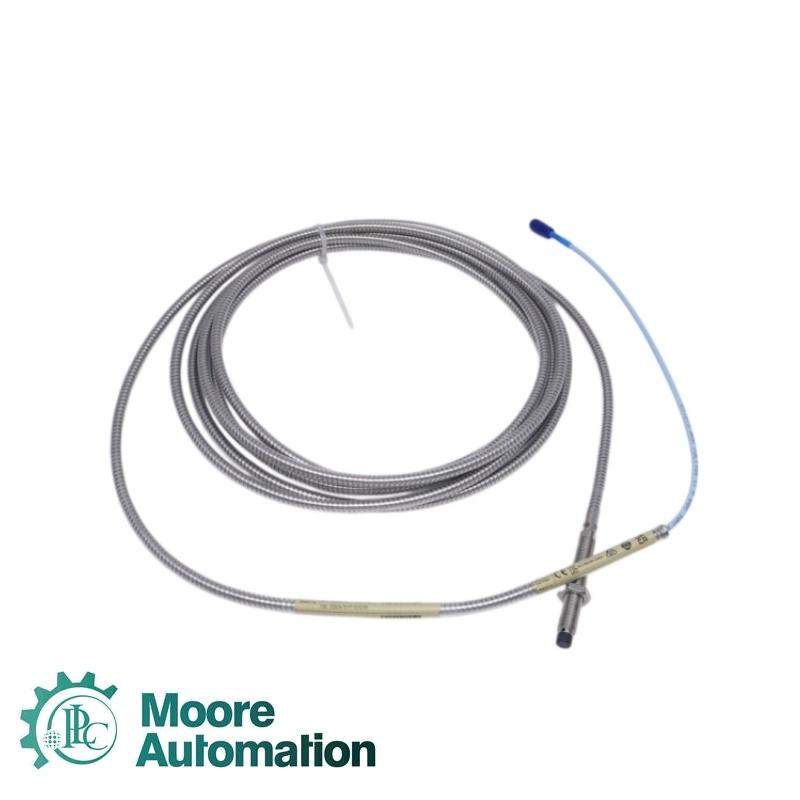

Bently Nevada 162381-078-027-50-05 3300 XL 8 mm Flexible Proximity Probe

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

Item NO.:
162381-078-027-50-05
Order(MOQ):
1
Payment:
T/T
Product Origin:
UK
Color:
Brand New
Shipping Port:
Xiamen
Lead Time：
3-5 Days

Product Detail

Specifications

Configuration-specific 3300 XL 8 mm eddy-current proximity probe for non-contact vibration, position, Keyphasor and speed measurements. The complete ordering string preserves the custom mechanical fields, total length and approval option; verify the nameplate and installation drawing before replacement.

Probe platform3300 XL 8 mm

Sensing principleNon-contact eddy current

Configuration family162381 custom

Mechanical fields078 / 027 (verify drawing)

Total length option50; 5.0 m (16.4 ft)

Agency option05; CSA, ATEX, IECEx (verify certificate)

Nominal probe tip8.0 mm

Linear range2 mm; 0.25–2.3 mm

Recommended gap1.27 mm (50 mils)

Incremental scale factor7.87 V/mm (200 mV/mil)

Frequency response0–10 kHz; +0/−3 dB

Target calibrationAISI 4140 steel

Minimum target size15.2 mm (0.6 in) flat target

Minimum shaft diameter50.8 mm (2 in)

Probe tip materialPolyphenylene sulfide (PPS)

Probe case materialAISI 303/304 stainless steel

Field wiring maximum305 m (1,000 ft)

System pairingMatched extension cable and Proximitor sensor

Application Industry

Radial vibration monitoring Radial vibration measurement on fluid-film bearing machines

Static shaft-position monitoring Static shaft-position monitoring with a matched transducer loop

Keyphasor and speed reference Keyphasor reference or speed measurement when the application note is

Flexible probe replacement Replacement of a documented flexible probe arrangement with the same complete code

FAQ

How should 162381-078-027-50-05 be matched to an existing channel?

Compare the complete nameplate, mechanical drawing, cable length, connector style, target material and calibrated electronics as one loop before substitution.

What gap should be set during installation of 162381-078-027-50-05?

Set the probe at the documented live-voltage operating point, normally near 1.27 mm for the standard 8 mm response, then verify the channel output.

Can a standard probe be substituted for 162381-078-027-50-05?

Only after engineering confirms the custom mechanical envelope, electrical length, connector, approvals and calibration curve are identical.

Where is 162381-078-027-50-05 typically applied?

It is suited to documented shaft vibration, position, Keyphasor or speed channels on rotating machinery using a compatible eddy-current loop.

What should be checked after installing 162381-078-027-50-05?

Inspect thread engagement and cable routing, confirm continuity, set the gap, compare bias and scale response, and record the as-left configuration.

Company Service

✓ Model ValidationFull suffix and purge-system compatibility review

◉ Label InspectionClear identification and certification-label checks

▣ Secure PackingProtected packaging for electronic assemblies

↗ Global DeliveryTracked international shipping from stock

◇ Warranty SupportResponsive after-sales handling

▤ Document ServiceOfficial manuals and certificates when available

Need Bently Nevada 162381-078-027-50-05 3300 XL 8 mm Flexible Proximity Probe?

Contact Moore Automation for pricing, availability and technical information.

Request a Quote →

Emailsales3@askplc.com

Phone / WhatsApp+86-18150117685

Address32D units, GuoMao Building, No 388 Hubin South Road, Siming district, Xiamen, China
