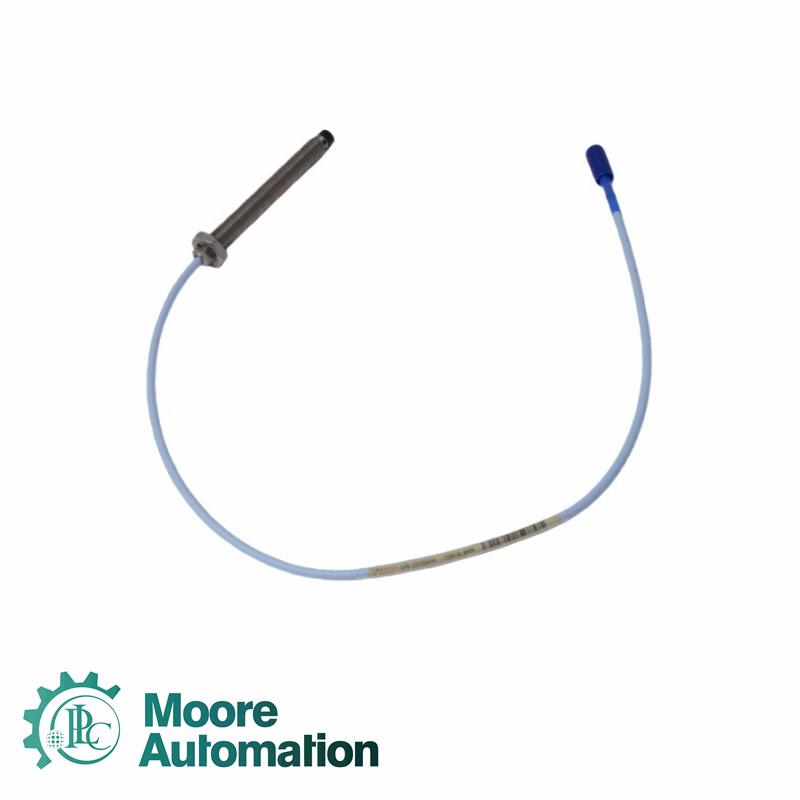

Bently Nevada 330103-00-09-20-02-00 3300 XL 8 mm Proximity Probe

Contact me for more information and a surprise!

Sale Manager: John Yang

Email: sales3@askplc.com

Mobile(WhatsApp):  86-18150117685

Description of 330103-00-09-20-02-00

The 3300 XL 8 mm Proximity Transducer System provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements. The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems.
The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components. Each 3300 XL 8 mm Transducer System component is backward compatible and interchangeable with other non-XL 3300 series 5 mm and 8 mm transducer system components.

More Details of 330103-00-09-20-02-00

Unthreaded Length Option:

00 mm (Minimum unthreaded length)

Overall Case Length Option:

90 mm (Minimum case length)

Total Length Option:

2.0 meters (6.6 ft)

Connector and Cable Type:

Miniature coaxial ClickLoc connector, standard cable

Agency Approval Option:

Not required

Probe Case Thread:

M10 x 1

Maximum Thread Engagement Length:

15 mm

Operating and Storage Temperature:

-52°C to +177°C (-62°F to +350°F)

Supply Sensitivity:

<2 mV change in output voltage per volt change in input voltage

Output Resistance:

50 Ω

Extension Cable Capacitance:

69.9 pF/m (21.3 pF/ft) typical

Field Wiring:

0.2–1.5 mm² (16–24 AWG)

Linear Range:

2 mm (80 mils)

Functionality:
Measures both static(position) and dynamic(vibration) values.

Primary applications include vibration and position measurements on fluid-film bearing machines, Keyphasor reference, and speed measurements

Performance:
Complies with the American Petroleum Institute's(APl) 670 Standard (4th Edition) for mechanical configuration, linear range, accuracy, and temperature stability.

Fully interchangeable components (probes, extension cables, and Proximitor sensors).

Backward-compatible with non-XL 330o series 5 mm and 8 mm transducer system components.
