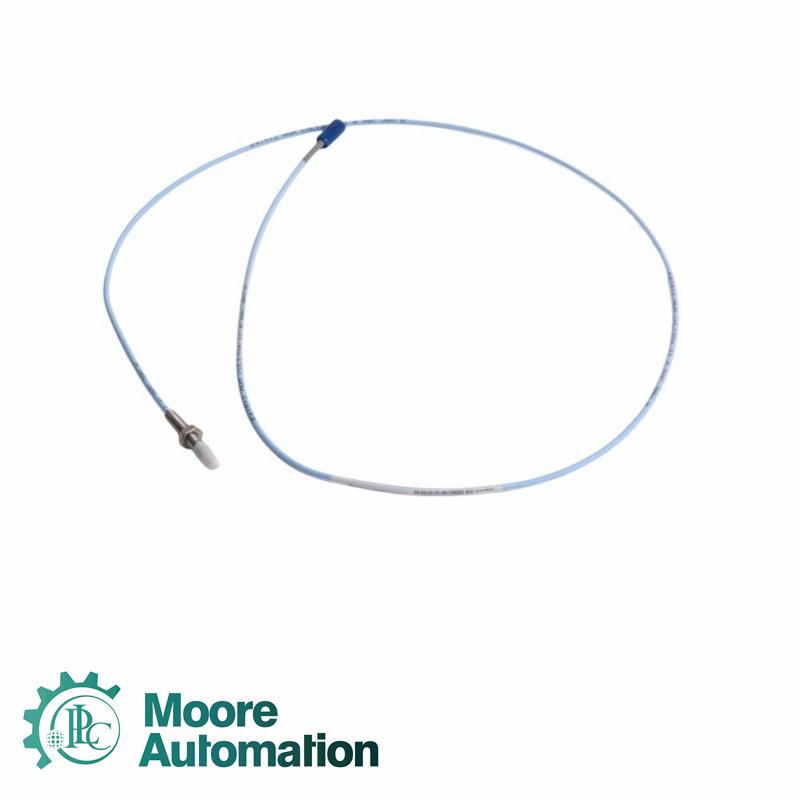

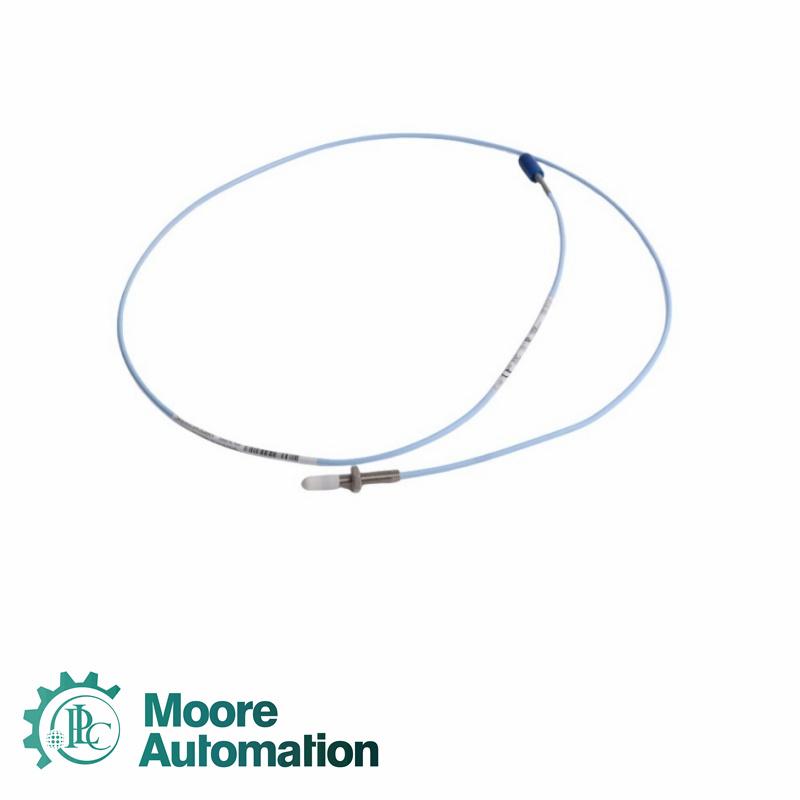

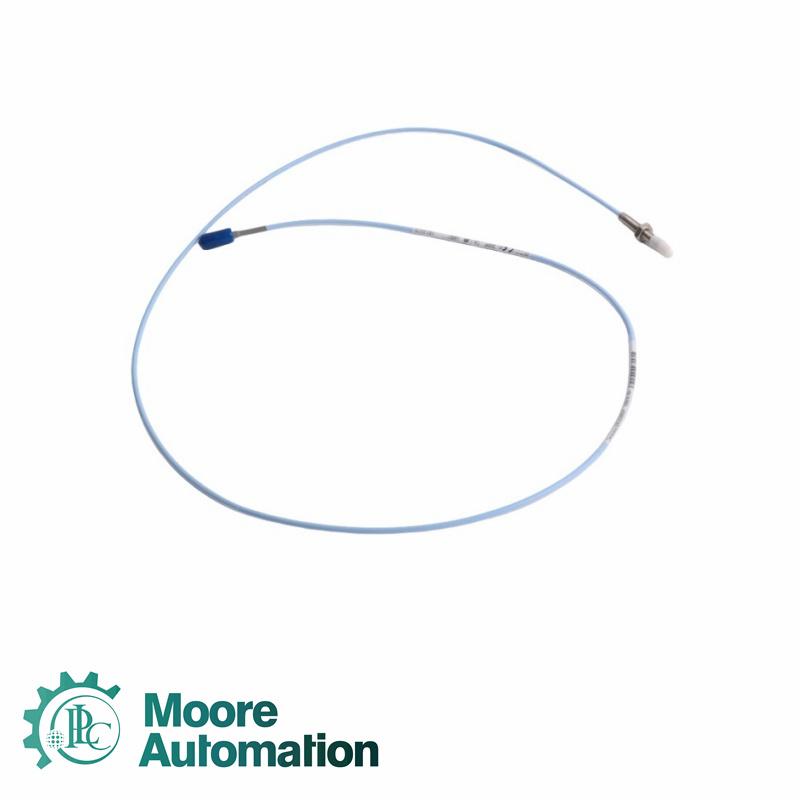

Bently Nevada 330901-00-24-05-02-05 3300 NSv Proximity Probe

Sale Manager: John Yang

Email: sales3@askplc.com

Mobile(WhatsApp):  86-18150117685

The 3300 XL NSv Proximity Transducer system is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements. The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in). It is primarily used in the following applications on fluid-filmed bearing machines where a small shaft or reduced side-view is present: Radial vibration and radial position measurements ；Axial (thrust) position measurements ；Tachometer and zero speed measurements ；Phase reference (Keyphasor signals) The 3300 XL NSv Transducer System design allows it to replace both the 3300 RAM Transducer Systems and the 3000-series or 7000-series 190 Transducer System.

Unthreaded Length Option:0.0 in
Overall Case Length Option:2.4 in
Cable Length Option:0.5 meter (20 in)
Connector and Cable Option:Miniature coaxial ClickLoc connector, standard cable
Agency Approval Option:Multiple Approvals
Probe Case Thread:1/4-28 UNF thread
Maximum Length of Thread Engagement:0.375 in
Probe Temperature Range:-52°C to +177°C (-62°F to +351°F)
Storage Temperature:-52°C to +177°C (-62°F to +351°F)
Probe Tip Material:Polyphenylene sulfide (PPS)
Probe Case Material:AISI 304 stainless steel (SST)
Field Wiring:0.2 to 1.5 mm2 (16 to 24 AWG)[0.25 to 0.75 mm2 (18 to 23 AWG) with ferrules]
Linear Range:1.5 mm (60 mils)
Recommended Gap Setting:1.0 mm (40 mils)
Output resistance:50 Ω
Supply Sensitivity:Less than 2 mV change in output voltage per volt change in input voltage

Is this product brand new?
Yes, Bently Nevada 330901-00-24-05-02-05 is brand new, original, unused, and factory sealed

Do you have it in stock?
Yes, right now we have Bently Nevada 330901-00-24-05-02-05 in stock ready for shipment, we can support video inspection.

Why can't I see a price for this Bently Nevada 330901-00-24-05-02-05?
In addition to "new original" " units.
we also specialize in the selling "discontinued" and hard to find industrial automation parts which tend to have a fluctuating market value. These fluctuations may make it difficult for us to provide accurate daily prices for parts on our website. Therefore, in an effort to ensure that we always provide you with the best and most accurate price available, our team will source and price your part on an enquiry-by-enquiry basis.
