Bently Nevada 330880-00-00-000-03-02 PROXPAC XL Proximity Transducer Assembly

Bently Nevada 330880-00-00-000-03-02 PROXPAC XL Proximity Transducer Assembly

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

Order(MOQ):
1
Payment:
T/T
Product Origin:
UK
Color:
Brand New
Shipping Port:
Xiamen
Warranty:
1 Year
Product Origin:
UK
Lead Time:
3-5 Days

Product Detail

Specifications

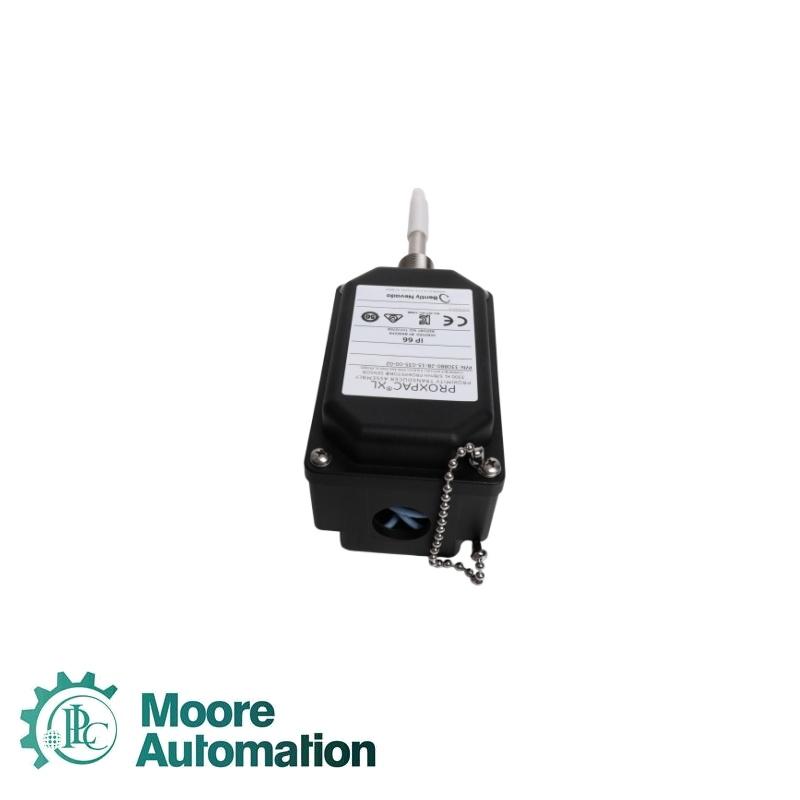

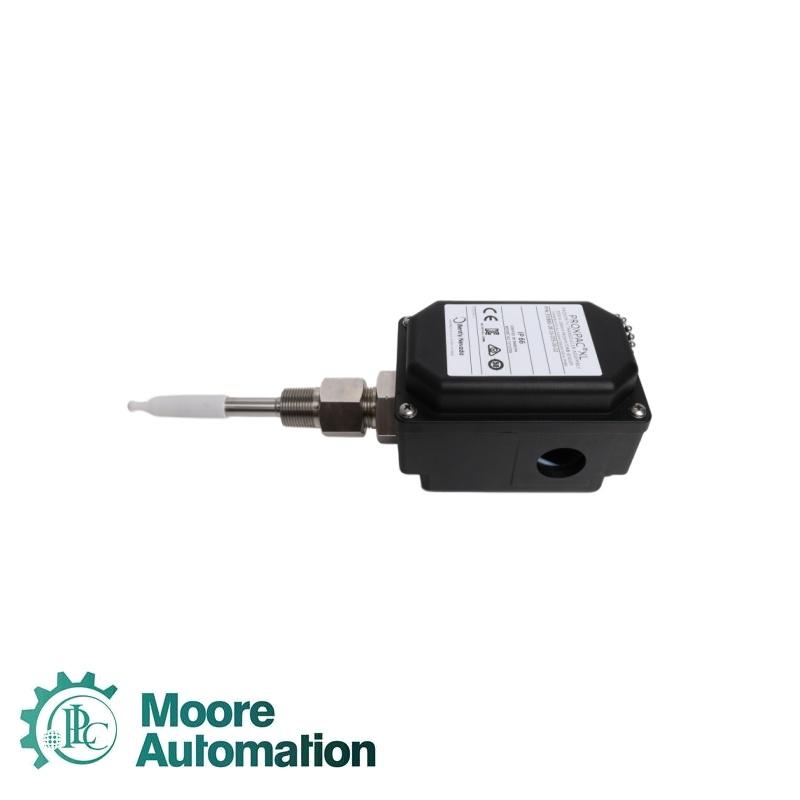

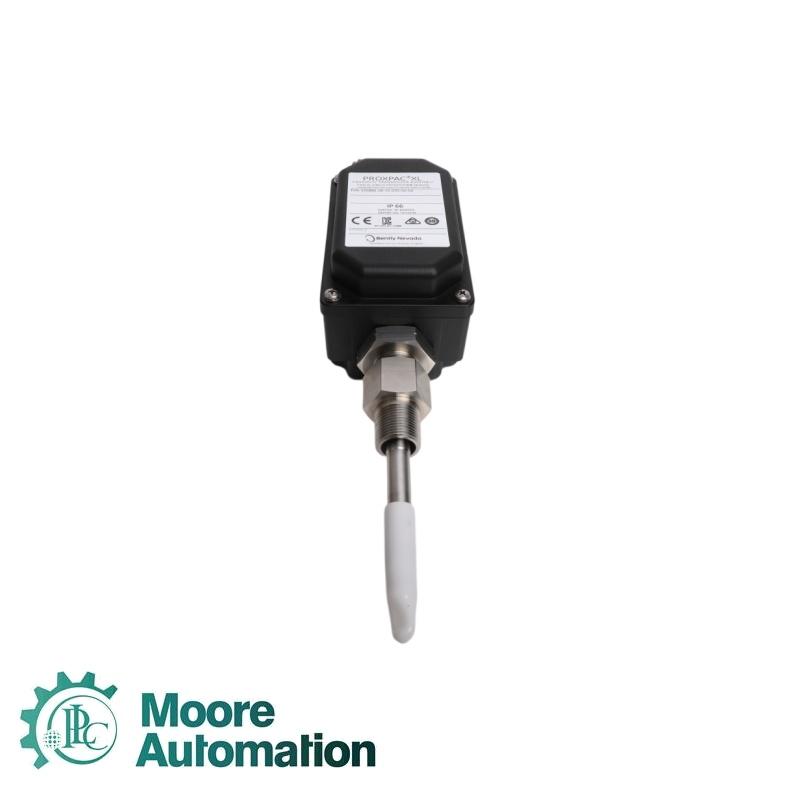

The Bently Nevada 330880-00-00-000-03-02 is a PROXPAC XL proximity transducer assembly configured without a probe, standoff adapter or probe sleeve. It includes the Proximitor sensor in the protective housing, fitting option 03 and a 3/4-14 NPT mounting thread. The design permits direct field wiring to the sensor and removes the extension cable between the probe and sensor when completed with a compatible probe.

Product typeProximity transducer assembly

Product seriesPROXPAC XL

Probe optionNo probe

Standoff adapterNone

Probe sleeveNone

Fitting option03

Mounting thread3/4-14 NPT

Fitting plug3/4-14 NPT, one

Reducer3/4-14 NPT to 1/2-14 NPT, one

Cable seal gripOne, multi-grommet

Housing materialPPS with glass and conductive fibers

Enclosure ratingType 4X and IP66

Sensor power-17.5 to -26 Vdc, without barriers

Sensor power with barriers-23 to -26 Vdc

Maximum current consumption12 mA

Output resistance50 Ω

Field wiring0.2 to 1.5 mm² (16 to 24 AWG)

Maximum field wiring length305 m (1,000 ft)

System linear range2.0 mm (80 mil)

System recommended gap1.27 mm (50 mil)

Frequency response0 to 10 kHz, +0/-3 dB

Operating temperature-52 to +100 °C

Storage temperature-52 to +105 °C

Relative humidity100% condensing, non-submersible with protected connectors

Application Industry

Harsh-environment machineryProtects the proximity electronics near rotating equipment exposed to weather or washdown.

Direct field wiringConnects the monitor cable directly to the housed sensor without an intervening extension cable.

External probe adjustmentSupports an externally accessible housing arrangement for setting probe position.

Machine vibration and positionForms part of a non-contacting shaft vibration or axial-position measurement loop.

FAQ

Does 330880-00-00-000-03-02 include a proximity probe?

No. This configuration is supplied without the probe, standoff and sleeve; select the compatible sensing element separately.

How is 330880-00-00-000-03-02 wired to the monitor?

Bring the shielded field cable through the specified seal grip and connect it directly to the housed sensor terminals within the published conductor-size and distance limits.

What sealing checks are required for 330880-00-00-000-03-02?

Tighten the cover and conduit fittings correctly, protect every connector and preserve the enclosure rating; the assembly is not intended for submersion.

What supply voltage is required by 330880-00-00-000-03-02?

Provide the specified negative dc supply range and use the more restrictive range when safety barriers are installed.

Which mounting connection is provided on 330880-00-00-000-03-02?

The housing uses a 3/4-14 NPT mounting thread and the selected fitting kit includes a plug, reducer and multi-size cable seal grip.
