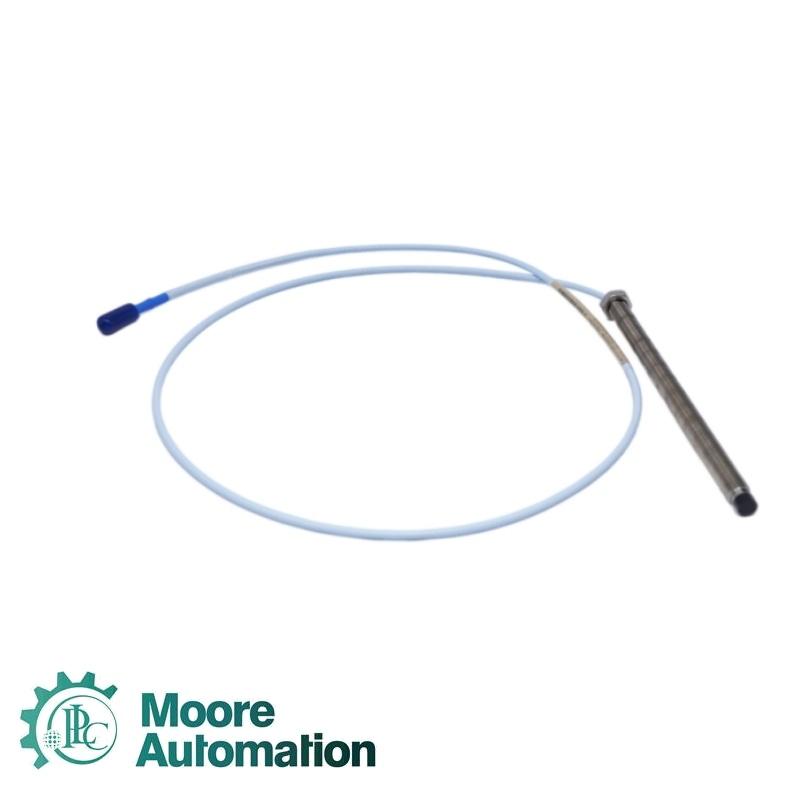

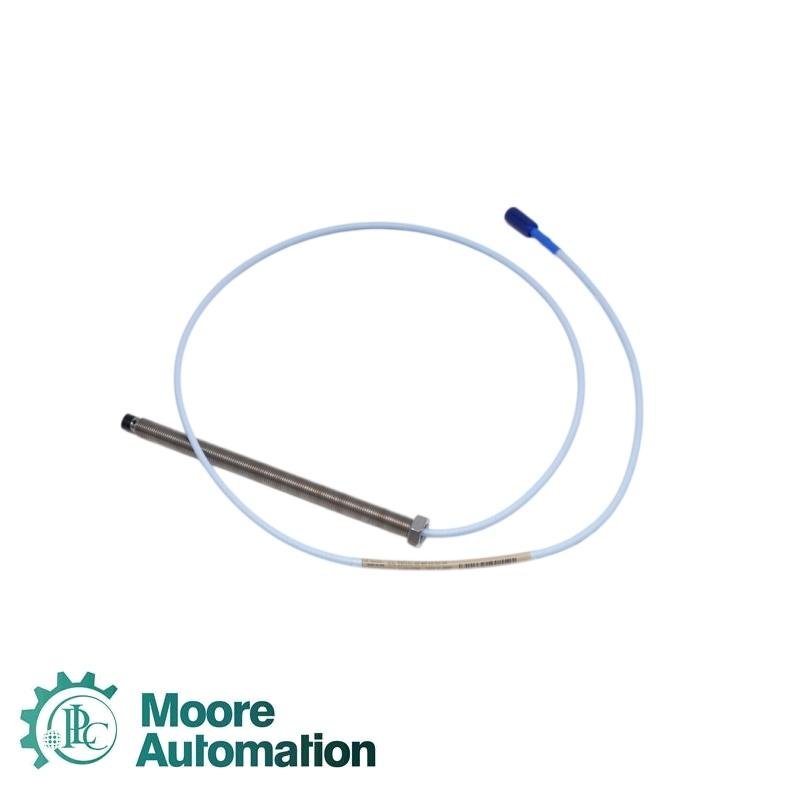

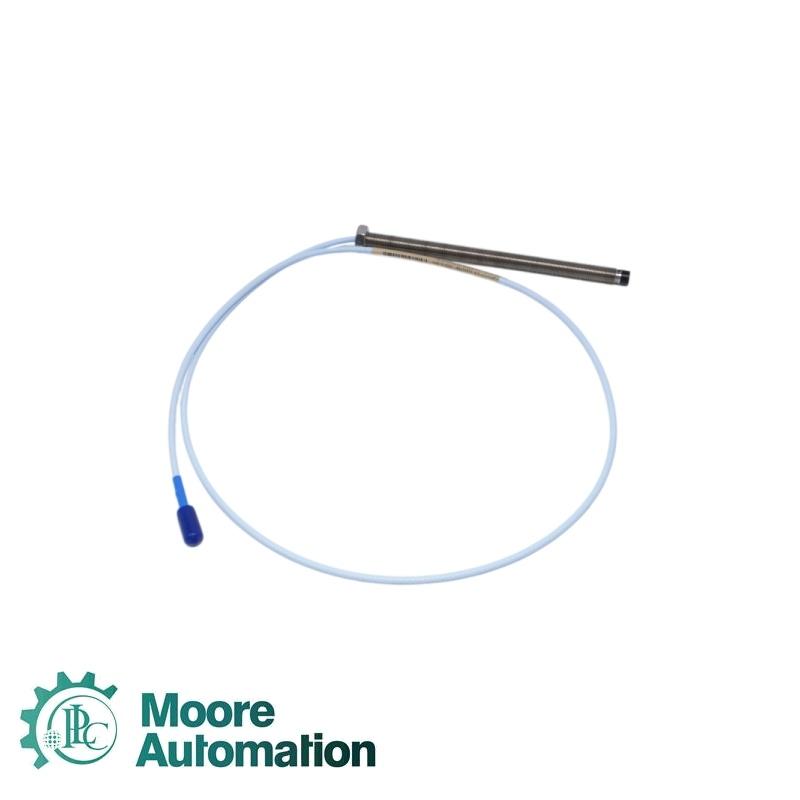

Bently Nevada 330101-00-60-90-01-05 3300 XL 8 mm Proximity Probe

Bently Nevada 330101-00-60-90-01-05 3300 XL 8 mm Proximity Probe

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

Order(MOQ):
1
Payment:
T/T
Product Origin:
UK
Color:
Brand New
Shipping Port:
Xiamen
Warranty:
1 Year
Product Origin:
UK
Lead Time:
3-5 Days

Product Detail

Specifications

The Bently Nevada 330101-00-60-90-01-05 is an unarmored 3300 XL 8 mm proximity probe with a 3/8-24 UNF case thread. The official ordering code specifies 0 in unthreaded length, a 6.0 in overall case length, 9.0 m total length, standard cable, a miniature coaxial ClickLoc connector with protector, and CSA, ATEX and IECEx approval options.

Product typeUnarmored proximity probe

Product series3300 XL 8 mm

Case thread3/8-24 UNF

Unthreaded length0 in

Overall case length6.0 in (152.4 mm)

Total length9.0 m (29.5 ft)

Cable construction75 Ω coaxial, FEP insulated

Cable armorNone

ConnectorMiniature coaxial ClickLoc

Connector protectorIncluded

Approval optionCSA, ATEX and IECEx

Linear range2.0 mm (80 mil)

Recommended gap1.27 mm (50 mil)

Gap voltage-9 Vdc

Frequency response0 to 10 kHz, +0/-3 dB

Minimum flat target15.2 mm (0.6 in)

Minimum shaft diameter50.8 mm (2.0 in)

Recommended shaft diameter76.2 mm (3.0 in)

Minimum bend radius25.4 mm (1.0 in)

Probe operating temperature-52 to +177 °C

Probe tip materialPolyphenylene sulfide

Probe case materialAISI 303 or 304 stainless steel

Application Industry

Long-cable machine installationsReaches remote junction points while preserving the ordered total probe length.

Shaft vibration monitoringMeasures radial shaft motion on turbines, compressors and other bearing machines.

Thrust-position measurementMonitors axial movement through a matched proximity transducer system.

Hazardous-area measurementSupports certified installations when every loop component and wiring practice matches the approval.

FAQ

Does 330101-00-60-90-01-05 need an extension cable?

Select the remaining system components from the matching family and confirm the required complete electrical length; do not add cable solely by physical reach.

How should the 9.0 m lead of 330101-00-60-90-01-05 be routed?

Keep it above the minimum bend radius, provide support along the run and separate it from high-voltage or high-current wiring.

What is the benefit of the connector protector supplied with 330101-00-60-90-01-05?

It helps keep liquids and contamination out of the locking coaxial connection when installed according to the official procedure.

Can 330101-00-60-90-01-05 be used in an approved hazardous-area loop?

The selected probe carries multiple approval options, but the complete sensor, barriers, wiring and installation drawing must also satisfy the site classification.

What thread and case clearance are needed for 330101-00-60-90-01-05?

Use a 3/8-24 UNF mounting thread and provide space for the six-inch case, cable exit and strain-free connector access.
