 Bently Nevada 21000-11-05-00-085-03-02 Proximity Probe Housing Assembly
Bently Nevada 21000-11-05-00-085-03-02 Proximity Probe Housing Assembly Bently Nevada 21000-11-05-00-085-03-02 Proximity Probe Housing Assembly Bently Nevada 21000-11-05-00-085-03-02 Proximity Probe Housing Assembly

Bently Nevada 21000-11-05-00-085-03-02 Proximity Probe Housing Assembly

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

  • Order(MOQ):

    1

  • Payment:

    T/T

  • Product Origin:

    UK

  • Color:

    Brand New

  • Shipping Port:

    Xiamen

  • Warranty:

    1 Year

  • Product Origin:

    UK

  • Lead Time:

    3-5 Days
Contact Us

  • Product Detail

Specifications

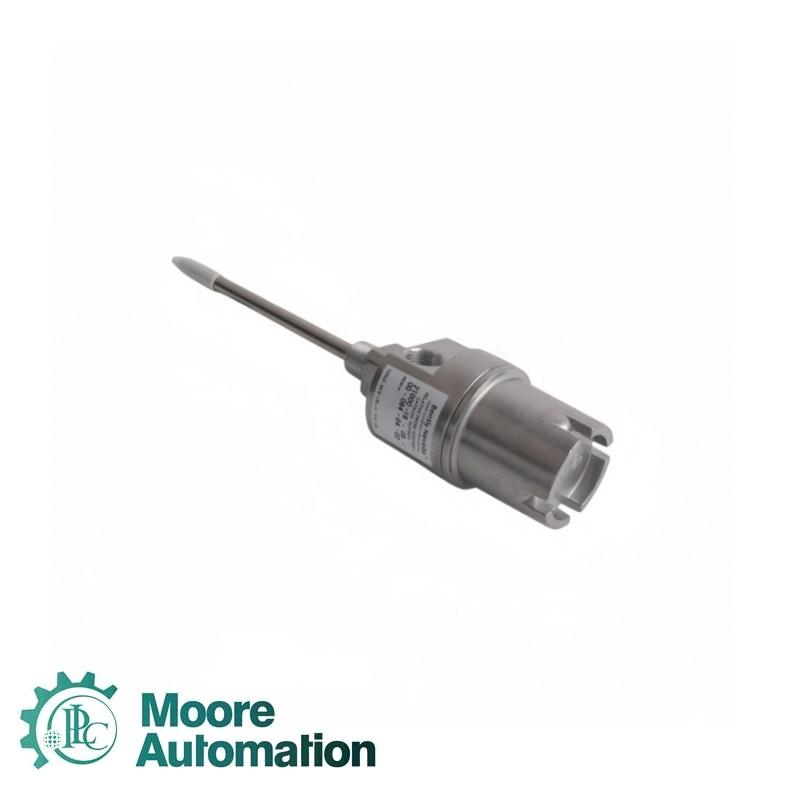

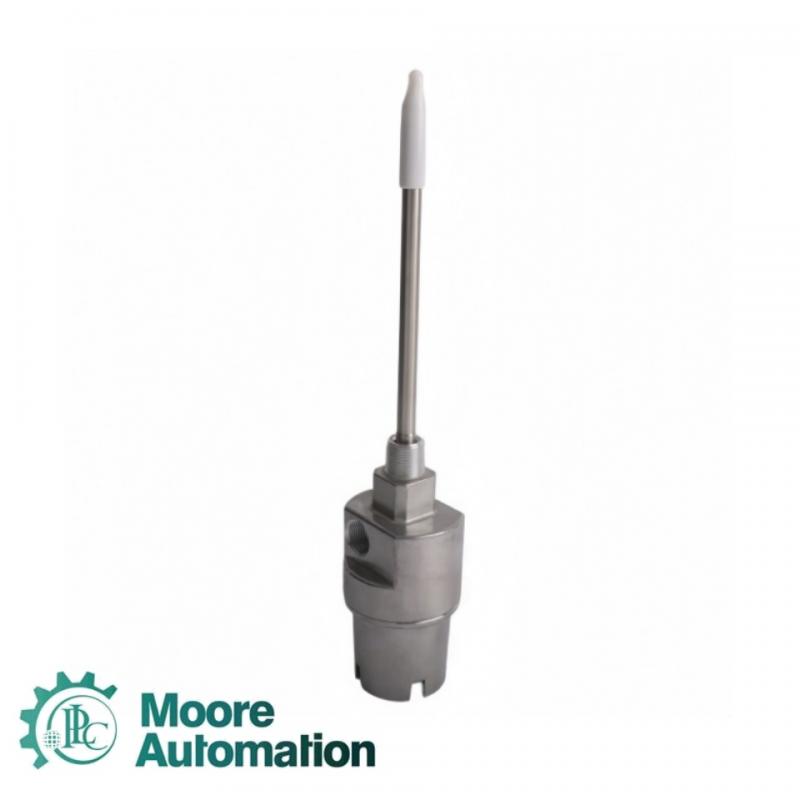

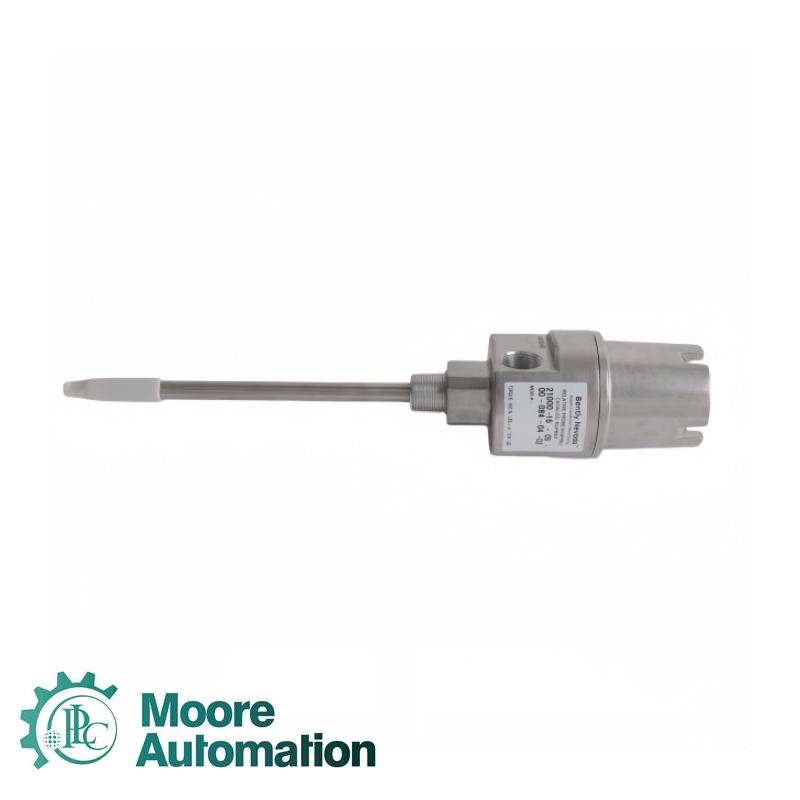

The Bently Nevada 21000-11-05-00-085-03-02 is an aluminum proximity probe housing assembly with a 0.5 m probe-cable option, no standoff adapter, 8.5 in probe penetration, fitting option 03 and a 3/4-14 NPT mounting thread. The public current ordering table does not define legacy probe option 11, so the installed probe identity must be confirmed from the nameplate or original order record before replacement.
Product typeProximity probe housing assembly
Housing series21000
Probe option code11
Probe cable length0.5 m (20 in)
Standoff adapterNone
Probe penetration8.5 in (215.9 mm)
Adjustment range13 mm (±0.5 in)
Fitting option03
Mounting thread3/4-14 NPT
Fitting plug3/4-14 NPT, one
Reducer3/4-14 NPT to 1/2-14 NPT, one
Cable seal gripOne, multi-grommet
Grommet range 11/8 to 3/16 in
Grommet range 21/4 to 5/16 in
Grommet range 35/16 to 3/8 in
Housing body materialAluminum
Probe sleeve material304 stainless steel
Typical mass1.1 kg (2.4 lb), without fittings
Housing coverThreaded dome cover
Conduit connectionThreaded ports
Application Industry
01
Bearing-housing probe accessMounts a proximity probe externally while keeping the connection accessible.
02
Medium-depth penetrationPositions the sensing tip through an 8.5 in sleeve arrangement.
03
Industrial conduit systemsInterfaces the housing with NPT conduit fittings and a cable seal grip.
04
Rotating machinery protectionSupports radial vibration, position or phase-reference probe installations.
FAQ
What is the configured penetration of 21000-11-05-00-085-03-02?
The sleeve arrangement provides 8.5 in of probe penetration with the published fine adjustment range.
Does 21000-11-05-00-085-03-02 include a standoff adapter?
No. The selected standoff field is zero, so mounting dimensions should be checked without an added adapter.
How can the probe option in 21000-11-05-00-085-03-02 be validated?
Use the physical label and original order documentation because the legacy option code is not explained in the current public ordering table.
What fittings are supplied with 21000-11-05-00-085-03-02?
The selected kit contains an NPT plug, an NPT reducer and a cable seal grip with three grommet size ranges.
Is sleeve support mandatory for 21000-11-05-00-085-03-02?
The published mandatory-support rule applies above 12 in of penetration; still evaluate stiffness and machine vibration for the actual mounting.
