Bently Nevada 21000-15-10-00-166-03-02 Proximity Probe Housing Assembly

Bently Nevada 21000-15-10-00-166-03-02 Proximity Probe Housing Assembly

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

Order(MOQ):
1
Payment:
T/T
Product Origin:
UK
Color:
Brand New
Shipping Port:
Xiamen
Warranty:
1 Year
Product Origin:
UK
Lead Time:
3-5 Days

Product Detail

Specifications

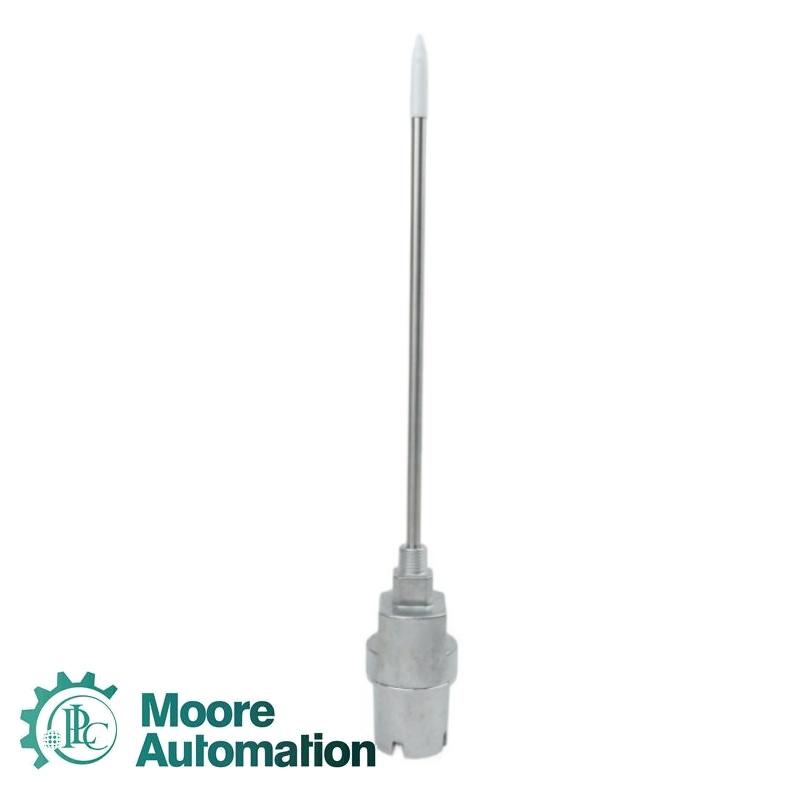

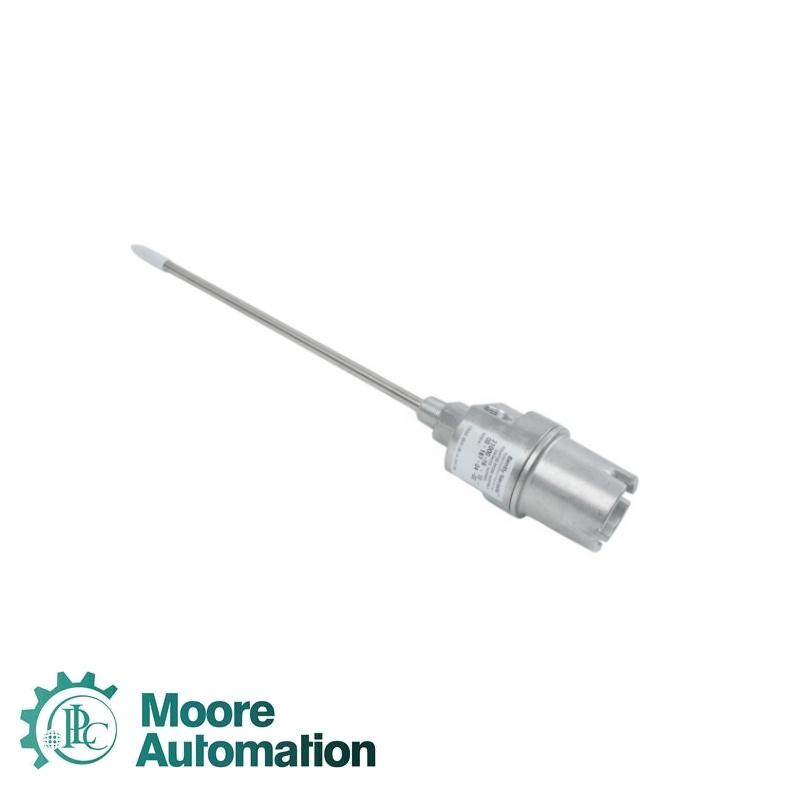

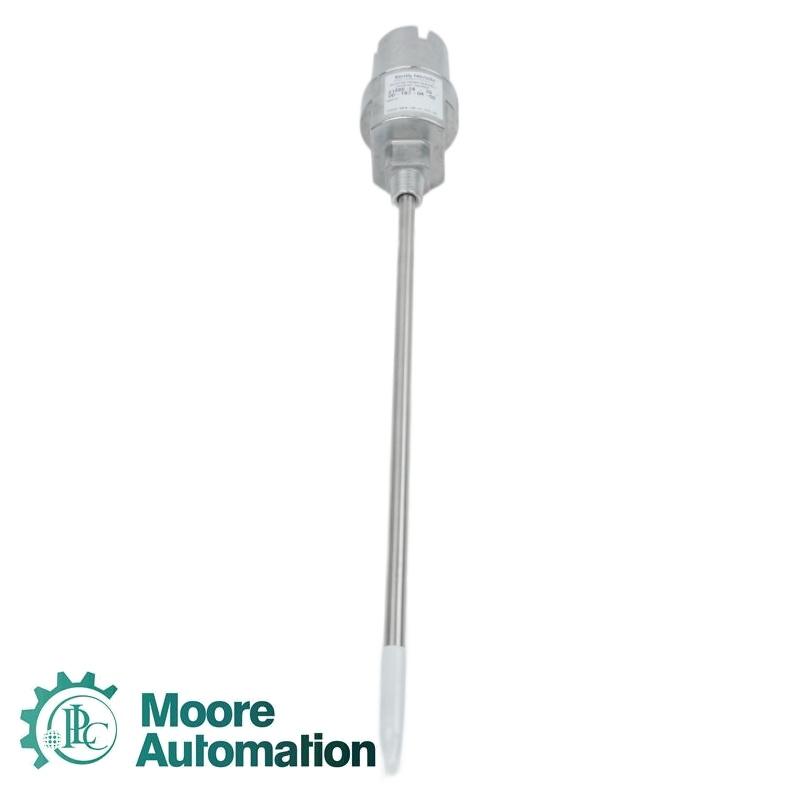

The Bently Nevada 21000-15-10-00-166-03-02 is an aluminum proximity probe housing assembly with a 1.0 m probe-cable option, no standoff adapter, 16.6 in probe penetration, fitting option 03 and a 3/4-14 NPT mounting thread. The public current ordering table does not define legacy probe option 15, so the installed probe identity must be confirmed from the nameplate or original order record. Because the configured penetration exceeds 12 in, the official installation guidance requires sleeve support near the probe.

Product typeProximity probe housing assembly

Housing series21000

Probe option code15

Probe cable length1.0 m (39 in)

Standoff adapterNone

Probe penetration16.6 in (421.6 mm)

Adjustment range13 mm (±0.5 in)

Fitting option03

Mounting thread3/4-14 NPT

Fitting plug3/4-14 NPT, one

Reducer3/4-14 NPT to 1/2-14 NPT, one

Cable seal gripOne, multi-grommet

Grommet range 11/8 to 3/16 in

Grommet range 21/4 to 5/16 in

Grommet range 35/16 to 3/8 in

Housing body materialAluminum

Probe sleeve material304 stainless steel

Typical mass1.1 kg (2.4 lb), without fittings

Sleeve support requirementRequired above 12 in penetration

Housing constructionDome cover, conduit ports, O-rings and thread seal

Application Industry

External probe mountingProvides an accessible enclosure for a proximity probe mounted through a machine case.

Long-penetration installationsPositions the sensing tip through deep bearing housings with added sleeve support.

Hazardous-area machinerySupports approved housing configurations when the complete assembly and installation meet the applicable requirements.

API-style machine monitoringProvides an all-metal externally mounted probe arrangement for rotating equipment.

FAQ

Why does 21000-15-10-00-166-03-02 require extra sleeve support?

The configured penetration is longer than 12 in, so a support near the sensing end is required to reduce resonance from the unsupported sleeve.

How should probe option 15 on 21000-15-10-00-166-03-02 be confirmed?

Check the housing and probe labels or the original purchase record because that legacy option is not defined in the current public ordering table.

Which mounting port is needed for 21000-15-10-00-166-03-02?

Prepare the machine for the specified 3/4-14 NPT mounting thread and ensure the assembly has adequate stiffness and clearance.

What cable sizes fit the seal grip supplied with 21000-15-10-00-166-03-02?

The fitting kit provides grommets for three ranges covering one-eighth through three-eighths of an inch as listed in the specifications.

How is penetration adjusted on 21000-15-10-00-166-03-02?

Set the sleeve position within the published adjustment range, gap the probe to the target, then secure the assembly using the specified installation procedure.
