Brief description |

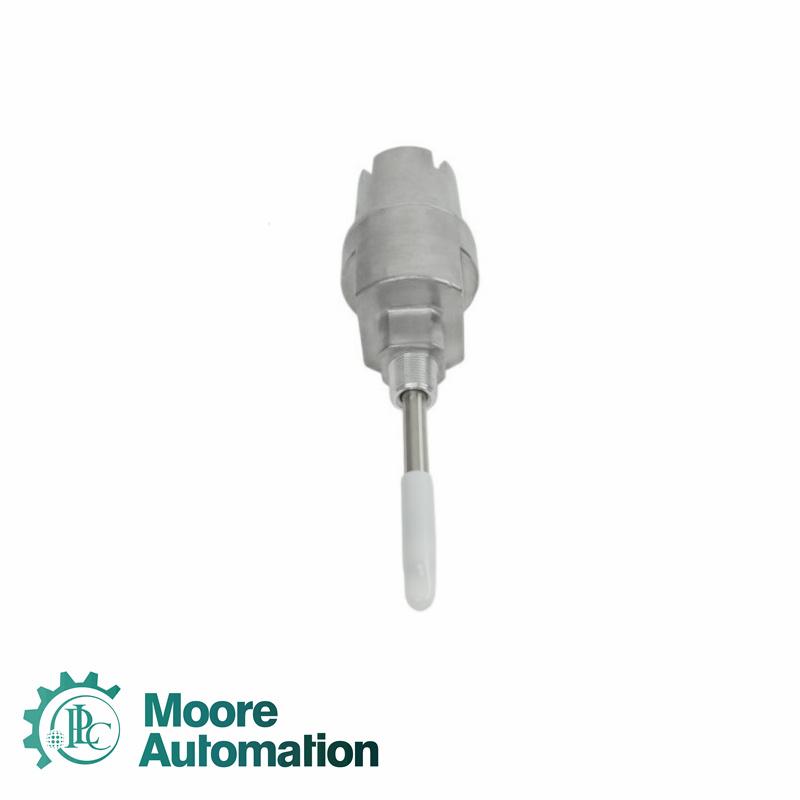

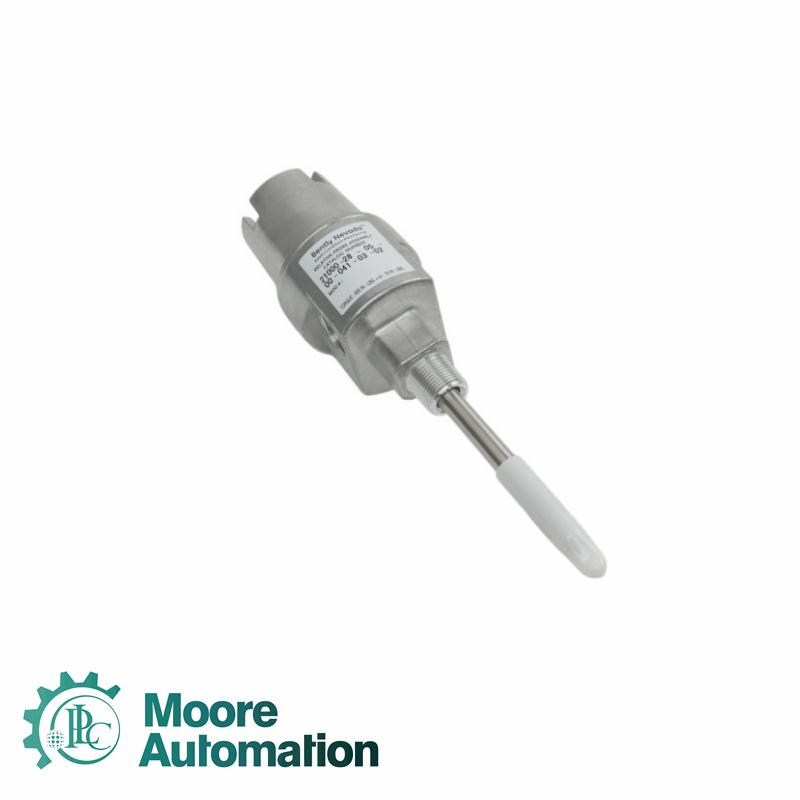

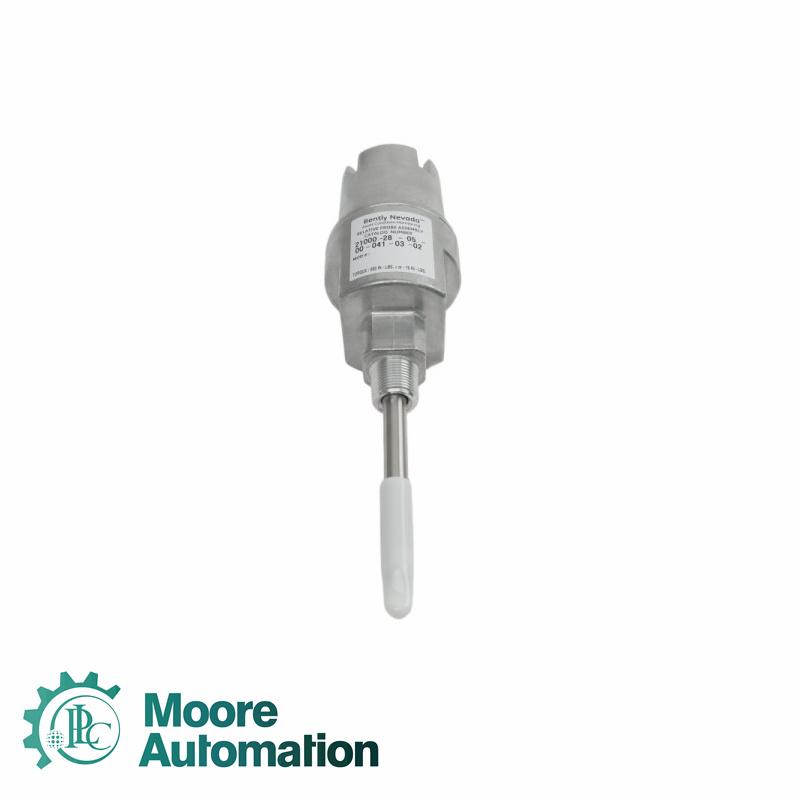

To externally mount proximity probes, use one of these all-metal Proximity Probe Housing Assemblies: 21000 aluminum probe housing assembly, 24701 stainless steel probe housing assembly .The 21000, 24701, and 164818 Proximity Probe Housing Assemblies consist of the following parts: A dome cover that screws into the body of the housing; Threaded ports for conduit connections; A probe sleeve of optional length; O-rings; A reverse mount proximity probe；A thread seal; Optional conduit fittings; An optional standoff adapter.
|
Technical parameters |
|
|
Dimension |
30.5 × 8.5 × 8.5 cm |
|
Weight |
1.05 kg |
|
Probe with Connector |
3300 XL 8 mm probe, selectable hazardous area approvals |
|
Probe Cable Length |
0.5 m (20 in) |
|
Standoff Adapter (Option C Dimension) |
4.0 in |
|
Probe Penetration (Option D Dimension) |
2.8 in |
|
Fittings |
One 3/4-14 NPT plug only |
|
Mounting Thread |
3/4-14 NPT |
|
Material |
Aluminum body with 304 stainless steel sleeve |
|
Mass (Weight) |
1.1 kg (2.4 lb) typical, without fittings |
|
Contact me for a big surprise！ |
Email: sales3@askplc.com
Mobile(WhatsApp): 86-18150117685
John Yang is 24 hours online for you
|
Trust moore--Trustworthy global supplier |
Over the years, we have grown into a trusted global supplier with operations centers in Xiamen, China and Hong Kong, China. Our business spans the globe, with most of our valued customers located in the Middle East, Europe, the UK, Asia, and the USA.
|
Application |
Thermal Power Plants: Monitor turbine and generator shaft vibration and shaft displacement.
Hydroelectric Power Plants: Monitor radial runout and shaft swing of hydro generators.
Petrochemical Plants: Monitor large centrifugal compressors and blower shafts.
Steel Plants: Monitor blast furnace blowers and gearbox shaft position.
Large Pump Stations: Monitor radial dynamic displacement of heavy-duty pump rotors.
|
FAQ |
Q: What probe model is used for 21000-28-05-40-028-04-02?
A: The probe used is a 3300 XL 8mm probe with optional explosion-proof certification.
Q: What is the probe cable length of 21000-28-05-40-028-04-02?
A: The length is 0.5 meters (20 inches).
Q: What is the probe insertion depth of 21000-28-05-40-028-04-02?
A: The insertion depth dimension is 2.8 inches.
Q: What is the mounting thread specification of 21000-28-05-40-028-04-02?
A: The thread specification is 3/4-14 NPT.
Q: What material is used for the housing of 21000-28-05-40-028-04-02?
A: The housing uses an aluminum body with a 304 stainless steel sleeve.
|
