Product Summary

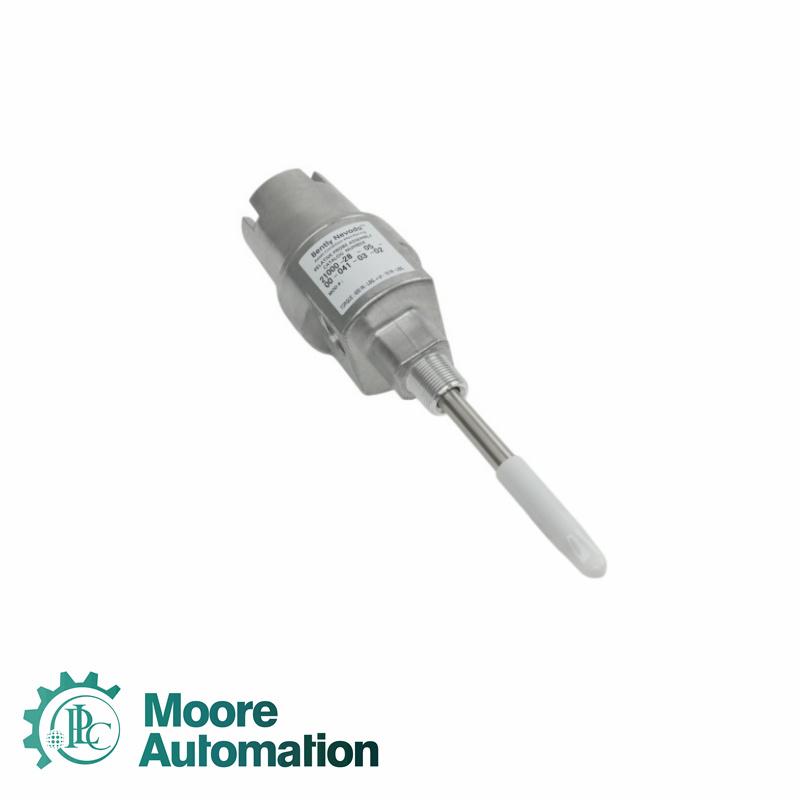

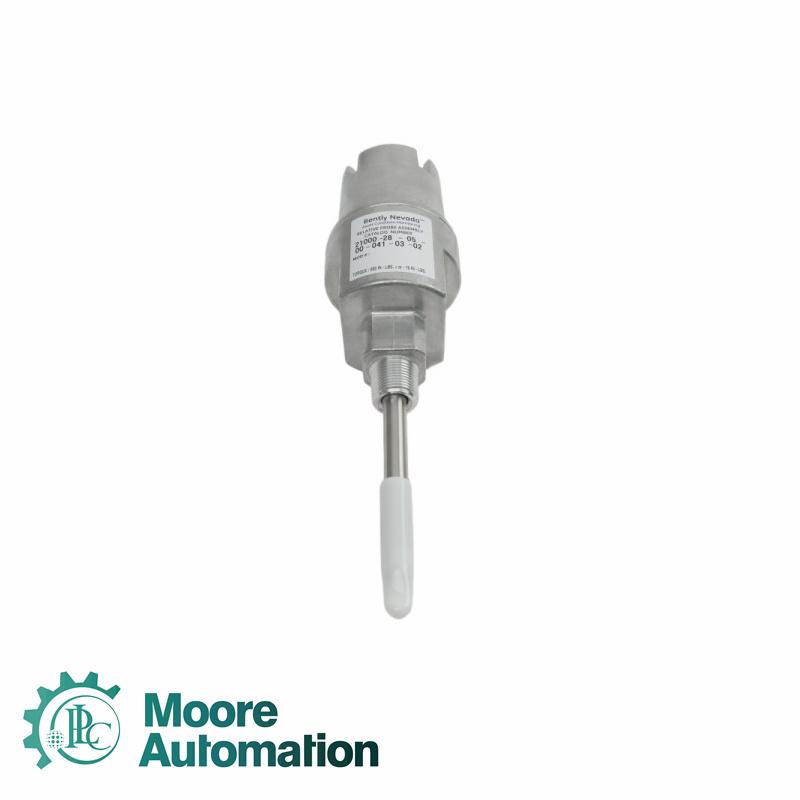

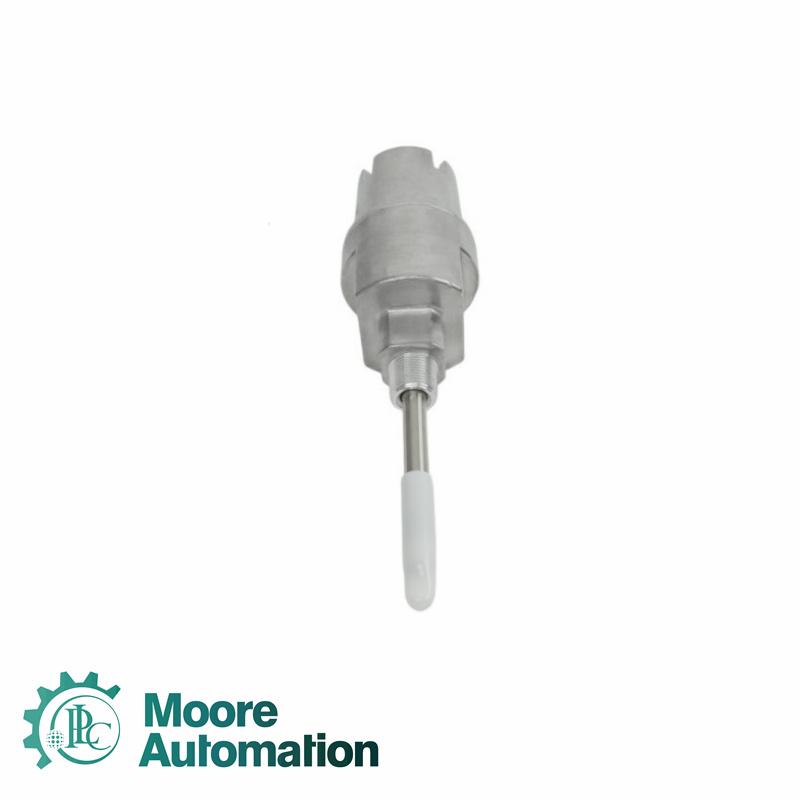

To externally mount proximity probes, use one of these all-metal Proximity Probe Housing Assemblies: 21000 aluminum probe housing assembly, 24701 stainless steel probe housing assembly .The 21000, 24701, and 164818 Proximity Probe Housing Assemblies consist of the following parts: A dome cover that screws into the body of the housing; Threaded ports for conduit connections; A probe sleeve of optional length; O-rings; A reverse mount proximity probe；A thread seal; Optional conduit fittings; An optional standoff adapter.
|
Call for Pricing? |
|
|
Sale Manager: John Yang |
Email: sales3@askplc.com |
|
Mobile(WhatsApp): 86-18150117685 |
|
Full Details
|
Probe with Connector |
3300 XL 8mm probe, selectable hazardous area approvals |
|
Probe Cable Length |
0.5 m (20 in) |
|
Standoff Adapter (Option C Dimension) |
1.5 in |
|
Probe Penetration (Option D Dimension) |
2.7 in |
|
Fittings |
One 3/4-14 NPT explosion-proof fitting; one 3/4-14 NPT plug |
|
Mounting Thread |
3/4-14 NPT |
|
Material |
Aluminum body with 304 stainless steel sleeve |
|
Mass (Weight) |
1.1 kg (2.4 lb) typical, without fittings |
Frequently Asked Questions
111
If You Choose Us！
1. We will provide you the product info and picture
2. Large stock, fast delivery
3. Competitive prices and immediate quotation
4. Professional service, professional technical support
5. Strict test machine before shipment.
6. We could help you to get any components which is difficult to get
Application
Thermal Power Plants: Externally explosion-proof mounted on conventional centrifugal boiler feedwater pumps or forced-draft fans, using a lightweight aluminum-alloy housing to isolate environmental contaminants and precisely measure bearing vibration.
Natural Gas Compressor Stations: Applied to natural gas compressor units at gas distribution stations along long-distance pipelines, using a CSA-rated explosion-proof sealed housing to provide long-term protection for shaft displacement monitoring.
Oxygen Plants (Air Separation Plants): Externally installed on centrifugal air compressor units in large air separation plants, isolating gas leakage risks while monitoring radial shaft runout.
Water Pumping Plants (Centralized Water Supply Plants): Installed on the sealed large bearing housings of high-pressure long-distance water transfer pump units to prevent shaft displacement caused by load fluctuations in the mechanical drive system.
Chemical Plants: Externally installed on non-corrosive recycle gas compressors in conventional areas, using a 1.5-inch extension section to accommodate thicker housings and monitor Keyphasor rotational speed.
