Bently Nevada 330105-02-12-90-12-00 3300 XL 8 mm Reverse Mount Proximity Probe

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

Order(MOQ):
1
Payment:
T/T
Product Origin:
UK
Color:
Brand New
Shipping Port:
Xiamen
Warranty:
1 Year
Product Origin:
UK
Lead Time:
3-5 Days

Product Detail

Specifications

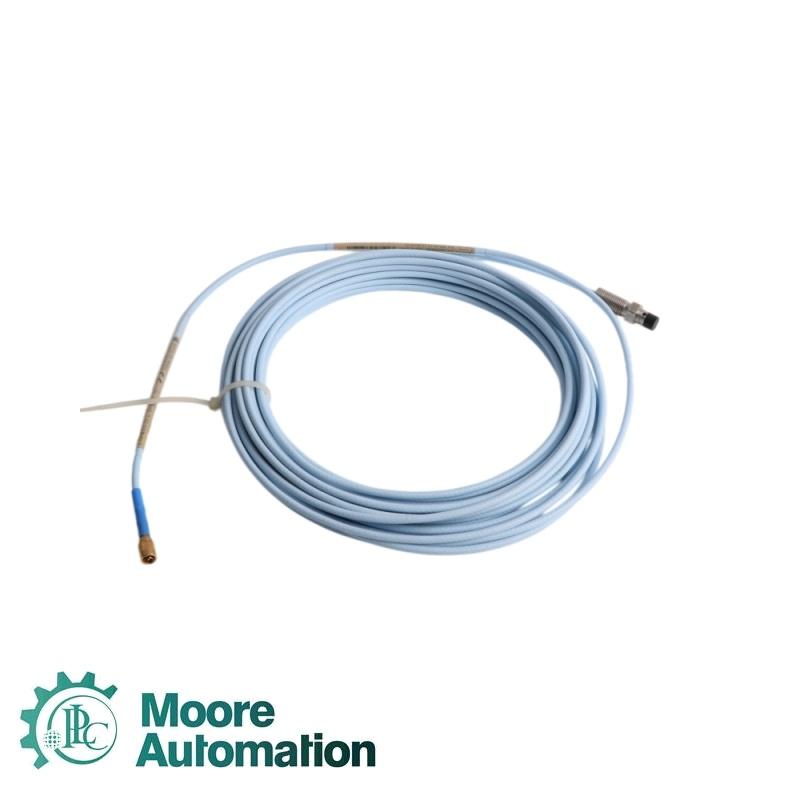

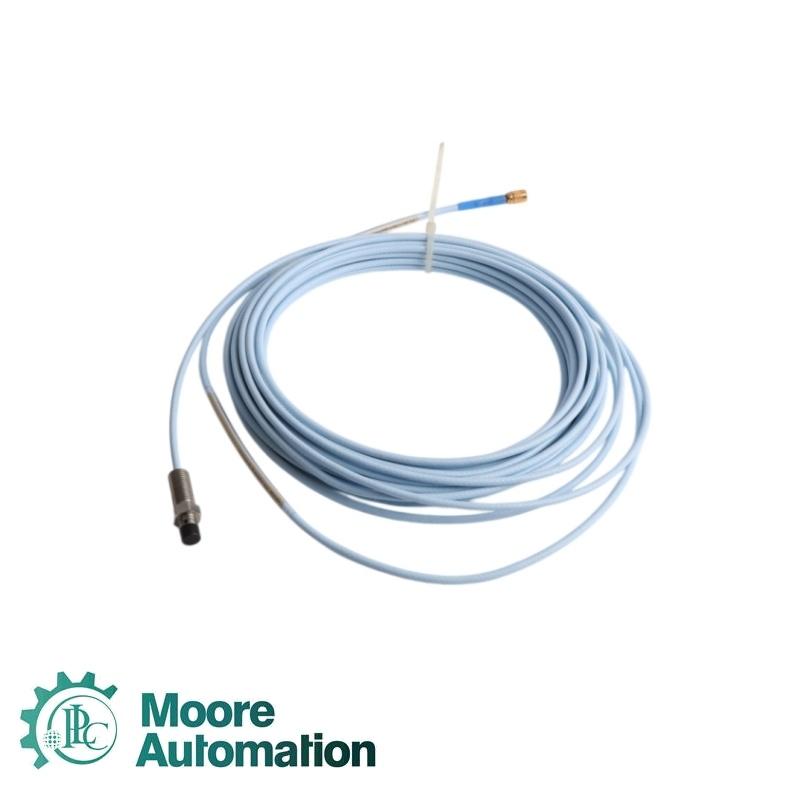

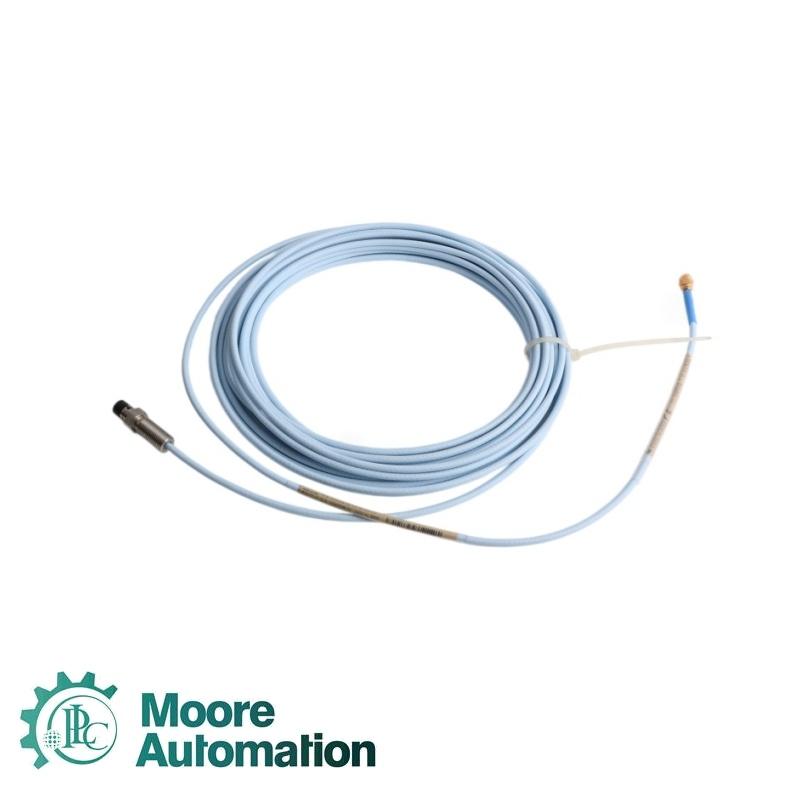

The 330105-02-12-90-12-00 is a reverse mount 8 mm proximity probe for the 3300 XL proximity transducer system. It has 3/8-24 UNF threads, a 9.0 m total length, a miniature ClickLoc coaxial connector, FluidLoc cable, and no agency approval option.

Probe diameter8.0 mm (0.31 in)

Mounting styleReverse mount

Mounting thread3/8-24 UNF

Base configuration02-12

Total length9.0 m (29.5 ft)

ConnectorMiniature ClickLoc coaxial

Cable typeFluidLoc

Cable impedance75 Ω

Agency approval optionNot required

Maximum connector diameter7.24 mm (0.285 in)

Application Industry

Reverse-mount housingsFits installations that secure the probe from inside a compatible probe sleeve or housing.

Large rotating machinesSupports non-contacting shaft vibration and position measurements on fluid-film bearing machinery.

Long cable routesProvides a 9 m integral electrical length for installations with extended sensor routing.

Phase and speed referenceCan serve Keyphasor and speed-measurement duties in a correctly matched transducer system.

FAQ

Is 330105-02-12-90-12-00 a standard-mount or reverse-mount probe?

It is a reverse-mount design intended for installation in a compatible sleeve or probe housing.

Which system length must be matched to 330105-02-12-90-12-00?

The configured total electrical length is 9.0 m, so the associated system components must use the corresponding length.

Does 330105-02-12-90-12-00 use a standard or FluidLoc cable?

It uses the FluidLoc cable option with a miniature ClickLoc coaxial connector.

Which mounting thread is provided on 330105-02-12-90-12-00?

The reverse-mount body uses 3/8-24 UNF threads.

Does 330105-02-12-90-12-00 include a hazardous-area approval option?

No. The final option selects no agency approval, so site certification requirements must be checked separately.
