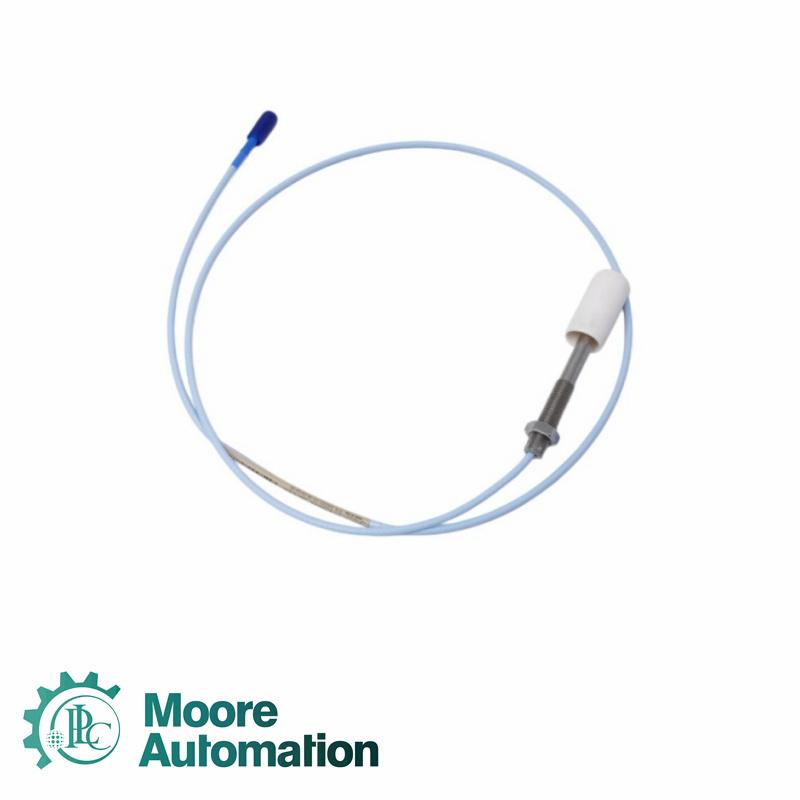

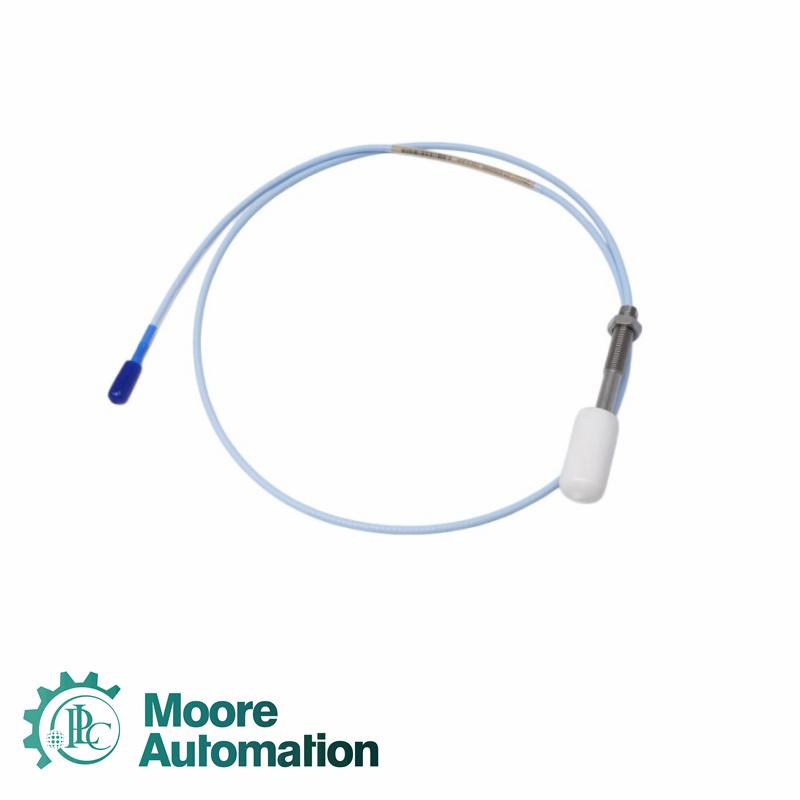

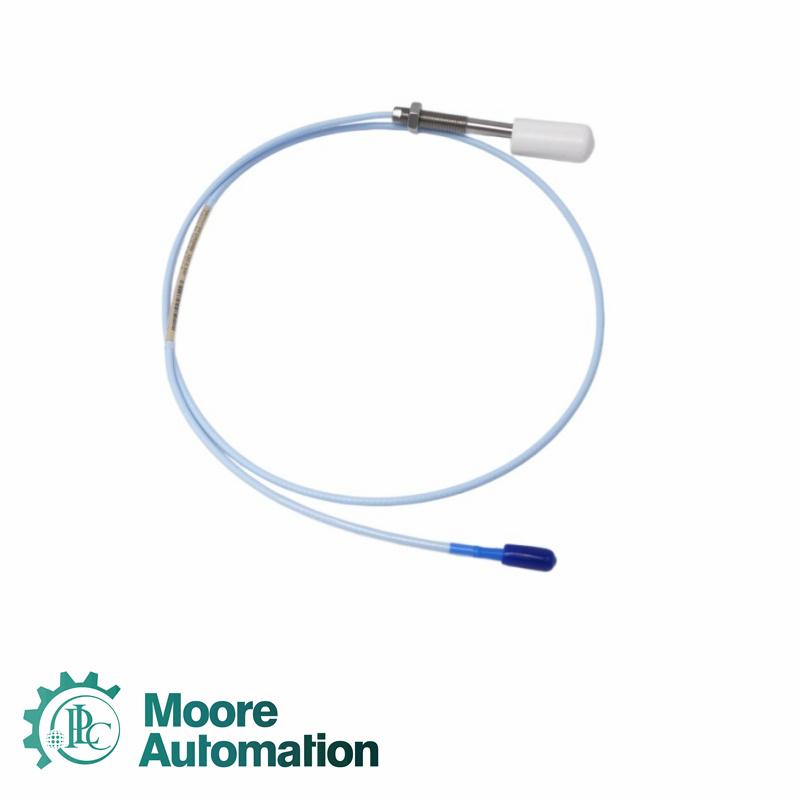

Bently Nevada 330101-20-45-05-02-05 3300 XL 8 mm Proximity Probe

Bently Nevada 330101-20-45-05-02-05 3300 XL 8 mm Proximity Probe

100% Original New
1 Year Warranty
Competitive Pice
Email: sales3@askplc.com

Brand:
Bently Nevada
Order(MOQ):
1
Payment:
T/T
Product Origin:
USA
Color:
Brand New
Shipping Port:
Xiamen
Lead Time：
in stock

Product Detail

⭐⭐⭐⭐⭐Customer support & services
You want	Moore Provide
100% brand new	Original Factory Seal
Warranty	12 months
Package	Original packing with cartons.
Payment Term	100% TT In Advance
Service	Worldwide & 24 hours

Product Overview

The 3300 XL 8 mm Proximity Transducer System provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements. The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems.

Call John Yang For Assistance

✉ Email: sales3@askplc.com ☏ Mobile(WhatsApp): 86-18150117685

Detailed Specifications

Parameter	Value
Unthreaded Length Option (Minimum)	2.0 in
Overall Case Length Option (Minimum)	4.5 in
Total Length Option	0.5 m (1.6 ft)
Connector and Cable Type Option	Miniature coaxial ClickLoc connector, standard cable
Agency Approval Option	CSA; ATEX; IECEx
Probe Case Thread	3/8-24 UNF
Maximum Thread Engagement Length	0.563 in
Dimensions	18 x 18 x 2 cm
Weight	0.1 kg
Operating & Storage Temperature	-52°C to +177°C (-62°F to +350°F)
Supply Sensitivity	< 2 mV change in output voltage per volt change in input voltage
Output Resistance	50 Ω
Extension Cable Capacitance	69.9 pF/m (21.3 pF/ft) typical
Field Wiring	0.2–1.5 mm² (16–24 AWG)
Linear Range	2 mm (80 mils)

Moore upholds the following values: We help keep global production running smoothly!

<<Global footprint>>

<<Integrity in business>>

<<Rapid response>>

<<High-quality products and highly competitive prices.>>

FAQ of 330101-20-45-05-02-05

Q: What are the physical length specifications of the 330101-20-45-05-02-05?
A: It has a 2.0-inch unthreaded length, 4.5-inch housing length, and a 0.5 m (1.6 ft) short cable.

Q: What are the mounting thread requirements for the 330101-20-45-05-02-05?
A: It uses a 3/8-24 UNF thread with a recommended max depth of 0.563 inches.

Q: Can the 330101-20-45-05-02-05 operate in sub-zero environments?
A: Yes, it operates from -52°C to +177°C for harsh temperature conditions.

Q: Does the 330101-20-45-05-02-05 have hazardous area certification?
A: Yes, it includes CSA, ATEX, and IECEx certifications for global hazardous areas.

Q: What are the linear range and output impedance of the 330101-20-45-05-02-05?
A: It offers a 2 mm (80 mils) linear range with 50 Ω output resistance.

Application

Large refinery: Used to monitor shaft vibration of heavy oil pumps or hydrogenation compressors, ensuring safe operation in flammable gas environments thanks to explosion-proof certification.

Power plants: Installed on boiler feedwater pump turbines or forced draft fans to track bearing clearance changes in real time and prevent catastrophic mechanical failures.

Liquefied natural gas (LNG) plants: Utilizes excellent low-temperature performance to monitor the operating condition of expanders or rotating equipment under cryogenic conditions.

Coal chemical plants: Protects critical turbine machinery rotating components in environments filled with chemical dust and high-temperature steam.

Integrated steel plants: Deployed on blast furnace blowers or main shafts of large rolling mills to withstand strong vibration under heavy-load operation.
