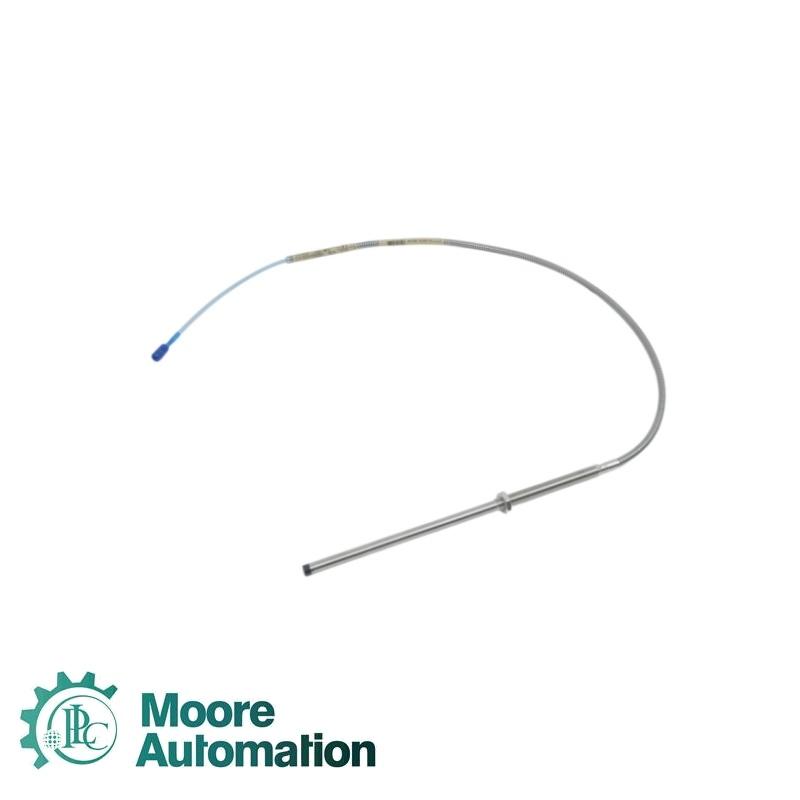

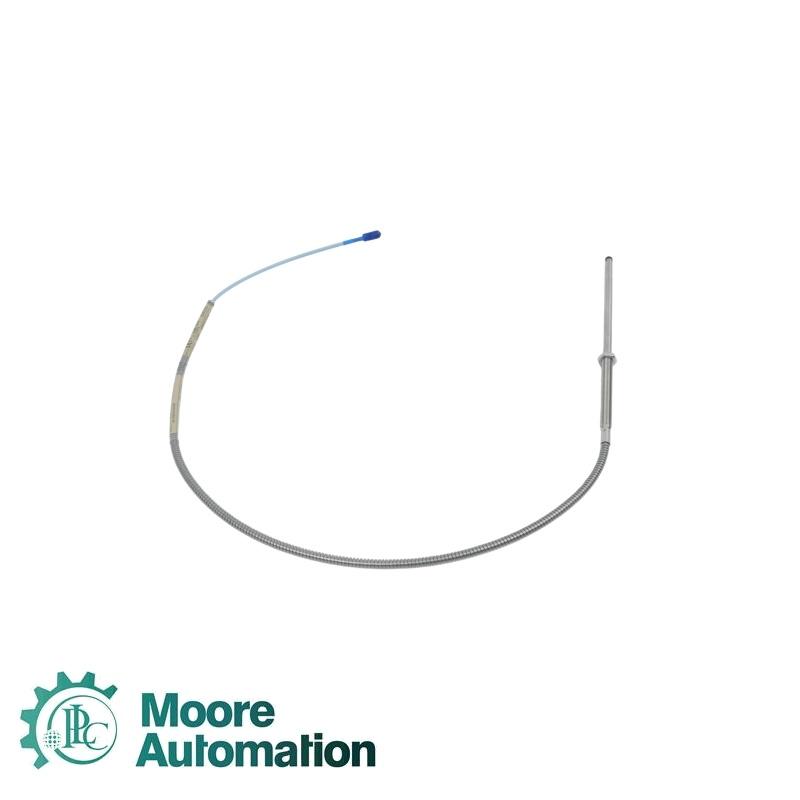

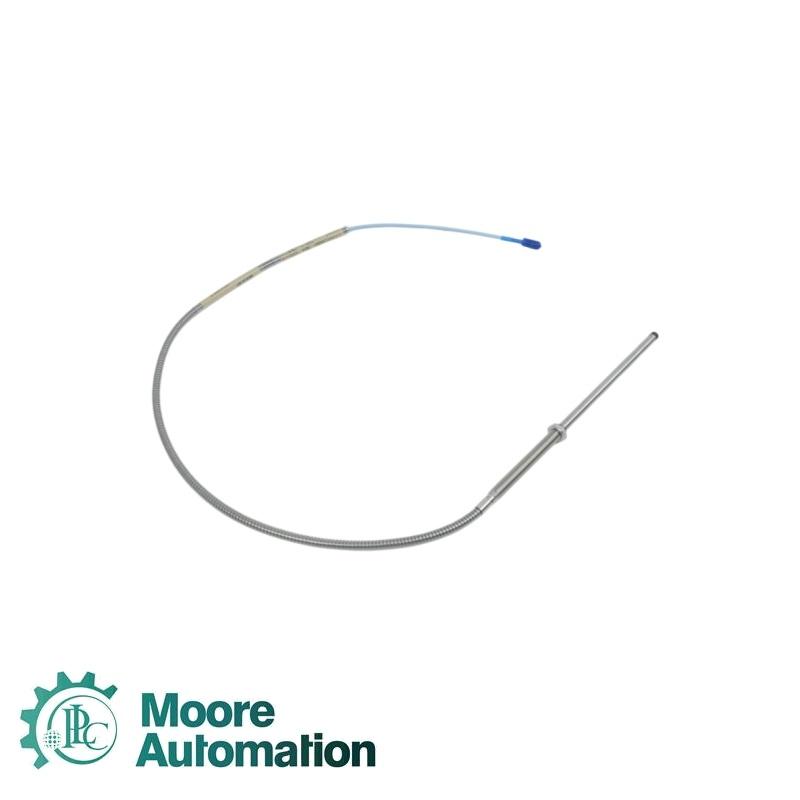

 Bently Nevada 330104-11-25-10-02-00 3300 XL 8 mm Proximity Probe
Bently Nevada 330104-11-25-10-02-00 3300 XL 8 mm Proximity Probe Bently Nevada 330104-11-25-10-02-00 3300 XL 8 mm Proximity Probe Bently Nevada 330104-11-25-10-02-00 3300 XL 8 mm Proximity Probe

Bently Nevada 330104-11-25-10-02-00 3300 XL 8 mm Proximity Probe

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

  • Order(MOQ):

    1

  • Payment:

    T/T

  • Product Origin:

    UK

  • Color:

    Brand New

  • Shipping Port:

    Xiamen

  • Warranty:

    1 Year

  • Product Origin:

    UK

  • Lead Time:

    3-5 Days
Contact Us

  • Product Detail

Specifications
The Bently Nevada 330104-11-25-10-02-00 is an armored 3300 XL 8 mm proximity probe with an M10 × 1 thread. The official ordering code specifies 110 mm unthreaded length, 250 mm overall case length, 1.0 m total length, standard cable, a miniature coaxial ClickLoc connector without a protector and no agency-approval option.
Product typeArmored proximity probe
Product series3300 XL 8 mm
Case threadM10 × 1
Unthreaded length110 mm
Overall case length250 mm
Total length1.0 m
Cable construction75 Ω coaxial, FEP insulated
Cable armorFlexible stainless steel
ConnectorMiniature coaxial ClickLoc
Connector protectorNot included
Agency approval optionNone
Linear range2.0 mm (80 mil)
Recommended gap1.27 mm (50 mil)
Gap voltage-9 Vdc
Frequency response0 to 10 kHz, +0/-3 dB
Minimum flat target15.2 mm (0.6 in)
Minimum shaft diameter50.8 mm (2.0 in)
Recommended shaft diameter76.2 mm (3.0 in)
Minimum bend radius25.4 mm (1.0 in)
Probe operating temperature-52 to +177 °C
Probe tip materialPolyphenylene sulfide
Probe case materialAISI 303 or 304 stainless steel
Application Industry
01
Long-reach metric mountingPositions the probe through machinery housings requiring a long M10 case.
02
Bearing vibration measurementMeasures shaft-relative radial motion on fluid-film bearing machines.
03
Axial shaft-position monitoringTracks thrust movement with the correct matched transducer components.
04
Rotational reference sensingProvides speed or phase-reference pulses from a prepared target.
FAQ
Will 330104-11-25-10-02-00 fit an M10 mounting location?
Yes. The case uses an M10 × 1 thread; confirm available depth and keep thread engagement within the published maximum.
What clearance is needed for the case of 330104-11-25-10-02-00?
Allow for the 250 mm overall case and 110 mm unthreaded section, plus room for the armored cable and its minimum bend radius.
Does 330104-11-25-10-02-00 have a connector protector?
No. Protect the locking coaxial joint separately wherever oil or other liquids can reach the connection.
How should 330104-11-25-10-02-00 be matched to an extension cable?
Choose the extension cable and sensor as one calibrated family so the sum of probe and extension lengths equals the required complete system length.
What temperature must be considered for 330104-11-25-10-02-00?
Keep the probe body and lead within the published operating range and also check the lower temperature rating of the remotely mounted electronics.
