Bently Nevada 330910-00-07-05-02-CN 3300 XL NSv Proximity Probe

Bently Nevada 330910-00-07-05-02-CN 3300 XL NSv Proximity Probe

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

Order(MOQ):
1
Payment:
T/T
Product Origin:
UK
Color:
Brand New
Shipping Port:
Xiamen
Warranty:
1 Year
Product Origin:
UK
Lead Time:
3-5 Days

Product Detail

Specifications

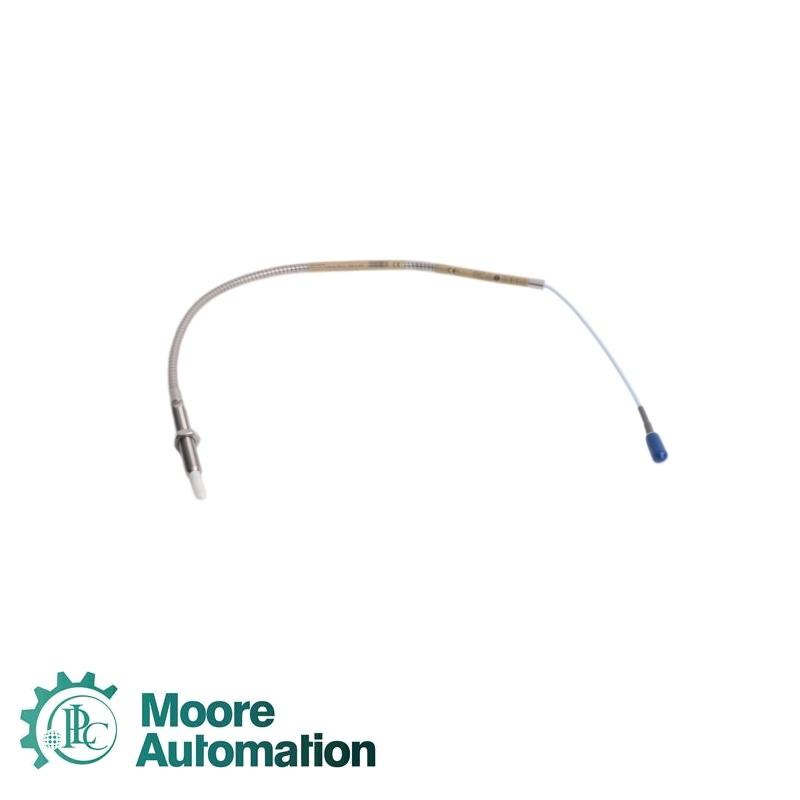

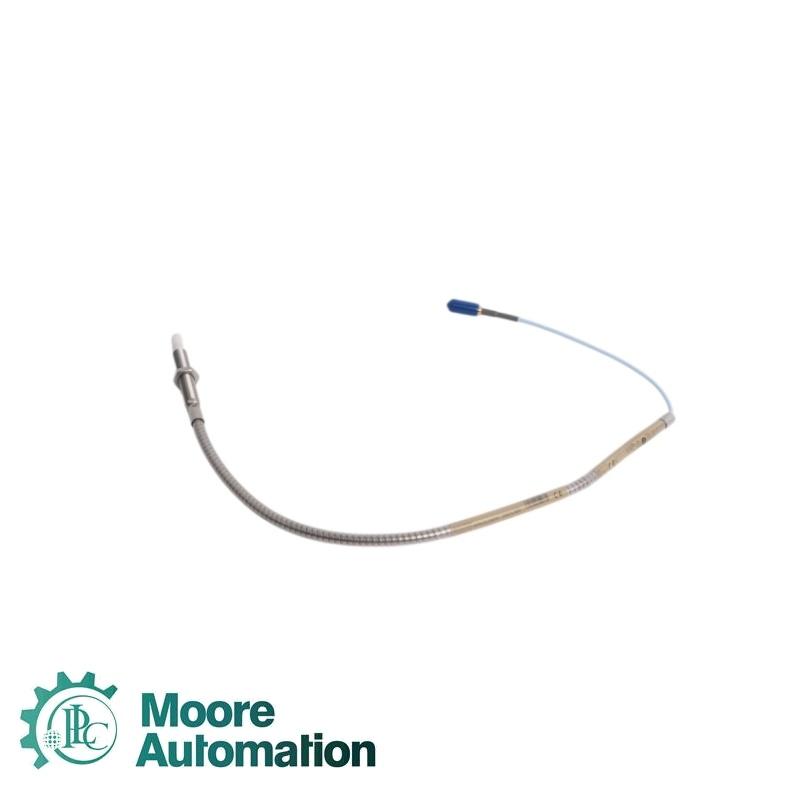

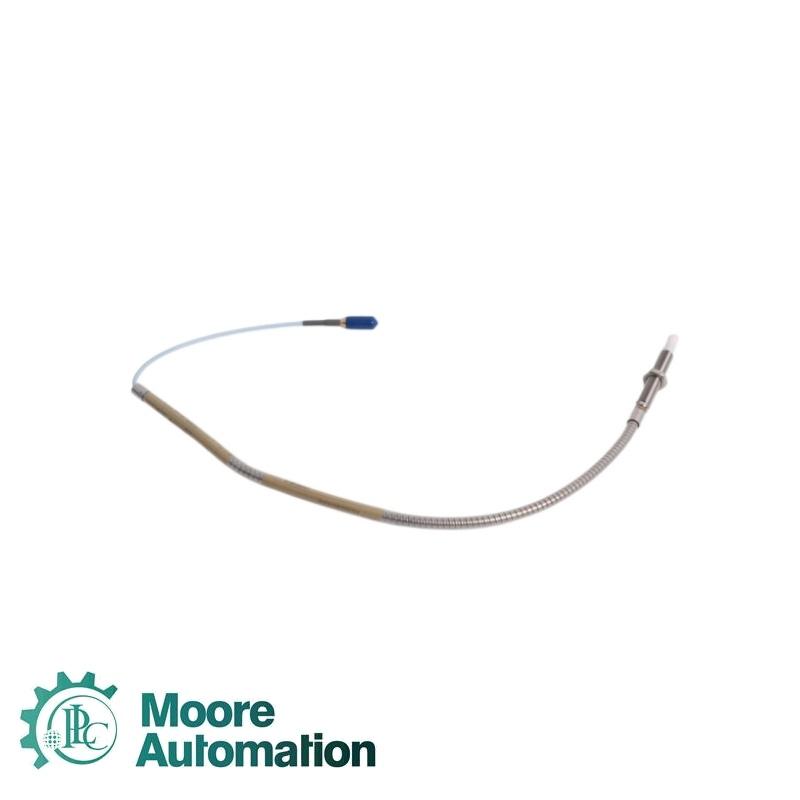

The Bently Nevada 330910-00-07-05-02-CN is an armored 3300 XL NSv proximity probe built around an M10 × 1 case, 0 mm unthreaded length, a 70 mm overall case length, a 0.5 m cable and a miniature coaxial ClickLoc connector without a protector. The current public official ordering table verifies the numeric configuration fields but does not define the final CN suffix; the complete nameplate must therefore be matched before replacement.

Product typeArmored proximity probe

Product series3300 XL NSv

Case threadM10 × 1

Unthreaded length0 mm

Overall case length70 mm

Probe cable length0.5 m

Total probe length0.5 m

Final suffixCN

Cable construction75 Ω coaxial, FEP insulated

Cable armorFlexible stainless steel

ConnectorMiniature coaxial ClickLoc

Connector protectorNot included

Probe dc resistance4.0 ± 0.5 Ω

Linear range1.5 mm (60 mil)

Recommended gap1.0 mm (40 mil)

Average scale factor7.87 V/mm (200 mV/mil)

Frequency response0 to 10 kHz, +0/-3 dB

Minimum flat target8.9 mm (0.35 in)

Minimum bend radius25.4 mm (1.0 in)

Probe operating temperature-52 to +177 °C

Probe tip materialPolyphenylene sulfide

Probe case materialAISI 304 stainless steel

Application Industry

Restricted-clearance machineryFits non-contacting measurements where standard probe bodies have limited access.

Process compressor monitoringSupports radial vibration and position measurements on compressor shafts.

Axial-position measurementMonitors thrust displacement on suitable flat steel targets.

Rotational reference measurementSupports speed, zero-speed and phase-reference sensing when used in a matched loop.

FAQ

How should the CN suffix on 330910-00-07-05-02-CN be verified?

Compare the complete nameplate, certification marking and purchase record with the installed component because the current public ordering table does not define that suffix.

What are the verified mechanical dimensions of 330910-00-07-05-02-CN?

The published numeric fields specify no unthreaded section, a 70 mm case and a half-meter armored lead.

Can 330910-00-07-05-02-CN be mixed with a standard 8 mm extension cable?

No. Use a mechanically and electrically compatible extension cable from the same small-view transducer family.

How should the connector on 330910-00-07-05-02-CN be protected near turbine oil?

Use the approved connector-protection method because ordinary silicone tape is not recommended where the joint is exposed to turbine oil.

What target conditions should be checked when gapping 330910-00-07-05-02-CN?

Use the specified steel target geometry, maintain the recommended initial gap and confirm adequate separation from adjacent probe tips to prevent cross-talk.
