Brief description |

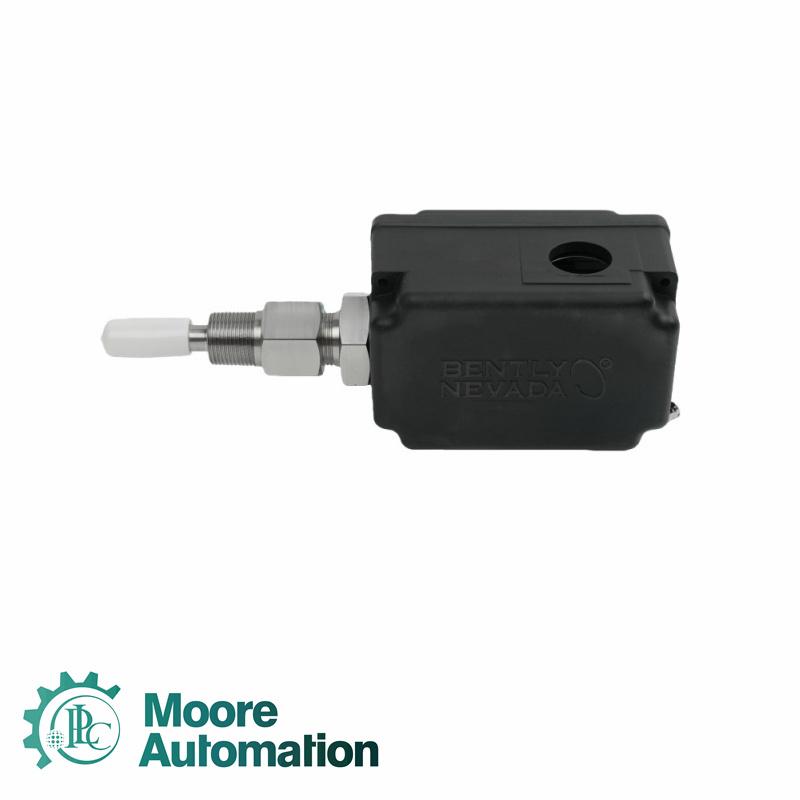

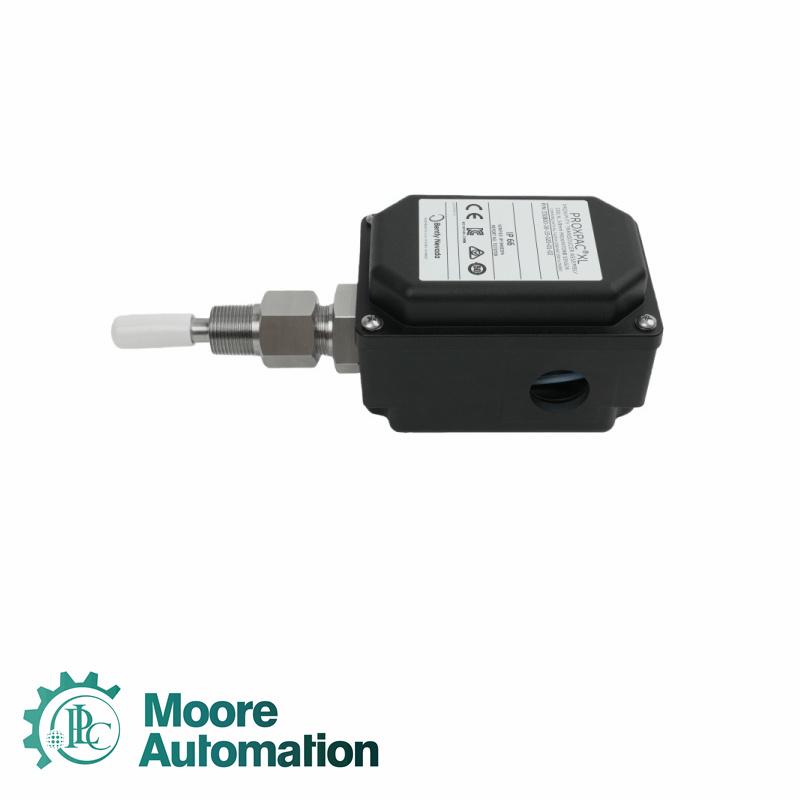

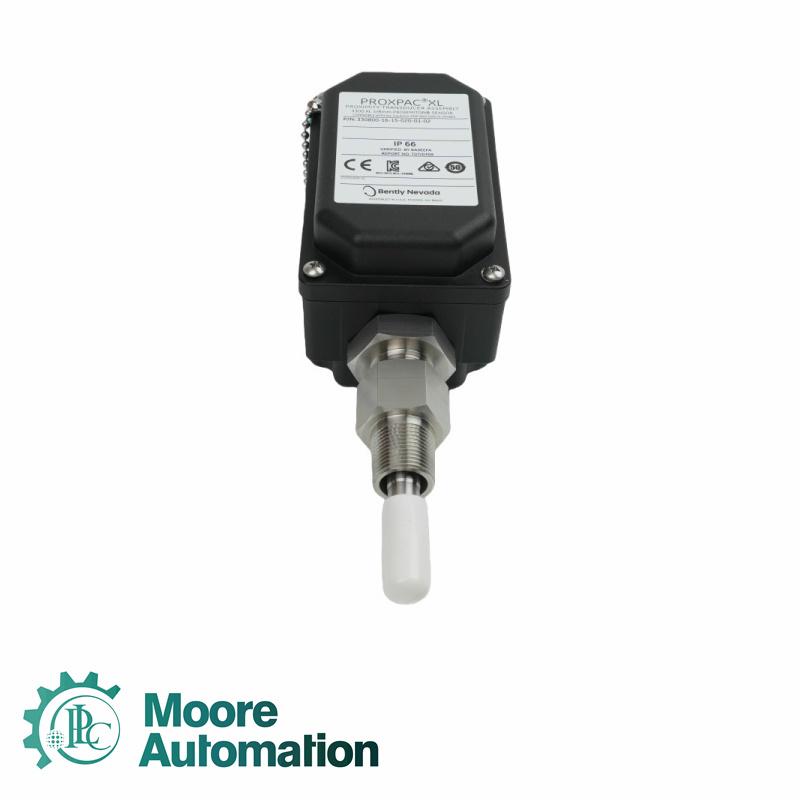

The design of the PROXPAC XL Proximity Transducer Assembly is similar to our 31000/32000 Proximity Probe Housing Assemblies. The assembly offers the same advantages and features as the 31000 and 32000 housings for accessing and externally adjusting proximity probes. However, the housing cover of the PROXPAC XL Assembly also contains its own 3300 XL Proximitor sensor. This design makes the PROXPAC XL Assembly a completely self-contained proximity probe system, and eliminates the need for an extension cable between the probe and its associated Proximitor sensor. It also eliminates the need for a separate Proximitor housing, as the field wiring connects directly between the monitors and PROXPAC XL Assemblies.
|
Technical parameters |
|
|
Probe and Approvals Option |
3300 XL 8 mm probe with Multiple Approvals |
|
Standoff Adapter Option (B Dimension) |
No standoff adapter |
|
Probe Penetration Option (C Dimension) |
115 mm |
|
Fittings Option (Supplied as a Kit) |
One M20 fitting, two plugs |
|
Mounting Thread Option |
3/4-14 NPT (required if ordering Standoff Adapter Option) |
|
Operating Temperature |
-52°C to +100°C (-62°F to +212°F) |
|
Proxpac Storage Temperature |
-52°C to +105°C (-62°F to +221°F) |
|
Relative Humidity (PROXPAC XL Sensor and Probe) |
100% condensing, non-submersible when connectors are protected. When properly sealed, moisture should not enter the housing |
|
Retaining Nut Torque |
29.5 N·m (260 in·lb) |
|
Probe Sleeve Locknut Torque |
39.3 N·m (350 in·lb) |
|
Housing Strength |
Outer sleeve mounted on a test stand with its axis parallel to horizontal; housing mounted on the outer sleeve through an end hole |
|
Housing Rating |
IP66 (verified by BASEEFA report number T07/0709) |
|
Grounding Liner and Retaining Plate Material |
AISI 304 Stainless Steel |
|
Vibration Isolation Material |
Extra Soft Cellular Silicone |
|
Lid Label Material |
Gloss Radiant White Polyester |
|
Recommended Gap Setting |
1.27 mm (50 mils) |
|
Supply Sensitivity |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance |
50 Ω |
|
Minimum Shaft Diameter |
50.8 mm (2.0 in) |
|
Contact me for a big surprise！ |
Email: sales3@askplc.com
Mobile(WhatsApp): 86-18150117685
John Yang is 24 hours online for you
|
Trust moore--Trustworthy global supplier |
Over the years, we have grown into a trusted global supplier with operations centers in Xiamen, China and Hong Kong, China. Our business spans the globe, with most of our valued customers located in the Middle East, Europe, the UK, Asia, and the USA.
|
Application |
Thermal Power Plants: Monitor turbine shaft vibration and axial displacement.
Hydroelectric Power Plants: Monitor main shaft runout and swing.
Petrochemical Plants: Monitor heavy-duty compressor and blower shafts.
Natural Gas Plants: Monitor gas turbines and compressor bearings.
Coal Coking Plants: Monitor coke blowers and crusher rotors.
|
FAQ |
Q: What probe and certification are used for 330801-28-00-115-03-02?
A: It uses a 3300 XL 8 mm probe with multiple certifications.
Q: What is the bracket adapter length of 330801-28-00-115-03-02?
A: This model does not include a bracket adapter.
Q: What is the probe insertion depth of 330801-28-00-115-03-02?
A: The insertion depth dimension is 115 mm.
Q: What is the housing protection rating of 330801-28-00-115-03-02?
A: The protection rating is IP66.
Q: What is the recommended torque for the probe sleeve lock nut of 330801-28-00-115-03-02?
A: The recommended torque is 39.3 N·m (350 in·lb).
|
