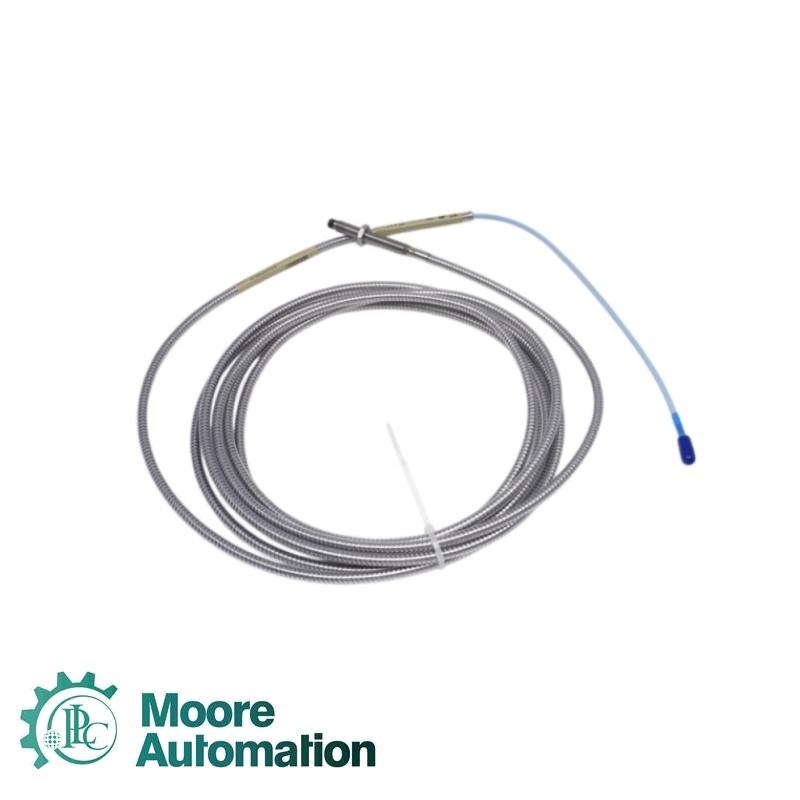

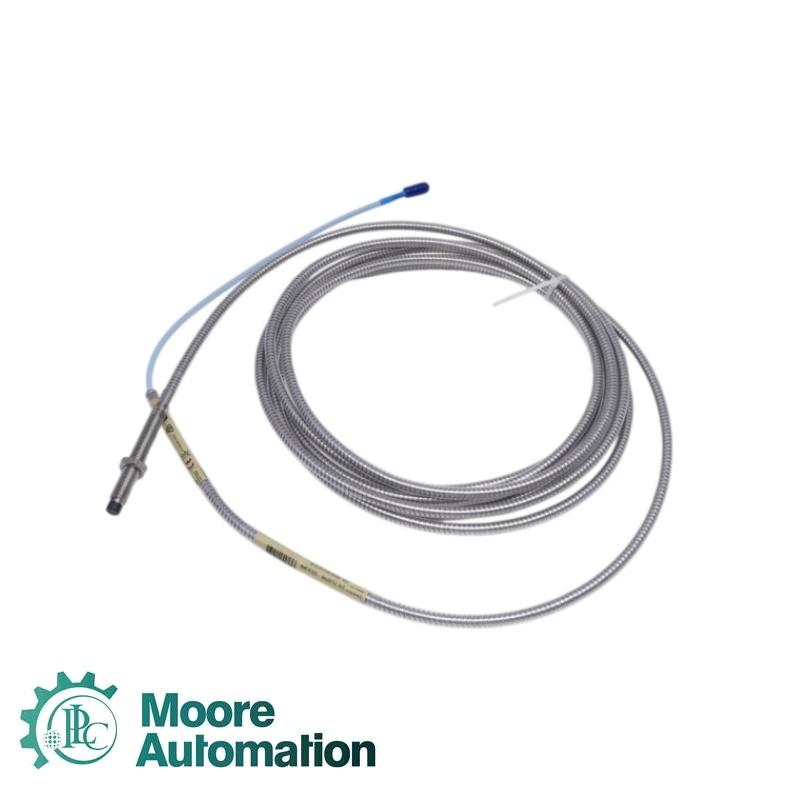

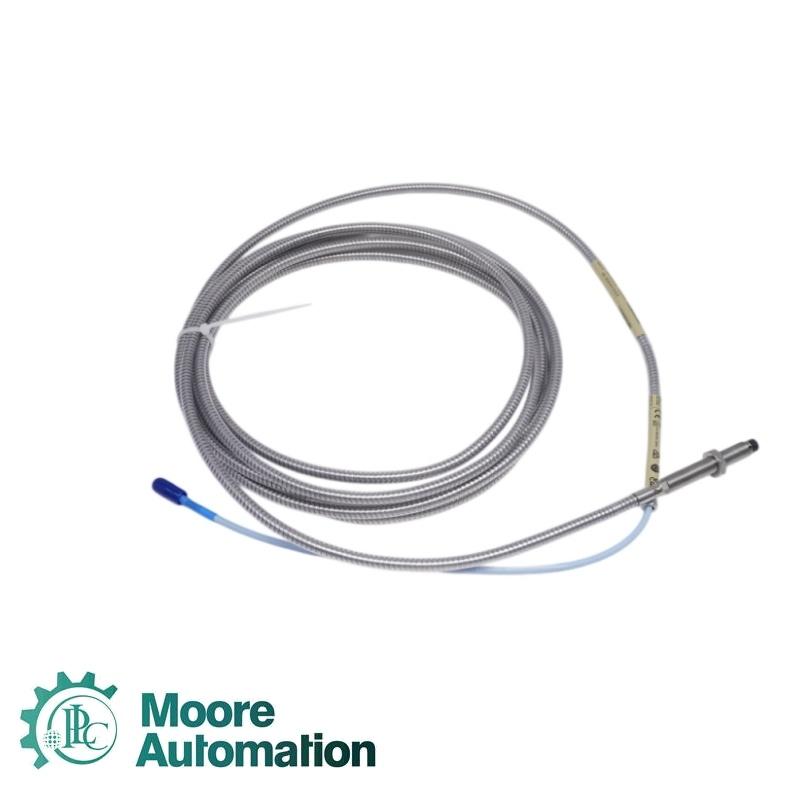

Bently Nevada 162381-064-028-50-05 3300 XL 8 mm Flexible Proximity Probe

hot selling

1 year warranty

Best choice and best discounts

Email me:sales3@askplc.com

Item NO.:
162381-064-028-50-05
Order(MOQ):
1
Payment:
T/T
Product Origin:
UK
Color:
Brand New
Shipping Port:
Xiamen
Lead Time：
3-5 Days

Product Detail

Specifications

Flexible 3300 XL 8 mm eddy-current probe configuration with drawing-specific mechanical fields. Use the full ordering code to preserve the 064-028 mechanical identity, 5.0 m length option and agency option during a controlled replacement.

Probe platform3300 XL 8 mm

Sensing principleNon-contact eddy current

Configuration family162381 custom

Mechanical fields064 / 028 (verify drawing)

Total length option50; 5.0 m (16.4 ft)

Agency option05; CSA, ATEX, IECEx (verify certificate)

Nominal probe tip8.0 mm

Linear range2 mm; 0.25–2.3 mm

Recommended gap1.27 mm (50 mils)

Incremental scale factor7.87 V/mm (200 mV/mil)

Frequency response0–10 kHz; +0/−3 dB

Target calibrationAISI 4140 steel

Minimum target size15.2 mm (0.6 in) flat target

Minimum shaft diameter50.8 mm (2 in)

Probe tip materialPolyphenylene sulfide (PPS)

Probe case materialAISI 303/304 stainless steel

Field wiring maximum305 m (1,000 ft)

System pairingMatched extension cable and Proximitor sensor

Application Industry

Shaft radial-vibration monitoring Shaft radial-vibration channels on fluid-film bearing machinery

Axial/static position monitoring Axial or static position channels where the installed geometry is documented

Keyphasor reference channels Keyphasor reference channels with the correct electronics and target

Approved probe maintenance replacement Maintenance replacement of an approved flexible-probe installation

FAQ

What documents are needed before ordering 162381-064-028-50-05?

Provide the nameplate, original drawing or channel record, connector and cable details, target material, approvals and quantity so the special fields can be verified.

Is 162381-064-028-50-05 interchangeable with every 8 mm probe?

Interchangeability requires the same electrical length, mechanical envelope, connector, calibration target and approved installation; diameter alone is not sufficient.

How do I verify the 064-028 portion of 162381-064-028-50-05?

Read every character from the unit label and compare it with the controlled drawing; do not decode the custom fields from a different standard ordering table.

Which signal checks are useful for 162381-064-028-50-05 commissioning?

Check supply, bias, continuity, gap voltage and response against the matched electronics, then document the baseline before returning the channel to service.

What routing precaution applies to 162381-064-028-50-05?

Maintain the specified bend radius, protect the connector from contamination, keep the shield termination controlled and separate the lead from strong interference sources.
