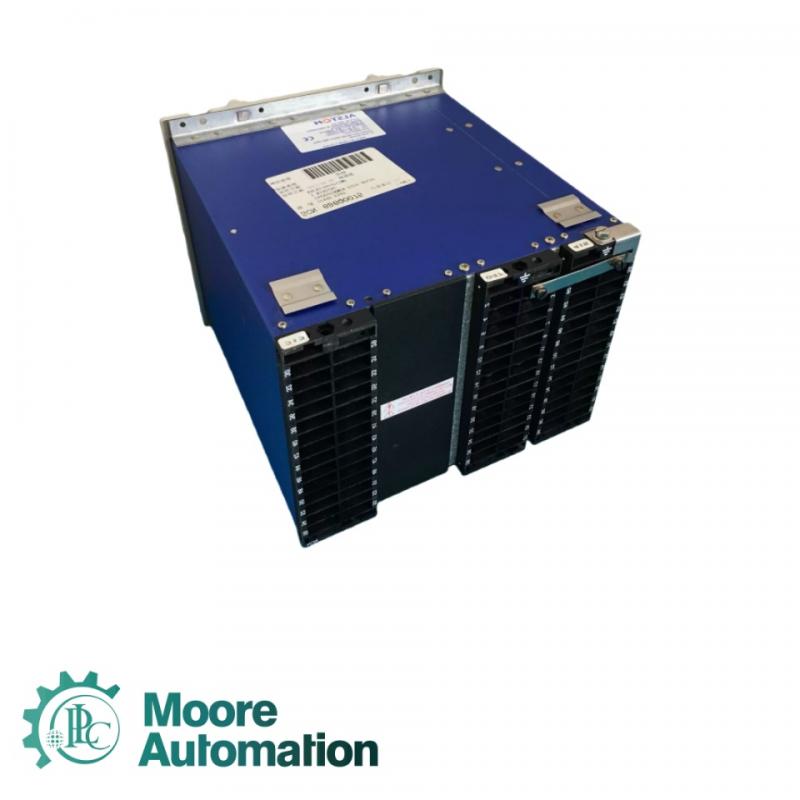

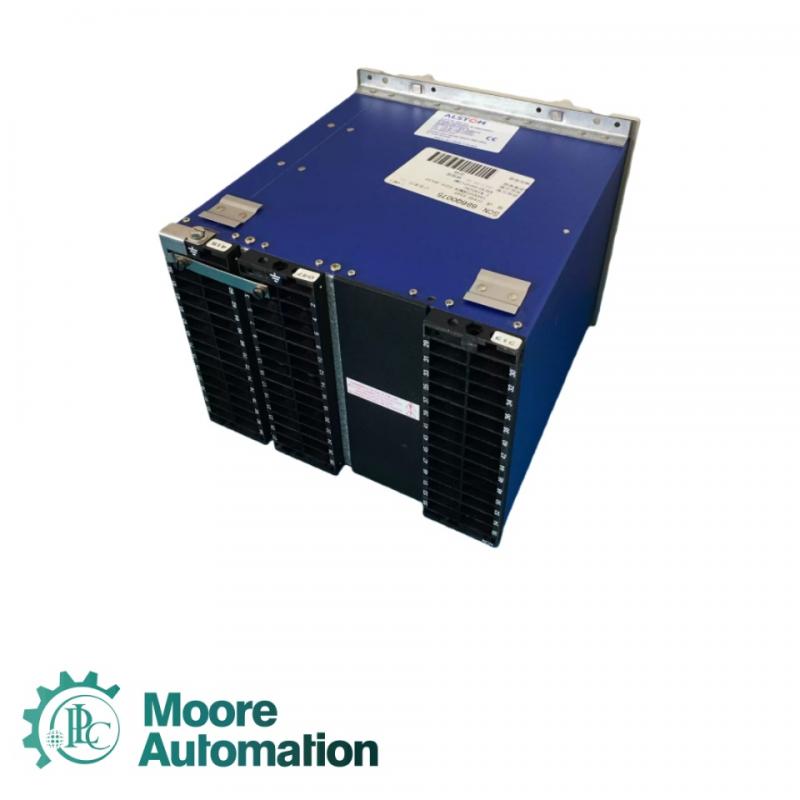

ALSTOM KBCH12001P15MEJ relay module

ALSTOM KBCH12001P15MEJ relay module

Brand:
Other
Order(MOQ):
1
Payment:
T/T
Product Origin:
France
Color:
Brand New
Shipping Port:
Xiamen
Lead Time：
in stock

Product Detail

Product Overview

Product Name:KBCH12001P15MEJ

Brand Name:ALSTOM

Product Origin:France

Payment: T/T

Shipping Port: Xia men

Delivery time: 1-3 days

Your Partner is Listening

John Yang: Sales Manager

Email: sales3@askplc.com

Mobile(Whats App): 86-18150117685

Product Description

ALSTOM KBCH12001P15MEJ is a high-performance power system relay protection module used for differential protection of generators, transformers, and busbars. This module integrates high-sensitivity detection circuits and multi-channel input/output interfaces, and can complete protection tripping actions in milliseconds.The device adopts a modular design and is compatible with the ALSTOM K-Bus system, achieving multi module collaborative protection and data communication.

Key Parameters

Input current level: 1A/5A
Rated voltage: AC/DC 110-250 V
Auxiliary power supply voltage: DC 24-250 V/AC 100-240 V
Action time: ≤ 30 ms
Control input channel: 8-16 optocoupler isolated inputs
Control output channel: 8-12 relay outputs
Communication interface: K-Bus/RS485/Modbus
Communication speed: 9.6-115.2 kbps
Display mode: LCD screen+status indicator LED
Storage function: supports event and disturbance recording
Data storage method: non-volatile memory
Temperature range for use: -10 ℃ to+55 ℃
Storage temperature range: -20 ℃~+70 ℃
Relative humidity: ≤ 95%, no condensation
Installation method: 19 inch rack or embedded installation
Shell protection level: IP20

FAQ

Q1: What type of system is the KBCH12001P15MEJ relay module designed for?
A1: This module is designed for differential protection systems used in generators, transformers, and busbar networks within substations and industrial power grids.

Q2: What is the rated input current of this module?
A2: It supports both 1A and 5A current transformer (CT) inputs, allowing flexible application in high-voltage and low-voltage protection schemes.

Q3: What kind of auxiliary power supply does the module require?
A3: The module operates with a wide-range auxiliary supply, typically DC 24–250V or AC 100–240V, depending on the hardware variant.

Q4: Does the module include self-diagnostic and event recording features?
A4: Yes, it supports automatic self-check at startup and during operation, and stores up to 128 event or disturbance records in non-volatile memory.
